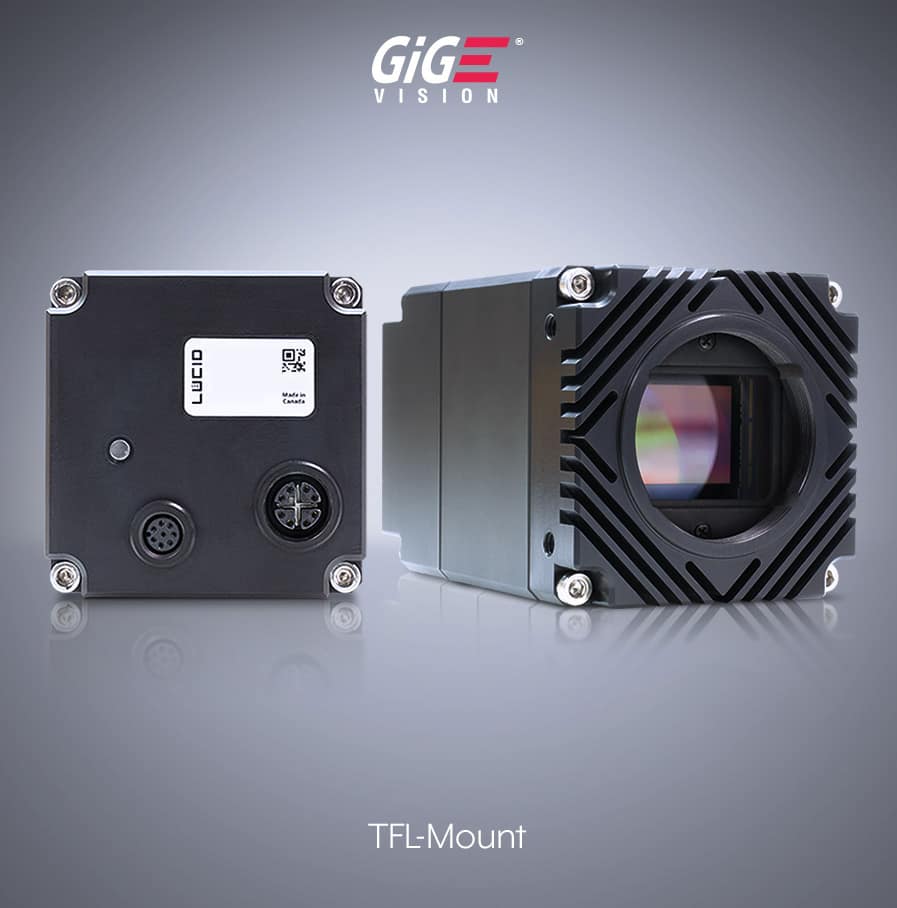

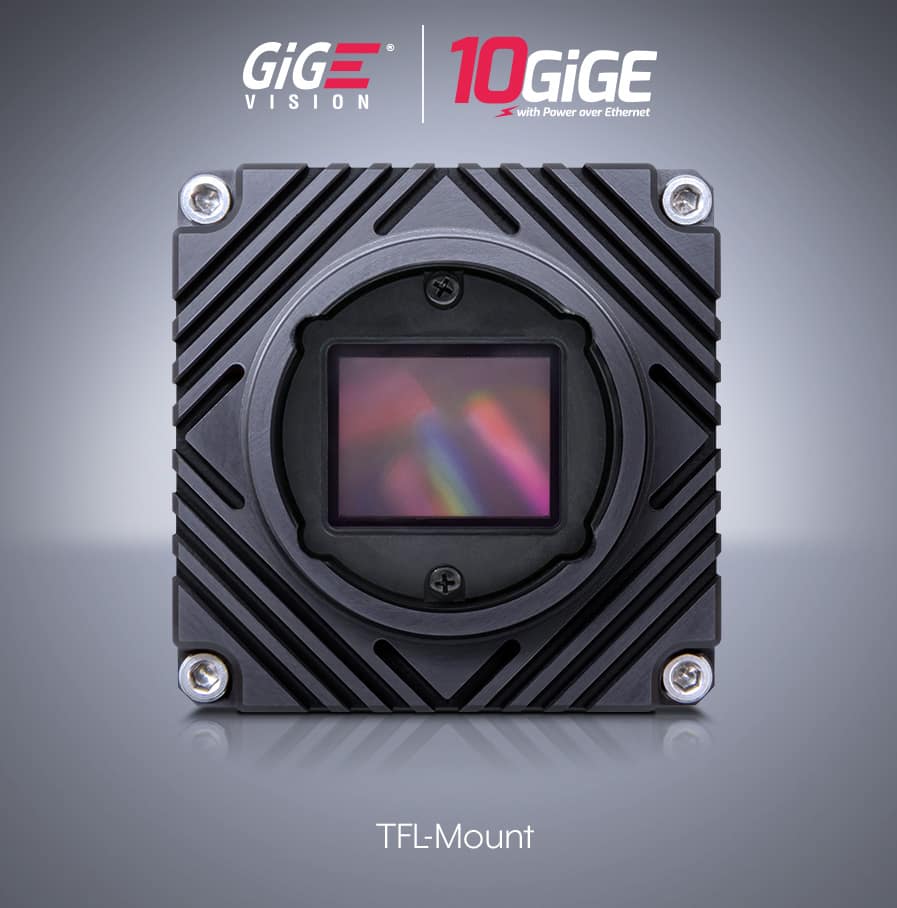

Atlas10 31.4 MP Model (IMX342)

Sensor
Sony IMX342 CMOS
Resolution
31.4 MP 6464 x 4852 px
Frame Rate
35 FPS
Model SKUsChromaLens Mount10GBASE-T GigE Vision Connector
ATX314S-CTColorTFL-mountM12
ATX314S-MTMonoTFL-mountM12
ATX314S-CNLColorNo lens mountM12
ATX314S-MNLMonoNo lens mountM12

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor ModelSony IMX342 CMOS
Shutter TypeGlobal
Sensor Size27.9mm (Type APS-C)
Resolution6464 x 4852 px, 31.4 MP
Pixel Size3.45 µm (H) x 3.45 µm (V)
Framerate*35.1 FPS (35.4 FPS) @ 31.4 MP (8 Bit ADC mode)
35.1 FPS (35.4 FPS) @ 31.4 MP (10 Bit ADC mode)
25.8 FPS (25.8FPS) @ 31.4 MP (12 Bit ADC mode)
Physical Properties
Dimensions55 x 55 x 95.5 mm
No Lens Mount: 55 x 55 x 65 mm
Lens MountTFL-Mount / No Lens Mount
Weight325 g / 240 g (No Lens Mount)
Interface and Power Information
Digital Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
Transport Layer ProtocolUDP (GigE Vision), RDMA (RoCE v2)
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE+ (IEEE 802.3at), or 12-24 VDC external
Power Consumption<12W via PoE, 11.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC8, 10, 12 bit
Gain Range0 dB to 48 dB analog and digital
Exposure Time37.896 μs to 10 s (Normal) / 2.328 μs to 32.3 μs (Short Mode)
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataImage, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event DataExposure start/end
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 45°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64
Warranty3 year

EMVA 1288 Data

ATX314S EMVA 1288 results.
Interactive graphs – please hover over the points in the graph to reveal QE %

ATX314S-M (Mono, Sony IMX342 CMOS)
Mono EMVA 1288 Results
Dynamic Range70.9 dB
SNR (Max)40.11 dB
Saturation Capacity10276 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)4.18 γ
Temporal Dark Noise2.32 e-
Gain0.38 DN / e-
Dark Current5.53 e- / s
Dark Signal Non-Uniformity0.89 e-
Photo Response Non-Uniformity1.08 %
Linearity Error Max/Min0.34/-0.47 %
ATX314S-C (Color, Sony IMX342 CMOS)
Color EMVA 1288 Results
Dynamic Range70.8 dB
SNR (Max)40.12 dB
Saturation Capacity10281 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)4.73 γ
Temporal Dark Noise2.34 e-
Gain0.38 DN / e-
Dark Current7.2 e- / s
Dark Signal Non-Uniformity0.97 e-
Photo Response Non-Uniformity1.15 %
Linearity Error Max/Min0.35/-0.32 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Atlas10 TFL-Mount Drawings
Atlas10-TFL-Mount-Drawings

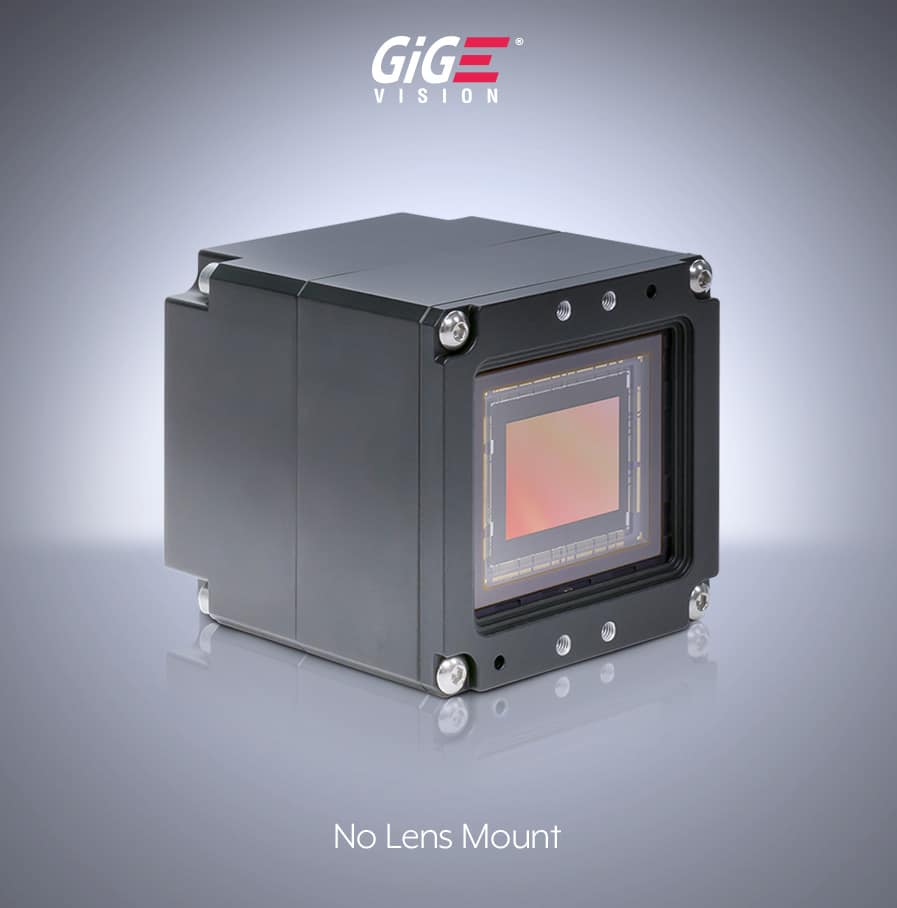

Atlas10 No Lens Mount
Atlas-no-mount-drawing

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
Lens Manufacturer Part #Lens Description5.0MP
ATX051S
8.1MP
ATX081S
12.3MP
ATX124S
16.2MP
ATX162S
20.4MP
ATX204S
24.5MP
ATX245S
31.4MP
ATX314S
47MP
ATX470S
65MP
ATX650G
Edmund Optics UC #33-300C-Mt 1/2″ 4mm f/1.8
Edmund Optics UC #33-301C-Mt 1/2″ 6mm f/1.85
Edmund Optics UC #33-307C-Mt 1/2″ 8mm f/1.8
Edmund Optics UC #33-303C-Mt 1/1.8″ 12mm f/1.8
Vignette
Edmund Optics UC #33-304C-Mt 1/1.8″ 16mm f/1.8
Vignette
Edmund Optics UC #33-305C-Mt 1/1.8″ 25mm f/1.85
Vignette
Edmund Optics C #67-709C-Mt 1/1.8" 6mm, f1.4
Vignette
Edmund Optics C #58-000C-Mt 2/3" 8.5mm, f/1.3
Good
Good
Edmund Optics C #58-001C-Mt 2/3" 12mm, f/1.8
Good
Good
Edmund Optics C #59-870C-Mt 2/3" 16mm, f/1.6
Good
Good
Edmund Optics C #59-871C-Mt 2/3" 25mm, f/1.4
Good
Good
Edmund Optics C #59-872C-Mt 2/3" 35mm, f/1.65
Good
Good
Edmund Optics C #59-873C-Mt 2/3" 50mm, f/2
Good
Good
Universe Compact C #BL060CC-Mt 5MP 2/3″ 6mm f/2.0
Good
Good
Universe Compact C #BL080CC-Mt 5MP 2/3″ 8mm f/2.0
Good
Good
Universe Compact C #BL120CC-Mt 5MP 2/3″ 12mm f/2.0
Good
Good
Universe Compact C #BL160CC-Mt 5MP 2/3″ 16mm f/2.0
Good
Good
Universe Compact C #BL250CC-Mt 5MP 2/3″ 25mm f/1.8
Good
Good
Fujinon HF-XA-5M #HF6XA-5MC-Mt 5MP 2/3″ 6mm f/1.9
Good
Good
Fujinon HF-XA-5M #HF8XA-5MC-Mt 5MP 2/3″ 8mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF12XA-5MC-Mt 5MP 2/3″ 12mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF16XA-5MC-Mt 5MP 2/3″ 16mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF25XA-5MC-Mt 5MP 2/3″ 25mm f/1.6
Good
Good
Fujinon CF-ZA-1S#CF8ZA-1SC-Mt 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Vignette (1)
Fujinon CF-ZA-1S #CF12ZA-1SC-Mt 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good (1)
Fujinon CF-ZA-1S #CF162ZA-1SC-Mt 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good (1)
Fujinon CF-ZA-1S #CF252ZA-1SC-Mt 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good (1)
Fujinon CF-ZA-1S #CF352ZA-1SC-Mt 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good (1)
Fujinon CF-ZA-1S #CF502ZA-1SC-Mt 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good (1)
Computar MPY #V0828-MPY2C-Mt 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Computar MPY #V1228-MPY2C-Mt 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Computar MPY #V1628-MPY2C-Mt 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Computar MPY #V2528-MPYC-Mt 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Computar MPY #V3528-MPYC-Mt 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Computar MPT #F1228-MPTC-Mt 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good (1)
Good (3)
Computar MPT #F2524-MPTC-Mt 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good (1)
Good (3)
Edmund Optics CA #11-320TFL-Mt APS-C 35mm f/2.8
Good (2)
Good
Good
Edmund Optics CA #11-320TFL-Mt APS-C 50mm f/1.8
Good (2)
Good
Good
Edmund Optics CA #11-321TFL-Mt APS-C 75mm f/2.8
Good (2)
Good
Good
Edmund Optics CA #11-322TFL-Mt APS-C 100mm f/2.8
Good (2)
Good
Good
(1) For AXT24S C-mount models. (2) For AXT24S TFL-mount models. (3) When used with TFL-Mount to C-Mount Adapter (P/N: ADA-TFL-C)

Lens Adapter ~ For Atlas10 TFL-II Mount Models:
(ATX65G)
Manufacturer Part #SKUSubject to 25% US import tariff?
(US customers only)
TFL-II Mount to F-Mount Lens (w/ Adjustable BFD) Adapter ADA-TFL2-F-ADJADA-TFL2-F-ADJNo
TFL-II Mount to Canon EF-Mount (w/ GPIO and Power) Birger AdapterADA-TFL2-EF-(US/EU)ADA-TFL2-EF-(US/EU)No
Lens Adapter ~ For Atlas10 TFL-Mount Models:
(ATX245S-CT/MT, ATX470S-CT/MT)
TFL-Mount to F-Mount Lens (w/ Adjustable BFD) AdapterADA-TFL-F-ADJADA-TFL-F-ADJNo
TFL-Mount Lens to F-Mount Adapter ADA-TFL-FADA-TFL-FNo
TFL-Mount Lens to C-Mount Adapter ADA-TFL-CADA-TFL-CNo
TFL-Mount to Canon EF-Mount (w/ GPIO and Power) Birger AdapterADA-TFL-EF-(US/EU)ADA-TFL-EF-(US/EU)No
Cables for Atlas10 Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green LUCID CAB-MR-2M-ACAB-MR-2M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green LUCID CAB-MR-5M-ACAB-MR-5M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark GreenLUCID CAB-MR-15M-ACAB-MR-15M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m LUCID CAB-MR-5M-RA1-ACAB-MR-5M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m LUCID CAB-MR-15M-RA1-ACAB-MR-15M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m LUCID CAB-MR-5M-RA2-ACAB-MR-5M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m LUCID CAB-MR-15M-RA2-ACAB-MR-15M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 5m LUCID CAB-MR-5M-RA3-ACAB-MR-5M-RA3-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 15m LUCID CAB-MR-15M-RA3-ACAB-MR-15M-RA3-ANo
M8 GPIO 8-pin (Amphenol) 1.0m CableLUCID GPIO-M8-1M-AGPIO-M8-1M-ANo
M8 GPIO 8-pin (Amphenol) 5.0m CableLUCID GPIO-M8-5M-AGPIO-M8-5M-ANo
M8 GPIO 8-pin (Amphenol) 15.0m CableLUCID GPIO-M8-15M-AGPIO-M8-15M-ANo
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA1-AGPIO-M8-5M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA1-AGPIO-M8-15M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA2-AGPIO-M8-5M-RA2-ANo
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA2-AGPIO-M8-15M-RA2-ANo
Tripod Mount Adapter
Atlas10 Tripod AdapterATX-TRATX-TRNo
Interface Cards, PoE Injectors, Power Supply
LUCID 2-CH 10G/1G RDMA PoE+ Host Channel Adapter (HCA) Network Card
*This card supports RDMA on Atlas10
PCIE-10GPOE2-LUCIDPCIE-10GPOE2-LUCIDNo
Broadcom 2-CH 10G/1G RDMA Host Channel Adapter (HCA) Network Card
*This card supports RDMA on Atlas10
BCM957416A4160CPCIE-10GETH2-BCNo
2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI DGEAP2X-PCIE8XG302PCIE-POE2-MGNo
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI GE10-PCIE4XG301PCIE-POE1-MG2No
Procet 2.5/5.0/10GbE 60W PoE++ InjectorProcet PT-PSE104GB-60-10POEP-PT(EU)Yes
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1Yes
