Phoenix 8.9 MP Model (IMX267)

Sensor
Sony IMX267 CMOS Sensor
Resolution
8.9 MP, 4096 x 2160 px
Frame Rate
12.5 FPS
Standard Configurations.
Model SKUs Chroma Lens Mount GigE Vision Connector

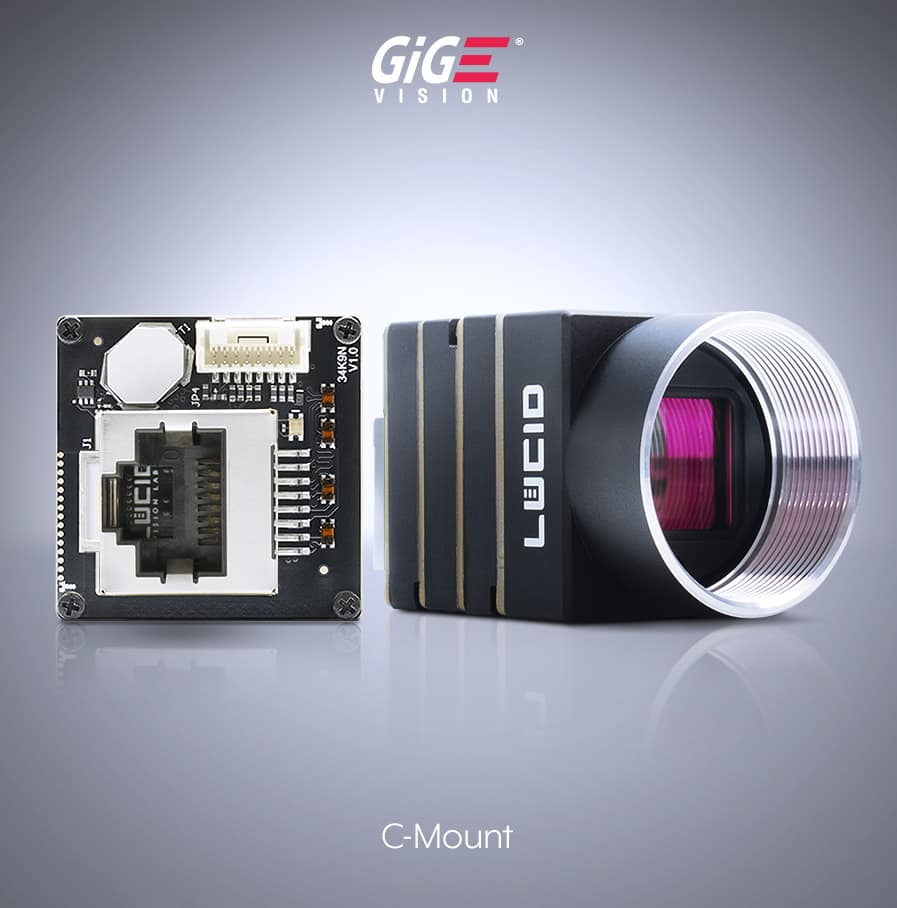

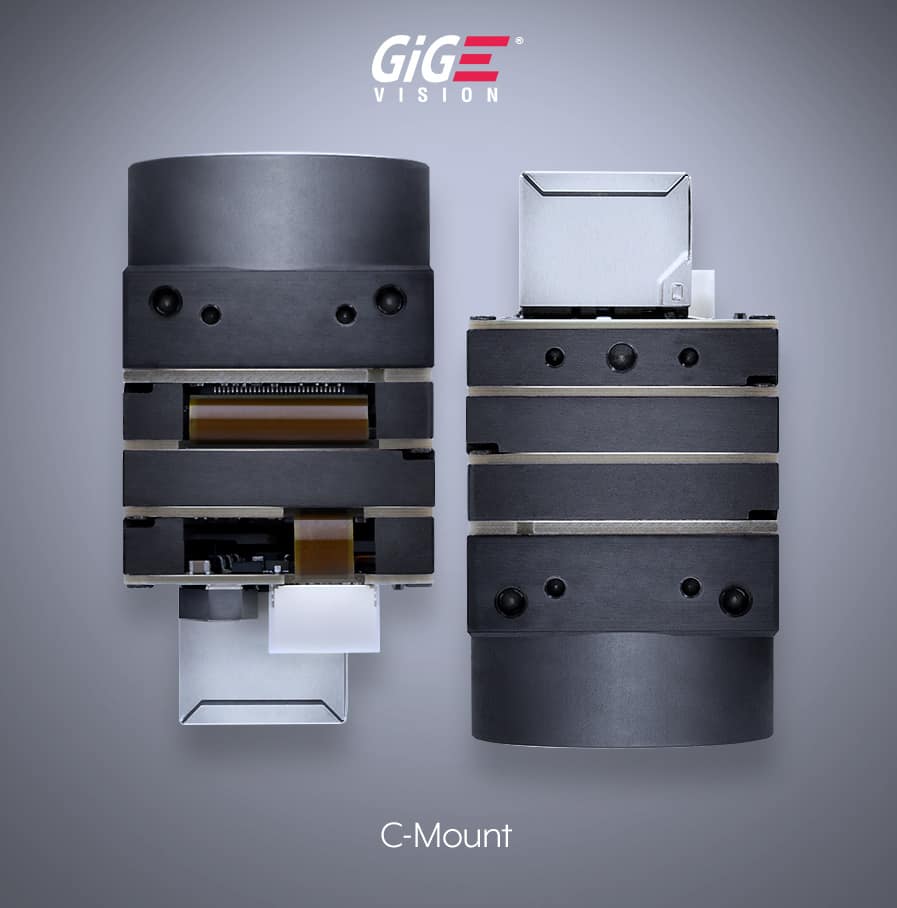

PHX089S-CC Color C-mount RJ45
PHX089S-MC Mono C-mount RJ45
Custom Configurations: Please note the following models may require additional lead time.
Model SKUs Chroma Lens Mount GigE Vision Connector

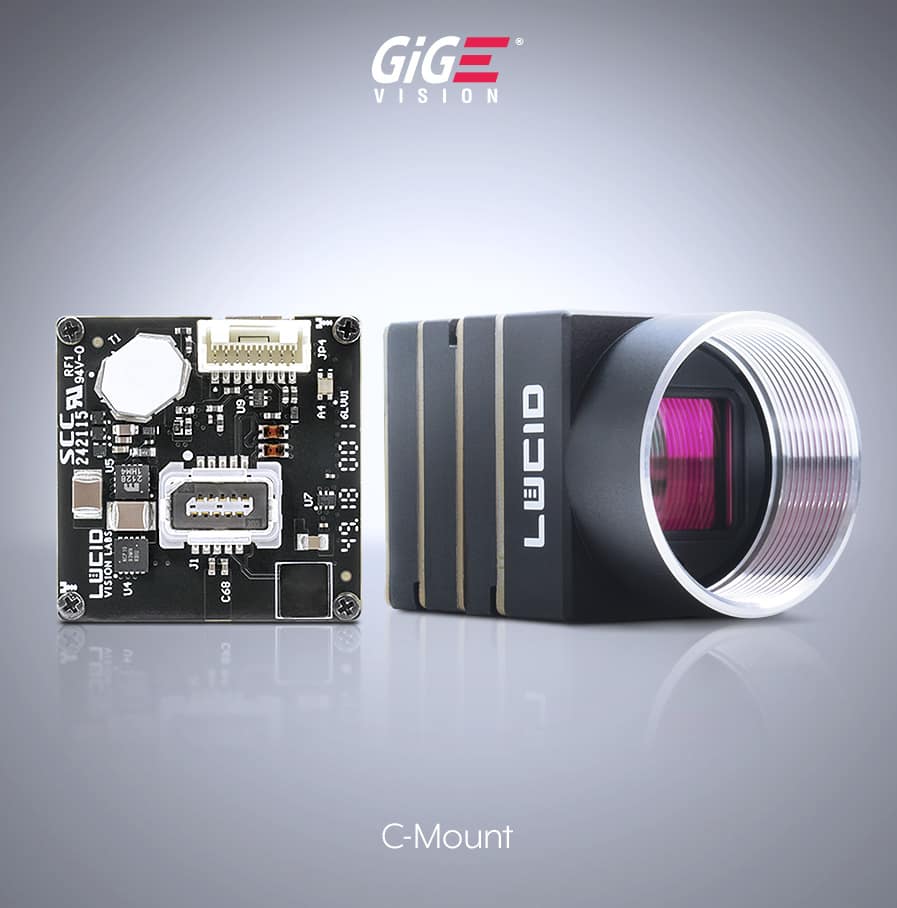

PHX089S-CC-IX Color C-mount ix Connector
PHX089S-MC-IX Mono C-mount ix Connector

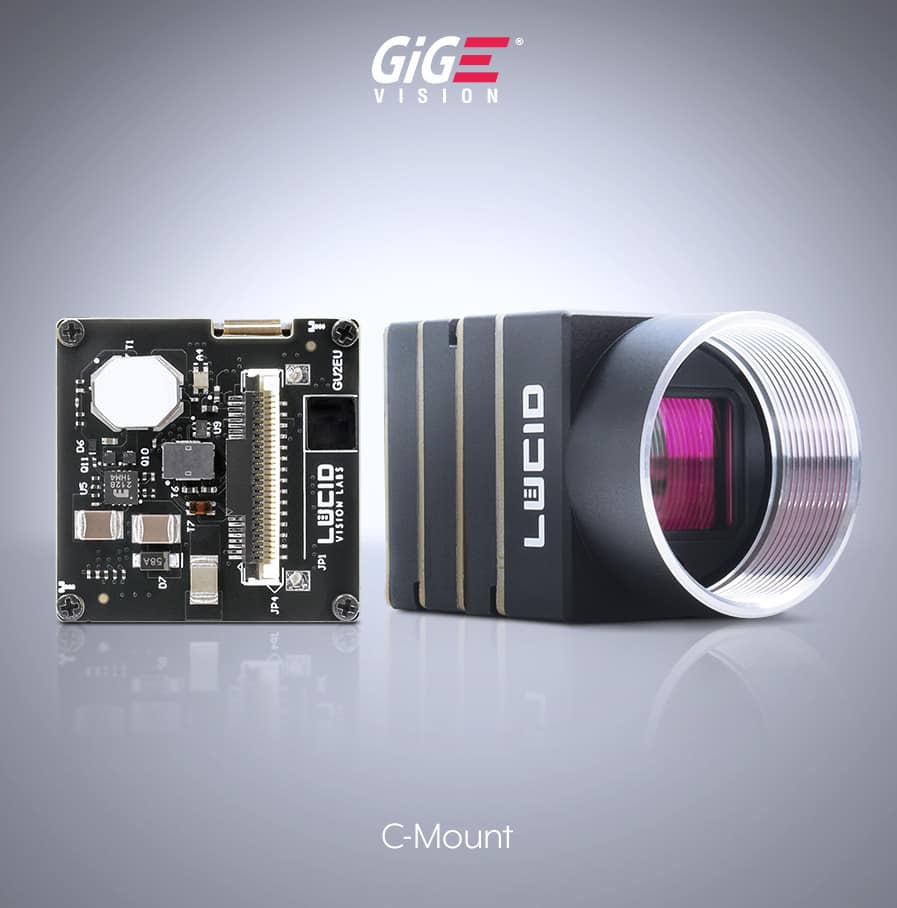

PHX089S-CC-FFC Color C-mount FFC (ZIF)
PHX089S-MC-FFC Mono C-mount FFC (ZIF)

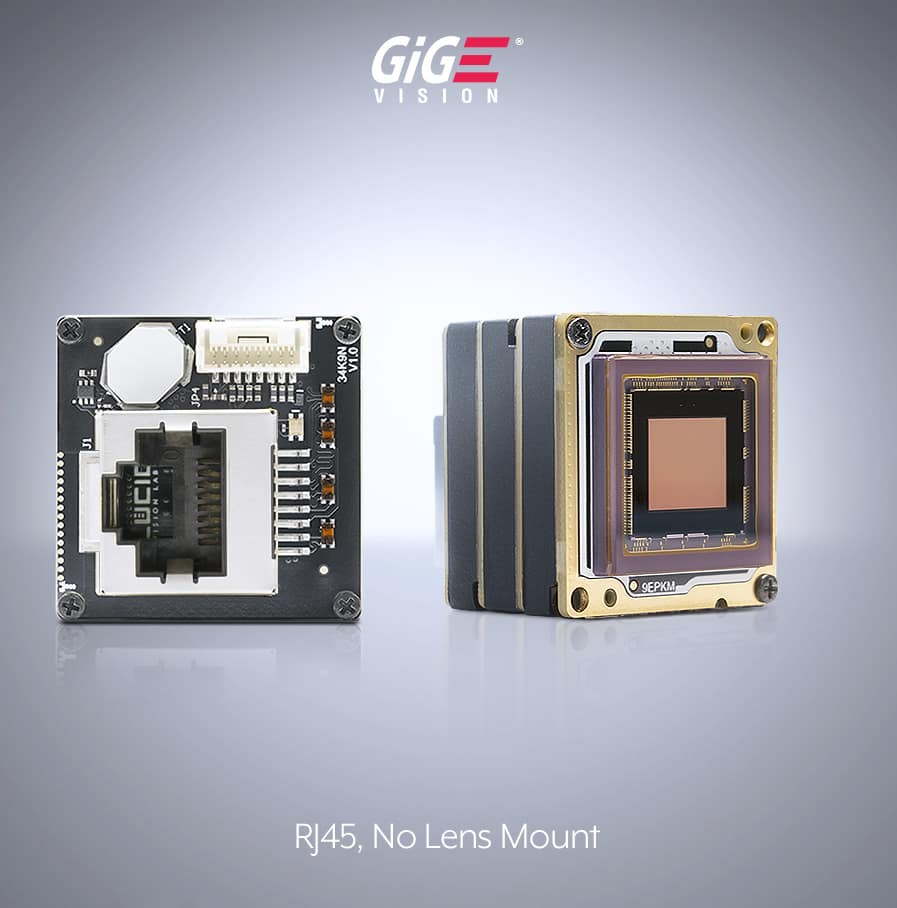

PHX089S-CNL Color No lens mount RJ45
PHX089S-MNL Mono No lens mount RJ45

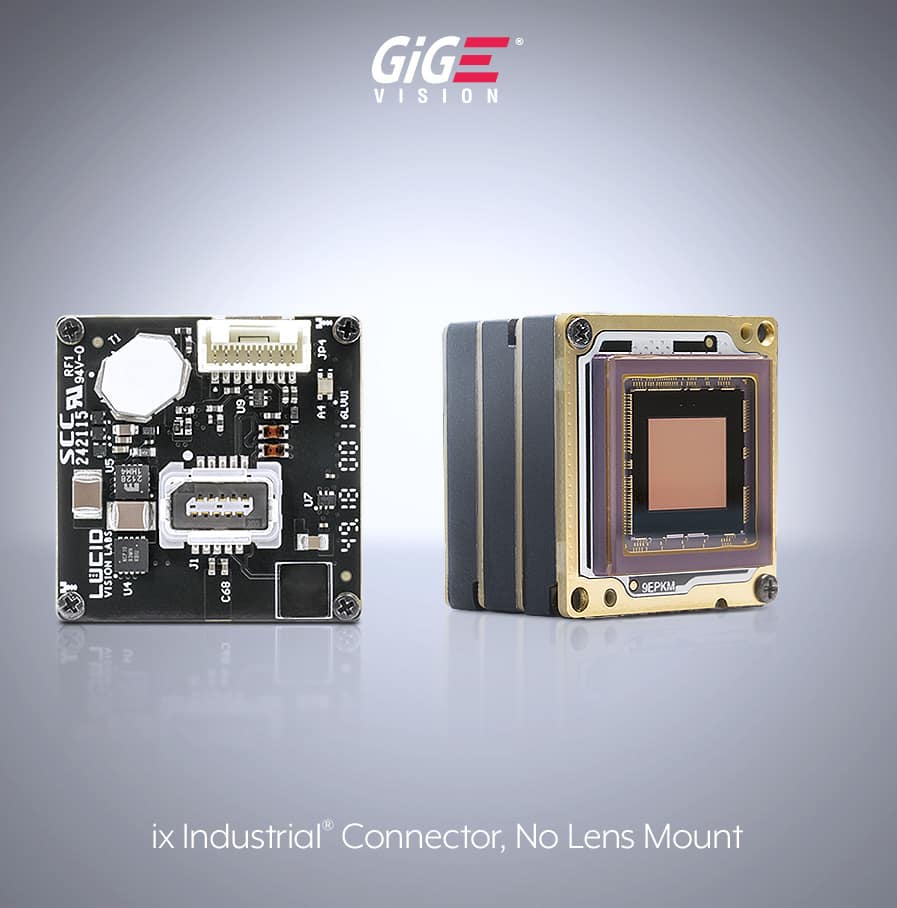

PHX089S-CNL-IX Color No lens mount ix Connector
PHX089S-MNL-IX Mono No lens mount ix Connector

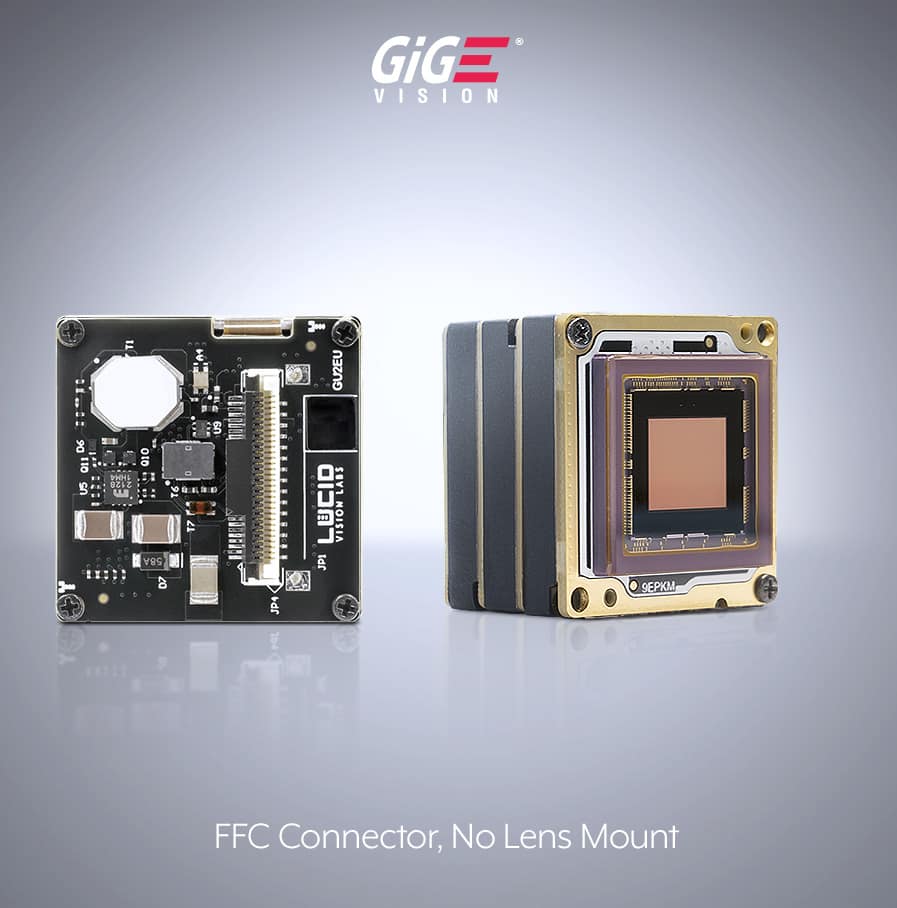

PHX089S-CNL-FFC Color No lens mount FFC (ZIF)
PHX089S-MNL-FFC Mono No lens mount FFC (ZIF)

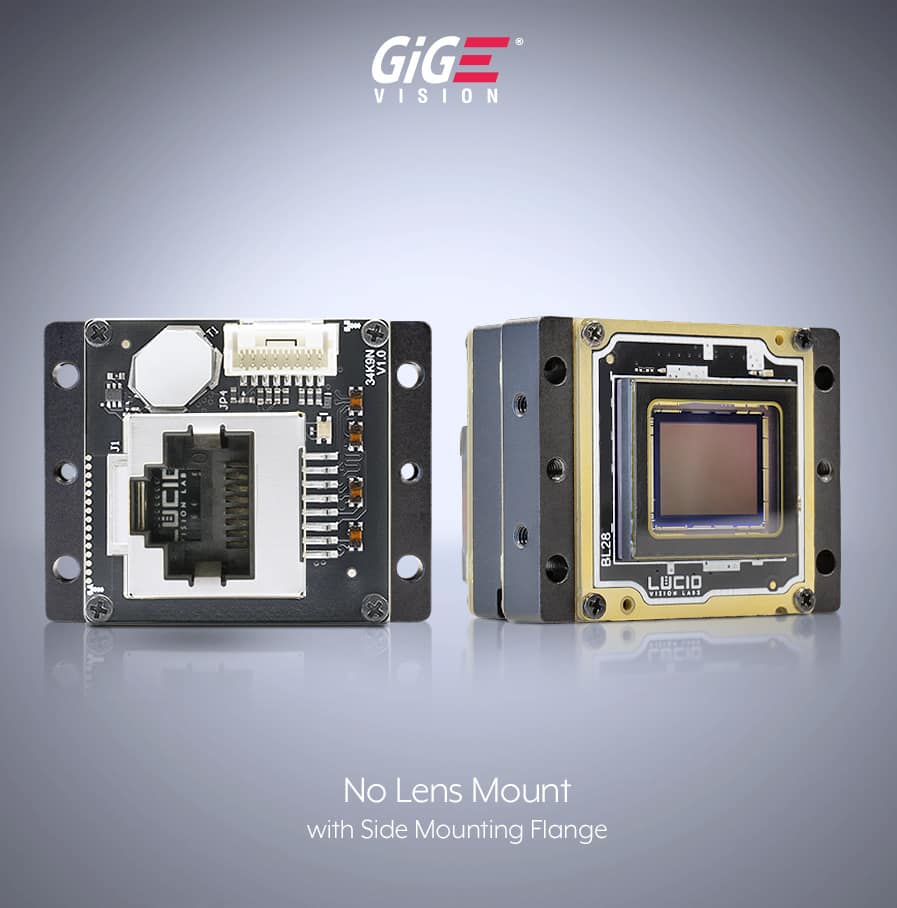

PHX089S-CNLF Color No lens mount w/ mounting flange RJ45
PHX089S-MNLF Mono No lens mount w/ mounting flange RJ45

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor Model Sony IMX267 CMOS
Shutter Type Global
Sensor Size 16.1 mm (Type 1″)
Resolution 4096 x 2160 px, 8.9 MP
Pixel Size 3.45 µm (H) x 3.45 µm (V)
Framerate* 12.5 FPS (13.7 FPS) @ 8.9 MP
Physical Properties
Dimensions 28 x 28 x 28.4 mm

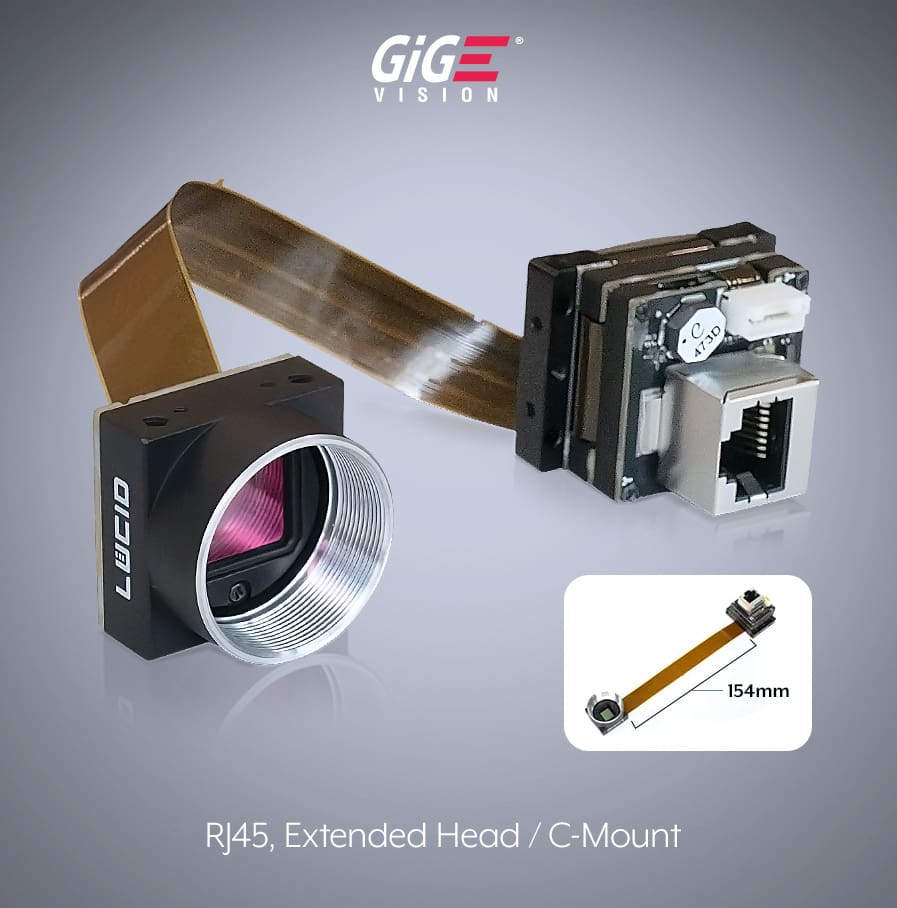

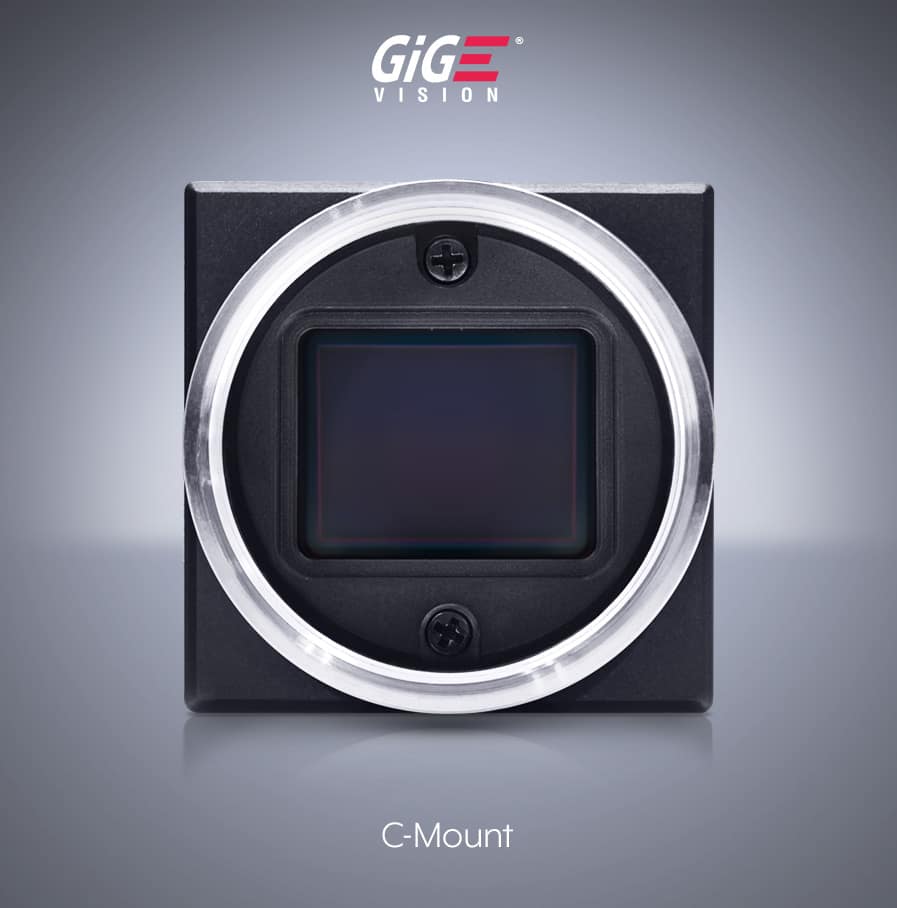

Lens Mount C-Mount / No Lens Mount / No Lens Mount with Flange
Weight 39 g
Interface and Power Information
Digital Interface 1000BASE-T RJ45, PoE
ix Industrial, PoE
FFC, PoE
GPIO Interface 8 pin JST connector
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.5W via PoE, 3W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 30 μs to 10 s
Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -10 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty 3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

PHX089S-M (Mono, Sony IMX267 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.29 dB
SNR (Max) 40.13 dB
Saturation Capacity 10310 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.06 γ
Temporal Dark Noise 2.18 e-
Gain 0.378 DN / e-
Dark Current 2.54 e- / s
Dark Signal Non-Uniformity 0.72 e-
Photo Response Non-Uniformity 0.77 %
Linearity Error Max/Min 0.23/-0.49 %
PHX089S-C (Color, Sony IMX267 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.36 dB
SNR (Max) 40.17 dB
Saturation Capacity 10402 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.05 γ
Temporal Dark Noise 2.17 e-
Gain 0.374 DN / e-
Dark Current 2.58 e- / s
Dark Signal Non-Uniformity 0.74 e-
Photo Response Non-Uniformity 1.05 %
Linearity Error Max/Min 0.27/-0.60 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Phoenix 28 x 28 mm, C-Mount, RJ45 Drawings
phoenix camera c-mount 28x28 drawings


Phoenix 28 x 28 mm, C-Mount, ix Connector Drawings
Phoenix camera with ix connector


Phoenix 28 x 28 mm, C-Mount, FFC Drawings
Phoenix with FFC ribbon camera connector

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads


For all other files, visit our Downloads Page to access:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
