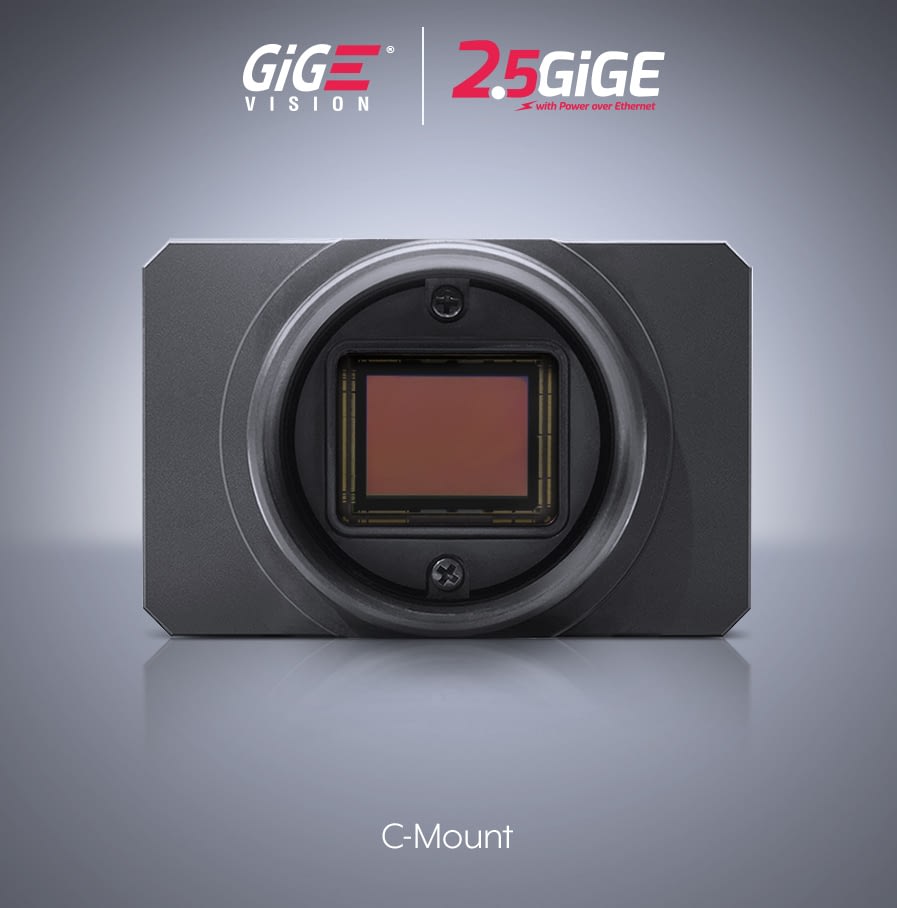

Triton2 12.3 MP Model (IMX545)

Sensor
Sony IMX545 CMOS
Resolution
12.3 MP 4096 x 3000 px
Frame Rate
22.5 FPS
Model SKUsChromaLens Mount2.5GBASE-T GigE Vision ConnectorIncluded Accessory
TRT124S-CCColorC-mountM12M8 GPIO IP67 Cap
TRT124S-MCMonoC-mountM12M8 GPIO IP67 Cap

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor ModelSony IMX545 CMOS
Shutter TypeGlobal
Sensor Size14.0mm (Type 1/1.1″)
Resolution4096 x 3000, 12.3 MP
Pixel Size2.74 µm (H) x 2.74 µm (V)
Framerate*22.5 FPS @ 12.3 MP
Physical Properties
Dimensions44 x 29 x 45.3 mm
Lens MountC-Mount
Weight90 g
Ingress ProtectionIP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)
Interface and Power Information
Digital Interface2.5GBASE-T / 1000BASE-T M12 (8-Pin X-Coded), PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption5W via PoE, 4.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer128 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC12 bit
Gain Range0 dB to 48 dB analog and digital
Exposure Time35.50 μs to 10 s (Normal) / 2.31 μs to 2.47 μs (Short Mode)
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataFrame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC ImmunityDIN EN 61000-6-2
Warranty3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %
Coming Soon

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Triton2 C-Mount Drawings
Triton2 technical drawing

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
Lens Manufacturer Part #Lens Description5.0MP
TRT051S
8.1MP
TRT081S
12.3MP
TRT124S
16.2MP
TRT162S
20.0MP
TRT200S
20.4MP
TRT204S
24.5MP
TRT245S
Edmund Optics UC #33-300C-Mt 1/2″ 4mm f/1.8
Edmund Optics UC #33-301C-Mt 1/2″ 6mm f/1.85
Edmund Optics UC #33-307C-Mt 1/2″ 8mm f/1.8
Edmund Optics UC #33-303C-Mt 1/1.8″ 12mm f/1.8
Vignette
Edmund Optics UC #33-304C-Mt 1/1.8″ 16mm f/1.8
Vignette
Edmund Optics UC #33-305C-Mt 1/1.8″ 25mm f/1.85
Vignette
Edmund Optics C #67-709C-Mt 1/1.8" 6mm, f1.4
Vignette
Edmund Optics C #58-000C-Mt 2/3" 8.5mm, f/1.3
Good
Good
Edmund Optics C #58-001C-Mt 2/3" 12mm, f/1.8
Good
Good
Edmund Optics C #59-870C-Mt 2/3" 16mm, f/1.6
Good
Good
Edmund Optics C #59-871C-Mt 2/3" 25mm, f/1.4
Good
Good
Edmund Optics C #59-872C-Mt 2/3" 35mm, f/1.65
Good
Good
Edmund Optics C #59-873C-Mt 2/3" 50mm, f/2
Good
Good
Universe Compact C #BL060CC-Mt 5MP 2/3″ 6mm f/2.0
Good
Good
Universe Compact C #BL080CC-Mt 5MP 2/3″ 8mm f/2.0
Good
Good
Universe Compact C #BL120CC-Mt 5MP 2/3″ 12mm f/2.0
Good
Good
Universe Compact C #BL160CC-Mt 5MP 2/3″ 16mm f/2.0
Good
Good
Universe Compact C #BL250CC-Mt 5MP 2/3″ 25mm f/1.8
Good
Good
Fujinon HF-XA-5M #HF6XA-5MC-Mt 5MP 2/3″ 6mm f/1.9
Good
Good
Fujinon HF-XA-5M #HF8XA-5MC-Mt 5MP 2/3″ 8mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF12XA-5MC-Mt 5MP 2/3″ 12mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF16XA-5MC-Mt 5MP 2/3″ 16mm f/1.6
Good
Good
Fujinon HF-XA-5M #HF25XA-5MC-Mt 5MP 2/3″ 25mm f/1.6
Good
Good
Fujinon CF-ZA-1S#CF8ZA-1SC-Mt 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Good
Vignette
Fujinon CF-ZA-1S #CF12ZA-1SC-Mt 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF162ZA-1SC-Mt 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF252ZA-1SC-Mt 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF352ZA-1SC-Mt 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF502ZA-1SC-Mt 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V0828-MPY2C-Mt 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Good
Computar MPY #V1228-MPY2C-Mt 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Good
Computar MPY #V1628-MPY2C-Mt 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Good
Computar MPY #V2528-MPYC-Mt 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Good
Computar MPY #V3528-MPYC-Mt 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Good
Computar MPT #F1228-MPTC-Mt 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F2524-MPTC-Mt 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Edmund Optics CA #11-320TFL-Mt APS-C 50mm f/1.8
Edmund Optics CA #11-321TFL-Mt APS-C 75mm f/2.8
Edmund Optics CA #11-322TFL-Mt APS-C 100mm f/2.8

Lens AdaptersManufacturer Part #SKU
C-mount to S-mount (M12) Lens AdapterLUCID ADA-C-SADA-C-S
IP67 Lens Tubes for Triton2 ModelsManufacturer Part #SKU
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 34.6mmLUCID IPTC-D270L346IPTC-D270L346
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 29.9mmLUCID IPTC-D355L299IPTC-D355L299
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 38.5mmLUCID IPTC-D440L385IPTC-D440L385
IP67 C-Mount Lens Tube Inner ⌀: 35.5mm, Inner Length: 39.9mmLUCID IPTC-D355L399IPTC-D355L399
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 59.9mmLUCID IPTC-D355L599IPTC-D355L599
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 68.5mmLUCID IPTC-D440L685IPTC-D440L685
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mmLUCID IPTC-D590L555IPTC-D590L555
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 71.5mmLUCID IPTC-D590L715IPTC-D590L715
Cables for Triton2 Models
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark Green LUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green LUCID CAB-MR-5M-ACAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 5m, Dark GreenLUCID CAB-MR-5M-RA1CAB-MR-5M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Down] – 15m, Dark GreenLUCID CAB-MR-15M-RA1CAB-MR-15M-RA1
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 5m, Dark GreenLUCID CAB-MR-5M-RA2CAB-MR-5M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, Dark GreenLUCID CAB-MR-15M-RA2CAB-MR-15M-RA2
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Triton Side] – 5m, Dark GreenLUCID CAB-MR-5M-RA4CAB-MR-5M-RA4
M12 to RJ45 IP67 Cat6a Cable [Right Angle, Triton Side] – 15m, Dark GreenLUCID CAB-MR-15M-RA4CAB-MR-15M-RA4
M8 GPIO 8-pin 1.0m CableLUCID GPIO-M8GPIO-M8
M8 GPIO 8-pin 5.0m CableLUCID GPIO-M8-5MGPIO-M8-5M
M8 GPIO 8-pin 15.0m CableLUCID GPIO-M8-15MGPIO-M8-15M
M8 GPIO 8-pin Cable [Right Angle, Down] – 5.0mLUCID GPIO-M8-5M-RA1GPIO-M8-5M-RA1
M8 GPIO 8-pin Cable [Right Angle, Down] – 15.0mLUCID GPIO-M8-15M-RA1GPIO-M8-15M-RA1
M8 GPIO 8-pin Cable [Right Angle, Up] – 5.0mLUCID GPIO-M8-5M-RA2GPIO-M8-5M-RA2
M8 GPIO 8-pin Cable [Right Angle, Up] – 15mLUCID GPIO-M8-15M-RA2GPIO-M8-15M-RA2
Tripod Mount Adapter & Misc
Tripod AdapterTRT-TRTRT-TR
M8 GPIO IP67 Cap *(1 cap included with each Triton2 unit)CAP-M8CAP-M8
Interface Cards, PoE Injectors, Power Supply
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Cardioi GE2PX4-PCIE4XE301PCIE-POE4-2G
Procet 2.5G/5.0GbE 30W PoE+ InjectorProcet PT-PSE104G-30-5POEP-PT-5G or POEP-PTEU-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1
