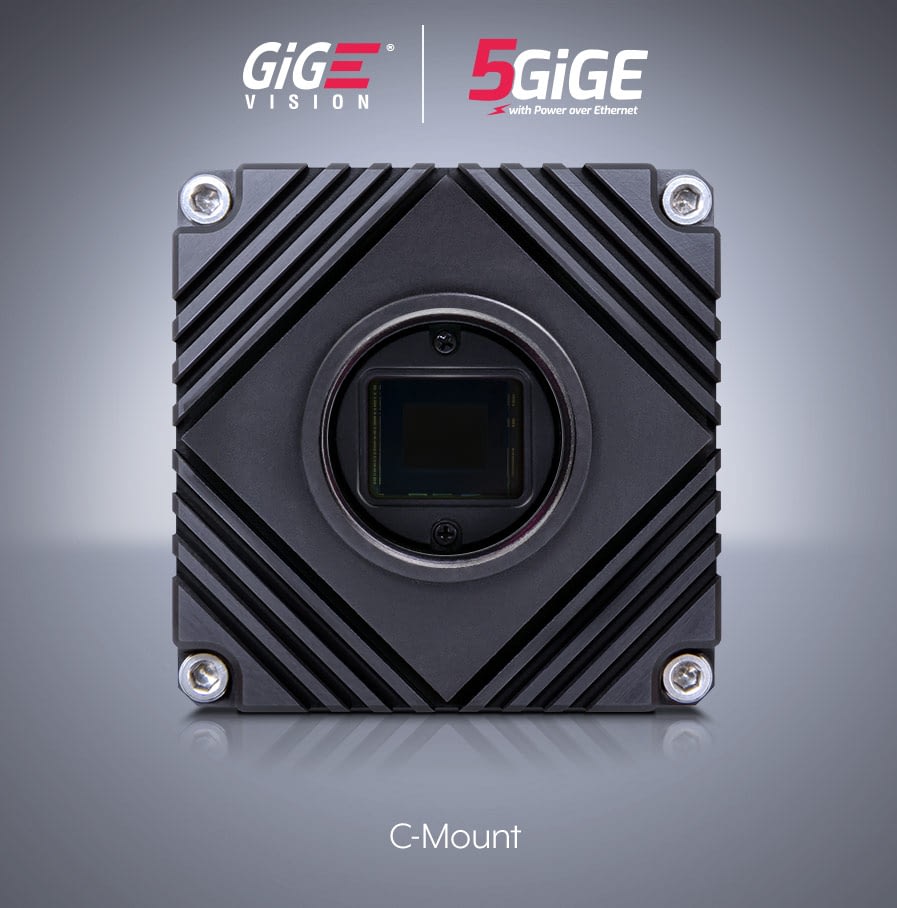

Atlas 2.8 MP Model

Sensor
Sony IMX421 CMOS
Resolution
2.8 MP 1936 x 1464 px
Frame Rate
173 FPS
Model SKUsChromaLens Mount5GBASE-T GigE Vision Connector
ATL028S-CCColorC-mountM12
ATL028S-MCMonoC-mountM12

Please select your camera configuration:

Clear
SKU: N/A Category:

Specifications

Sensor Properties
Sensor ModelSony IMX421 CMOS
Shutter TypeGlobal
Sensor Size11.0mm (Type 2/3″)
Resolution1936 x 1464 px, 2.8 MP
Pixel Size4.5 µm (H) x 4.5 µm (V)
Framerate173 FPS @ 2.8 MP
Physical Properties
Dimensions55 x 55 x 70 mm
Lens MountC-Mount
Weight240 g
Interface and Power Information
Digital Interface5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption8W via PoE, 7W when powered externally
Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC8, 10, 12 bit
Gain Range0 dB to 48 dB analog and digital
Conversion GainNormal and High Mode (High: 2.3x in analog domain)
Exposure Time30 μs to 10 s
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataTimestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataExposure start/end
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Warranty3 year

EMVA 1288 Data

Coming soon

Drawings

Atlas TFL-Mount / C-Mount Drawings
Atlas 5Gbase-t Camera Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
C-mount Lenses for 1.1" SensorManufacturer Part #SKU
Computar C-Mount 12MP 1.1″ 8mm f/2.8Computar V0828-MPYCC080-12M
Computar C-Mount 12MP 1.1″ 12mm f/2.8Computar V1228-MPYCC120-12M
Computar C-Mount 12MP 1.1″ 16mm f/2.8Computar V1628-MPYCC160-12M
Computar C-Mount 12MP 1.1″ 25mm f/2.8Computar V2528-MPYCC250-12M
Computar C-Mount 12MP 1.1″ 35mm f/2.8Computar V3528-MPYCC350-12M
Cables for Atlas Models
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark Green LUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M8 GPIO 8-pin 1.0m CableGPIO-M8GPIO-M8
M8 GPIO 8-pin 5.0m CableGPIO-M8-5MGPIO-M8-5M
Tripod Mount Adapter
Atlas Tripod AdapterATL-TRATL-TR
Interface Cards, PoE Injectors, Power Supply
10G/5G/2.5G/1G PoE+ NBASE-T Ethernet CardIOI GE10-PCIE4XG202PPCIE-POE1-MG
M8 GPIO AC Adapter Power Supply (NA/EU Versions)CUI INC SDI65-18-UM8P-US1 or M8P-EU1
