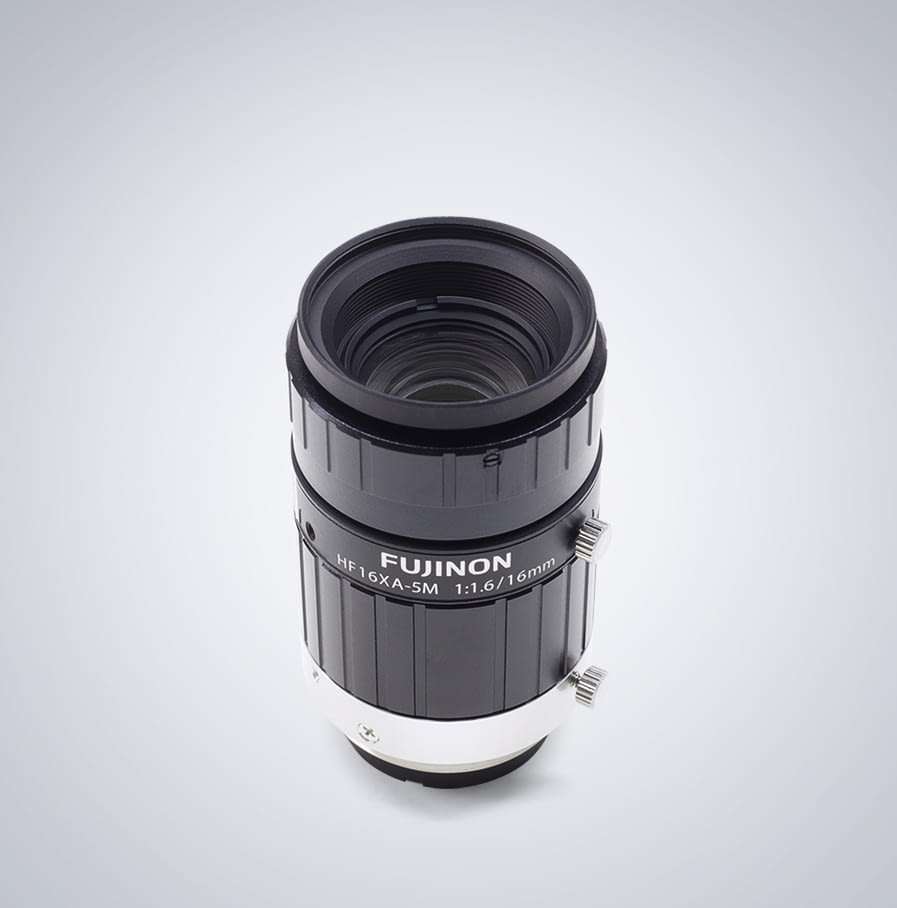

Fujinon C-Mount 2/3″ 16mm f/1.6



The FUJINON HF-XA-5M series features “4D High Resolution”, which mitigates resolution degradation even when changing a working distance or aperture value. This lens is compactly designed with the external diameter of 29.5mm, which is about the same size as general compact machine vision cameras. The entire series contributes to achieving a compact form factor for machine vision systems.



Specifications

Model #Fujinon HF16XA-5M
Focal Length16mm
Iris Range (f no.)f1.6 – f16
Angle of View (H x V) *
* Mounted to 2/3” sensor cameras
31.4° x 23.7°
Focus Range (from front of the lens)∞-100mm
Operation of FocusManual
Operation of IrisManual
Filter ThreadM25.5 x 0.5mm
MountC-Mount
Sensor Size (max.)2/3”
TV Distortion-0.60%
Diameterφ29.5 x 46.0mm
Weight71g
Fixing Knobs Bundled2
SKU: FC160-5M Category:

Technical Drawings

HF16xa-5m drawings
