Phoenix 0.4 MP Model


Sony IMX287 CMOS
0.4 MP, 728 x 544 px
Frame Rate
291 FPS

Please select your camera variables:

SKU: N/A Category:


Preliminary Specifications. For a complete list of specifications planned for launch please contact Lucid Sales.

Sensor Properties
Sensor ModelSony IMX287 CMOS
Shutter TypeGlobal
Sensor Size6.3 mm (Type 1/2.9″)
Resolution728 x 544 px, 0.4 MP
Pixel Size6.9 µm (H) x 6.9 µm (V)
Framerate291FPS @ 0.4 MP
Physical Properties
Dimensions24 x 24 x 27.35 mm

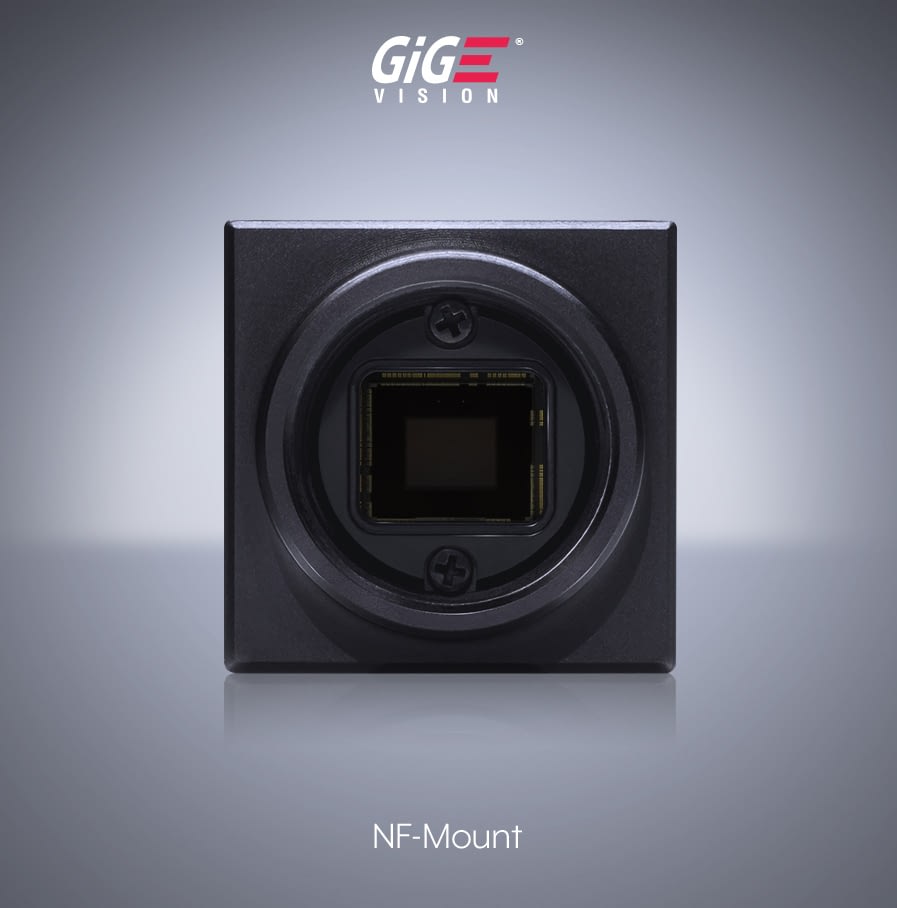

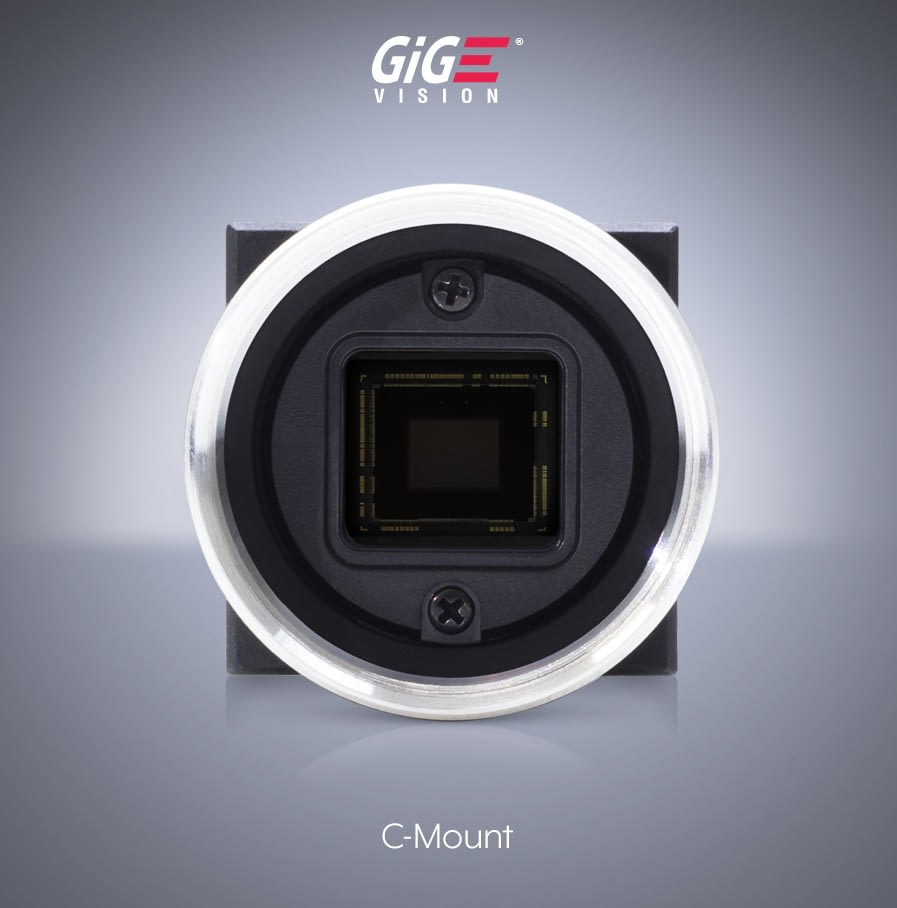

Lens MountC, CS, NF-mount
Weight30 g
Interface and Power Information
Digital Interface1000BASE-T RJ45, PoE
GPIO Interface8 pin JST connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption3.1W via PoE, 2.5W when powered externally
Imaging Properties
Image Buffer128 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC12 bit
Gain Range0 dB to 48 dB analog and digital
Exposure Time30 μs to 10 s
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataTimestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-10 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Warranty3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

PHX004S-M (Mono, Sony IMX287 CMOS)
Mono EVMA 1288 Results
Dynamic Range74.13 dB
SNR (Max)43.27 dB
Saturation Capacity21214 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)6.15 γ
Temporal Dark Noise3.32 e-
Gain0.185 DN / e-
PHX004S-C (Color, Sony IMX287 CMOS)
Color EVMA 1288 Results
Dynamic Range74.18 dB
SNR (Max)43.16 dB
Saturation Capacity20710 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)6.63 γ
Temporal Dark Noise3.20 e-
Gain0.189 DN / e-


EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit


Phoenix CS-Mount Drawings

Phoenix CS-Mount Drawings

Phoenix NF-Mount Drawings

Phoenix NF-Mount Drawings

Quick Start Guide / More Info

Please note that cables, lenses, PoE power sources, interface cards, and tripod adapters are sold separately.

Step 1: Remove dust cap from camera lens mount

Remove Dust Cap
Press the dust cap button to release the cap from the camera.

Step 2: Attach Tripod Adapter

Attach Tripod Adapter
Use three M2 screws (2 in the front and 1 in the back) to attach the tripod adapter to the camera.

Step 3: Attach A Lens

Attach a Lens
Screw in an appropriate lens into the camera’s lens mount.

Step 4: Connect Cat 5e/6/6a to PoE device

Connect Cable to Network or Host PC
Connect a Cat 5e/6/6a cable to (a) PoE switch, (b) PoE injector or (c) PoE network interface card.
Note: You must use at least a Cat 5e cable to utilize GigE bandwidth.

Step 5: Connect Cat 5e/6/6a cable to camera

Connect Cable to Camera
Connect a Cat 5e/6/6a cable to the camera. The camera will briefly blink red upon power-up and then start blinking green once it is ready to stream.
