Phoenix 2.3 MP Model (IMX392)

Sensor
Sony IMX392 CMOS
Resolution
2.3 MP, 1920 x 1200 px
Frame Rate
48.3 FPS
Standard Configurations.
Model SKUs Chroma Lens Mount GigE Vision Connector

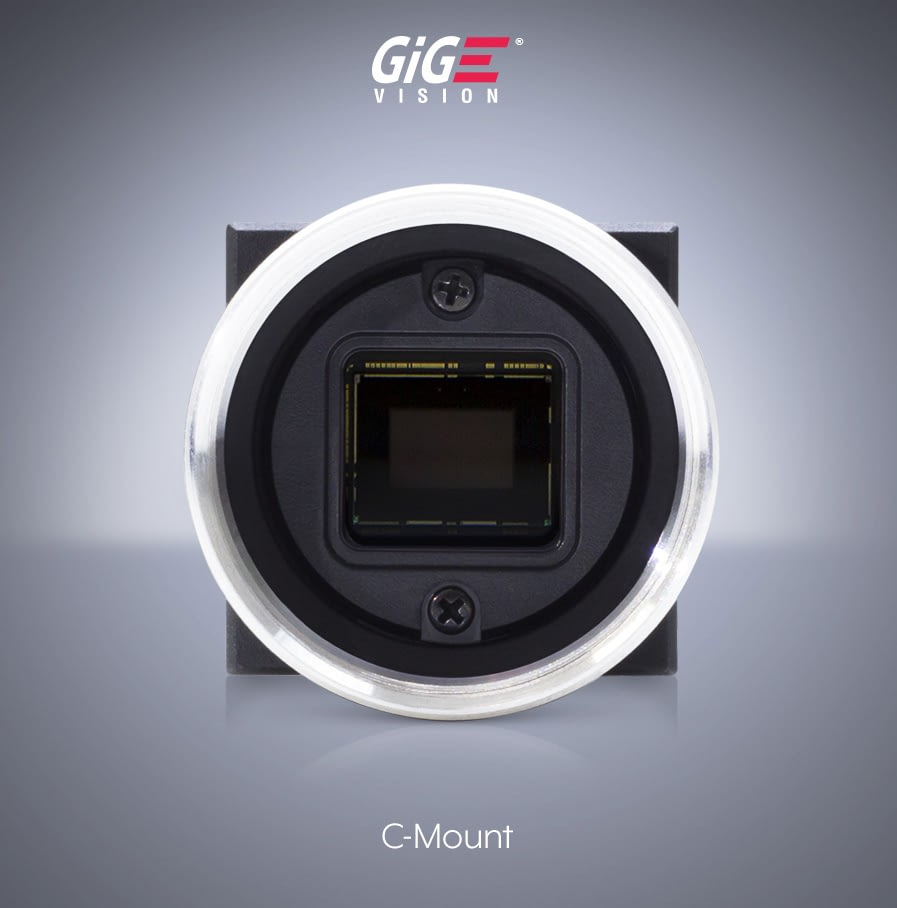

PHX023S-CC Color C-mount RJ45
PHX023S-MC Mono C-mount RJ45
Custom Configurations: Please note the following models may require additional lead time.
Model SKUs Chroma Lens Mount GigE Vision Connector
PHXET023S-CC Color C-mount Extended Head RJ45
PHXET023S-MC Mono C-mount Extended Head RJ45

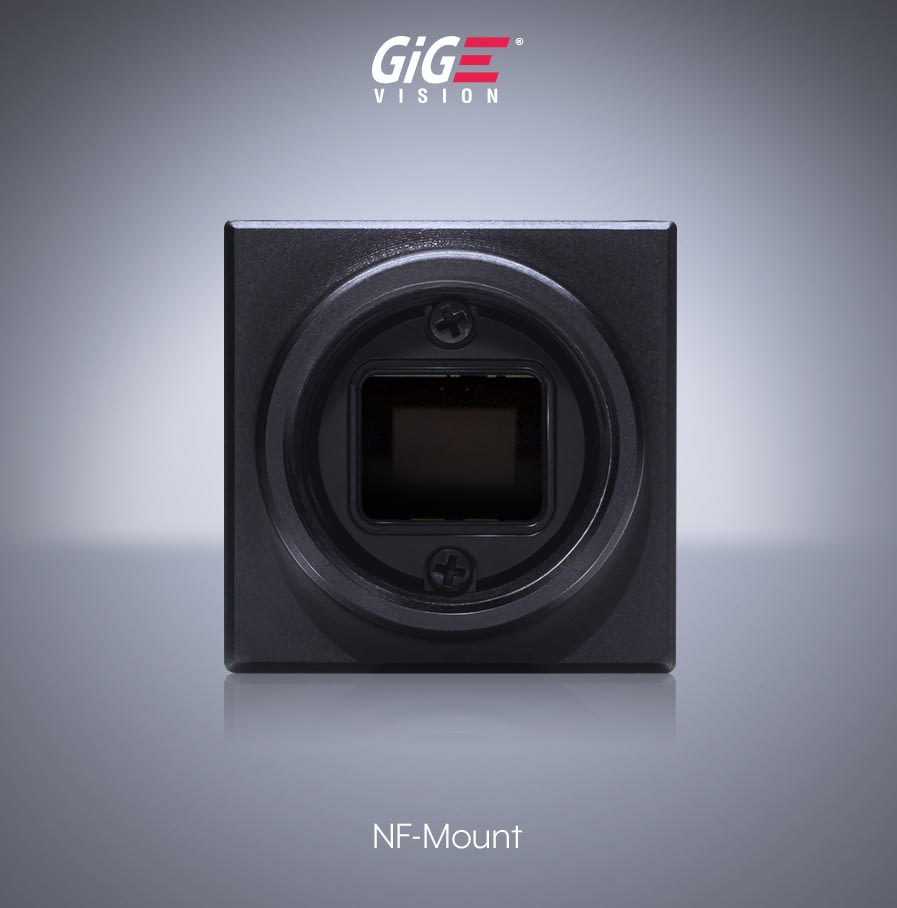

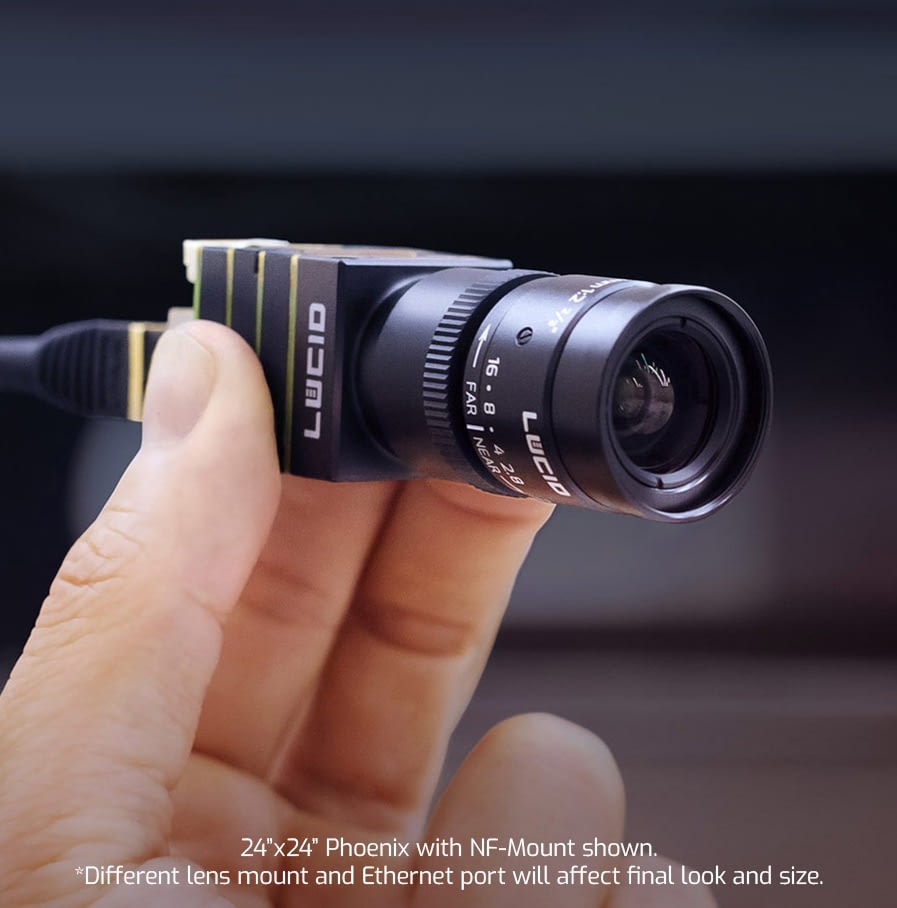

PHX023S-CNF Color NF-mount RJ45
PHX023S-MNF Mono NF-mount RJ45

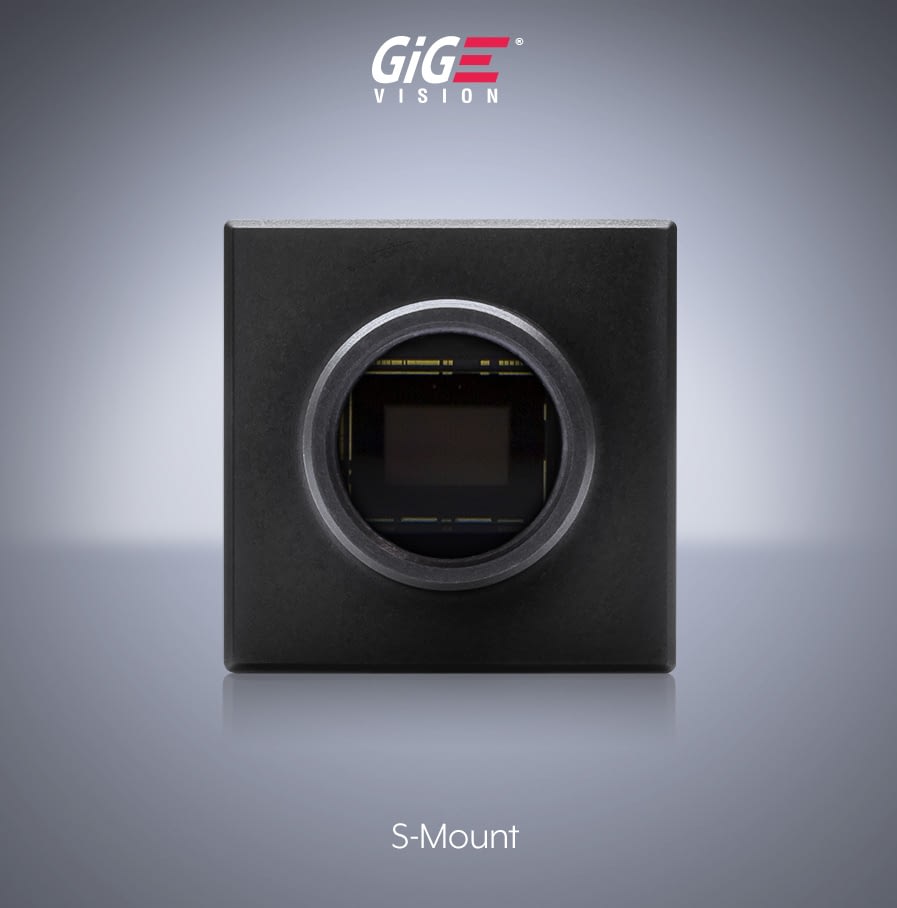

PHX023S-CS Color S-mount RJ45
PHX023S-MS Mono S-mount RJ45
PHX023S-CNL Color No Lens Mount RJ45
PHX023S-MNL Mono No Lens Mount RJ45
PHX023S-CC-IX Color C-mount ix Industrial
PHX023S-MC-IX Mono C-mount ix Industrial
PHX023S-CNF-IX Color NF-mount ix Industrial
PHX023S-MNF-IX Mono NF-mount ix Industrial
Model SKUs Chroma Lens Mount GigE Vision Connector
PHX023S-CS-IX Color S-mount ix Industrial
PHX023S-MS-IX Mono S-mount ix Industrial
PHX023S-CNL-IX Color No Lens Mount ix Industrial
PHX023S-MNL-IX Mono No Lens Mount ix Industrial
PHX023S-CC-FFC Color C-mount FFC (ZIF)
PHX023S-MC-FFC Mono C-mount FFC (ZIF)
PHX023S-CNF-FFC Color NF-mount FFC (ZIF)
PHX023S-MNF-FFC Mono NF-mount FFC (ZIF)
PHX023S-CS-FFC Color S-mount FFC (ZIF)
PHX023S-MS-FFC Mono S-mount FFC (ZIF)
PHX023S-CNL-FFC Color No Lens Mount FFC (ZIF)
PHX023S-MNL-FFC Mono No Lens Mount FFC (ZIF)

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor Model Sony IMX392 CMOS
Shutter Type Global
Sensor Size 7.9 mm (Type 1/2.3″)
Resolution 1920 x 1200 px, 2.3 MP
Pixel Size 3.45 µm (H) x 3.45 µm (V)
Framerate* 48.3 FPS (52 FPS) @ 2.3 MP
Physical Properties
Dimensions 24 x 24 x 27.35 mm
Lens Mount C, NF, S, No Mount, C-Mount Extended Head
Weight 30 g
Interface and Power Information
Digital Interface 1000BASE-T RJ45, PoE
ix Industrial, PoE
FFC, PoE
GPIO Interface 8 pin JST connector
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.1W via PoE, 2.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 29.3 μs to 10 s (Normal) / 0.9 μs to 14.1 μs (Short Mode)
Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -10 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty 3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

PHX023S-M (Mono, Sony IMX392 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.51 dB
SNR (Max) 40.19 dB
Saturation Capacity 10462 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.11 γ
Temporal Dark Noise 2.14 e-
Gain 0.372 DN / e-
Dark Current 4.32 e- / s
Dark Signal Non-Uniformity 0.48 e-
Photo Response Non-Uniformity 0.5 %
Linearity Error Max/Min 0.39/-0.28 %
PHX023S-C (Color, Sony IMX392 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.47 dB
SNR (Max) 40.19 dB
Saturation Capacity 10452 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.51 γ
Temporal Dark Noise 2.15 e-
Gain 0.370 DN / e-
Dark Current 3.77 e- / s
Dark Signal Non-Uniformity 0.48 e-
Photo Response Non-Uniformity 0.58 %
Linearity Error Max/Min 0.31/-0.29 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Phoenix-24x24-drawings-all

Getting Started / Downloads

Getting Started / Datasheet

For camera setup visit our Getting Started Guide.  It covers connecting your camera, installing Arena SDK or third-party software, enabling Jumbo Frames, assigning camera IP address, and updating firmware. PDFPhoenix Datasheet (PDF)

TitleFilenameFile TypeVersionDateFile SizeLink
Please login or register to download files

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
Lens Manufacturer Part #Lens Description0.4MP
PHX004S
1.6MP
PHX016S
2.3MP
PHX023S
3.2MP
PHX032S
5.0MP
PHX050S
5.0MP
PHX050S-P/Q
6.3MP
PHX064S
8.9MP
PHX089S
12.2MP
PHX122S
12.3MP
PHX120S
20.0MP
PHX200S
Edmund Optics UC Series #33-300C-Mount 1/2″ 4mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-301C-Mount 1/2″ 6mm f/1.85
Good
Good
Good
Edmund Optics UC Series #33-307C-Mount 1/2″ 8mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-303C-Mount 1/1.8″ 12mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-304C-Mount 1/1.8″ 16mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-305C-Mount 1/1.8″ 25mm f/1.85
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #67-709C-Mount 1/1.8" 6mm, f1.4
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #58-000C-Mount 2/3" 8.5mm, f/1.3
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #58-001C-Mount 2/3" 12mm, f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-870C-Mount 2/3" 16mm, f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-871C-Mount 2/3" 25mm, f/1.4
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-872C-Mount 2/3" 35mm, f/1.65
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-873C-Mount 2/3" 50mm, f/2
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL060CC-Mount 5MP 2/3″ 6mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL080CC-Mount 5MP 2/3″ 8mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL160CC-Mount 5MP 2/3″ 16mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL250CC-Mount 5MP 2/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact NF #BL060*NF-Mount 5MP 2/3″ 6mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL080*NF-Mount 5MP 2/3″ 8mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL120*NF-Mount 5MP 2/3″ 12mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL160*NF-Mount 5MP 2/3″ 16mm f/2.0
Good*
Good*
Good*
Good*
Good<*/div>
Good*
Good*
Universe Compact NF #BL250*NF-Mount 5MP 2/3″ 25mm f/1.8
Good*
Good*
Good*
Good*
Good*
Good*
Good*
LUCID #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF6XA-5MC-Mount 5MP 2/3″ 6mm f/1.9
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF8XA-5MC-Mount 5MP 2/3″ 8mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF12XA-5MC-Mount 5MP 2/3″ 12mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF16XA-5MC-Mount 5MP 2/3″ 16mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF25XA-5MC-Mount 5MP 2/3″ 25mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF8ZA-1SC-Mount 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF12ZA-1SC-Mount 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF16ZA-1SC-Mount 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF25ZA-1SC-Mount 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF35ZA-1SC-Mount 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF50ZA-1SC-Mount 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V0828-MPYC-Mount 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1228-MPYC-Mount 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1628-MPYC-Mount 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V2528-MPYC-Mount 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V3528-MPYC-Mount 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F1228-MPTC-Mt 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F2524-MPTC-Mt 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics CA Series #11-320TFL-Mount APS-C 50mm f/1.8
Edmund Optics CA Series #11-321TFL-Mount APS-C 75mm f/2.8
Edmund Optics CA Series #11-322TFL-Mount APS-C 100mm f/2.8
*Must be used with NF-mount Phoenix models only

Lens AdapterManufacturer Part #SKU
C-Mount to S-Mount (M12) AdapterLUCID ADA-C-SADA-C-S
Transform KitsManufacturer Part #SKU
180° and 90° Transform Kit for 24x24mm PhoenixLUCID PHX24-TKPHX24-TK
FFC to M12 Extender Board for Phoenix with FFC connectorLUCID FFC-15-JST-M12FFC-15-JST-M12
FFC to RJ45 Extender Board for Phoenix with FFC connectorLUCID FFC-15-JST-RJ45FFC-15-JST-RJ45
Cables for 24 x 24 Phoenix Models
Ethernet Cat6a STP Patch Cable – 2.1m, Black, Snagless StarTech C6ASPAT7BKCAB-RR-2M
Ethernet Cat6a STP Patch Cable – 4.6m, Black, SnaglessStarTech C6ASPAT15BKCAB-RR-5M
ix Industrial Ethernet Cat6a Cable – 2.0m, BlackLUCID CAB-IR-2MCAB-IR-2M
ix Industrial Ethernet Cat6a Cable – 5.0m, BlackLUCID CAB-IR-5MCAB-IR-5M
GPIO 8-pin 20cm JST CableGPIO-8P20GPIO-8P20
Tripod Mount Adapter
Tripod AdapterPHX-TRPHX-TR
Interface Cards, PoE Injectors
LR-LINK PCIe GigE Vision PoE+ CardLR-LINK LRES2001PT-POEPCIE-POE1-LR
6-CH PCIe GigE Vision Card (Non-PoE)LR-LINK LRES2006PTPCIE-ETH6-LR
2-CH PCIe GigE Vision PoE+ CardLR-LINK LRES2002PTPCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Cardioi GE2PX4-PCIE4XE301PCIE-POE4-2G
TP-Link PoE InjectorTP-Link TL-POE150SPOEP
Procet 2.5/5.0GbE 30W PoE+ Injector (802.3af/at, NA/EU)Procet PT-PSE104G-30-5POEP-PT-5G / POEP-PTEU-5G
