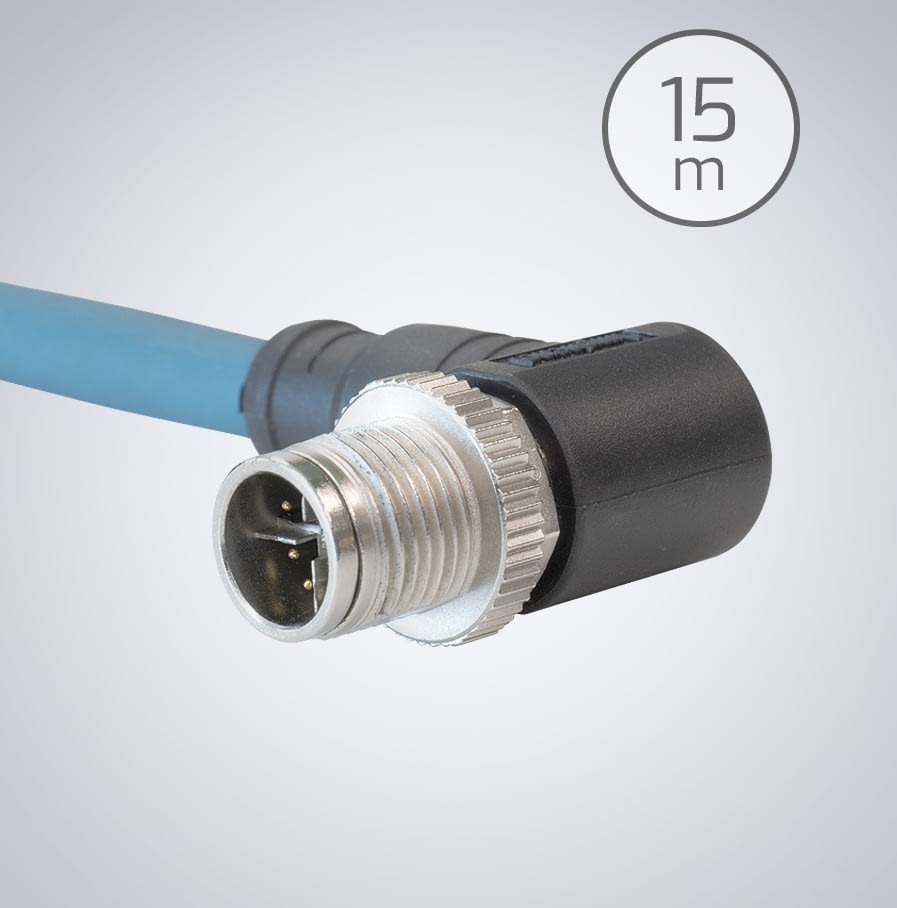

M12 to RJ45 IP67 Cat6a Cable [Right Angle, Atlas/Helios Side] – 15m (Amphenol)
Designed for robust operation in industrial environments, including environments where dirt, dust, and water are present. This right angle cable bends to the side of the Atlas/Helios. Compatible with all Atlas and Helios camera models.
Please note: This cable is designed for the Atlas and Helios cameras as this cable will block the GPIO port if used on the Triton.
Specifications
| Model # | LUCID CAB-MR-15M-RA3 |
|---|---|
| Connector Type | M12 X-Coded 8pin Male Connector with shielding (IEC 61076-2-109) to RJ-45 male 8P8C with shielding |
| Cable Rating | CAT6a – 10Gbit/s |
| Color | Dark Green |
| IP Rating | M12 connector is IP67 Cable molding is IP65 |
| Length | 15.0 m (49.2 ft) |
| Weight | 658 g |
| AWG rating | 26 AWG |
| Operating Temperature | -25°C to 50°C |
Cable Drag Chain Testing Specs
| Bending Radius | Moving Frequency | Moving Distance | Requirement |
|---|---|---|---|
| 100mm | 45 cycles/min | 1m | 600,000 cycles |
USD $115.00
Register or login for pricing
