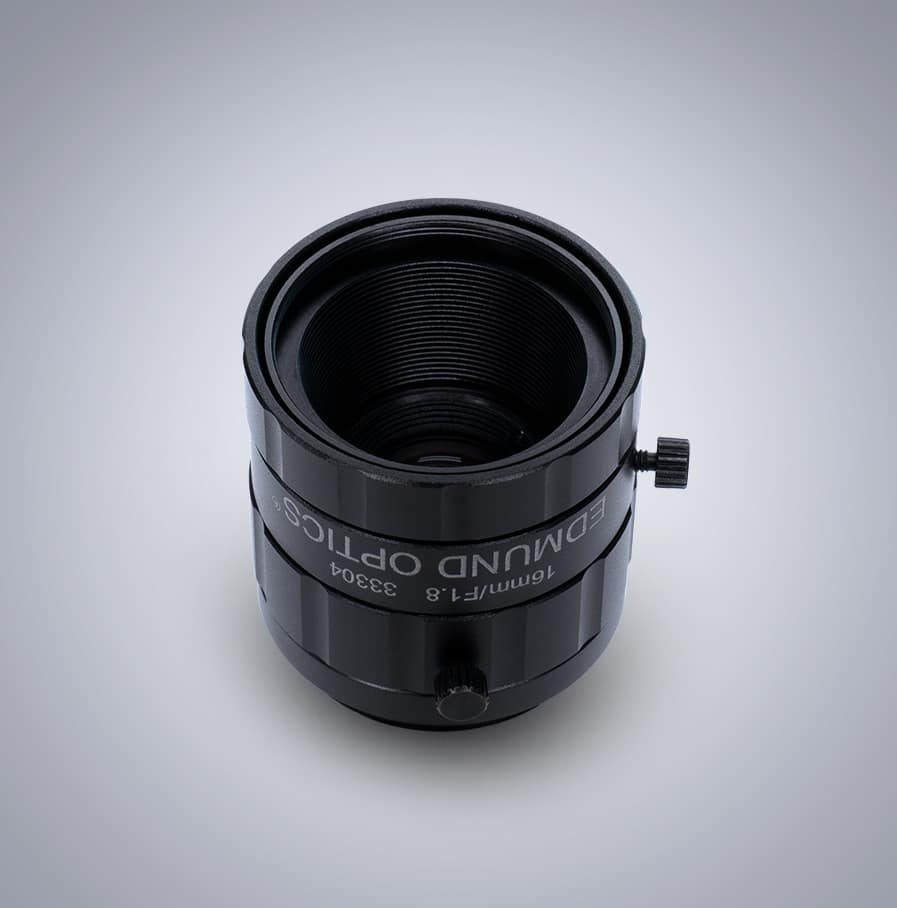

Edmund Optics C-Mount 1/1.8″ 16mm f/1.8



Edmund Optics ultra-compact, TECHSPEC® UC Series Fixed Focal Length Lenses optimize performance, cost, and size without sacrificing quality or feel. Lenses feature focus and iris adjustments, recessed set screws, and are manufactured for use at typical machine vision working distances. Outstanding option for use on all smaller format camera sensors, along with both short and long working distance applications. Ideal for inspection, factory automation, biomedical devices, and a broad range of other applications.



Specifications

Edmund Optics Model #33-304
Focal Length16 mm
Field of View @ Max Sensor Format98.5mm – 25.3°
Working Distance200 mm – ∞
Distortion<0.8% (on 1/2.5" Sensor)
Field of View, 1/2″ Sensor87.6mm – 22.5°
Field of View, 1/3″ Sensor65.7mm – 17.0°
Number of Elements (Groups)7 (5)
Optimized Sensor Format1/2.5″
TypeFixed Focal Length Lens
Maximum Length29.13mm
Maximum Sensor Format1/1.8″
CoatingMgF2 400-700nm
Aperture (f/#)f/1.8 – f/11
Field of View 1/1.8″ Sensor98.5mm – 25.3°
Field of View, 1/2.5″ Sensor79.4mm – 20.5°
Field of View, 1/4″ Sensor49.3mm – 12.8°
MountC-Mount
Numerical Aperture NA, Object Side0.021
Outer Diameter30.00mm
Weight42g
Login to see prices
SKU: EOUC160 Category:

Technical Drawings
