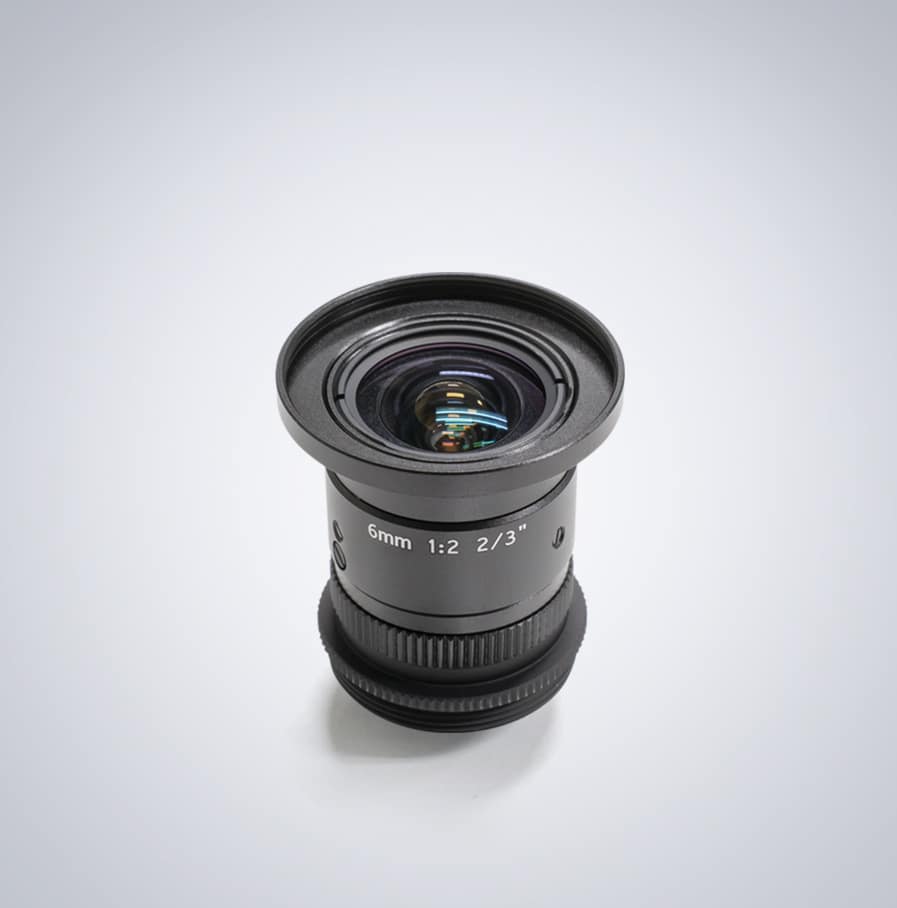

Universe Compact C-Mount 5MP 2/3″ 6mm f/2.0
The Universe compact C-mount lens series features micro compact sizes with precise focal adjustments. Apply accurate imaging with reduced sizing by up to 33% compared to traditional C-mount lenses.
Specifications
| Manufacturer Model # | Universe BL060C |
|---|---|
| LUCID SKU | UC060-5M |
| Focal Length | 6mm |
| Iris Range (f no.) | f2.0 – f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras |
80.8° x 61.6° |
| Focus Range (from front of the lens) | ∞ – 200mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Mount | C-Mount |
|---|---|
| Filter Thread | M30.5 x 0.5mm |
| Sensor Size (max.) | 2/3” |
| TV Distortion | -20.9% |
| Diameter x Length | φ32 x 35.93mm |
| Weight | 42g |
| Locking Mechanism | Lock ring |
USD $400.00
Register or login for pricingRecommended IP67 Lens Tubes
Note: Twist off and remove the front filter thread to fit the lens into ⌀27mm lens tube (IPTC-D270L346). This lens, paired with the following lens tubes are designed for cameras with 2/3″ sensor sizes or smaller. Larger sensors will show vignetting when used with these lens tubes.
