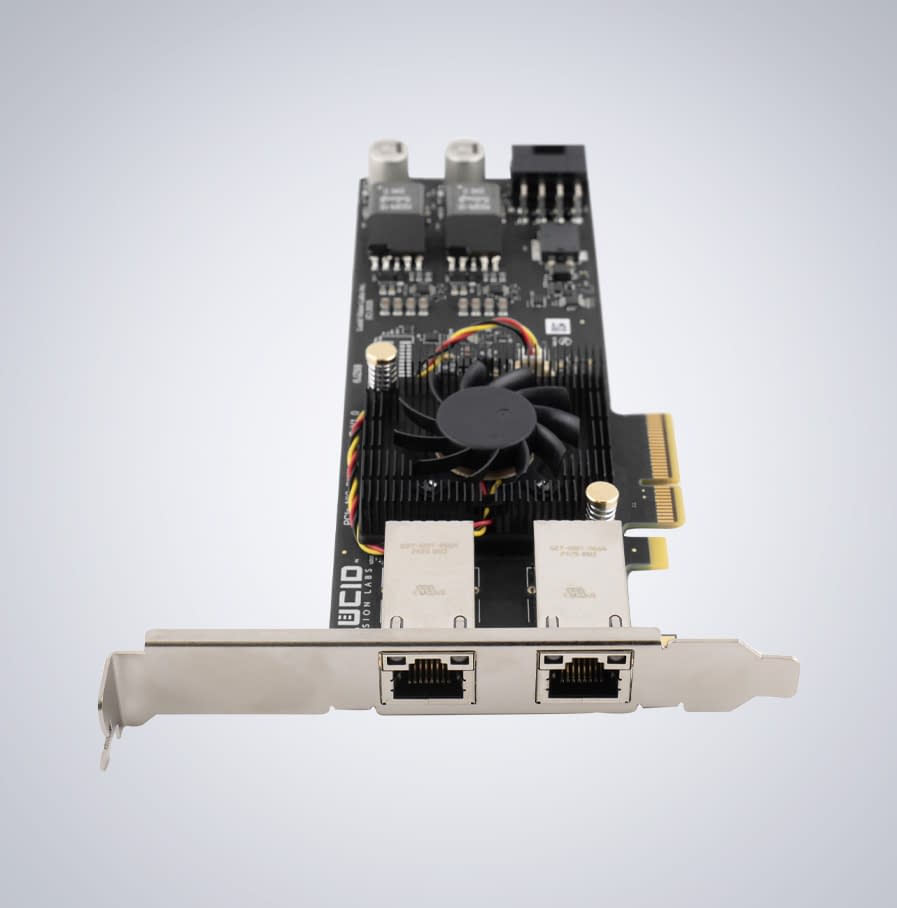

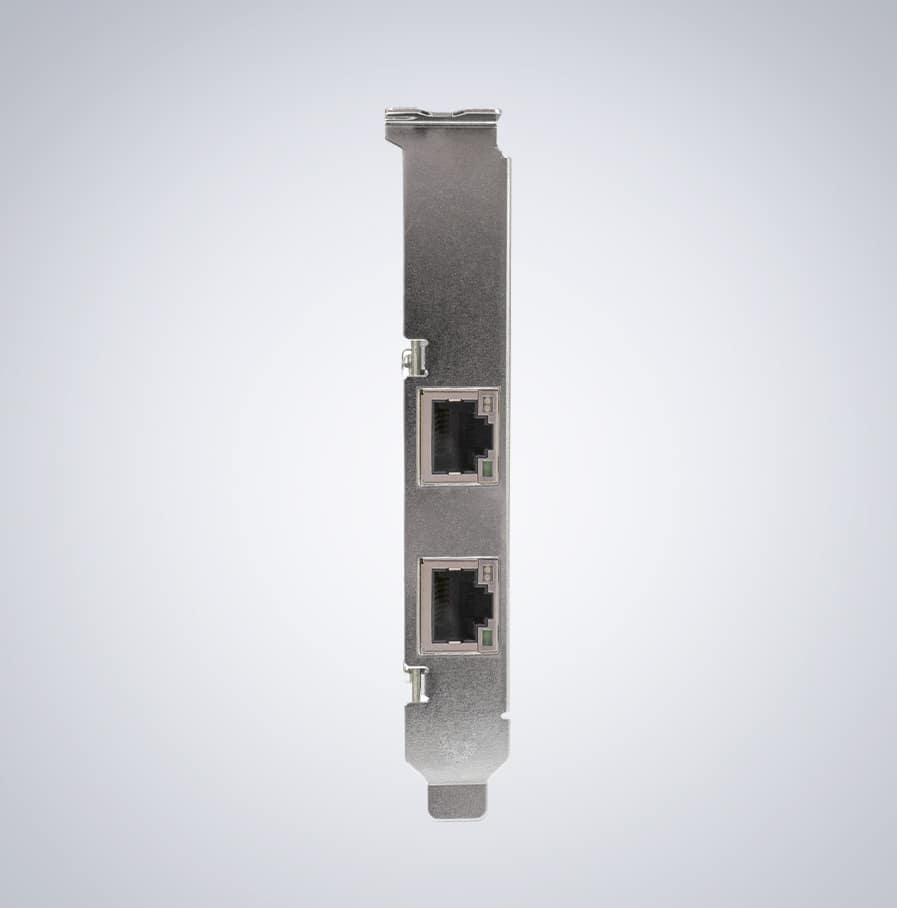

PCIE-10GPOE2-LUCID2 2-port 10GigE PoE NIC
PCIE-10GPOE2-LUCID2 2-port 10GigE PoE NIC

LUCID 2-CH 10G/1G RDMA PoE+ (Per-Port Isolated) Host Channel Adapter (HCA) Network Card

  1. Home
  2. Accessories
  3. Interface Cards, PoE Injectors
  4. LUCID 2-CH 10G/1G RDMA PoE+ (Isolated) HCA Network Card

LUCID’s 2-CH RDMA PCIe card (P/N: PCIE-10GPOE2-LUCID2) deliver low-latency, high-throughput 10 GigE RDMA (RoCE v2) connectivity for demanding machine vision systems, while simplifying system design through integrated power and intelligent control features. With built-in PoE+, the cards provide true single-cable connectivity by supplying both power and data over one Ethernet line, eliminating external power supplies and reducing cabling complexity. Per-port PoE electrical isolation enhances system protection in industrial environments, and programmable PoE control enables remote power cycling of connected cameras to minimize downtime. Please note this NIC is not NBASE-T compatible and does not support 5GigE or 2.5GigE.

Specifications

Manufacturer: LUCID Vision Labs
Chipset Broadcom BCM57416
Number of ports 2
Port type RJ45
PCIe version and lanes PCIe 3.0 x4
Connection speed 10GigE (IEEE 802.3an) and 1GigE (IEEE 802.3ab)
Jumbo frame size 9174 bytes
PoE Support PoE+ (IEEE 802.3at, Isolated per port)
Power 21.7W via PCIe, 60W max (30W max each channel) via 8-pin 12V aux.
Isolated PoE for each channel.
PoE on each port can be turned on / off programmatically.
Operating temperature range 0–55°C ambient
Storage temperature range -30–60°C
What is included Low profile bracket

USD $395.00

Register or login for pricing
SKU: PCIE-10GPOE2-LUCID2 Category:

Getting Started / Downloads

TitleFilenameFile TypeVersionDateFile SizeLink
PCIE-10GPOEx-LUCID2 Adapter Specification and Quick Start GuidePCIE-10GPOE4-LUCID2,PCIE-10GPOE2-LUCID2_Adapter_Specification_and_Quick_Start_Guide_v1.5.pdfpdf1.52026-04-13762.8 KB
Linux drivers for LUCID network cardsLucid_Broadcom_Driver_Package_v234c.tar.gzgz2342025-08-18322.3 MB
Windows drivers for LUCID network cardsLucid_Broadcom_Driver_Package_v234c.zipzip2342026-03-1310.1 MB
Linux tools for LUCID RDMA adaptersLucidNicTools_Linux_0.1.108.tar.gzgz0.1.1082025-09-2532.3 KB
Windows tools for LUCID RDMA adaptersLucidNicTools_Windows_1.0.64.1.zipzip1.0.64.12025-09-25251.3 KB
