Specifications
| Sensor Properties | |
|---|---|
| Sensor Model | RGBIC 8K3U5 CMOS |
| Shutter Type | Global |
| Sensor Size | 28.672 mm (Type 1.8) |
| Resolution | 8192 x 2 px, 8K |
| Pixel Size | 3.5 µm (H) x 3.5 µm (V) |
| Line Rate | 55 kHz (1-line) 33 kHz (2-line) |
| Physical Properties | |
|---|---|
| Dimensions | 44 x 44 x 82 mm |

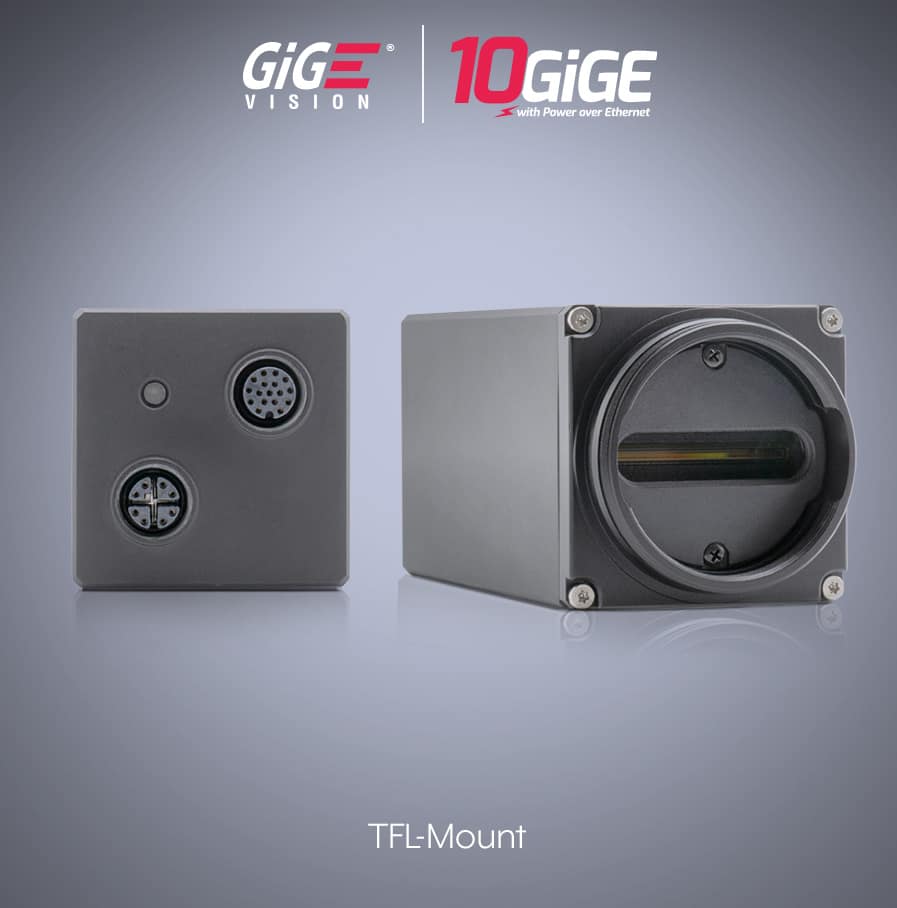

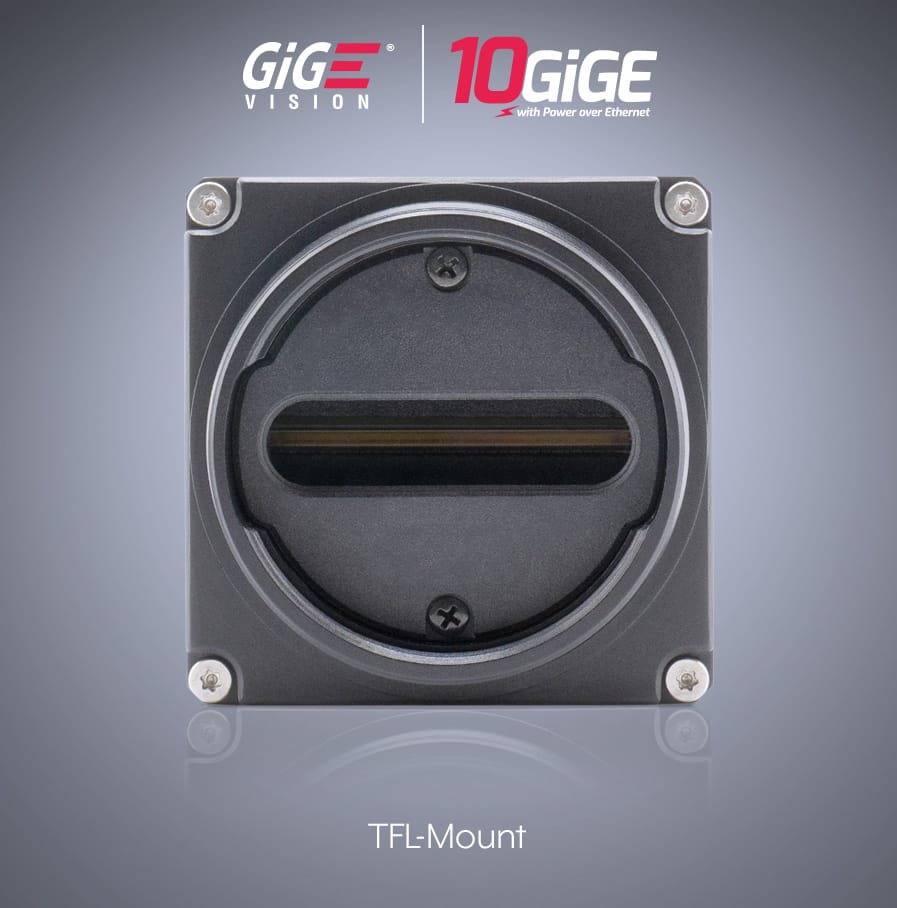

| Lens Mount | TFL-Mount |
| Weight | 249 g |
| Ingress Protection | IP67 (For IP67 protection Triton10 must be used with IP67 lens tube and cables) |
| Interface and Power Information | |
|---|---|
| Digital Interface | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12 (8-Pin X-Coded), PoE |
| Transport Layer Protocol | UDP (GigE Vision), RDMA (RoCE v2, GigE Vision 3.0) |
| GPIO Interface | 17 pin M12 connector |
| Opto-Isolated I/O Ports | 1 input, 3 output |
| Non-Isolated I/O Ports | 2 bi-directional or 2 TTL/DI |
| Differential / Single-input ports | 3 RS-422/HTL/TTL (1 selectable as DI) |
| Power Requirement | PoE (IEEE 802.3af) or 12-24 V ±5% through GPIO |
| Typical Power Consumption | <8.3W via PoE, <7.5W when powered externally |
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
| Imaging Properties | |
|---|---|
| Image Buffer | 880 MB |
| Image Processing | Gain, gamma, black level, white balance, LUT, CCM, color space conversion |
| Pixel Formats | Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411 |
| Image Modes | Horizontal binning, ROI |
| ADC | 10 bit |
| Gain Range | TBD |
| Exposure Time | TBD |
| Camera Features | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Image, CRC, TriggerLine, Timestamp, LineStatusAll, PixelFormat, PixelDynamicRangeMin, PixelDynamicRangeMax, Width, Height, OffsetX, Gain, BlackLevel, ExposureTime |
| Event Data | AcquisitionTriggerMissed, FrameTriggerMissed, LineTriggerMissed, Test, Encoder0Stopped, Encoder0Restarted, FrameDropped, NoAvailableRDMACredits, OverTemperature |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| Standards and Certifications | |
|---|---|
| Standard | GigE Vision v2.0, GigE Vision v3.0 ready* |
| Compliance | CE, FCC, KC, RoHS, REACH, WEEE |
| Storage Temperature | -30 to 60°C |
| Operating Temperature | -20 to 55°C ambient |
| Humidity | Operating: 20% ~ 80%, relative, non-condensing |
| Shock and Vibration | DIN EN 60068-2-27, DIN EN 60068-2-64 |
| Industrial EMC Immunity | DIN EN 61000-6-2 ESD 8kV |
| Warranty | 3 year |
*Requires camera firmware update. Refer to our GigE Vision 3.0 RDMA FAQ.
Patents: patents.thinklucid.com
