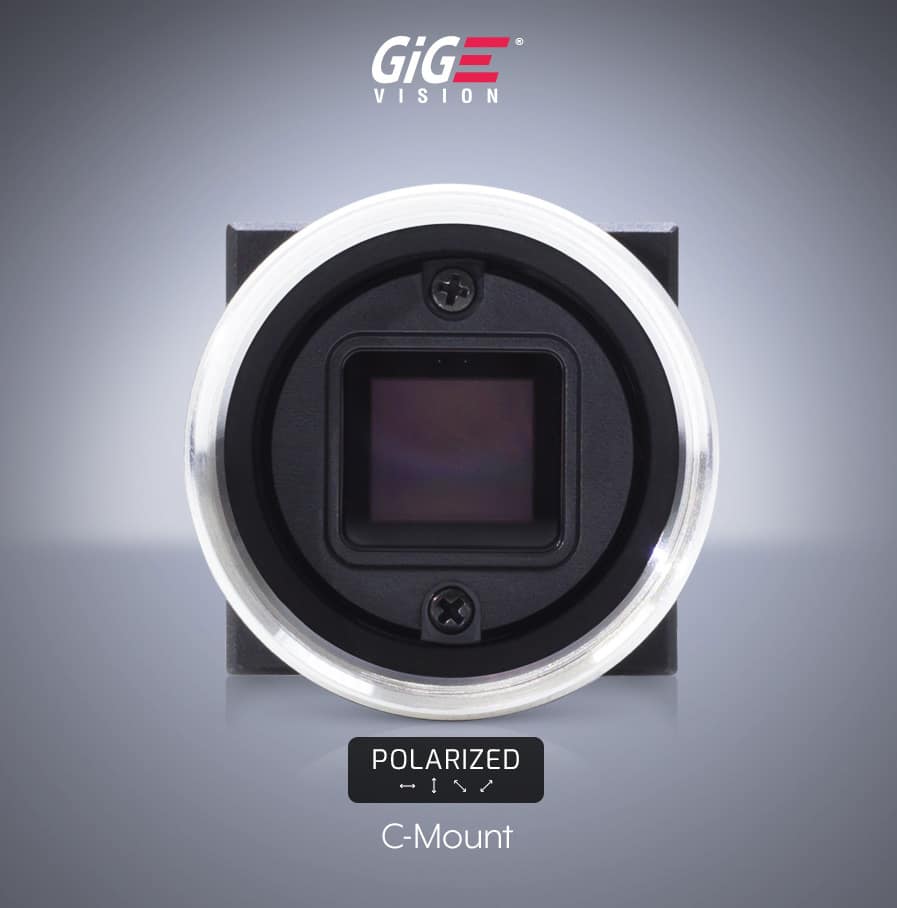

Sony polarized IMX250MZR CMOS on Phoenix C-Mount

Phoenix with C-mount and ix industrial connector

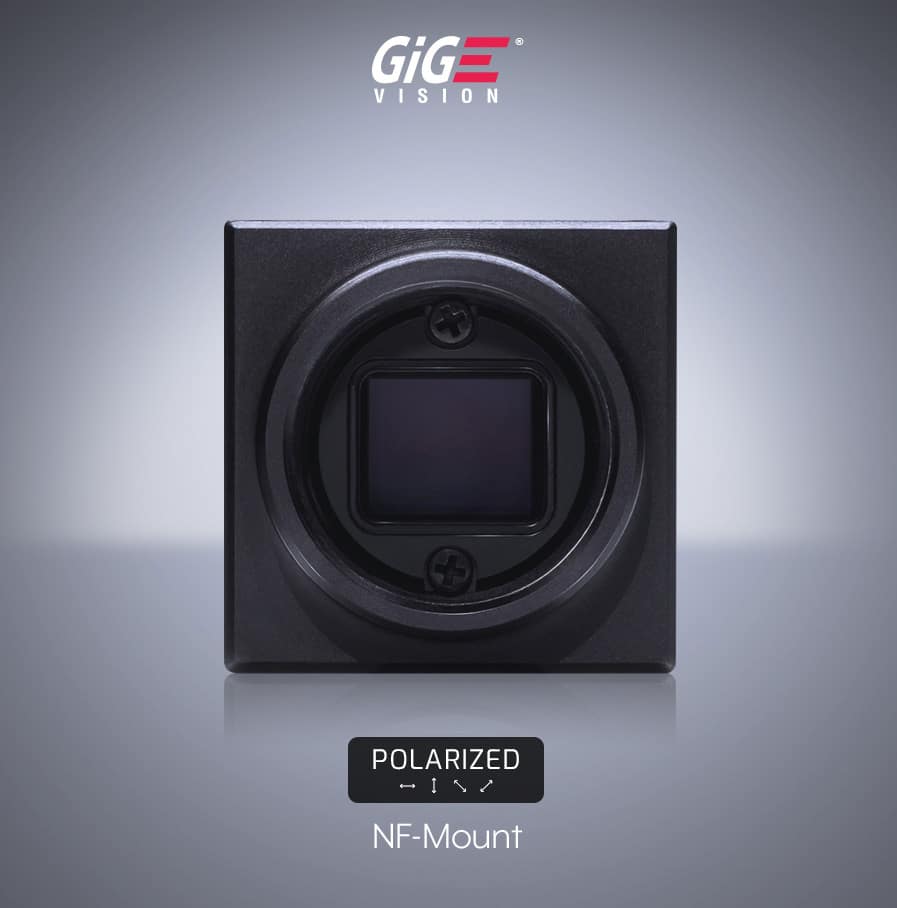

Phoenix with NF-mount and ix industrial connector

Phoenix camera with C-mount and FFC (ZIF) connector

Phoenix camera with NF-mount and FFC (ZIF) connector

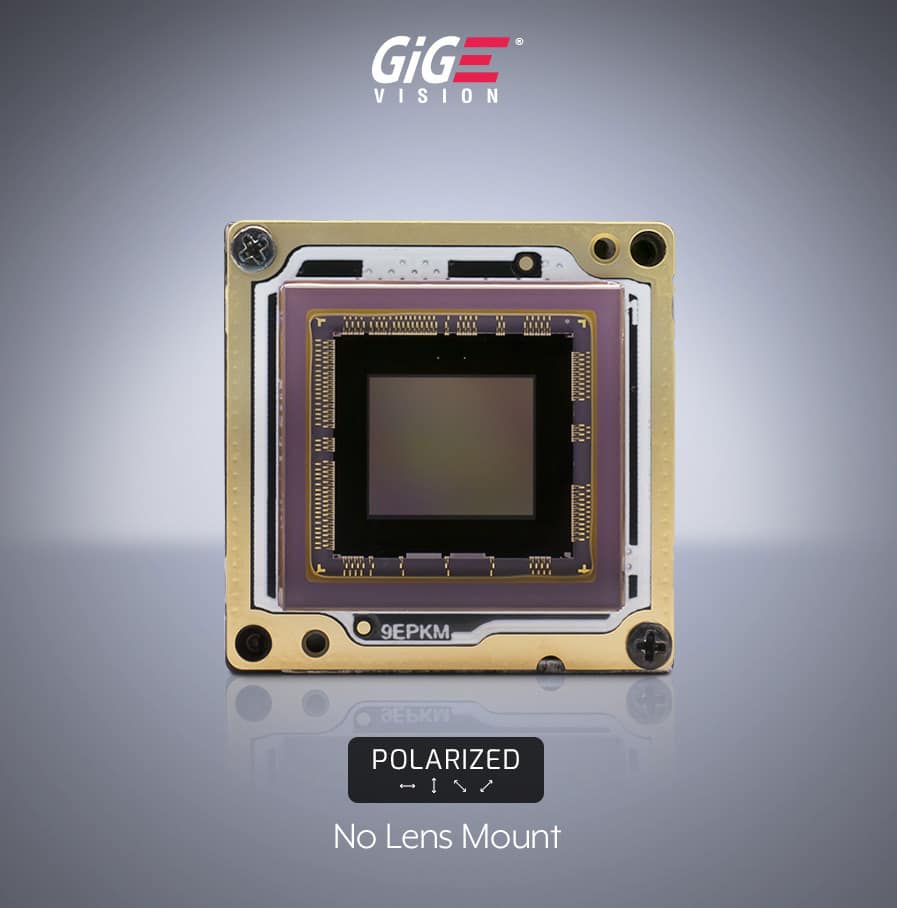

Phoenix Camera, No Mount with FFC Connector

Phoenix 5.0 MP Polarization Model (IMX264MZR/MYR)

The Phoenix polarization camera with Sony’s IMX264MZR/MYR polarized CMOS sensors offers the same performance as the IMX250MZR/MYR but at a reduced cost. Similar to the IMX250MZR/MYR, the IMX264MZR/MYR sensors use Sony’s polar-sensing technology with four different directional polarization filters (0°, 90°, 45° and 135°) on the chip for every four pixels, perfect for polarization inspection use. The IMX264MZR/MYR global shutter CMOS sensor with integrated on-pixel polarizer provides better object detection in low contrast or reflective light. It can also be used to conveniently visualize scratches on surfaces or the stress distribution within transparent objects.

Sensor
Sony IMX264MZR CMOS (Mono) Sony IMX264MYR CMOS (Color) Polarsens™

Resolution
5.0 MP, 2448 x 2048 px

Frame Rate
22 FPS

Standard Configurations.

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHX050S1-QC	Polarized Color	C-Mount	RJ45
PHX050S1-PC	Polarized Mono	C-Mount	RJ45

Custom Configurations: Please note the following models may require additional lead time.

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHX050S1-QNF	Polarized Color	NF-Mount	RJ45
PHX050S1-PNF	Polarized Mono	NF-Mount	RJ45
PHX050S1-QNL	Polarized Color	No Lens Mount	RJ45
PHX050S1-PNL	Polarized Mono	No Lens Mount	RJ45
PHX050S1-QNLF	Polarized Color	No Lens Mount w/ Flange	RJ45
PHX050S1-PNLF	Polarized Mono	No Lens Mount w/ Flange	RJ45
PHX050S1-QC-IX	Polarized Color	C-Mount	ix Industrial
PHX050S1-PC-IX	Polarized Mono	C-Mount	ix Industrial
PHX050S1-QNF-IX	Polarized Color	NF-Mount	ix Industrial
PHX050S1-PNF-IX	Polarized Mono	NF-Mount	ix Industrial
PHX050S1-QNL-IX	Polarized Color	No Lens Mount	ix Industrial
PHX050S1-PNL-IX	Polarized Mono	No Lens Mount	ix Industrial
PHX050S1-QNLF-IX	Polarized Color	No Lens Mount w/ Flange	ix Industrial
PHX050S1-PNLF-IX	Polarized Mono	No Lens Mount w/ Flange	ix Industrial

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHXET050S1-QC	Polarized Color	C-Mount Extended Head	RJ45
PHXET050S1-PC	Polarized Mono	C-Mount Extended Head	RJ45
PHX050S1-QC-FFC	Polarized Color	C-Mount	FFC (ZIF)
PHX050S1-PC-FFC	Polarized Mono	C-Mount	FFC (ZIF)
PHX050S1-QNF-FFC	Polarized Color	NF-Mount	FFC (ZIF)
PHX050S1-PNF-FFC	Polarized Mono	NF-Mount	FFC (ZIF)
PHX050S1-QNL-FFC	Polarized Color	No Lens Mount	FFC (ZIF)
PHX050S1-QNLF-FFC	Polarized Color	No Lens Mount w/ Flange	FFC (ZIF)
PHX050S1-PNLF-FFC	Polarized Mono	No Lens Mount w/ Flange	FFC (ZIF)
PHX050S1-PNL-FFC	Polarized Mono	No Lens Mount	FFC (ZIF)

Please select your camera configuration:

SKU: N/A Category: Phoenix GigE Vision Cameras

Getting Started / Downloads

Getting Started / Datasheet

For camera setup visit our Getting Started Guide. It covers connecting your camera, installing Arena SDK or third-party software, enabling Jumbo Frames, assigning camera IP address, and updating firmware.

Phoenix Datasheet (PDF)

Sign up for Phoenix download updates

Accessories

Tripod adapter, lens, cables and Power Over Ethernet (PoE) Ethernet injector/interface card sold separately. Ethernet ports on most consumer motherboards and laptops do not support PoE. For more information on all accessories, visit Accessories.

Lens Vendor Part #	Lens Description	0.4MP PHX004S	1.6MP PHX016S	2.3MP PHX023S	3.2MP PHX032S	5.0MP PHX050S	5.0MP PHX051S	5.0MP PHX050S-P/Q PHX050S1-Q/C	6.3MP PHX064S	8.1MP PHX081S	8.9MP PHX089S	12.2MP PHX122S	12.3MP PHX120S	12.3MP PHX124S	20.0MP PHX200S
Edmund Optics
EO UC 33-300	C-Mt 1/2″ 4mm f/1.8	Good	Good	Good
EO UC 33-301	C-Mt 1/2″ 6mm f/1.85	Good	Good	Good
EO UC 33-307	C-Mt 1/2″ 8mm f/1.8	Good	Good	Good
EO UC 33-303	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good
EO UC 33-304	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good
EO UC 33-305	C-Mt 1/1.8″ 25mm f/1.85	Good	Good	Good
EO UC 33-306	C-Mt 1/1.8″ 35mm f/1.85	Good	Good	Good
EO C 89-410	C-Mt 1/1.8″ 3.5mm f/2	Good	Good	Good
EO C 86-900	C-Mt 1/1.8″ 4.5mm f/2	Good	Good	Good
EO C 67-709	C-Mt 1/1.8" 6mm, f1.4	Good	Good	Good
EO C 58-000	C-Mt 2/3" 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 58-001	C-Mt 2/3" 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 59-870	C-Mt 2/3" 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 59-871	C-Mt 2/3" 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 59-872	C-Mt 2/3" 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 59-873	C-Mt 2/3" 50mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 33-310	C-Mt 2/3" 75mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
EO C 86-410	C-Mt 4/3" 100mm, f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-568	C-Mt 1.1" 6.5mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-569	C-Mt 1.1" 8mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-570	C-Mt 1.1" 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-571	C-Mt 1.1" 16mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-572	C-Mt 1.1" 25mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-573	C-Mt 1.1" 35mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP 86-574	C-Mt 4/3" 50mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP+ 20-225	C-Mt 1.2" 16mm, f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP+ 20-226	C-Mt 1.2" 25mm, f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
EO HP+ 20-227	C-Mt 1.2" 35mm, f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good

Universe
BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good
BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good
BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good
BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good
BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good
BL060*	NF-Mt 5MP 2/3″ 6mm f/2.0	Good*	Good*	Good*	Good*	Good*		Good*
BL080*	NF-Mt 5MP 2/3″ 8mm f/2.0	Good*	Good*	Good*	Good*	Good*		Good*
BL120*	NF-Mt 5MP 2/3″ 12mm f/2.0	Good*	Good*	Good*	Good*	Good*		Good*
BL160*	NF-Mt 5MP 2/3″ 16mm f/2.0	Good*	Good*	Good*	Good*	Good		Good*
BL250*	NF-Mt 5MP 2/3″ 25mm f/1.8	Good*	Good*	Good*	Good*	Good*		Good*

Fujinon
HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good
HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good
HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good
HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good
HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good
CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
CF16ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
CF25ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
CF35ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
CF50ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good

Computar
V0828-MPY2	C-Mt 24MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
V1228-MPY2	C-Mt 24MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
V1628-MPY2	C-Mt 24MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
V2528-MPY	C-Mt 24MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
V3528-MPY	C-Mt 24MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
V5028-MPY	C-Mt 24MP 1.1″ 50mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
F1628-MPT	C-Mt 45MP 4/3″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
F3524-MPT	C-Mt 45MP 4/3″ 35mm f/2.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
F5026-MPT	C-Mt 45MP 4/3″ 50mm f/2.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good

VST
VS-0620VM	C-Mt 1/1.8″ 6mm f/2	Good	Good	Good	Good
VS-0818VM	C-Mt 1/1.8″ 8mm f/1.8	Good	Good	Good	Good
VS-1218VM	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good	Good
VS-1618VM	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good	Good
VS-2518VM	C-Mt 1/1.8″ 25mm f/1.8	Good	Good	Good	Good
VS-3518VM	C-Mt 2/3" 35mm f/1.8	Good	Good	Good	Good
VS-5026VM	C-Mt 2/3" 50mm f/2.6	Good	Good	Good	Good
SV-0614H	C-Mt 2/3" 6mm f/1.4	Good	Good	Good	Good	Good		Good
SV-0814H	C-Mt 2/3" 8mm f/1.4	Good	Good	Good	Good	Good		Good
SV-1214H	C-Mt 2/3" 12mm f/1.4	Good	Good	Good	Good	Good		Good
SV-1614H	C-Mt 2/3" 16mm f/1.4	Good	Good	Good	Good	Good		Good
SV-2514H	C-Mt 2/3" 25mm f/1.4	Good	Good	Good	Good	Good		Good
SV-3514H	C-Mt 2/3" 35mm f/1.4	Good	Good	Good	Good	Good		Good
SV-5014H	C-Mt 2/3" 50mm f/1.4	Good	Good	Good	Good	Good		Good

Lens Adapter	Manufacturer Part #	SKU
C-Mount to S-Mount (M12) Adapter	LUCID ADA-C-S	ADA-C-S

Transform Kits	Manufacturer Part #	SKU
180° and 90° Transform Kit for 24x24mm Phoenix	LUCID PHX24-TK	PHX24-TK
FFC to M12 Extender Board for Phoenix with FFC connector	LUCID FFC-15-JST-M12	FFC-15-JST-M12
FFC to RJ45 Extender Board for Phoenix with FFC connector	LUCID FFC-15-JST-RJ45	FFC-15-JST-RJ45

Cables for 24 x 24 Phoenix Models
Ethernet Cat6a STP Patch Cable – 2.1m, Black, Snagless	StarTech C6ASPAT7BK	CAB-RR-2M
Ethernet Cat6a STP Patch Cable – 4.6m, Black, Snagless	StarTech C6ASPAT15BK	CAB-RR-5M
ix Industrial Ethernet Cat6a Cable – 2.0m, Black	LUCID CAB-IR-2M	CAB-IR-2M
ix Industrial Ethernet Cat6a Cable – 5.0m, Black	LUCID CAB-IR-5M	CAB-IR-5M
GPIO 8-pin 20cm JST Cable	GPIO-8P20	GPIO-8P20

Tripod Mount Adapter
Tripod Adapter	PHX-TR	PHX-TR

Interface Cards, PoE Injectors
LR-LINK PCIe GigE Vision PoE+ Card	LR-LINK LRES2001PT-POE	PCIE-POE1-LR
6-CH PCIe GigE Vision Card (Non-PoE)	LR-LINK LRES2006PT	PCIE-ETH6-LR
2-CH PCIe GigE Vision PoE+ Card	LR-LINK LRES2002PT	PCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
TP-Link PoE Injector	TP-Link TL-POE150S	POEP
Procet 2.5/5.0GbE 30W PoE+ Injector (802.3af/at, NA/EU)	Procet PT-PSE104G-30-5	POEP-PT-5G / POEP-PTEU-5G

Specifications

The Phoenix polarization camera features Sony’s IMX264MZR/MYR CMOS polarized sensors. The sensors use Sony’s Polarsens technology with on-chip four different directional polarizing filters (0°, 90°, 45°, and 135°) on every four pixels.

Sensor Properties
Sensor Model	Sony IMX264MZR CMOS (mono) Sony IMX264MYR CMOS (color) Polarized – four different directional polarizing filters (0°, 90°, 45°, and 135°)
Shutter Type	Global
Sensor Size	11.1 mm (Type 2/3″)
Resolution	2448 x 2048 px, 5.0 MP
Pixel Size	3.45 µm (H) x 3.45 µm (V)
Framerate*	22 FPS (24 FPS) @ 5.0 MP

Physical Properties
Dimensions	24 x 24 x 27.35 mm
Lens Mount	C, NF-Mount, No Lens Mount, No Lens Mount with Flange, C-Mount Extended Head
Weight	30 g

Interface and Power Information
Digital Interface	1000BASE-T RJ45, PoE ix Industrial, PoE FFC, PoE
GPIO Interface	8 pin JST connector
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC ±5% external
Typical Power Consumption	3.1W via PoE, 2.5W when powered externally

*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain
Pixel Formats	Mono8/12/16, PolarizeMono8/12/16 (Mono) BayerRG8/12/16, PolarizeMono8/12/16 (Color)
Image Modes	Horizontal and vertical binning, ROI, horizontal and vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	33 μs to 10 s (Normal) / 1.0 μs to 14.4 μs (Short Mode)

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data	AcquisitionTriggerMissed, FrameTriggerMissed, ExposureStart, ExposureEnd, Test
Counter & Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, KC, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-10 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64 This shock and vibration specification does not apply to extended-head (PHXET) models.
Industrial EMC Immunity	DIN EN 61000-6-1 ESD 4kV
Warranty	3 year

Patents: patents.thinklucid.com

EMVA 1288 Data / Extinction Ratio

Interactive graphs – click the legend to toggle lines on or off, hover over data points for detailed information.

Mono, Sony IMX250/264MZR CMOS
Quantum efficiency of each polarized pixel angle.
Colored lines represent measurements with matching polarized light angle to the angle of the pixel.

Mono, Sony IMX250/264MZR CMOS
Relative quantum efficiency.
Ratio of QE to average of 4 angles.
Click the legend to toggle lines on or off, hover over data points for detailed information

EVMA 1288 Results
Dynamic Range	71.34 dB
SNR (Max)	40.14 dB
Saturation Capacity	10318 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	5.28 γ
Temporal Dark Noise	2.16 e-
Gain	0.369 DN / e-
Dark Current	3.51 e- / s
Dark Signal Non-Uniformity	0.71 e-
Photo Response Non-Uniformity	1.66 %
Linearity Error Max/Min	0.22/-0.50 %

Mono, Sony IMX250/264MZR CMOS
Extinction Ratio.
Minimum among 4 angles at each wavelength.

Extinction Ratio Explanation: Extinction Ratio (ER) is the ratio between the maximum and minimum signal detected by a particular polarization pixel channel for a linearly polarized input. The ratio is computed by taking the maximum response divided by the minimum response for a particular polarization channel (ie. 0° polarization pixels). For example, the 0° polarization pixels have maximum response when the polarization angle of the input light is 0° and minimum response when the polarization angle is 90°. Extinction Ratio for the 0° pixels is computed by taking the ratio of the two values. The extinction ratio can be interpreted as how many folds the maximum transmittance is when compared with the minimum transmittance. For example, at 430nm, the ER of 425.83 means the maximum signal is 425.83 times greater than the minimum signal at 430nm.

Color, Sony IMX250/264MYR CMOS
Quantum efficiency of each polarized pixel angle.

Click the legend to toggle lines on or off, hover over data points for detailed information
Colored lines represent measurements with matching polarized light angle to the angle of the pixel.

Color, Sony IMX250/264MYR CMOS
Relative quantum efficiency.
Ratio of QE to average of 4 angles.
Click the legend to toggle lines on or off, hover over data points for detailed information

EVMA 1288 Results
Dynamic Range	71.67 dB
SNR (Max)	40.23 dB
Saturation Capacity	10538 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	6.116 γ
Temporal Dark Noise	2.11 e-
Gain	0.371 DN / e-

Color, Sony IMX250/264MYR CMOS
Extinction Ratio.
Click the legend to toggle lines on or off, hover over data points for detailed information
Minimum among 4 angles at each wavelength.

Extinction Ratio Explanation: Extinction Ratio (ER) is the ratio between the maximum and minimum signal detected by a particular polarization pixel channel for a linearly polarized input. The ratio is computed by taking the maximum response divided by the minimum response for a particular polarization channel (ie. 0° polarization pixels). For example, the 0° polarization pixels have maximum response when the polarization angle of the input light is 0° and minimum response when the polarization angle is 90°. Extinction Ratio for the 0° pixels is computed by taking the ratio of the two values. The extinction ratio can be interpreted as how many folds the maximum transmittance is when compared with the minimum transmittance. For example, at Blue 430nm, the ER of 589.6 means the maximum signal is 589.6 times greater than the minimum signal at 430nm.

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/
