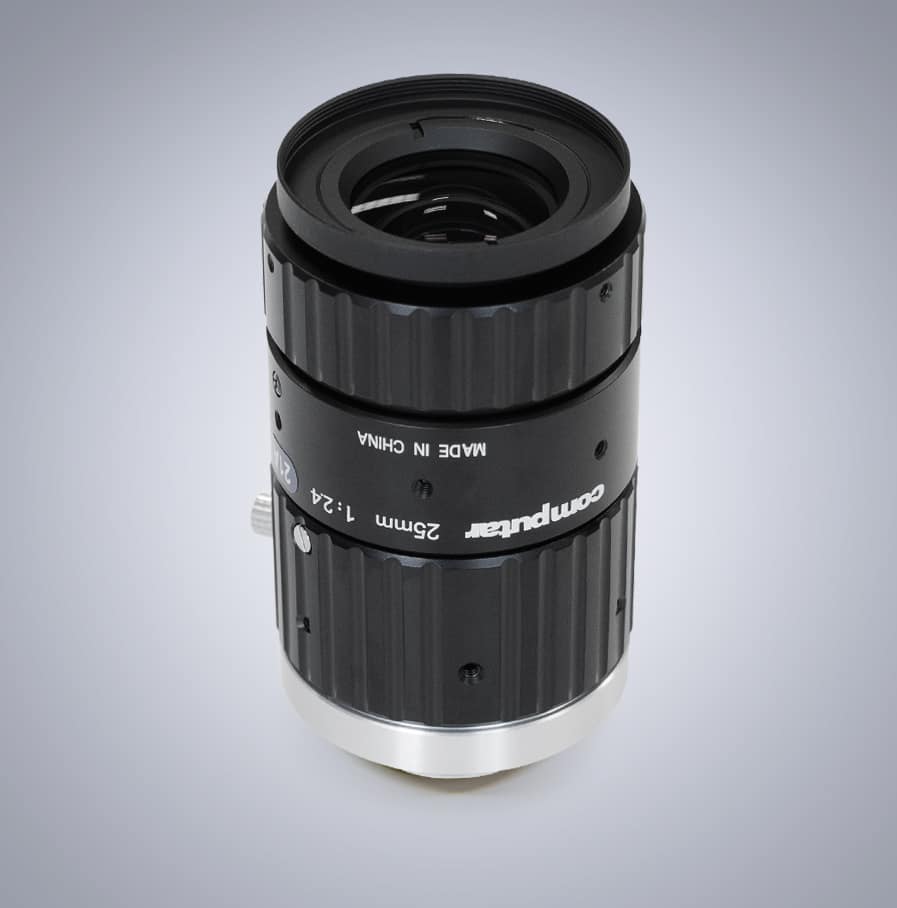

Computar C-Mount 45MP 4/3″ 25mm f/2.4
The MPT Series supports 4/2″ (1.4″) sensor format up to 45 Megapixel resolution in a C-mount lens. The MPT Series combines high performance optics with a variety of common focal lengths for larger megapixel sensors with smaller 2.74μm pixel sizes.
Specifications
| Manufacturer Model # | Computar F2524-MPT |
|---|---|
| LUCID SKU | CC250-45M |
| Focal Length | 25mm |
| Iris Range (f no.) | f2.4 – f16 |
| Angle of View (H x V) * *Mounted to 4/3″ (1.4”) sensor cameras | 41.9° x 29.3° |
| Focus Range (from front of the lens) | ∞-150mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M34 x 0.5mm |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 4/3″ (1.4”) |
| TV Distortion | -0.06% (1.4″) |
| Diameter | φ39.0 x 66mm |
| Weight | 152g |
| Fixing Knobs Bundled | 2 total |
USD $1,570.00
Login to see pricesRecommended IP67 Lens Tube
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
Coming soon
