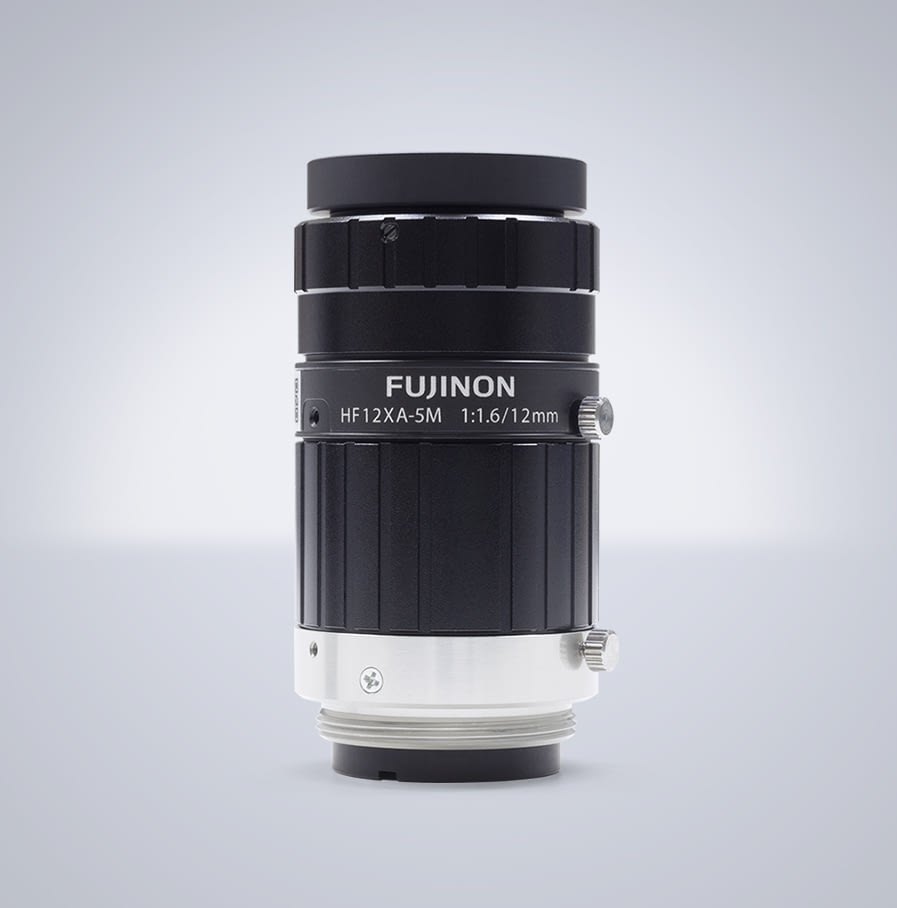

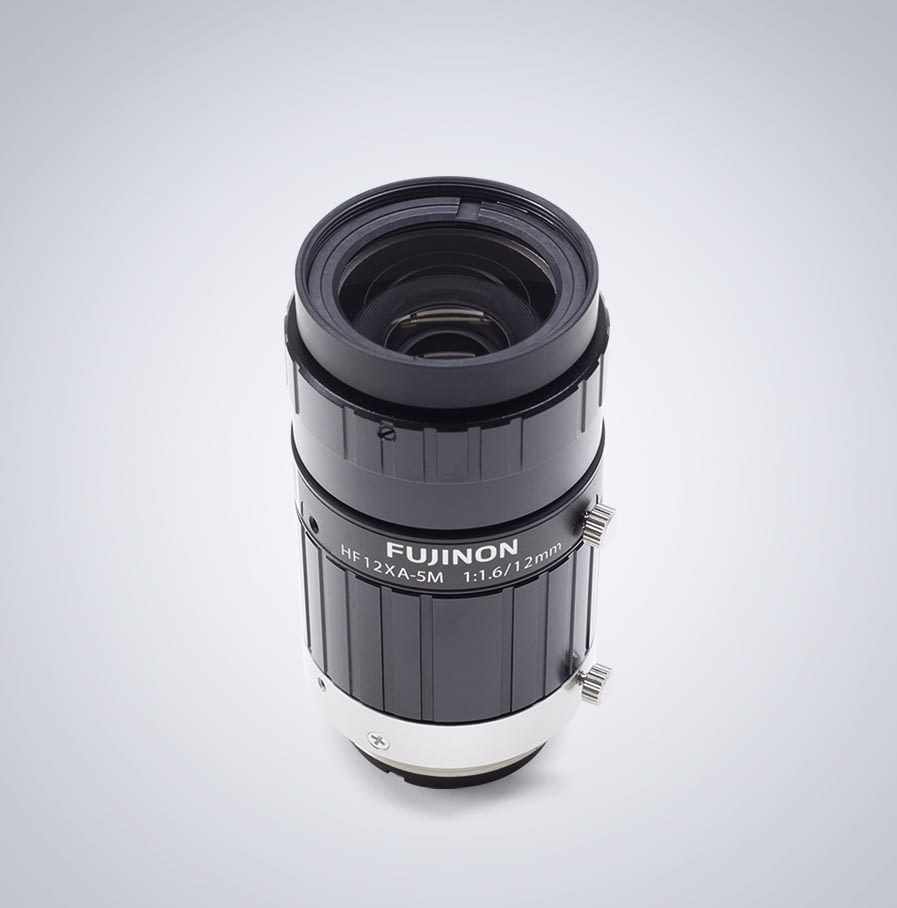

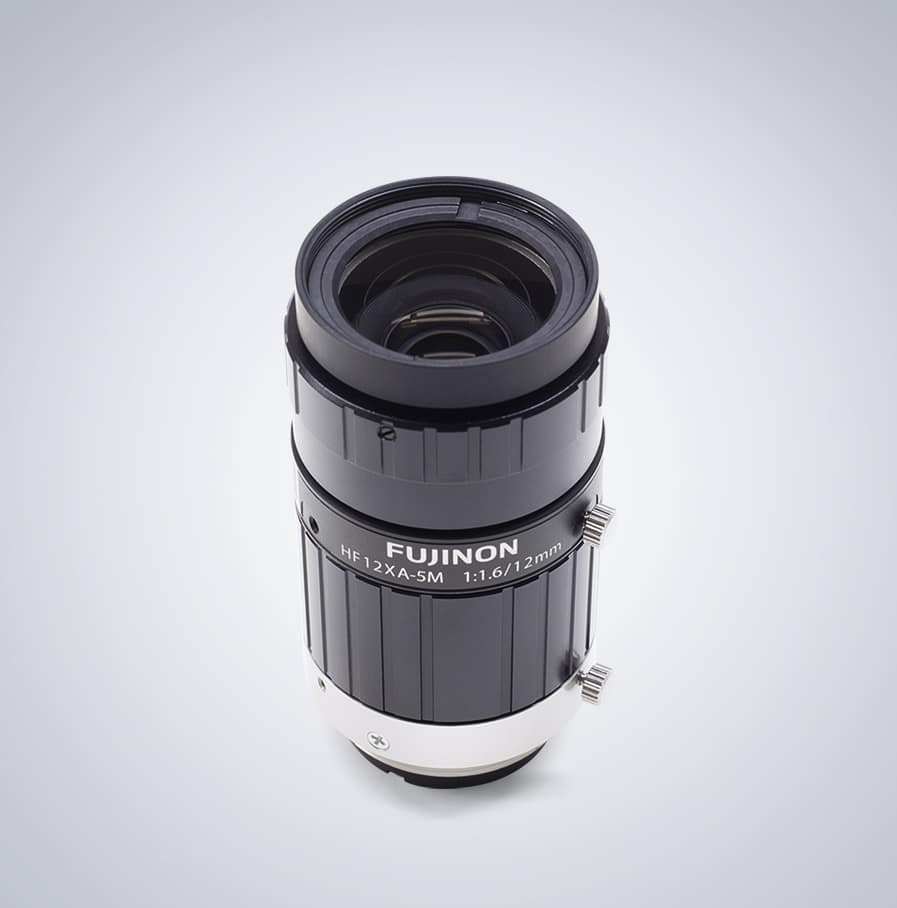

Fujinon C-Mount 5MP 2/3″ 12mm f/1.6

The FUJINON HF-XA-5M series features “4D High Resolution”, which mitigates resolution degradation even when changing a working distance or aperture value. This lens is compactly designed with the external diameter of 29.5mm, which is about the same size as general compact machine vision cameras. The entire series contributes to achieving a compact form factor for machine vision systems.


Manufacturer Model #Fujinon HF12XA-5M
Focal Length12mm
Iris Range (f no.)f1.6 – f16
Angle of View (H x V) *
* Mounted to 2/3” sensor cameras
40.1° x 30.3°
Focus Range (from front of the lens)∞-100mm
Operation of FocusManual
Operation of IrisManual
Filter ThreadM25.5 x 0.5mm
Sensor Size (max.)2/3”
TV Distortion-1.30%
Diameterφ29.5 x 51.5mm
Fixing Knobs Bundled2
Login to see prices
SKU: FC120-5M Category:

Technical Drawings

HF12xa-5m drawings

The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
