Name: Atlas10 47 MP Model
SKU: 99814
Price: 2495.00 USD
Availability: InStock

Atlas10 47 MP Model

Sensor
Sony IMX492 CMOS

Resolution
47 MP 8232 x 5588 px

Frame Rate
23.2 FPS

Model SKUs	Chroma	Lens Mount	10GBASE-T Connector
ATX470S-CT	Color	TFL-mount	M12
ATX470S-MT	Mono	TFL-mount	M12
ATX470S-CNL	Color	No lens mount	M12
ATX470S-MNL	Mono	No lens mount	M12

Please select your camera configuration:

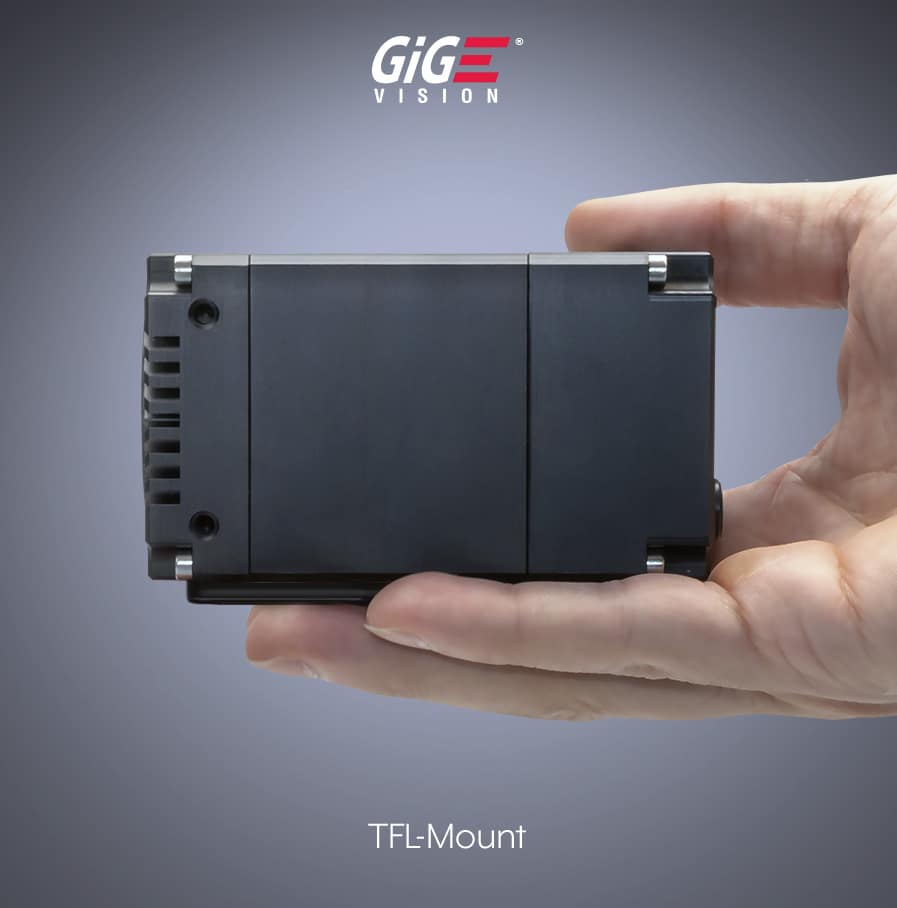

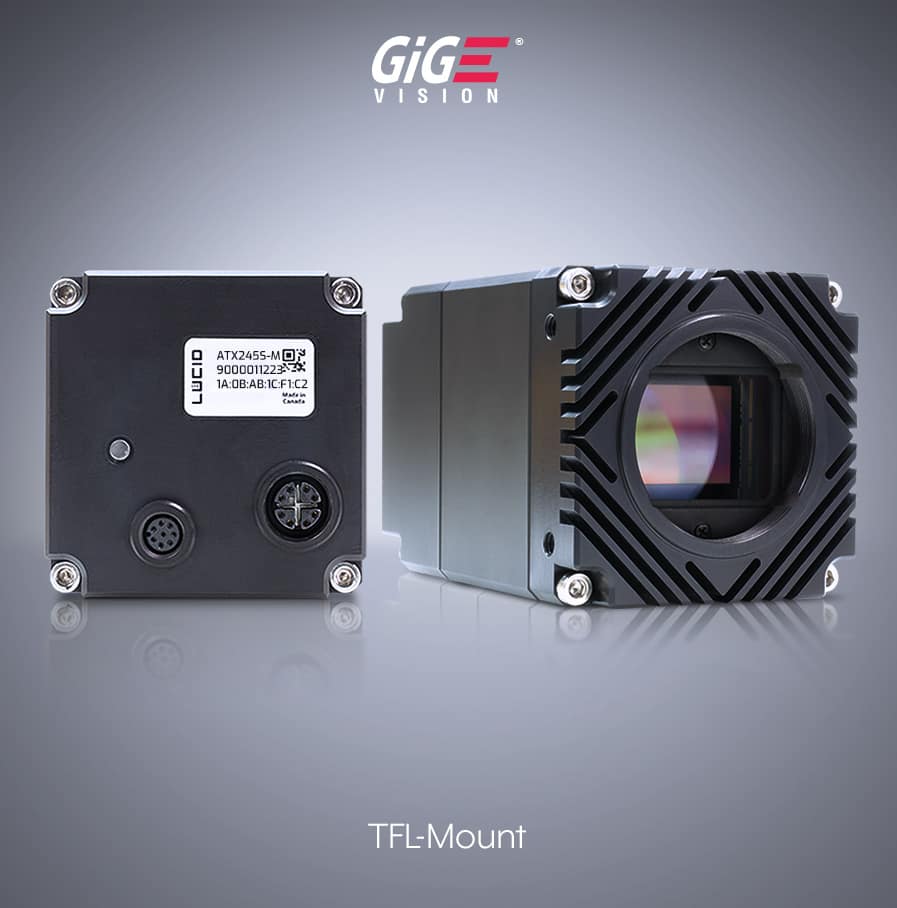

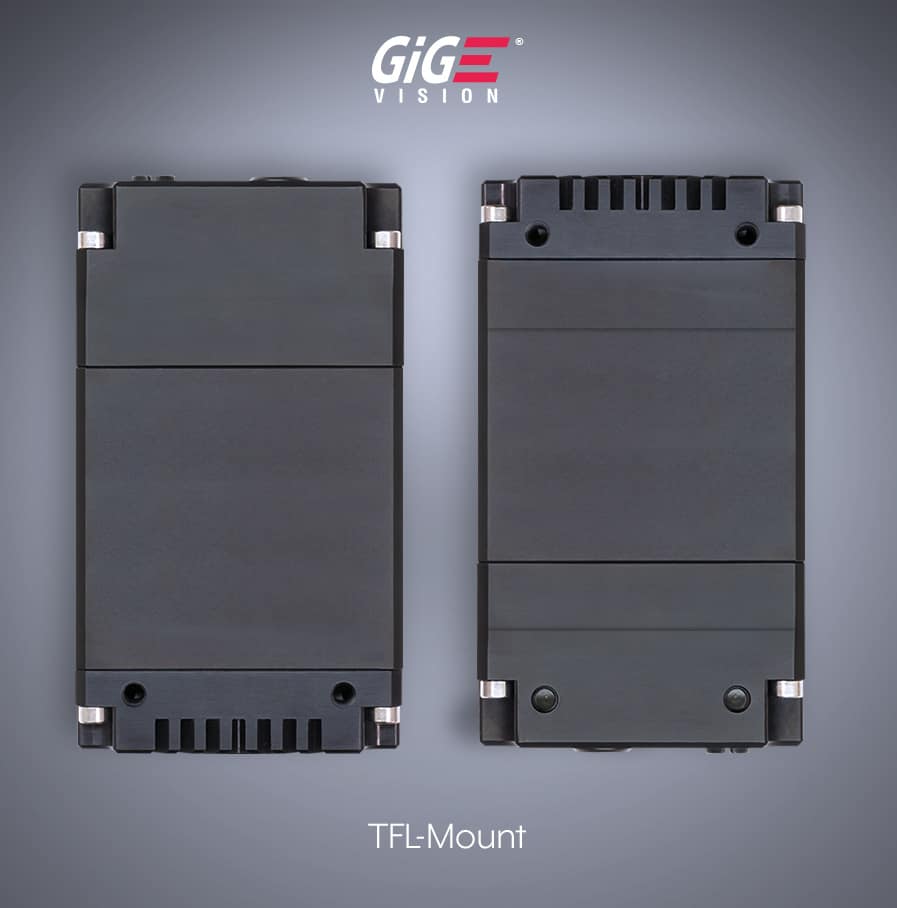

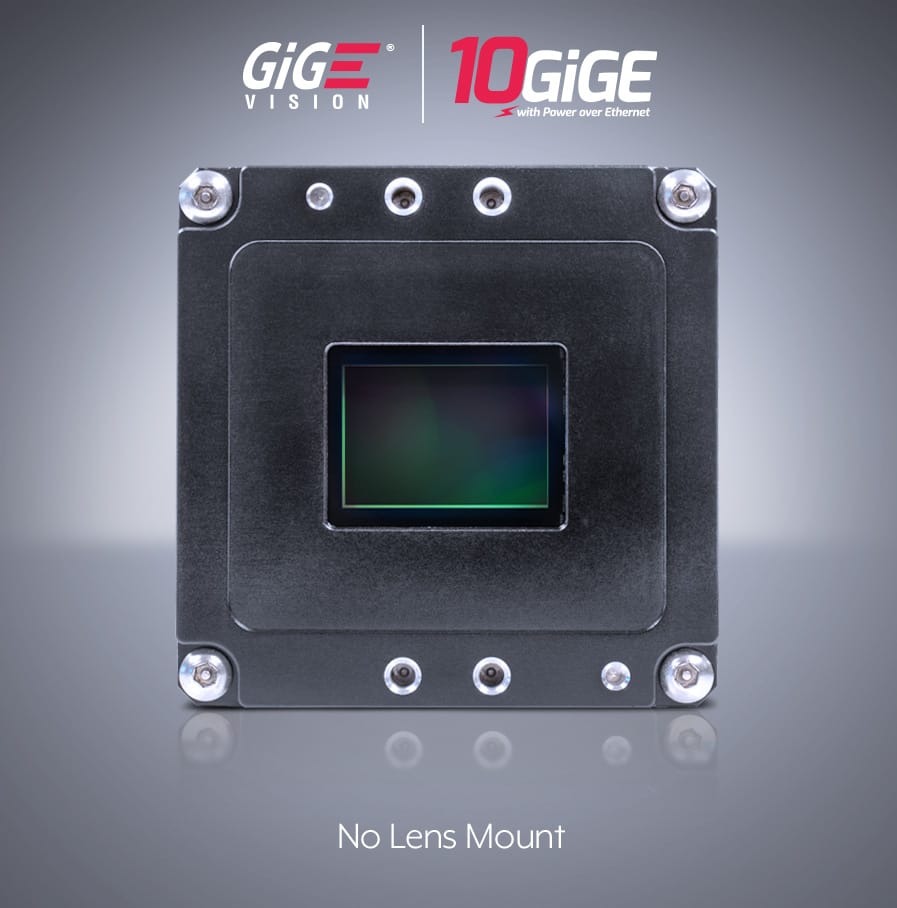

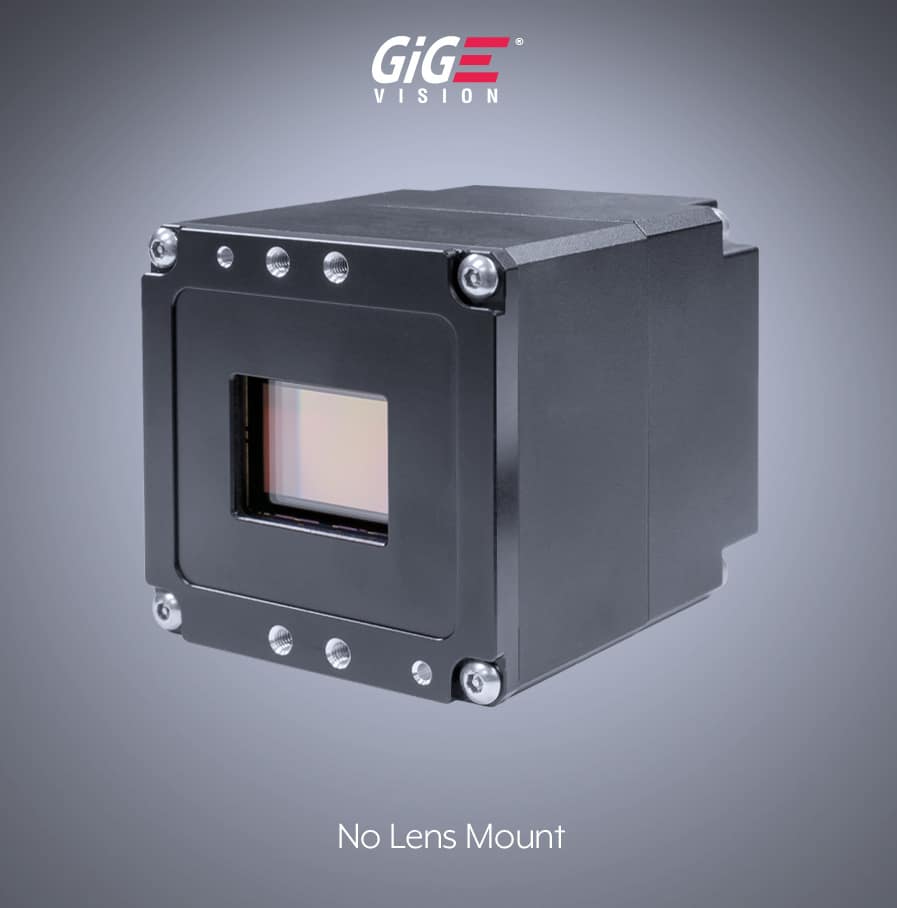

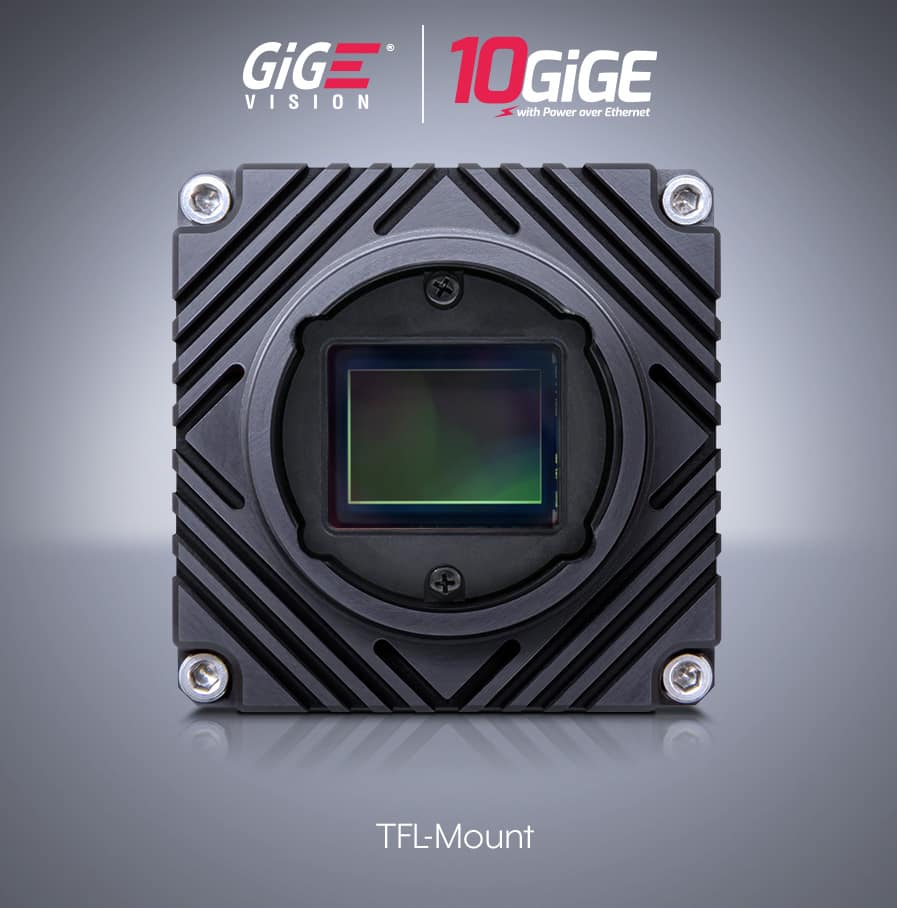

Atlas10 featuring Sony's IMX492 high resolution 47MP sensor

The Atlas10 camera featuring Sony’s 47 MP IMX492 rolling shutter sensor provides high resolution imaging with excellent image quality performance. Equipped with a TFL mount, the Atlas10 ATX470S camera offers a 10GigE bandwidth, fast frame rates at 22.6 fps at full resolution, high quantum efficiency and dynamic range for both color and mono models . It is a cost-efficient solution for applications that demand high resolution, such as aerial imagery, AOI, 3D scanning, and more.

Specifications

Sensor Properties
Sensor Model	Sony IMX492 CMOS
Shutter Type	Rolling, Global Reset
Sensor Size	23.1 mm (Type 1.4)
Resolution	8232 x 5588 px, 47 MP
Pixel Size	2.315 µm (H) x 2.315 µm (V)
Framerate*	23.2 FPS (23.2 FPS) @ 47 MP (10 bit ADC mode) 15.5 FPS (15.5 FPS) @ 47 MP (12 bit ADC mode)

Physical Properties
Dimensions	55 x 55 x 95.5 mm (TFL mount model) 55 x 55 x 65 mm (No lens mount model)
Lens Mount	TFL-Mount / No Lens Mount
Weight	325 g (TFL mount model) 240 g (No lens mount model)

Interface and Power Information
Digital Interface	10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12, PoE (10GBASE-T runs in Short Reach Mode, 25m cable length max)
Transport Layer Protocol	UDP (GigE Vision), TCP, RDMA (RoCE v2)
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption	<12W via PoE+, 11.5W when powered externally

*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.

Imaging Properties
Image Buffer	380 MB
Image Processing	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes	Horizontal and vertical binning, decimation, ROI
ADC	10, 12 bit
Gain Range	12 dB to 27 dB analog and digital
Exposure Time	125 µs to 10 sec

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data	Exposure start/end
Counter & Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 50°C ambient (TFL mount model) -20 to 45°C ambient (No lens mount model)
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64*
Warranty	3 year

*Listed specification testing in progress and is subject to change

EMVA 1288 Data

ATX470S EMVA 1288 results.
Interactive graphs – please hover over the points in the graph to reveal QE %

ATX470S-M (Mono, Sony IMX492 CMOS)

Mono EMVA 1288 Results
Dynamic Range	65.39 dB
SNR (Max)	41.95 dB
Saturation Capacity	15655 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	10.17 γ
Temporal Dark Noise	7.83 e-
Gain	0.247 DN / e-
Dark Current	8.05 e- / s
Dark Signal Non-Uniformity	0.97 e-
Photo Response Non-Uniformity	0.62 %
Linearity Error Max/Min	0.135/-0.088 %

ATX470S-C (Color, Sony IMX492 CMOS)

Color EMVA 1288 Results
Dynamic Range	65.5 dB
SNR (Max)	41.94 dB
Saturation Capacity	15646 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	11.28 γ
Temporal Dark Noise	7.72 e-
Gain	0.252 DN / e-
Dark Current	6.88 e- / s
Dark Signal Non-Uniformity	0.95 e-
Photo Response Non-Uniformity	0.677 %
Linearity Error Max/Min	0.098/-0.053 %

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Atlas10 TFL-Mount

Atlas10 No Lens Mount

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:

Connect your camera for the first time
Download and install Arena SDK or 3rd party software
Enable Jumbo Frames on the Host PC and Camera
Assign camera IP address
Update camera firmware

Downloads

Atlas10 Datasheet (PDF)

For all other files, visit our Downloads Page to access:

Arena SDK (Arena View, APIs, Examples)
3D CAD drawings (.step files)
Camera firmware files
Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.

Lens Manufacturer Part #	Lens Description	5.0MP ATX051S	8.1MP ATX081S	12.3MP ATX124S	16.2MP ATX162S	20.4MP ATX204S	24.5MP ATX245S	31.4MP ATX314S	47MP ATX470S
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Vignette
Edmund Optics C #67-709	C-Mt 1/1.8" 6mm, f1.4	Vignette
Edmund Optics C #58-000	C-Mt 2/3" 8.5mm, f/1.3	Good	Good
Edmund Optics C #58-001	C-Mt 2/3" 12mm, f/1.8	Good	Good
Edmund Optics C #59-870	C-Mt 2/3" 16mm, f/1.6	Good	Good
Edmund Optics C #59-871	C-Mt 2/3" 25mm, f/1.4	Good	Good
Edmund Optics C #59-872	C-Mt 2/3" 35mm, f/1.65	Good	Good
Edmund Optics C #59-873	C-Mt 2/3" 50mm, f/2	Good	Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Vignette (1)
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good (1)
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good (1)
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good (1)
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good (1)
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good (1)
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good (1)		Good (3)
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good (1)		Good (3)
Edmund Optics CA #11-320	TFL-Mt APS-C 35mm f/2.8						Good (2)	Good	Good
Edmund Optics CA #11-320	TFL-Mt APS-C 50mm f/1.8						Good (2)	Good	Good
Edmund Optics CA #11-321	TFL-Mt APS-C 75mm f/2.8						Good (2)	Good	Good
Edmund Optics CA #11-322	TFL-Mt APS-C 100mm f/2.8						Good (2)	Good	Good

(1) For AXT24S C-mount models. (2) For AXT24S TFL-mount models. (3) When used with TFL-Mount to C-Mount Adapter (P/N: ADA-TFL-C)

Lens Adapter ~ For Atlas10 TFL-II Mount Models: (ATX65G)	Manufacturer Part #	SKU	Subject to 25% US import tariff? (US customers only)
TFL-II Mount to F-Mount Lens (w/ Adjustable BFD) Adapter	ADA-TFL2-F-ADJ	ADA-TFL2-F-ADJ	No
TFL-II Mount to Canon EF-Mount (w/ GPIO and Power) Birger Adapter	ADA-TFL2-EF-(US/EU)	ADA-TFL2-EF-(US/EU)	No
Lens Adapter ~ For Atlas10 TFL-Mount Models: (ATX245S-CT/MT, ATX470S-CT/MT)
TFL-Mount to F-Mount Lens (w/ Adjustable BFD) Adapter	ADA-TFL-F-ADJ	ADA-TFL-F-ADJ	No
TFL-Mount Lens to F-Mount Adapter	ADA-TFL-F	ADA-TFL-F	No
TFL-Mount Lens to C-Mount Adapter	ADA-TFL-C	ADA-TFL-C	No
TFL-Mount to Canon EF-Mount (w/ GPIO and Power) Birger Adapter	ADA-TFL-EF-(US/EU)	ADA-TFL-EF-(US/EU)	No

Cables for Atlas10 Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green	LUCID CAB-MR-2M-A	CAB-MR-2M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green	LUCID CAB-MR-5M-A	CAB-MR-5M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark Green	LUCID CAB-MR-15M-A	CAB-MR-15M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m	LUCID CAB-MR-5M-RA1-A	CAB-MR-5M-RA1-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m	LUCID CAB-MR-15M-RA1-A	CAB-MR-15M-RA1-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m	LUCID CAB-MR-5M-RA2-A	CAB-MR-5M-RA2-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m	LUCID CAB-MR-15M-RA2-A	CAB-MR-15M-RA2-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 5m	LUCID CAB-MR-5M-RA3-A	CAB-MR-5M-RA3-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 15m	LUCID CAB-MR-15M-RA3-A	CAB-MR-15M-RA3-A	No
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A	No
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A	No
M8 GPIO 8-pin (Amphenol) 15.0m Cable	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A	No
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA1-A	GPIO-M8-5M-RA1-A	No
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA1-A	GPIO-M8-15M-RA1-A	No
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA2-A	GPIO-M8-5M-RA2-A	No
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA2-A	GPIO-M8-15M-RA2-A	No

Tripod Mount Adapter
Atlas10 Tripod Adapter	ATX-TR	ATX-TR	No

Interface Cards, PoE Injectors, Power Supply
LUCID 2-CH 10G/1G RDMA PoE+ Host Channel Adapter (HCA) Network Card *This card supports RDMA on Atlas10	PCIE-10GPOE2-LUCID	PCIE-10GPOE2-LUCID	No
Broadcom 2-CH 10G/1G RDMA Host Channel Adapter (HCA) Network Card *This card supports RDMA on Atlas10	BCM957416A4160C	PCIE-10GETH2-BC	No

Procet 2.5/5.0/10GbE 60W PoE++ Injector	Procet PT-PSE104GB-60-10	POEP-PT(EU)	Yes
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1	Yes
