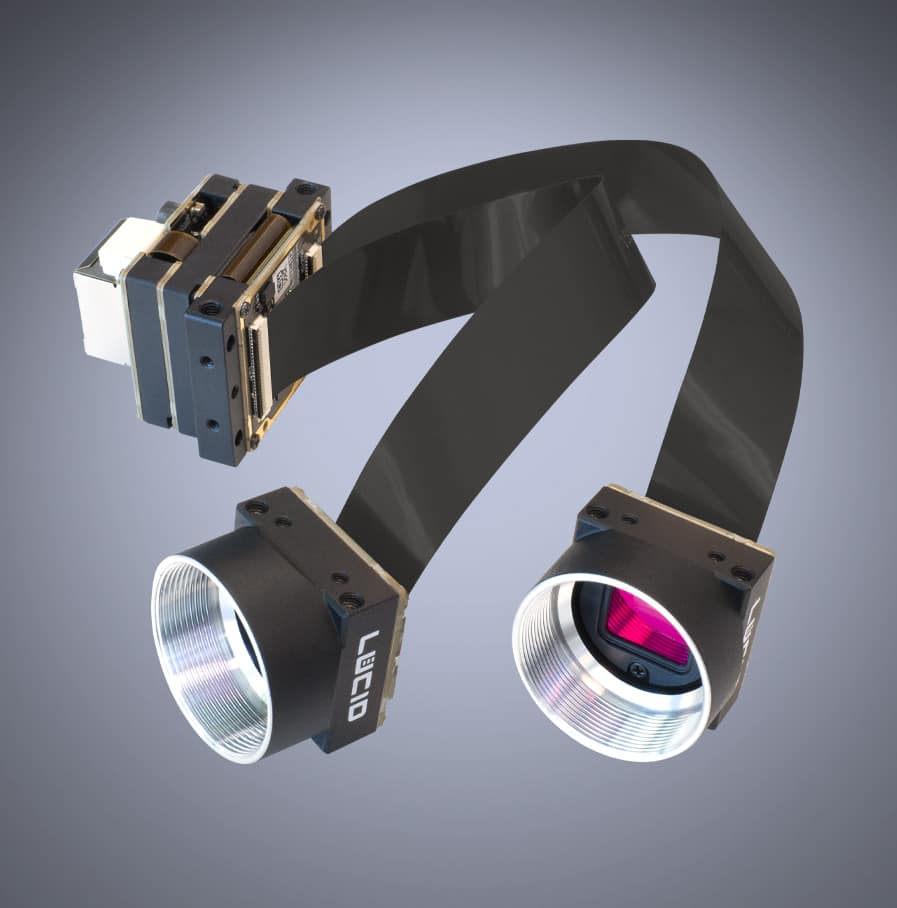

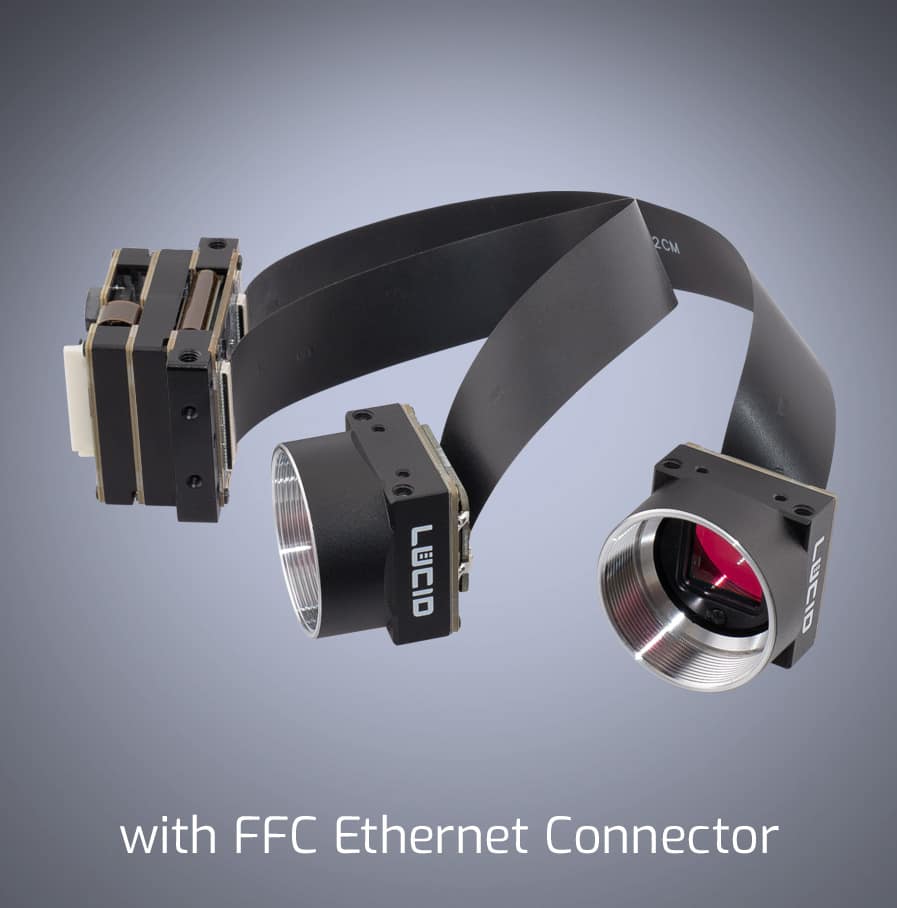

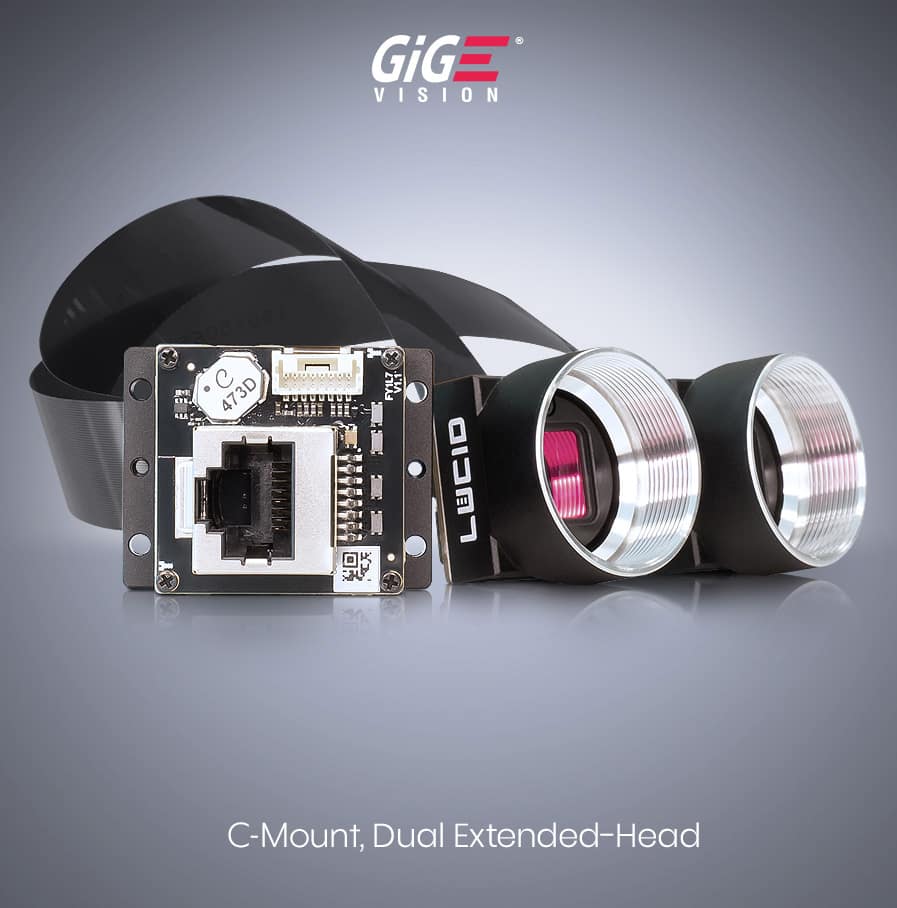

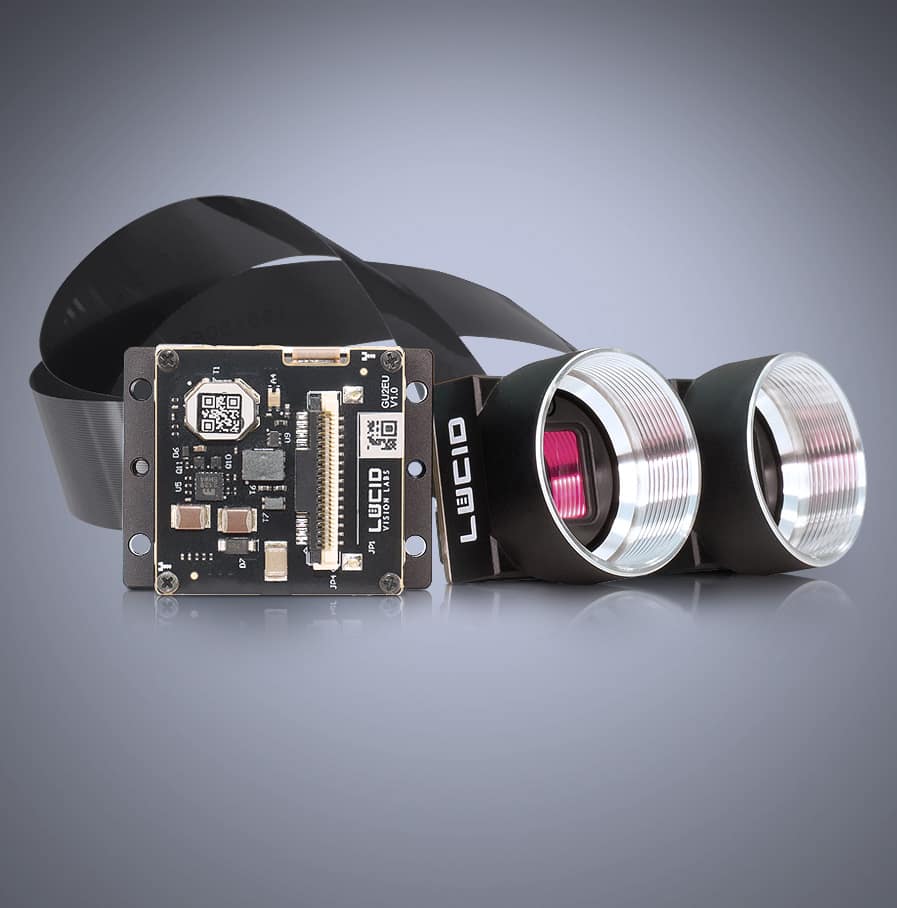

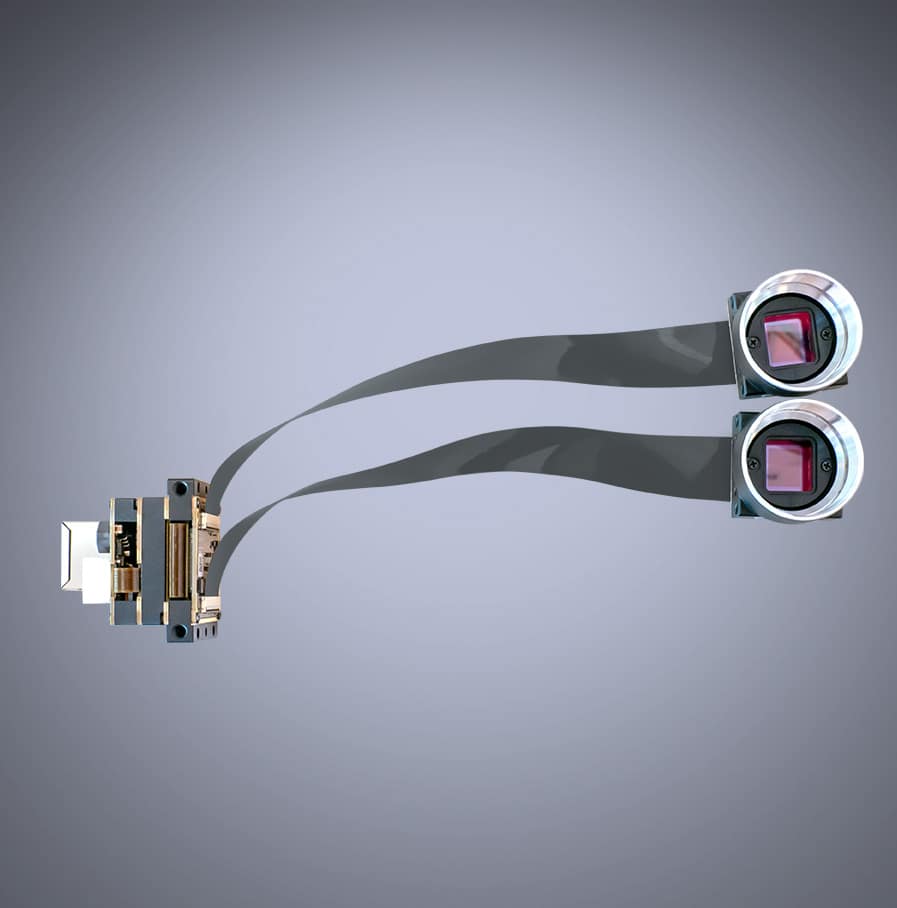

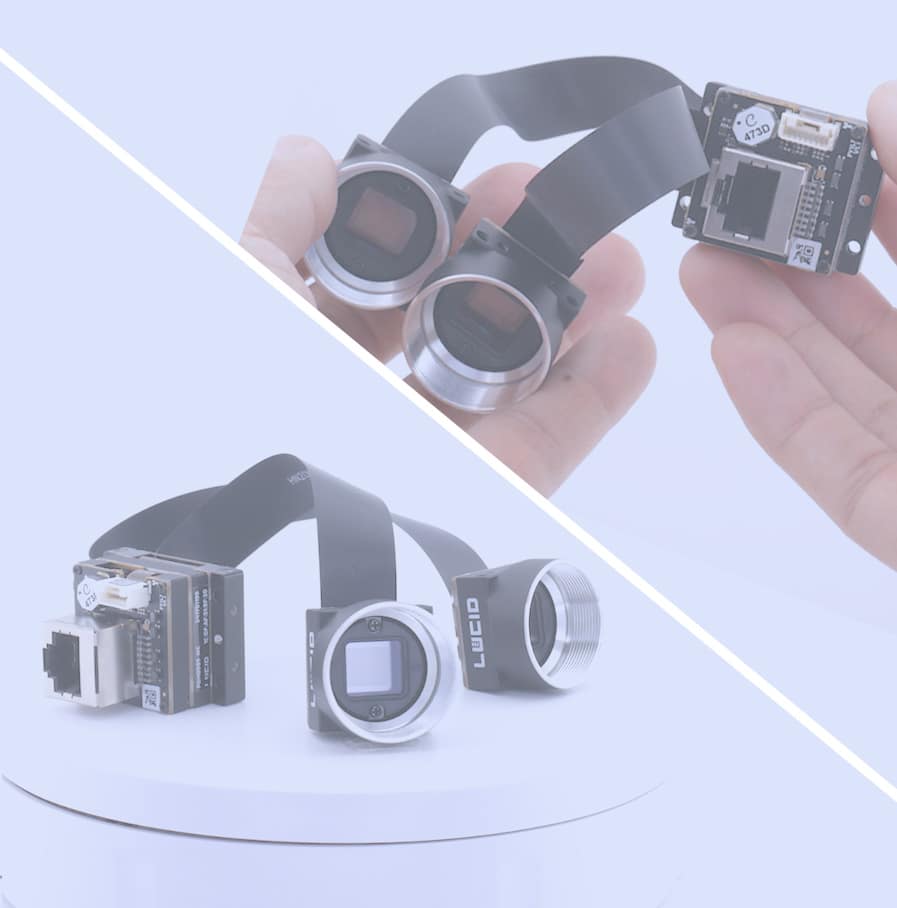

Phoenix 5.0 MP (x2) Dual Extended-Head Model

The Phoenix Dual Extended-Head is a compact camera featuring a unique space-saving design. This camera can transfer synchronized images from its dual sensors, making it ideal for a range of applications requiring multiple fields of view. Whether for stereo vision setups, drones with varying viewing angles, or implementing ITS applications that require both IR-filtered and non-filtered sensors, the Phoenix camera delivers reliable performance with its dual extended-head, single-body design. Lightweight and flexible, it can be adapted to fit into various space-constrained applications.

Sensor
Sony IMX264 CMOS (x2)
Resolution
5.0 MP, 2448 x 2048 px (x2)
Frame Rate
11 FPS (per sensor)
Model SKUs Chroma Lens Mount GigE Vision Connector
PDH050S-CC Color C-mount RJ45
PDH050S-MC Mono C-mount RJ45

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor Model Sony IMX264 CMOS (x2)
Shutter Type Global
Sensor Size 11.1 mm (Type 2/3″)
Resolution 2448 x 2048 px, 5.0 MP (each sensor)
Pixel Size 3.45 µm (H) x 3.45 µm (V)
Framerate* 11.1 FPS @ 5.0 MP (per sensor)
(12.3 FPS @ 5.0 MP (per sensor))
Physical Properties
Dimensions 28 x 36 x 32.8* mm
Lens Mount Dual C-Mount Extended Head
Weight 54 g
Interface and Power Information
Digital Interface 1000BASE-T RJ45, PoE
GPIO Interface 8 pin JST connector
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.1W via PoE, 2.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability. Mono8 pixel format used for max FPS spec.
Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance (Manual white balance only, no auto white balance), LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono: Mono8/10/12/16, Mono10p/12p, Mono10Packed/12Packed, DualMono8/10/12/16, DualMono10p/12p, DualMono10Packed/12Packed | Color: Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411, DualBayerRG8, DualBayerRG10, DualBayerRG10Packed, DualBayerRG10p,
Image Modes ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 33.48 μs to 10 s (Normal) 1.048 μs to 14.44 μs (Short Mode)
Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -10 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty 3 year

EMVA 1288 Data

The Phoenix 5.0 MP (x2) Dual Extended-Head Model has the same EMVA 1288 results as the Phoenix 5.0 MP Model (IMX264). Interactive graphs – please hover over the points in the graph to reveal QE %

PHX050S-M (Mono, Sony IMX264 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.66 dB
SNR (Max) 40.28 dB
Saturation Capacity 10679 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.05 γ
Temporal Dark Noise 2.15 e-
Gain 0.368 DN / e-
Dark Current 4.57 e- / s
Dark Signal Non-Uniformity 0.68 e-
Photo Response Non-Uniformity 0.75 %
Linearity Error Max/Min 0.30/-0.76 %
PHX050S-C (Color, Sony IMX264 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.58 dB
SNR (Max) 40.18 dB
Saturation Capacity 10426 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.28 γ
Temporal Dark Noise 2.11 e-
Gain 0.372 DN / e-
Dark Current 5.34 e- / s
Dark Signal Non-Uniformity 0.69 e-
Photo Response Non-Uniformity 0.68 %
Linearity Error Max/Min 0.24/-0.44 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Phoenix Extended Dual-Head Technical Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
Lens Manufacturer Part #Lens Description0.4MP
PHX004S
1.6MP
PHX016S
2.3MP
PHX023S
3.2MP
PHX032S
5.0MP
PHX050S
5.0MP
PHX050S-P/Q
6.3MP
PHX064S
8.9MP
PHX089S
12.2MP
PHX122S
12.3MP
PHX120S
20.0MP
PHX200S
Edmund Optics UC Series #33-300C-Mount 1/2″ 4mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-301C-Mount 1/2″ 6mm f/1.85
Good
Good
Good
Edmund Optics UC Series #33-307C-Mount 1/2″ 8mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-303C-Mount 1/1.8″ 12mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-304C-Mount 1/1.8″ 16mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-305C-Mount 1/1.8″ 25mm f/1.85
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #67-709C-Mount 1/1.8" 6mm, f1.4
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #58-000C-Mount 2/3" 8.5mm, f/1.3
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #58-001C-Mount 2/3" 12mm, f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-870C-Mount 2/3" 16mm, f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-871C-Mount 2/3" 25mm, f/1.4
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-872C-Mount 2/3" 35mm, f/1.65
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-873C-Mount 2/3" 50mm, f/2
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL060CC-Mount 5MP 2/3″ 6mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL080CC-Mount 5MP 2/3″ 8mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL160CC-Mount 5MP 2/3″ 16mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL250CC-Mount 5MP 2/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact NF #BL060*NF-Mount 5MP 2/3″ 6mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL080*NF-Mount 5MP 2/3″ 8mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL120*NF-Mount 5MP 2/3″ 12mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL160*NF-Mount 5MP 2/3″ 16mm f/2.0
Good*
Good*
Good*
Good*
Good<*/div>
Good*
Good*
Universe Compact NF #BL250*NF-Mount 5MP 2/3″ 25mm f/1.8
Good*
Good*
Good*
Good*
Good*
Good*
Good*
LUCID #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF6XA-5MC-Mount 5MP 2/3″ 6mm f/1.9
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF8XA-5MC-Mount 5MP 2/3″ 8mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF12XA-5MC-Mount 5MP 2/3″ 12mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF16XA-5MC-Mount 5MP 2/3″ 16mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF25XA-5MC-Mount 5MP 2/3″ 25mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF8ZA-1SC-Mount 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF12ZA-1SC-Mount 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF16ZA-1SC-Mount 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF25ZA-1SC-Mount 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF35ZA-1SC-Mount 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF50ZA-1SC-Mount 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V0828-MPYC-Mount 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1228-MPYC-Mount 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1628-MPYC-Mount 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V2528-MPYC-Mount 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V3528-MPYC-Mount 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F1228-MPTC-Mt 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F2524-MPTC-Mt 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics CA Series #11-320TFL-Mount APS-C 50mm f/1.8
Edmund Optics CA Series #11-321TFL-Mount APS-C 75mm f/2.8
Edmund Optics CA Series #11-322TFL-Mount APS-C 100mm f/2.8
*Must be used with NF-mount Phoenix models only

Lens AdapterManufacturer Part #SKU
C-Mount to S-Mount (M12) AdapterLUCID ADA-C-SADA-C-S
Transform KitsManufacturer Part #SKU
180° and 90° Transform Kit for 24x24mm PhoenixLUCID PHX24-TKPHX24-TK
FFC to M12 Extender Board for Phoenix with FFC connectorLUCID FFC-15-JST-M12FFC-15-JST-M12
FFC to RJ45 Extender Board for Phoenix with FFC connectorLUCID FFC-15-JST-RJ45FFC-15-JST-RJ45
Cables for 24 x 24 Phoenix Models
Ethernet Cat6a STP Patch Cable – 2.1m, Black, Snagless StarTech C6ASPAT7BKCAB-RR-2M
Ethernet Cat6a STP Patch Cable – 4.6m, Black, SnaglessStarTech C6ASPAT15BKCAB-RR-5M
ix Industrial Ethernet Cat6a Cable – 2.0m, BlackLUCID CAB-IR-2MCAB-IR-2M
ix Industrial Ethernet Cat6a Cable – 5.0m, BlackLUCID CAB-IR-5MCAB-IR-5M
GPIO 8-pin 20cm JST CableGPIO-8P20GPIO-8P20
Tripod Mount Adapter
Tripod AdapterPHX-TRPHX-TR
Interface Cards, PoE Injectors
LR-LINK PCIe GigE Vision PoE+ CardLR-LINK LRES2001PT-POEPCIE-POE1-LR
6-CH PCIe GigE Vision Card (Non-PoE)LR-LINK LRES2006PTPCIE-ETH6-LR
2-CH PCIe GigE Vision PoE+ CardLR-LINK LRES2002PTPCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Cardioi GE2PX4-PCIE4XE301PCIE-POE4-2G
TP-Link PoE InjectorTP-Link TL-POE150SPOEP
Procet 2.5/5.0GbE 30W PoE+ Injector (802.3af/at, NA/EU)Procet PT-PSE104G-30-5POEP-PT-5G / POEP-PTEU-5G
