Name: Phoenix 6.3 MP Model (IMX178)
SKU: 20406
Availability: InStock

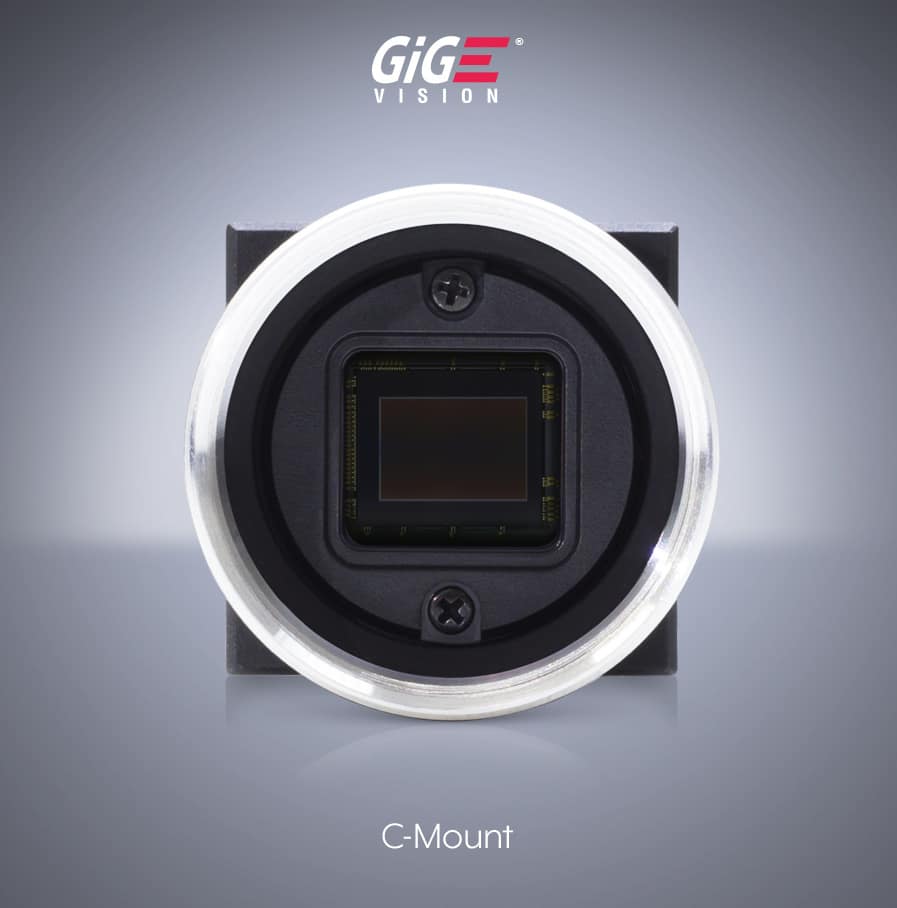

Phoenix 6.3 MP Model (IMX178)

Sensor
Sony IMX178 CMOS

Resolution
6.3 MP, 3072 x 2048 px

Frame Rate
17.7 FPS

Standard Configurations.

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHX064S-CC	Color	C-mount	RJ45
PHX064S-MC	Mono	C-mount	RJ45

Custom Configurations: Please note the following models may require additional lead time.

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHXET064S-CC	Color	C-mount Extended Head	RJ45
PHXET064S-MC	Mono	C-mount Extended Head	RJ45
PHX064S-CNF	Color	NF-mount	RJ45
PHX064S-MNF	Mono	NF-mount	RJ45
PHX064S-CS	Color	S-mount	RJ45
PHX064S-MS	Mono	S-mount	RJ45
PHX064S-CNL	Color	No Lens Mount	RJ45
PHX064S-MNL	Mono	No Lens Mount	RJ45
PHX064S-CC-IX	Color	C-mount	ix Industrial
PHX064S-MC-IX	Mono	C-mount	ix Industrial
PHX064S-CNF-IX	Color	NF-mount	ix Industrial
PHX064S-MNF-IX	Mono	NF-mount	ix Industrial

Model SKUs	Chroma	Lens Mount	GigE Vision Connector
PHX064S-CS-IX	Color	S-mount	ix Industrial
PHX064S-MS-IX	Mono	S-mount	ix Industrial
PHX064S-CNL-IX	Color	No Lens Mount	ix Industrial
PHX064S-MNL-IX	Mono	No Lens Mount	ix Industrial
PHX064S-CC-FFC	Color	C-mount	FFC (ZIF)
PHX064S-MC-FFC	Mono	C-mount	FFC (ZIF)
PHX064S-CNF-FFC	Color	NF-mount	FFC (ZIF)
PHX064S-MNF-FFC	Mono	NF-mount	FFC (ZIF)
PHX064S-CS-FFC	Color	S-mount	FFC (ZIF)
PHX064S-MS-FFC	Mono	S-mount	FFC (ZIF)
PHX064S-CNL-FFC	Color	No Lens Mount	FFC (ZIF)
PHX064S-MNL-FFC	Mono	No Lens Mount	FFC (ZIF)

Please select your camera configuration:

Specifications

Sensor Properties
Sensor Model	Sony IMX178 CMOS (BSI Starvis)
Shutter Type	Rolling with global reset
Sensor Size	8.92 mm (Type 1/1.8″)
Resolution	3072 x 2048 px, 6.3 MP
Pixel Size	2.40 µm (H) x 2.40 µm (V)
Framerate*	17.7 FPS (19.6 FPS) @ 6.3 MP

Physical Properties
Dimensions	24x24x27.35 mm, (No lens mount 24x24x18.7 mm)
Lens Mount	C, NF, S, No Lens Mount, C-Mount Extended Head
Weight	30 g

Interface and Power Information
Digital Interface	1000BASE-T RJ45, PoE ix Industrial, PoE FFC, PoE
GPIO Interface	8 pin JST connector
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	3.1W via PoE, 2.5W when powered externally

*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.

Imaging Properties
Image Buffer	128 MB
Image Processing	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes	Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC	12 bit
Gain Range	0 dB to 48 dB analog and digital
Exposure Time	24 μs to 10 s

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer	2 counters and 2 timers
Sequencer	Exposure time, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-10 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty	3 year

Pat: patents.thinklucid.com

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

PHX064S-M (Mono, Sony IMX178 CMOS)

Mono EMVA 1288 Results
Dynamic Range	72.1 dB
SNR (Max)	41.69 dB
Saturation Capacity	14763 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	4.71 γ
Temporal Dark Noise	2.99 e-
Gain	0.267 DN / e-
Dark Current	1.17 e- / s
Dark Signal Non-Uniformity	0.21 e-
Photo Response Non-Uniformity	0.8 %
Linearity Error Max/Min	0.19/-0.23 %

PHX064S-C (Color, Sony IMX178 CMOS)

Color EMVA 1288 Results
Dynamic Range	71.89 dB
SNR (Max)	41.61 dB
Saturation Capacity	14505 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	5.28 γ
Temporal Dark Noise	3.00 e-
Gain	0.269 DN / e-
Dark Current	1.71 e- / s
Dark Signal Non-Uniformity	0.18 e-
Photo Response Non-Uniformity	0.63 %
Linearity Error Max/Min	0.24/-0.34 %

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:

Connect your camera for the first time
Download and install Arena SDK or 3rd party software
Enable Jumbo Frames on the Host PC and Camera
Assign camera IP address
Update camera firmware

Downloads

Phoenix Datasheet (PDF)

For all other files, visit our Downloads Page to access:

Arena SDK (Arena View, APIs, Examples)
3D CAD drawings (.step files)
Camera firmware files
Technical Documentation

Accessories

Tripod adapter, lens, cables and Power Over Ethernet (PoE) Ethernet injector/interface card sold separately. Ethernet ports on most consumer motherboards and laptops do not support PoE. For more information on all accessories, visit Accessories.

Lens Manufacturer Part #	Lens Description	0.4MP PHX004S	1.6MP PHX016S	2.3MP PHX023S	3.2MP PHX032S	5.0MP PHX050S	5.0MP PHX050S-P/Q	6.3MP PHX064S	8.9MP PHX089S	12.2MP PHX122S	12.3MP PHX120S	20.0MP PHX200S
Edmund Optics UC Series #33-300	C-Mount 1/2″ 4mm f/1.8	Good	Good	Good
Edmund Optics UC Series #33-301	C-Mount 1/2″ 6mm f/1.85	Good	Good	Good
Edmund Optics UC Series #33-307	C-Mount 1/2″ 8mm f/1.8	Good	Good	Good
Edmund Optics UC Series #33-303	C-Mount 1/1.8″ 12mm f/1.8	Good	Good	Good	Slight vignette			Slight vignette		Slight vignette
Edmund Optics UC Series #33-304	C-Mount 1/1.8″ 16mm f/1.8	Good	Good	Good	Slight vignette			Slight vignette		Slight vignette
Edmund Optics UC Series #33-305	C-Mount 1/1.8″ 25mm f/1.85	Good	Good	Good	Slight vignette			Slight vignette		Slight vignette
Edmund Optics C Series #67-709	C-Mount 1/1.8" 6mm, f1.4	Good	Good	Good	Slight vignette			Slight vignette		Slight vignette
Edmund Optics C Series #58-000	C-Mount 2/3" 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C Series #58-001	C-Mount 2/3" 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C Series #59-870	C-Mount 2/3" 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C Series #59-871	C-Mount 2/3" 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C Series #59-872	C-Mount 2/3" 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C Series #59-873	C-Mount 2/3" 50mm, f/2	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL060C	C-Mount 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL080C	C-Mount 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #NF120-5M-C	C-Mount 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL160C	C-Mount 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL250C	C-Mount 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact NF #BL060*	NF-Mount 5MP 2/3″ 6mm f/2.0	Good*	Good*	Good*	Good*	Good*	Good*	Good*
Universe Compact NF #BL080*	NF-Mount 5MP 2/3″ 8mm f/2.0	Good*	Good*	Good*	Good*	Good*	Good*	Good*
Universe Compact NF #BL120*	NF-Mount 5MP 2/3″ 12mm f/2.0	Good*	Good*	Good*	Good*	Good*	Good*	Good*
Universe Compact NF #BL160*	NF-Mount 5MP 2/3″ 16mm f/2.0	Good*	Good*	Good*	Good*	Good<*/div>	Good*	Good*
Universe Compact NF #BL250*	NF-Mount 5MP 2/3″ 25mm f/1.8	Good*	Good*	Good*	Good*	Good*	Good*	Good*
LUCID #NF120-5M-C	C-Mount 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M series #HF6XA-5M	C-Mount 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M series #HF8XA-5M	C-Mount 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M series #HF12XA-5M	C-Mount 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M series #HF16XA-5M	C-Mount 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M series #HF25XA-5M	C-Mount 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon CF-ZA-1S series #CF8ZA-1S	C-Mount 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S series #CF12ZA-1S	C-Mount 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S series #CF16ZA-1S	C-Mount 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S series #CF25ZA-1S	C-Mount 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S series #CF35ZA-1S	C-Mount 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S series #CF50ZA-1S	C-Mount 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY Series #V0828-MPY	C-Mount 12MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY Series #V1228-MPY	C-Mount 12MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY Series #V1628-MPY	C-Mount 12MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY Series #V2528-MPY	C-Mount 12MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY Series #V3528-MPY	C-Mount 12MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Edmund Optics CA Series #11-320	TFL-Mount APS-C 50mm f/1.8
Edmund Optics CA Series #11-321	TFL-Mount APS-C 75mm f/2.8
Edmund Optics CA Series #11-322	TFL-Mount APS-C 100mm f/2.8
*Must be used with NF-mount Phoenix models only

Lens Adapter	Manufacturer Part #	SKU
C-Mount to S-Mount (M12) Adapter	LUCID ADA-C-S	ADA-C-S

Transform Kits	Manufacturer Part #	SKU
180° and 90° Transform Kit for 24x24mm Phoenix	LUCID PHX24-TK	PHX24-TK
FFC to M12 Extender Board for Phoenix with FFC connector	LUCID FFC-15-JST-M12	FFC-15-JST-M12
FFC to RJ45 Extender Board for Phoenix with FFC connector	LUCID FFC-15-JST-RJ45	FFC-15-JST-RJ45

Cables for 24 x 24 Phoenix Models
Ethernet Cat6a STP Patch Cable – 2.1m, Black, Snagless	StarTech C6ASPAT7BK	CAB-RR-2M
Ethernet Cat6a STP Patch Cable – 4.6m, Black, Snagless	StarTech C6ASPAT15BK	CAB-RR-5M
ix Industrial Ethernet Cat6a Cable – 2.0m, Black	LUCID CAB-IR-2M	CAB-IR-2M
ix Industrial Ethernet Cat6a Cable – 5.0m, Black	LUCID CAB-IR-5M	CAB-IR-5M
GPIO 8-pin 20cm JST Cable	GPIO-8P20	GPIO-8P20

Tripod Mount Adapter
Tripod Adapter	PHX-TR	PHX-TR

Interface Cards, PoE Injectors
LR-LINK PCIe GigE Vision PoE+ Card	LR-LINK LRES2001PT-POE	PCIE-POE1-LR
6-CH PCIe GigE Vision Card (Non-PoE)	LR-LINK LRES2006PT	PCIE-ETH6-LR
2-CH PCIe GigE Vision PoE+ Card	LR-LINK LRES2002PT	PCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
TP-Link PoE Injector	TP-Link TL-POE150S	POEP
Procet 2.5/5.0GbE 30W PoE+ Injector (802.3af/at, NA/EU)	Procet PT-PSE104G-30-5	POEP-PT-5G / POEP-PTEU-5G
