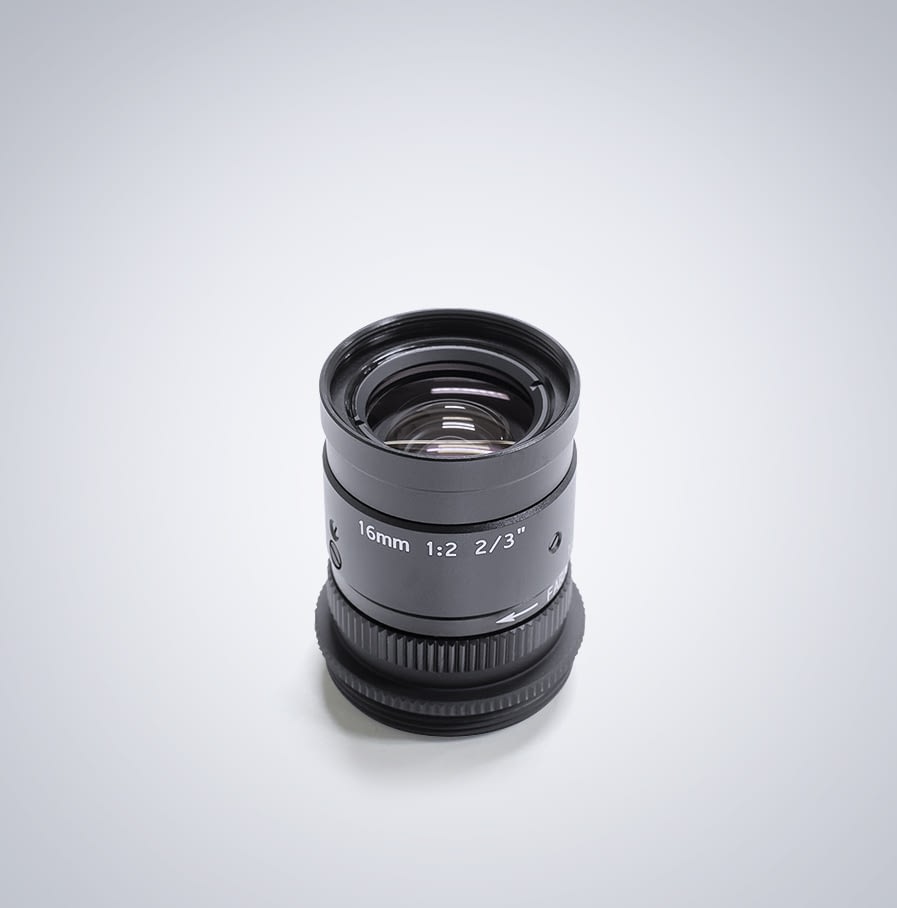

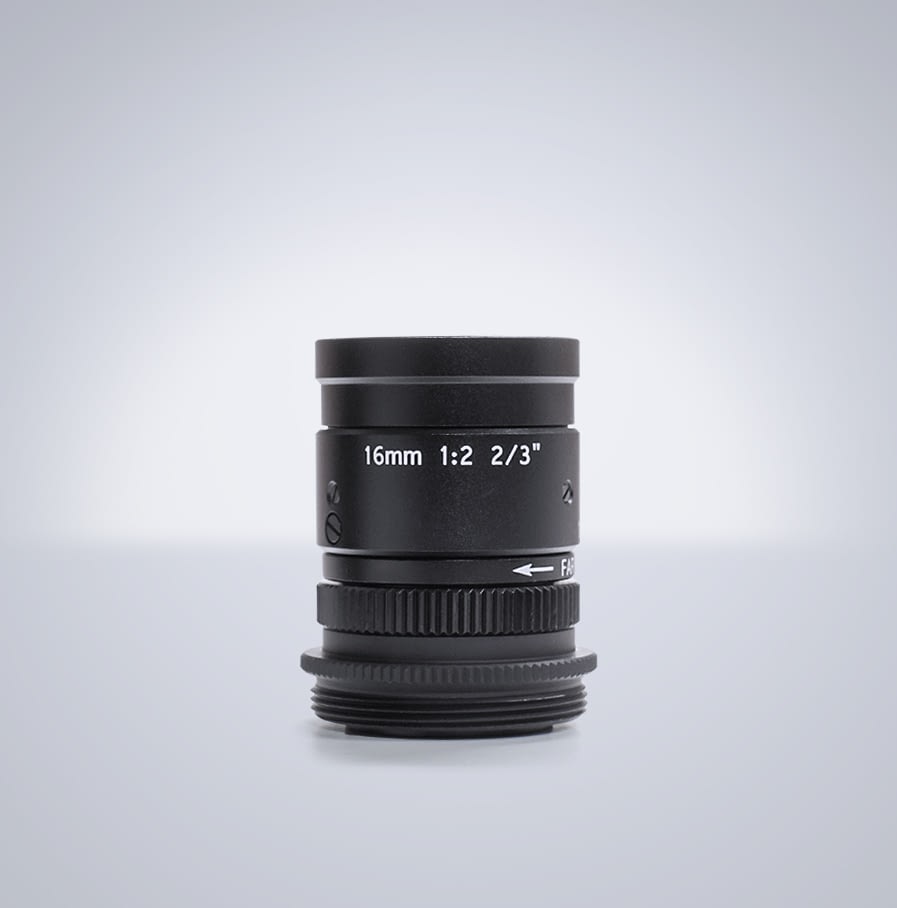

Universe Compact C-Mount 5MP 2/3″ 16mm f/2.0
The Universe compact C-mount lens series features micro compact sizes with precise focal adjustments. This lightweight lens produces accurate imaging with reduced sizing by up to 33% compared to C-mount lenses. Compatible with all Phoenix and Triton models with 2/3″ sensor sizes or smaller. Pair with IPTC-D270L346 IP67 Lens Tube for an ultra compact Triton IP67 camera. More info below.
Specifications
| Manufacturer Model # | Universe BL160C |
|---|---|
| LUCID SKU | UC160-5M |
| Focal Length | 16mm |
| Iris Range (f no.) | f2.0 – f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras |
31° x 23.4° |
| Focus Range (from front of the lens) | ∞ – 400mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Mount | C-Mount |
|---|---|
| Filter Thread | M22.5 x 0.5mm |
| Sensor Size (max.) | 2/3” |
| TV Distortion | -1.3% |
| Diameter x Length | φ24 x 34.53mm |
| Weight | – |
| Locking Mechanism | Lock ring |
USD $360.00
Register or login for pricingRecommended IP67 Lens Tubes
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
