The Arena Software Development Kit (SDK) provides customers with access to the latest in industry standards and computer technology. This SDK is free to download and use. It supports all LUCID GigE Vision cameras (Area Scan, Line Scan, Polarization, and 3D Time-of-Flight models) on both Windows, Linux, and ARM platforms.

NEW! NOW WITH
Jupyterlab on ArenaView
on ArenaView
(Click image above to watch video)
We've added JupyterLab to ArenaView GUI (our viewer included in Arena SDK), which provides a built-in and preconfigured interactive development environment that can be used to test,  validate and experiment with all camera features.
JupyterLab On ArenaView

JupyterLab® on ArenaView®

Test, Validate, Experiment

LUCID’s ArenaView capabilities are extended with the addition of JupyterLab support, making it more than a simple camera viewer application. JupyterLab provides a built-in and preconfigured interactive development environment that can be used for testing and documenting all SDK functions and camera performances. Create notebook documents that contain both live Python code, rich text elements, and interactive visualizations, allowing developers to build camera GUIs with live output from the camera stream, all from within ArenaView.

  • Test over 400 camera features without having to setup a development environment
  • Easily use images acquired by the camera for data processing tasks
  • Use the simplicity and power of Python to control LUCID’s cameras
  • Work with over 50 examples demonstrating the various features of our cameras

→ Download Arena SDK
→ KB: Using ArenaView with JupyterLab
→ Browse and Download Sample Jupyter Notebooks for ArenaView

Looking to get started with Arena SDK? Visit our Arena SDK Getting Started page on our Support site

DEVELOP AND DEPLOY

Comprehensive API Toolkit

The Arena SDK provides API access to a variety of camera feature sets. Image chunk data provides meta-data on captured images. Events and triggers can be used to create deterministic camera operation. Save and load streamable camera settings for quicker setup across multiple cameras.

Our SDK allows you to build and scale custom solutions quickly and easily.

  • Arena C++ library
  • Arena C library
  • Arena .NET library
  • Arena Python library
Arena APIs

LEARN AND IMPLEMENT

Code Examples

Check out our code examples to learn how to use features on your device in order to implement your unique vision. Each example project provides a buildable, executable demonstration of how to accomplish a particular task using an available technology. The code shows the correct parameters and sequence of calls for general use-cases that can be copied and modified to meet your specific needs.

Examples available in C++, C, C#, and Python (JupyterLab)

CONNECT AND VALIDATE

ArenaView GUI

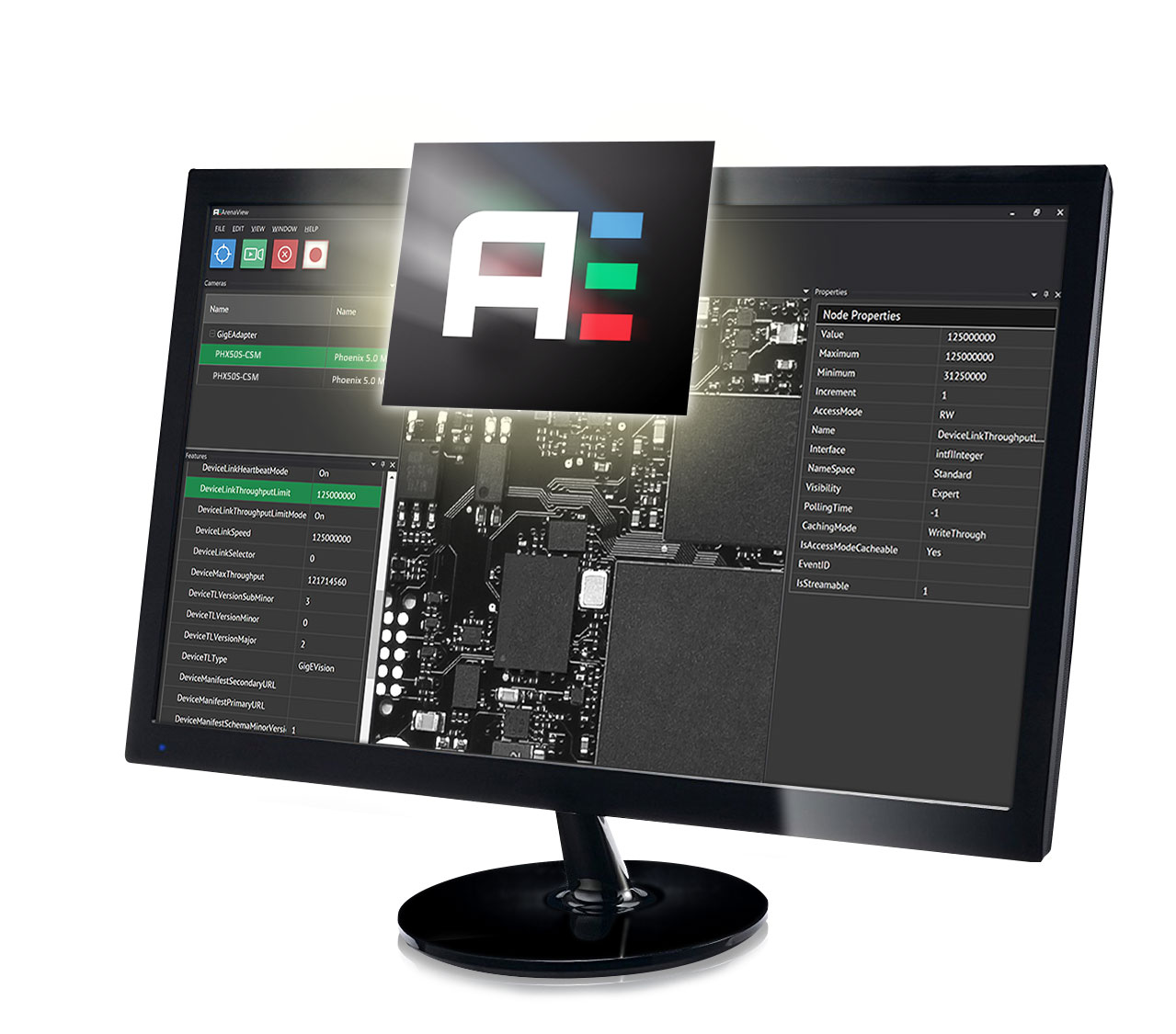

The Arena SDK includes an easy to use GUI called ArenaView. Based on the GenICam standard, ArenaView allows you to access and validate camera features quickly and easily through the GenICam XML based feature tree. Optimized for today’s diverse range of user preferences, our viewer improves readability on higher resolutions and includes options for different color schemes.

  • GenICam compliant
  • Instant feature search
  • Optimized for UHD resolutions
  • Dark and light color schemes
  • Dockable panels
  • and more, including:
Arena Viewer GUI

Histogram

LUCID Arena Histogram

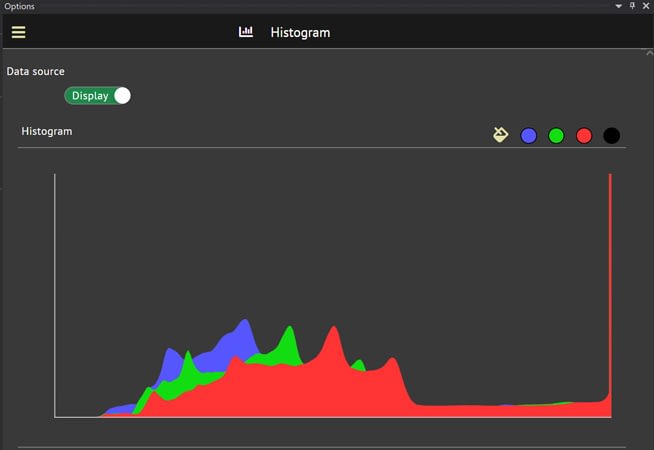

View a graphical representation of the RGB distribution in an image. This feature is helpful for:

  • ✓ Identifying black and white levels along with any shadow or highlight clipping
  • ✓ Viewing the overall color balance of a scene
  • ✓ Checking for noise and flicker
  • ✓ Observing the difference between gamma settings or CCM profiles

Line View

LUCID Arena Line View

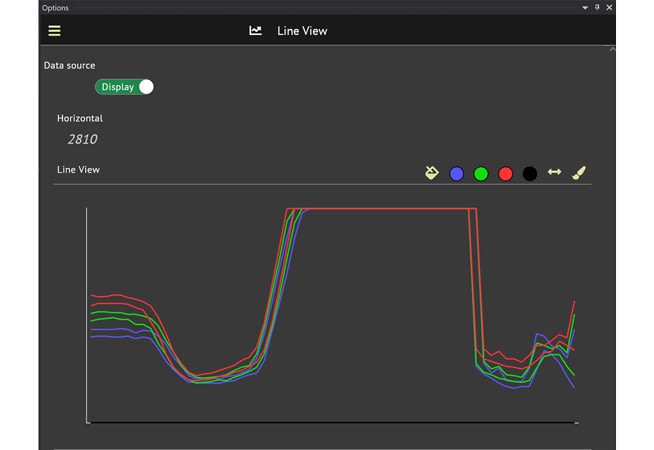

Inspect and view a horizontal line of pixels for their RGB or Mono value distribution. This feature is helpful in checking for:

  • ✓ Vignetting
  • ✓ Pixel crosstalk and shading
  • ✓ Fix pattern noise (FPN)
  • ✓ Saturation and clipping
  • ✓ White balance / color balance using patches in color or mono

Pixel Peek

LUCID Arena Pixel Peek

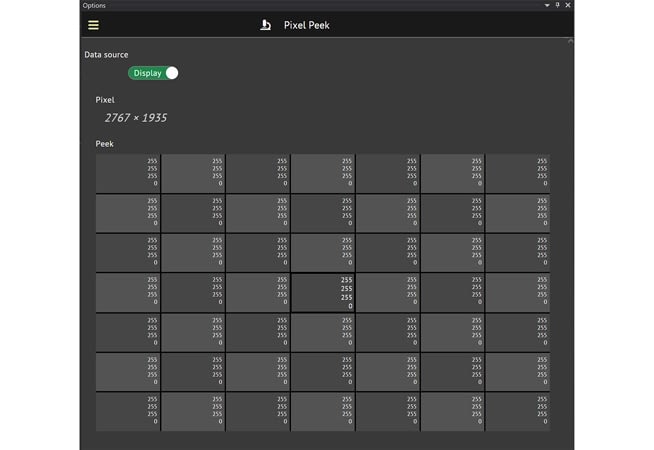

View the exact values (BGRA) of each pixel. This feature is helpful in checking for:

  • ✓ Constancy of live pixels
  • ✓ Sensor output
  • ✓ Noise issues
  • ✓ Test images

Sharpness Indicator

LUCID Arena Sharpness Tool

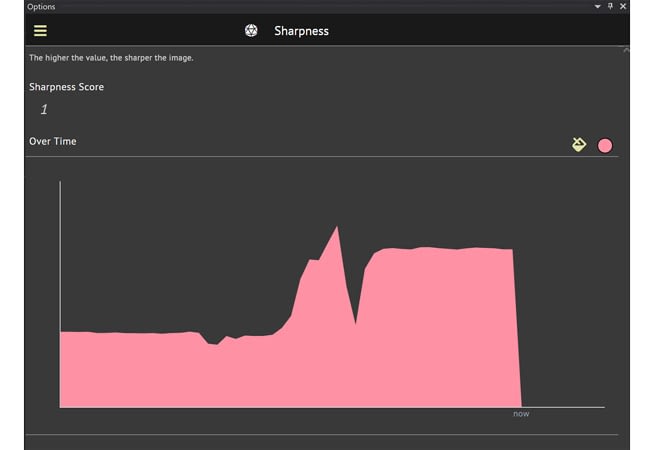

Find the best possible optical sharpness for the image. With this tool a user can adjust the focus of an attached lens while this tool measures for peak sharpness.

HTML5 logo

HTML 5, CSS3, JavaScript

Arena UI

Arena UI is our user interface (UI) framework. Based on HTML 5, CSS3, and JavaScript, it allows users to rapidly create client applications. This flexible UI framework modernizes the approach, look, and maintenance of client applications. For example, build responsive applications that dynamically adjust layout for different screen resolutions or easily change application styles by switching CSS style sheets.

GenICam Logo

GenICam 3 Compliant

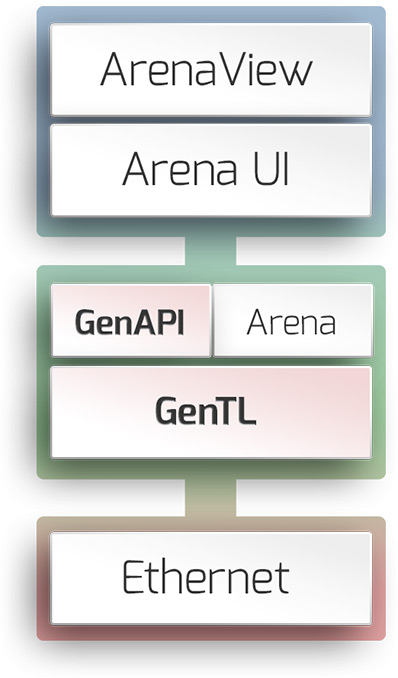

GenICam™ is an interface agnostic, programming standard for machine vision cameras. The Arena SDK supports the latest GenICam 3 standard enabling faster camera enumeration and a smaller memory footprint.

  • Consistent GenICam experience for shorter Arena SDK learning curve.
  • Modernized XML structure for faster load times.
  • Reduced code size and memory usage for smaller system footprint.
  • Optimized for more efficient embedded system operations.
Arena SDK Stack

HELPFUL

Features

  • ArenaUI
    • HTML5 / JavaScript UI framework that renders webpages in desktop application windows
    • Connects JavaScript UI functions to C++ backend hooks enabling users to design UI’s by using modern HTML5 frameworks
    • Examples teaches users how to build HTML5 GUI’s that can control LUCID cameras using the Arena C++ API backend
  • ArenaView
    • Powerful desktop viewer with HTML5 UI
    • Built-in JupyterLab in a self-contained virtual environment, with Notebook examples
    • Dark / light skins
    • Customizable layout using dockable windows
    • HTML5 UI allows viewing of camera hosted webpages like:
      • Firmware update
      • Device documentation
    • View software documentation fully complete with code snippets in HTML5 GUI
    • Access to all camera features through searchable GenApi feature tree
    • Can snap multiple still images into separate tabs while streaming a device
    • Multiple cameras can stream in separate tabs
    • Access detailed node information for each SFNC feature the camera supports
  • GenICam 3.0 based Arena C++ API:
    • Familiar industry interface for camera control
    • Uses standardized naming convention for camera features (SFNC 2.3)
    • Forward compatible with new device features through GenApi XML
    • Leverages GenICam’s reference implementation robustness, stability and reliability
    • Streamable feature support to write camera settings to file and then load from file to device
    • Fully featured chunk data support that leverages GenICam nodemap adapters to parse self described image chunks
    • Device events are integrated with GenICam nodemaps via Event adapters and trigger standard node callbacks
  • Lightweight Filter (LWF) driver
    • Improves image transfer stability/reliability and performance
    • Lowers CPU usage when streaming large images at small packet sizes
    • Image streams are not affected by other network activity on the system
  • Save library
    • A simple and portable image saving library that integrates with Arena API
    • Examples showing how to record images using the Save library
  • Examples
    • Approximately 20 practical C++ examples showing/explaining in detail how to use Arena API to accomplish common tasks
    • Example practical applications machine vision customers want to implement
      • How to handle arrival / removals of new devices
      • How to setup overlapped trigger / exposure-end event
  • Utilities
    • IPConfigUtility to configure camera IP addresses
    • Command line LUCID firmware updater that doesn’t have dependency on Arena library
    • LUCID driver installer to assist with installation of the LUCID LWF driver
