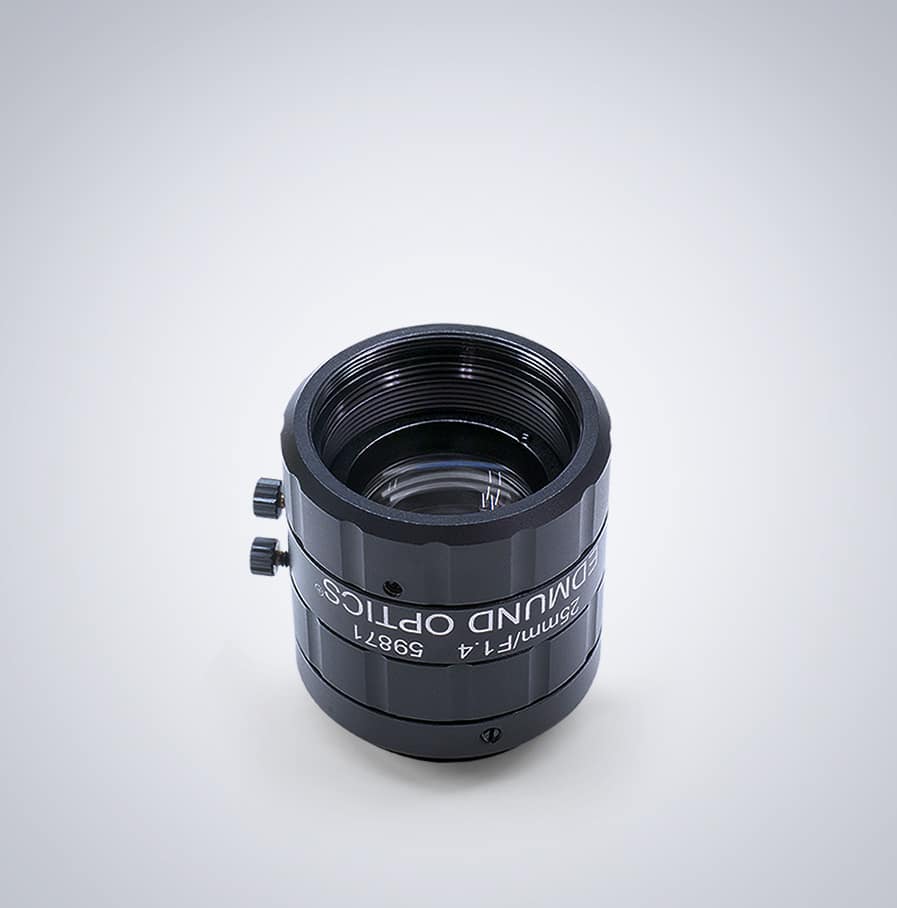

Edmund Optics C-Mount 2/3″ 25mm f/1.4 (C Series)
Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.
*Note for US customers*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.
Specifications
| Edmund Optics Model # | 59-871 |
|---|---|
| LUCID SKU: | EOC0250 |
| Focal Length | 25 mm |
| Field of View @ Max Sensor Format | 36.6mm – 19.7° |
| Distortion(%) | <0.7 |
| Working Distance | 100mm – ∞ |
| Field of View, 1/2″ Sensor: | 26.5mm – 14.4° |
| Field of View, 1/3″ Sensor: | 19.9mm – 10.9° |
| Field of View, 2/3″ Sensor: | 36.6mm – 19.7° |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 30.5 mm |
| Maximum Sensor Format | 2/3″ |
|---|---|
| Coating | 425 – 675nm BBAR |
| Field of View, 1/1.8″ Sensor | 29.9mm – 16.2° |
| Field of View, 1/2.5″ Sensor | 24.0mm – 13.1° |
| Field of View, 1/4″ Sensor | 14.9mm – 8.1° |
| Aperture (f/#) | f/1.4 – f/16 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.023 |
| Outer Diameter | 31.0 mm |
| Weight | 49 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
USD $310.00
Login to see pricesRecommended IP67 Lens Tube
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
