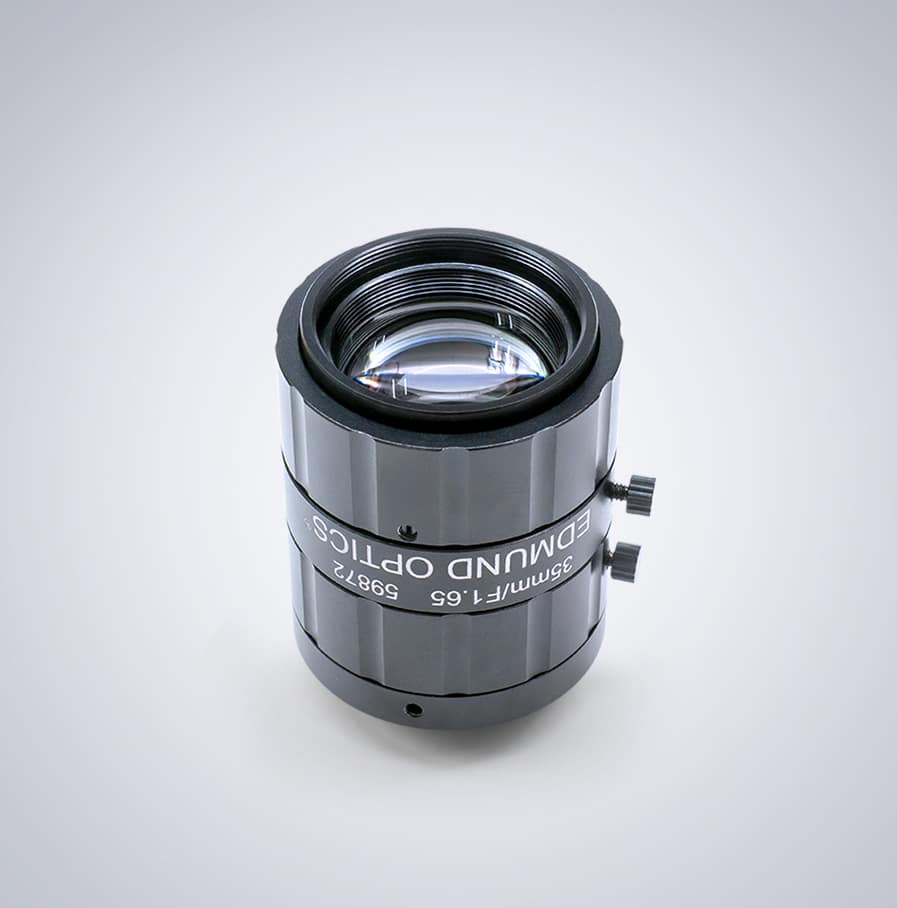

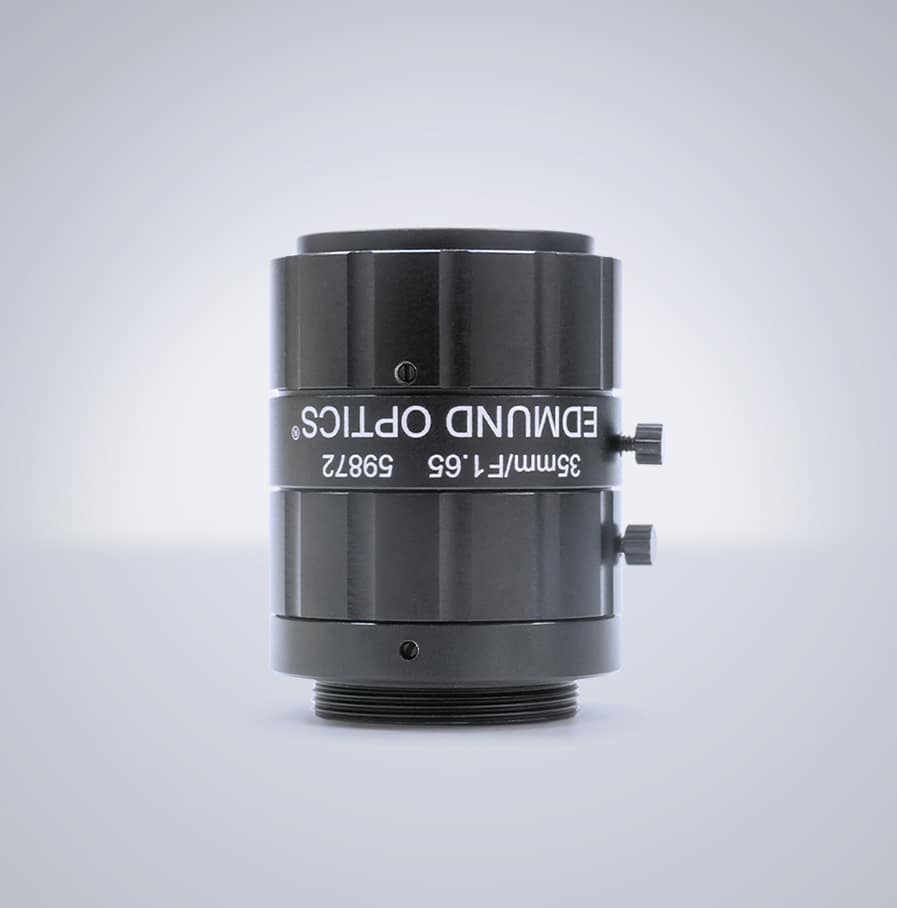

Edmund Optics C-Mount 2/3″ 35mm f/1.65 (C Series)
Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.
*Note for US customers*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.
Specifications
| Edmund Optics Model # | 59-872 |
|---|---|
| LUCID SKU: | EOC0350 |
| Focal Length | 35 mm |
| Field of View @ Max Sensor Format | 39.3mm – 14.3° |
| Distortion(%) | <0.3 |
| Working Distance | 165mm – ∞ |
| Field of View, 1/2″ Sensor: | 28.5mm – 10.4° |
| Field of View, 1/3″ Sensor: | 21.4mm – 7.8° |
| Field of View, 2/3″ Sensor: | 39.3mm – 14.3° |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 41.0 mm |
| Maximum Sensor Format | 2/3″ |
|---|---|
| Coating | 425 – 675nm BBAR |
| Field of View, 1/1.8″ Sensor | 32.0mm – 11.7° |
| Field of View, 1/2.5″ Sensor | 25.4mm – 9.3° |
| Field of View, 1/4″ Sensor | 16.1mm – 5.9° |
| Aperture (f/#) | f/1.65 – f/22 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.021 |
| Outer Diameter | 33.0 mm |
| Weight | 72 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
USD $326.00
Register or login for pricingRecommended IP67 Lens Tube
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
