Triton 5.4 MP Model (IMX490)

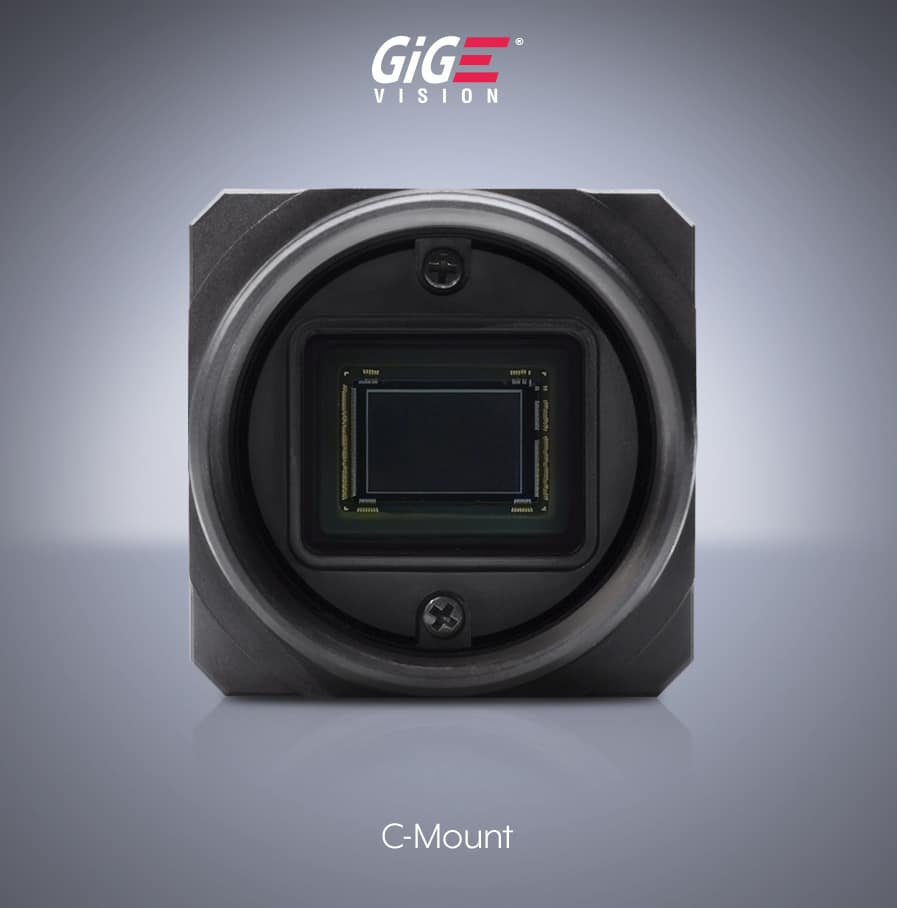

The Triton TRI054S featuring the IMX490 (BSI) back-illuminated stacked CMOS sensor allows for simultaneous 120 dB HDR imaging and LED flicker mitigation. With the large 5.4 MP, 2880 x 1860 px resolution this camera enables wide-angle shooting in both daytime and nighttime for Advanced Driver Assistance Systems(ADAS) / Autonomous Driving. This camera model is also well suited for other applications that demand very high HDR imaging such as electrical fuse inspection; high contrast medical imaging; live visible welding analysis; as well as other ITS applications.

Sensor
Sony IMX490 CMOS
Resolution
5.4 MP, 2880 x 1860 px
Frame Rate
20.8 FPS
Model SKUsChromaLens MountGigE Vision ConnectorIncluded Accessory
TRI054S-CCColorC-mountM12M8 GPIO IP67 Cap

USD $460.00

Login to see prices
SKU: TRI054S-CC Category:

Triton featuring Sony's IMX490 Automotive CMOS Sensor

Automotive camera with 5.4 MP resolution, back-illuminated technology, and simultaneous HDR, LED Flicker Mitigation (LFM), and IP67 Protection.

  • The IMX490 (BSI) back-illuminated stacked CMOS sensor achieves simultaneous HDR shooting and LED flicker mitigation and features industry’s highest 5.4 effective megapixels, enabling wide-angle shooting for Advanced Driver Assistance Systems(ADAS) / Autonomous Driving. This camera model is also well suited for other applications that demand very high HDR imaging such as electrical fuse inspection; high contrast medical imaging; live visible welding analysis; as well as other ITS applications.
  • 120dB HDR function three times that of conventional sensors, plus motion artifact mitigation.
  • High sensitivity of 2280 mV (standard value: F5.6) improved by approximately 15% over that of conventional sensors.
  • Triton camera provides IP67 protection, certified shock and vibration operation, EMC industrial immunity, and wide operating temperature.

Tech Highlight: Sony IMX490 Automotive Sensor Explained

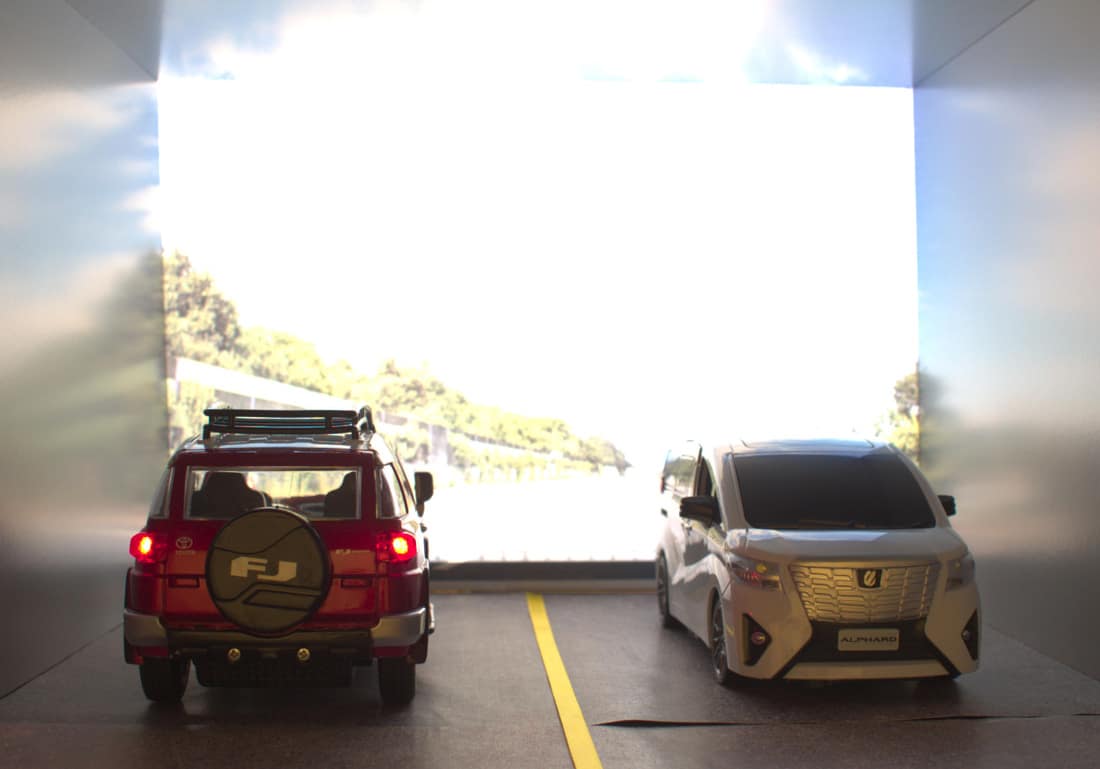

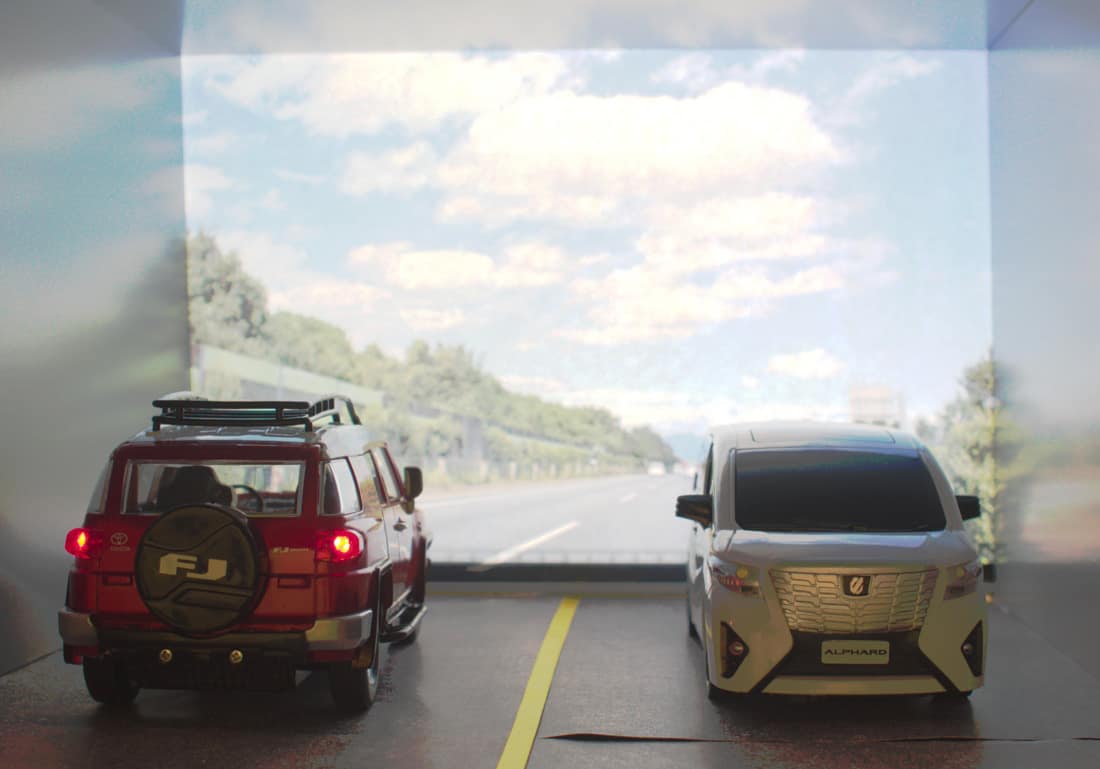

Welding Comparison: Non-HDR vs HDR

Specifications

Sensor Properties
Sensor ModelSony IMX490 CMOS
Shutter TypeAutomotive Sensor with Rolling Shutter
Sensor Size10.36 mm (Type 1/1.55″)
Resolution2880 x 1860 px, 5.36 MP
Pixel Size3.0 µm (H) x 3.0 µm (V) BSI Pixel
Framerate*Normal 12-bit ADC: 20.8 FPS (23.1 FPS) (8-bit Bayer)
HDR PWL Comp, 12-bit ADC: 20.8 FPS (23.1 FPS) (8-bit Bayer)

For 24-bit Output: (Please note this is only a partial list of max FPS. More upon request. )

Max Resolution 2880×1860:
2.31 FPS (2.5 FPS) – (RGB24)
3.46 FPS (3.85 FPS) – (YCbCr422_24)
4.62 FPS (5.14 FPS) – (YCbCr411_24)
6.93 FPS (7.71 FPS) – (BayerRG24)
2.31 FPS (2.57 FPS) – (BGR24)

2×2 Binning 1440×928:
10 FPS – (RGB24)
15 FPS – (YCbCr422_24)
15 FPS – (YCbCr411_24)
30 FPS – (BayerRG24)
10 FPS – (BGR24)

ROI 1920×1080:
17.9 FPS – (BayerRG24)

Physical Properties
Dimensions29 x 29 x 45 mm
Lens MountC-Mount
Weight67 g
Ingress ProtectionIP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)
Interface and Power Information
Digital Interface1000BASE-T GigE M12 (8 Pin X-Coded), PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption3.1W via PoE, 2.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer240 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16/24, Bayer8/10/12/16/24, RGB8/12p/16/24, BGR8/12p/16/24, YCbCr422_8/16/24, YCbCr411_8/16/24
Image ModesROI, horizontal and vertical flip
ADC10 bit, 12 bit
Gain Range0 dB to 42 dB digital, 0 dB to 30 dB analog
Exposure Time86.128 μs to 5 s
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataImage, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain (8 Max)
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC ImmunityDIN EN 61000-6-2
Warranty3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

TRI054S-CC (Color, Sony IMX490 CMOS)
Color EMVA 1288 Results
Dynamic Range123.6 dB
SNR (Max)50.8 dB
Saturation Capacity120000 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)1.5 γ
Temporal Dark Noise0.54 e-
Gain9.83 DN24 / e-

*The IMX490 achieves high dynamic range using two sub-pixels for each pixel location which vary in sensitivity and saturation capacity. Each sub-pixel is readout with high and low conversion gains giving four 12-bit channels for each pixel. These four channels are combined into single linear 24-bit HDR value. The EMVA1288 standard is not directly applicable to the 24-bit combined data, but is applicable to the individual channels. Results were measured on the individual channels and scaled when appropriate to reflect how the channels are combined into a 24-bit HDR image.

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Triton C-Mount Drawings
Triton Camera Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

ArenaView GUI Instructions:

For instructions on how to utilize the specific features of the IMX490 sensor visit
Using LUCID’s TRI054S IMX490 in ArenaView

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
