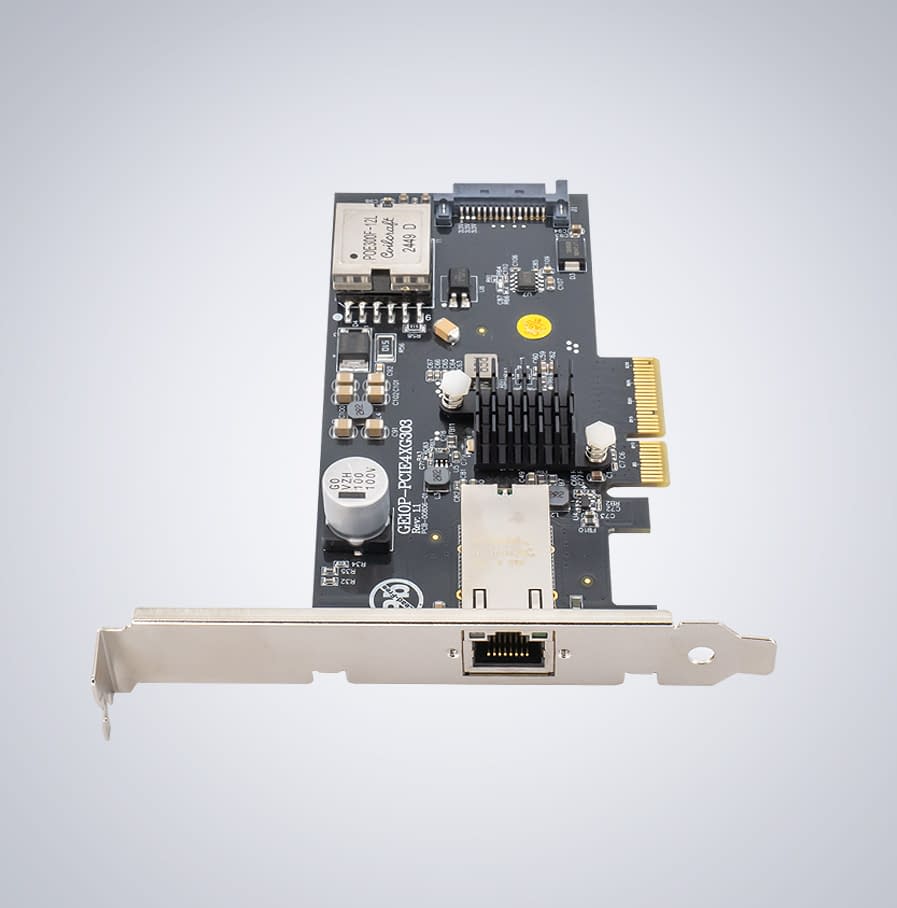

10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Card



PCIE-POE1-MG2 supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. Compliant to the IEEE 802.3bz standard ratified in September 2016, the PCIE-POE1-MG2 is also backwards-compatible with legacy 1000BASE-T Ethernet.

Specifications

This product is discontinued and can no longer be ordered. Please read our Product Change Notification for more information: PCN2024001.pdf

Manufacturer #
  • ioi GE10P-PCIE4XG301
PCI Express
  • PCI Express Gen3 or Gen2, (Supports line rates of 8.0 GT/s and 5.0 GT/s per lane)
  • Bus width: Supports Gen3 x4 or Gen2 x4
  • MSI, MSI-X, and legacy INTx PCIe interrupts, Improved CPU utilization and network performance
MAC
  • Large Send Offload (LSO), Receive-Side Scaling (RSS), Direct Cache Access (DCA) header checksum
  • WoL power management
  • On-chip CPU DASH
  • MACsec
  • Quality of Service (QOS) support
  • Jumbo frames (up to 16Kbytes)
  • IPv4, IPv6/TCP and IPv6/UDP checksum offload
PHY
  • Integrated Aquantia AQrate PHY featuring NBASE-T technology
    • 100 meters over Cat 6a at 10Gbps
    • 100 meters over Cat 5e and Cat 6a at 5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps
  • Advanced cable diagnostics with On-chip high resolution cable analyzer
  • Audio Video Bridging (AVB) and 1588v2
  • EEE support
  • Supported Data Rates: 10G/ 5G/ 2.5G/ 1G/ 100 Mbps
  • Standard compliance: IEEE 802.3bz – NBASE-T, IEEE 802.3x – flow control, IEEE 802.1P – quality of service, IEEE 802.1QAV – AVB
Number of Port
  • One 10GBASE-T RJ45 Ethernet port with Screw Holes for thumbscrew locking Type Ethernet Cable

USD $240.00

Register or login for pricing
SKU: PCIE-POE1-MG2 Category:
