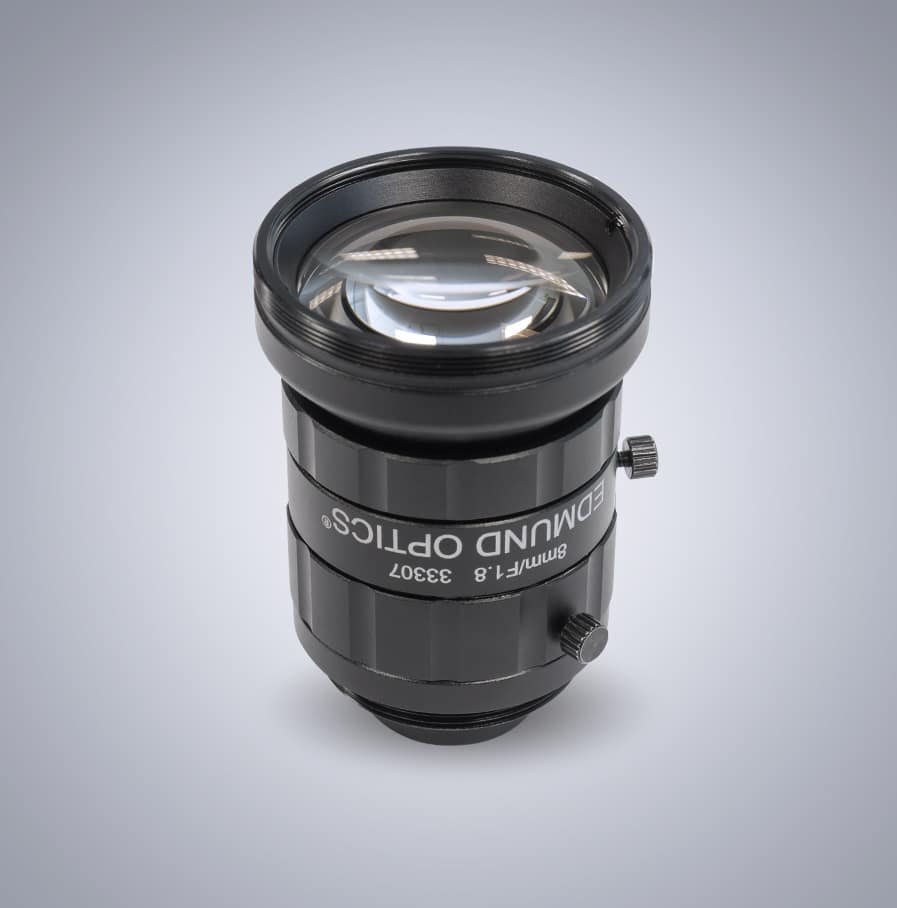

Edmund Optics C-Mount 1/2″ 8mm f/1.8 (UC Series)



Edmund Optics ultra-compact, TECHSPEC® UC Series Fixed Focal Length Lenses optimize performance, cost, and size without sacrificing quality or feel. Lenses feature focus and iris adjustments, recessed set screws, and are manufactured for use at typical machine vision working distances. Outstanding option for use on all smaller format camera sensors, along with both short and long working distance applications. Ideal for inspection, factory automation, biomedical devices, and a broad range of other applications.

*For US customers only*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.

Specifications

Edmund Optics Model # 33-307
LUCID SKU: EOUC080-2
Focal Length 8 mm
Field of View @ Max Sensor Format 59.1mm – 44.7°
Working Distance 50 mm – ∞
Distortion(%) <4.7% (on 1/2.5" Sensor)
Field of View, 1/2.5″ Sensor 53.1mm – 40.7°
Field of View, 1/4″ Sensor 32.2mm – 25.6°
Number of Elements (Groups) 9 (8)
Optimized Sensor Format 1/2.5″
Type Fixed Focal Length Lens
Maximum Length 40.61 mm
Maximum Sensor Format 1/2″
Coating λ/4 MgF2
Aperture (f/#) f/1.8 – f/11
Field of View, 1/2″ Sensor 59.1mm – 44.7°
Field of View, 1/3″ Sensor 43.4mm – 33.9°
Mount C-Mount
Numerical Aperture NA, Object Side 0.03
Outer Diameter 30.00 mm
Weight 78 g
Locking Screws Bundled 4 total: 2x normal, 2x recessed

USD $260.00

Register or login for pricing
SKU: EOUC080-2 Category:

Technical Drawings

EO 33-307 8mm-UC

The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
