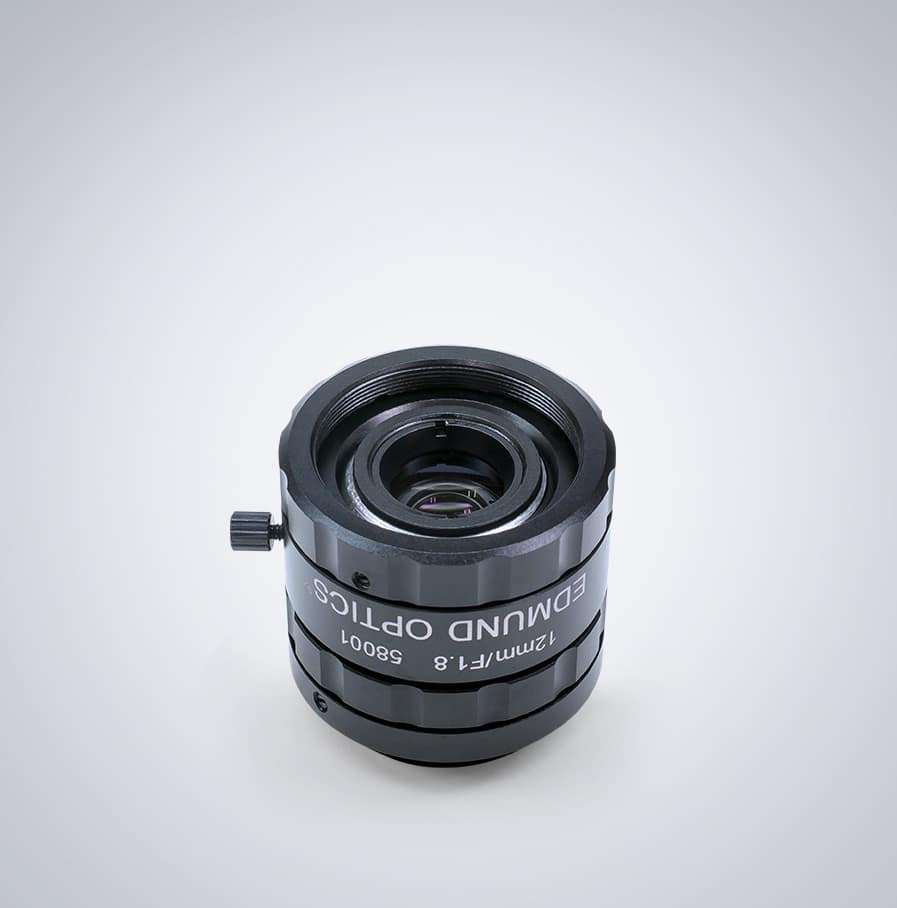

Edmund Optics C-Mount 2/3″ 12mm f/1.8 (C Series)



Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.

*Note for US customers*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.

Specifications

Edmund Optics Model #58-001
LUCID SKU:EOC0120
Focal Length12 mm
Field of View @ Max Sensor Format83.6mm – 41.4°
Distortion(%)<2.5
Working Distance100mm – ∞
Field of View, 1/2″ Sensor:60.2mm – 30.5°
Field of View, 1/3″ Sensor:44.9mm – 23.0°
Field of View, 2/3″ Sensor:83.6mm – 41.4°
Number of Elements (Groups)7 (7)
TypeFixed Focal Length Lens
Maximum Length27.9 mm
Maximum Sensor Format2/3″
Coating425 – 675nm BBAR
Field of View, 1/1.8″ Sensor68.0mm – 34.2°
Field of View, 1/2.5″ Sensor54.5mm – 27.7°
Field of View, 1/4″ Sensor33.6mm – 17.3°
Aperture (f/#)f/1.8 – f/16
MountC-Mount
Numerical Aperture NA, Object Side0.007
Outer Diameter32.00 mm
Weight54 g
Fixing Knobs Bundled4 total: 2x normal, 2x recessed

USD $343.00

Login to see prices
SKU: EOC0120 Category:

Technical Drawings

Edmund Optics Technical Drawing 58001

The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
