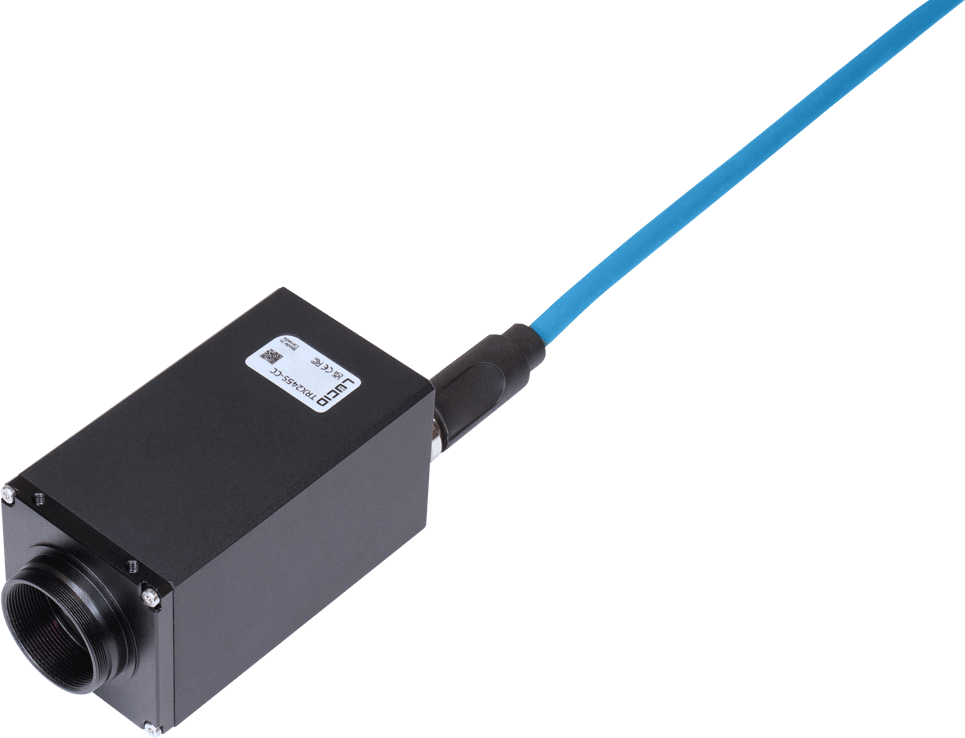

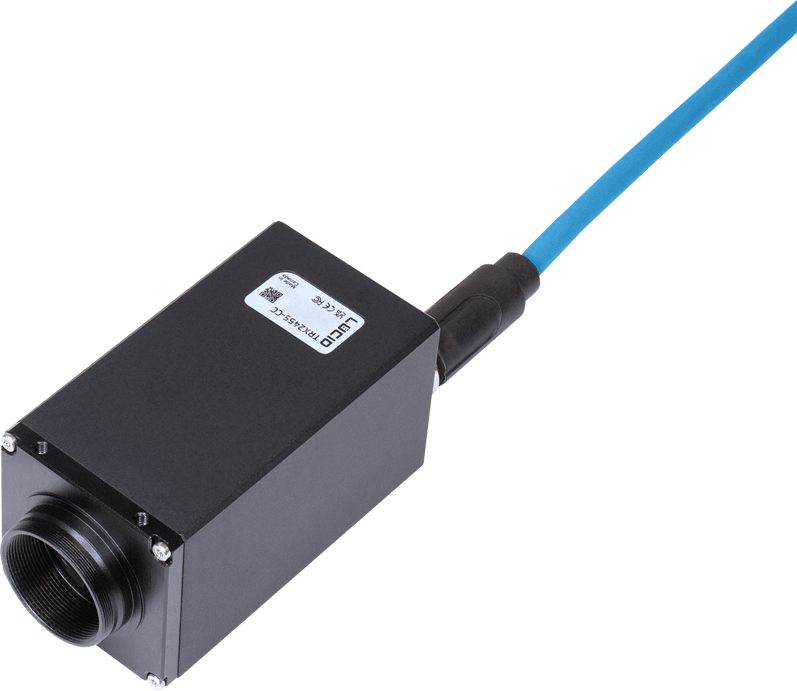

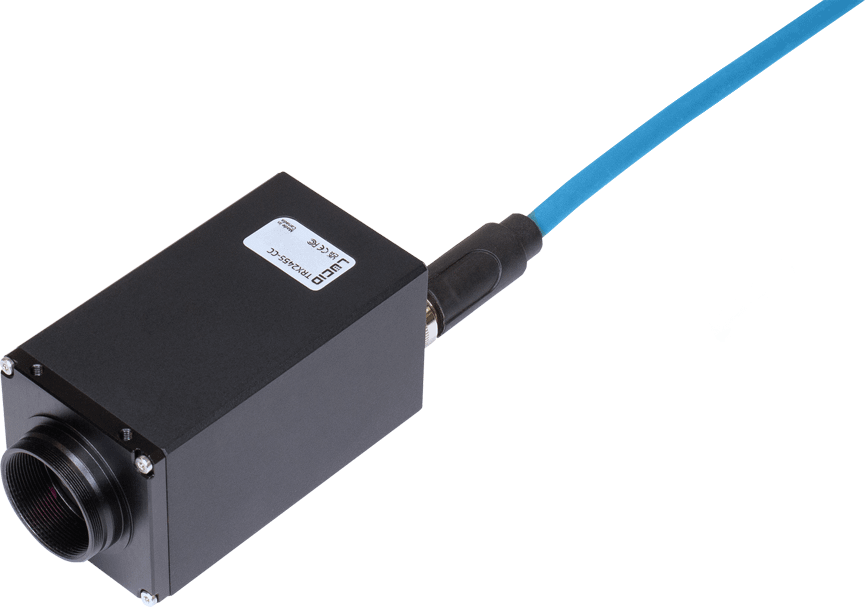

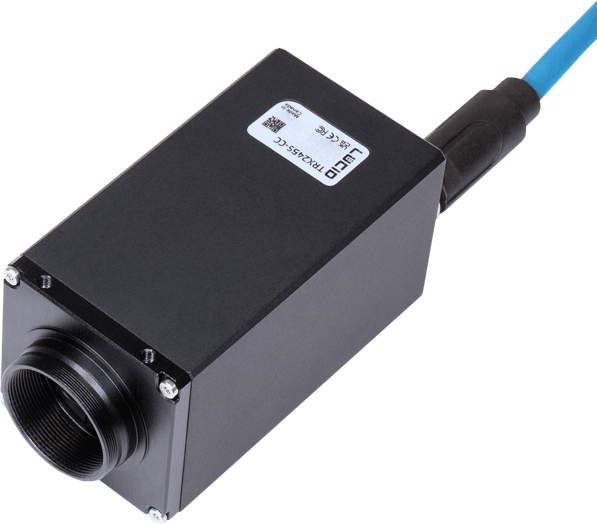

The Triton10 machine vision camera delivers cost-effective 10GigE performance with Remote Direct Memory Access (RDMA). Priced competitively against many 5GigE cameras, it offers exceptional value. In addition to its 10GigE RDMA technology, the Triton10 also supports standard GigE Vision UDP streaming protocols at 10GigE, 5GigE, 2.5GigE and 1GigE for broad compatibility within existing applications. Its IP67 rating ensures dust and water protection, making it ideal for challenging environments. With a compact size of 44 x 44 x 82mm, it can fit more easily into tighter spaces. Featuring Active Sensor Alignment, Power over Ethernet (PoE), and a 17-pin M12 GPIO, this camera is designed to meet the most demanding machine vision applications.
Triton10 - Compact, All-Purpose High-Speed Camera
Explore our Triton10 10GigE RDMA models
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Chroma | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| TRX245S | 24.5 MP | 5320 x 4600 px | 35.5 fps | Sony IMX530 CMOS | 1.2" | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
| TRX204S | 20.4 MP | 4504 x 4504 px | 42.8 fps | Sony IMX531 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
| TRX162S | 16.2 MP | 5320 x 3040 px | 53.0 fps | Sony IMX532 CMOS | 1.1" | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
| TRX124S | 12.3 MP | 4096 x 3000 px | 66.8 fps | Sony IMX535 CMOS | 1/1.1" | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
| TRX081S | 8.1 MP | 2840 x 2840 px | 101.3 fps | Sony IMX536 CMOS | 2/3″ | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
| TRX051S | 5.0 MP | 2448 x 2048 px | 155.2 fps | Sony IMX537 CMOS | 1/1.8″ | 2.74 µm | Global | C | Mono / Color | 10GigE M12 |
Factory Tough Camera
IP67 protection, physical shock and vibration certification, industrial EMC immunity, rugged connectors and an operating temperature range of -20°C to 55°C ambient.
GigE Vision 3.0
The Triton10 is GigE Vision 3.0 ready, and offers versatile performance across 10GigE, 5GigE, 2.5GigE, and 1GigE speeds with RDMA (10GigE) or UDP protocols.
Lightweight & Compact
Measuring just 44x44x82 mm and weighing only 243 g, users can place more 10GigE cameras into tighter spaces without adding additional heatsinks or active cooling fans.
Power over Ethernet (PoE)
PoE powers the camera via the Ethernet cable, eliminating external power cables. The Triton10 offers high-efficiency isolated PoE, minimizing power consumption and heat.

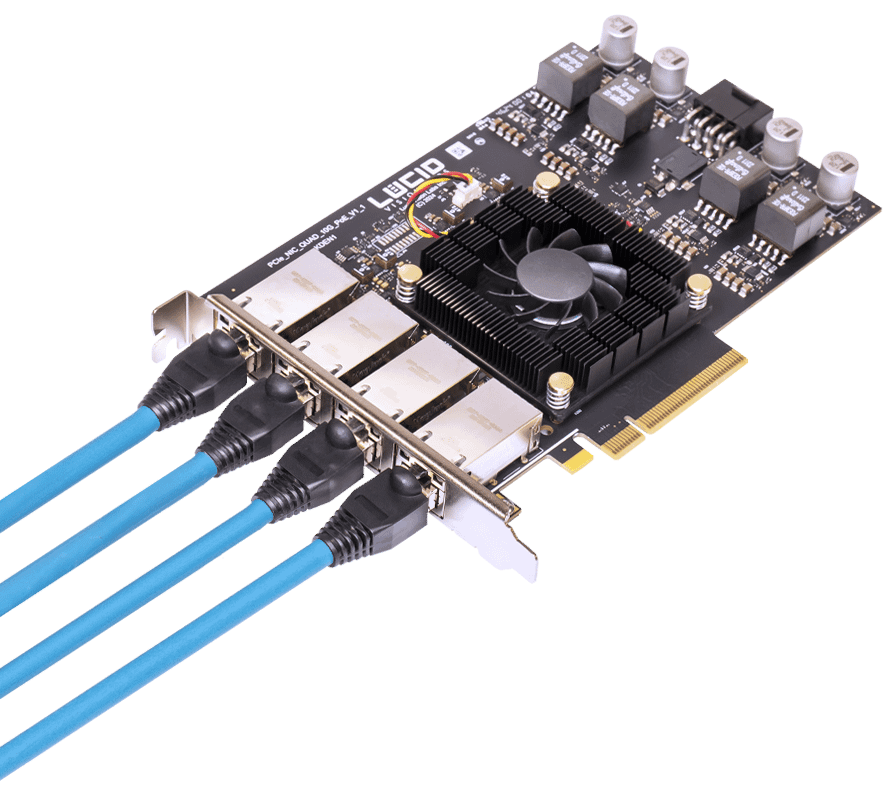

LUCID also provides 10GigE RDMA PoE+ HCA network cards. 4-port and 2-port cards are available for cost-effective multi-camera configurations.
Direct
Memory
Access
IP67 Protection
LUCID’s Triton10 10GigE machine vision camera features IP67 protection, making it dust-proof and water-resistant up to 1 meter for 30 minutes. Simply connect a compatible IP67 lens tube and IP67 cables to ensure reliable performance in harsh environments, protecting your investment from dust and moisture. The Triton10 is compatible with all existing LUCID lens tubes.
17-Pin GPIO
For Enhanced Camera Control
The Triton10 is equipped with a 17-pin GPIO port for increased functionality and enhanced camera control. The GPIO port includes both isolated and non-isolated inputs and outputs, as well as power inputs. Additionally, it features RS-422 compliant differential inputs for increased flexibility including the ability to work with quadrature encoders, providing precise speed, position, and motion feedback to the camera. RS-422 supports long-distance data communication with excellent noise immunity, making it ideal for a wider range of industrial environments.
Active Sensor Alignment
All Triton10 camera units are actively aligned to minimize image sensor tilt, image sensor rotation, and to place the center of the image sensor at the lens optical axis. Our six degrees of freedom manufacturing process accurately and precisely positions the image sensor to the lens mount so that images are sharp and crisp, even in the corners. Learn more about how our Active Sensor Alignment manufacturing process works in our tech brief.
light collection
Arena SDK
Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the latest in industry standards and software technology. It works fast with less calls to functions and is simpler to use thanks to its modern GUI based on the GenICam standard. In addition, LUCID’s ArenaView GUI capabilities are extended with built-in JupyterLab support, making it more than a simple camera viewer application. ArenaView with built-in JupyterLab provides preconfigured interactive development environment that can be used for testing and documenting all SDK functions and camera performances. Create notebook documents that contain both live Python code, rich text elements, and interactive visualizations, allowing developers to build camera GUIs with live output from the camera stream, all from within ArenaView.
• SDK Includes example code and a robust set of APIs.
• Search for help topics in our easy-to-use HTML5 documentation
• Arena UI toolkit for rapid development of custom GUIs
• ArenaView GUI for viewing and acquiring images.
• JupyterLab on ArenaView provides an interactive development environment using Python
Visit the Arena SDK page to learn more.
