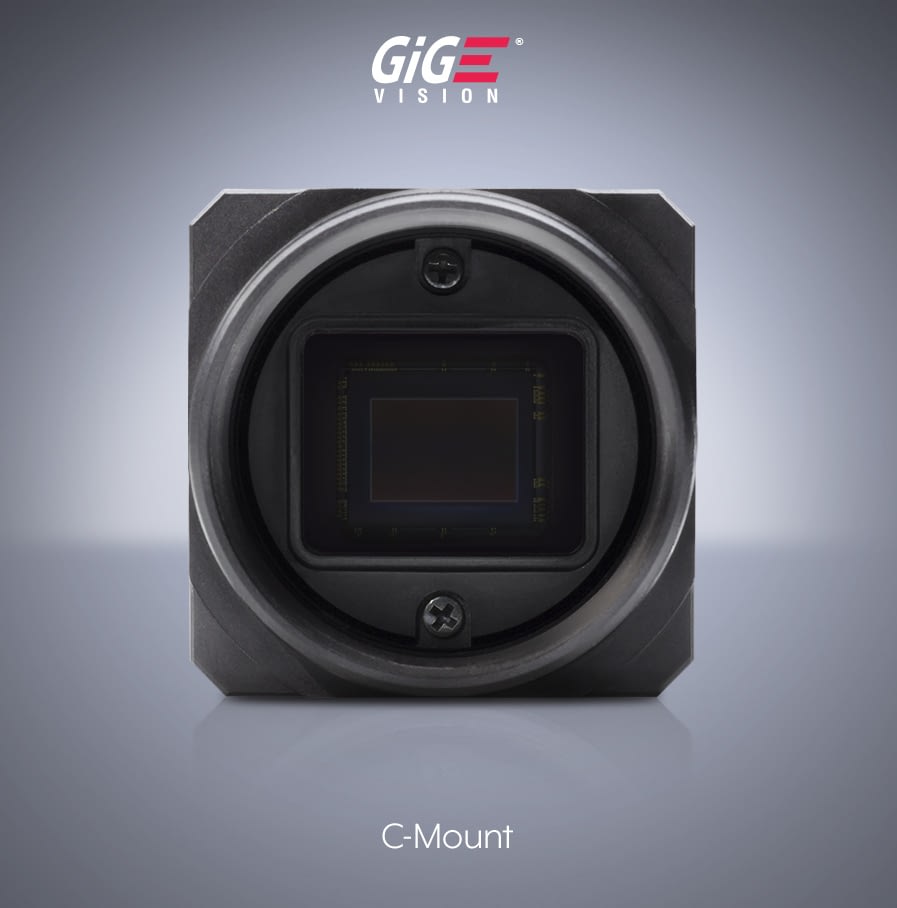

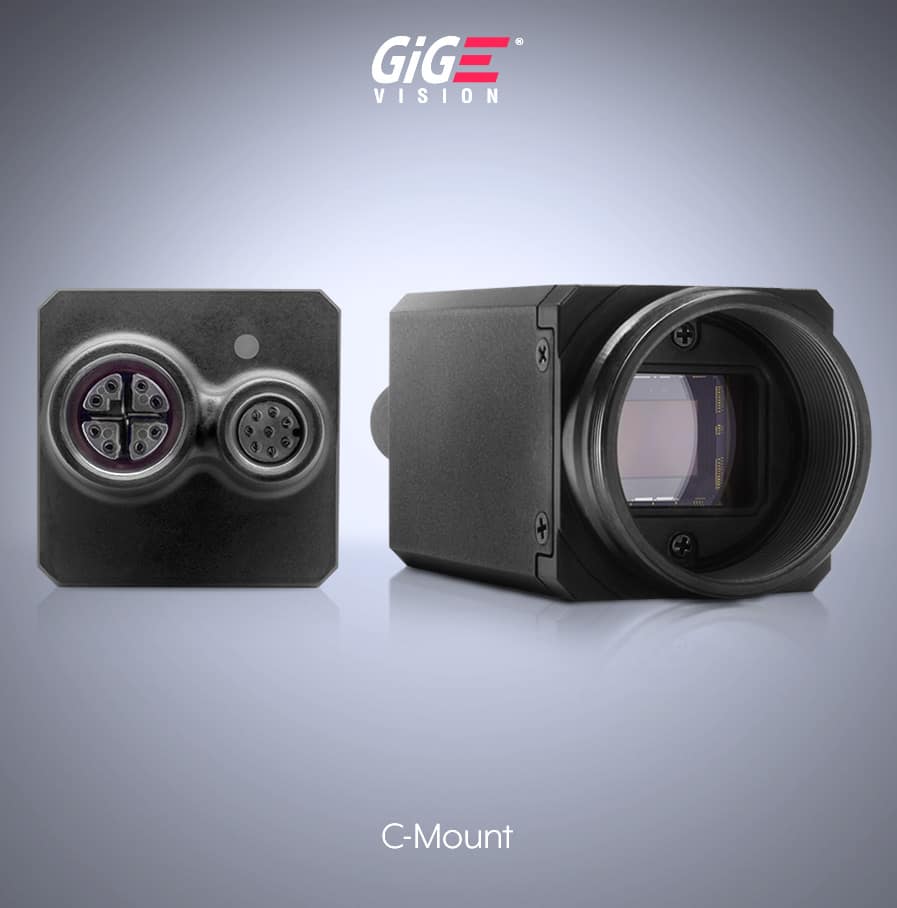

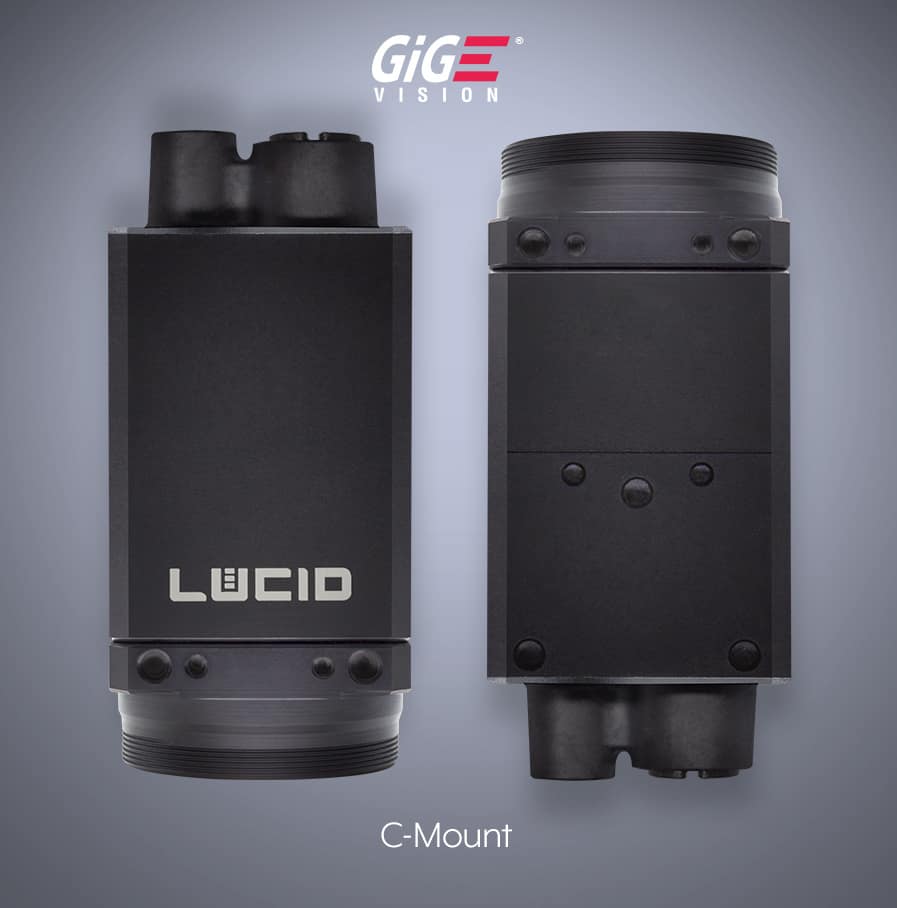

Triton 6.3 MP Model (IMX178)

Sensor
Sony IMX178 CMOS
Resolution
6.3 MP, 3072 x 2048 px
Frame Rate
17.7 FPS
Model SKUs Chroma Lens Mount GigE Vision Connector Included Accessory

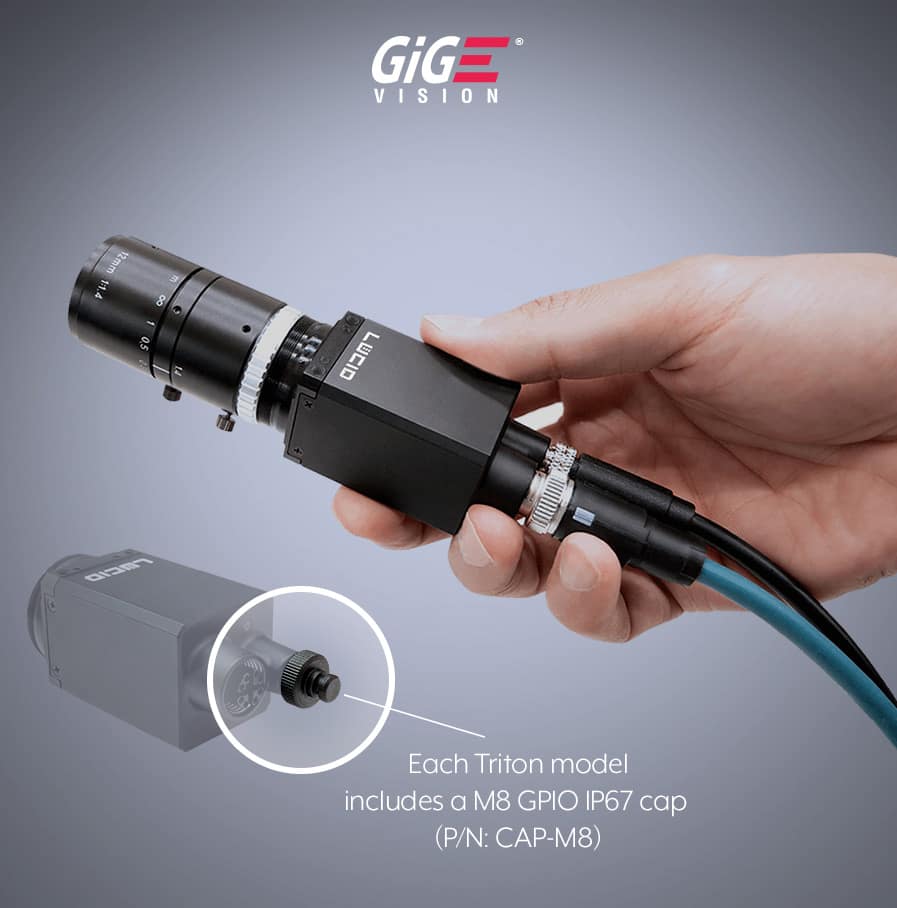

TRI064S-CC Color C-mount M12 M8 GPIO IP67 Cap
TRI064S-MC Mono C-mount M12 M8 GPIO IP67 Cap

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor Model Sony IMX178 CMOS
Shutter Type Rolling with global reset
Sensor Size 8.92 mm (Type 1/1.8″)
Resolution 3072 x 2048 px, 6.3 MP
Pixel Size 2.40 µm (H) x 2.40 µm (V)
Framerate* 17.7 FPS (19.5 FPS) @ 6.3 MP
Physical Properties
Dimensions 29 x 29 x 45 mm
Lens Mount C-Mount
Weight 67 g
Ingress Protection IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)
Interface and Power Information
Digital Interface 1000BASE-T GigE M12 (8-Pin X-Coded), PoE
GPIO Interface 8 pin M8 connector
Opto-Isolated I/O Ports 1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.1W via PoE, 2.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes Horizontal and vertical binning, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 24.1 μs to 10 s
Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -20 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity DIN EN 61000-6-2
Warranty 3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

TRI064S-M (Mono, Sony IMX178 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.93 dB
SNR (Max) 41.61 dB
Saturation Capacity 14475 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.57 γ
Temporal Dark Noise 2.98 e-
Gain 0.27 DN / e-
Dark Current 0.35 e- / s
Dark Signal Non-Uniformity 0.19 e-
Photo Response Non-Uniformity 0.41 %
Linearity Error Max/Min 0.13/-0.25 %
TRI064S-C (Color, Sony IMX178 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.78 dB
SNR (Max) 41.5 dB
Saturation Capacity 14130 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 5.14 γ
Temporal Dark Noise 2.96 e-
Gain 0.272 DN / e-
Dark Current 0.34 e- / s
Dark Signal Non-Uniformity 0.2 e-
Photo Response Non-Uniformity 0.59 %
Linearity Error Max/Min 0.10/-0.20 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Triton C-Mount Drawings
Triton Camera Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads


For all other files, visit our Downloads Page to access:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
Lens Manufacturer Part #Lens Description0.4MP
TRI004S
1.6MP
TRI016S
2.3MP
TRI023S
2.8MP
TRI028S
3.2MP
TRI032S
5.0MP
TRI050S
5.0MP
TRI051S
5.0MP
TRI050S-PQ
5.4MP
TRI054S
6.3MP
TRI064S
7.1MP
TRI071S
8.1MP
TRI081S
8.9MP
TRI089S
12.2MP
TRI122S
12.3MP
TRI120S
12.3MP
TRI124S
16.2MP
TRI162S
20.0MP
TRI200S
20.4MP
TRI204S
24.5MP
TRI245S
2K
TRI02KA
Edmund Optics UC #33-300C-Mt 1/2″ 4mm f/1.8
Good
Good
Good
Edmund Optics UC #33-301C-Mt 1/2″ 6mm f/1.85
Good
Good
Good
Edmund Optics UC #33-307C-Mt 1/2″ 8mm f/1.8
Good
Good
Good
Edmund Optics UC #33-303C-Mt 1/1.8″ 12mm f/1.8
Good
Good
Good
Vignette
Vignette
Vignette
Vignette
Edmund Optics UC #33-304C-Mt 1/1.8″ 16mm f/1.8
Good
Good
Good
Vignette
Vignette
Vignette
Vignette
Edmund Optics UC #33-305C-Mt 1/1.8″ 25mm f/1.85
Good
Good
Good
Vignette
Vignette
Vignette
Vignette
Edmund Optics C #67-709C-Mt 1/1.8" 6mm, f1.4
Good
Good
Good
Vignette
Vignette
Vignette
Vignette
Edmund Optics C #58-000C-Mt 2/3" 8.5mm, f/1.3
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C #58-001C-Mt 2/3" 12mm, f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C #59-870C-Mt 2/3" 16mm, f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C #59-871C-Mt 2/3" 25mm, f/1.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C #59-872C-Mt 2/3" 35mm, f/1.65
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C #59-873C-Mt 2/3" 50mm, f/2
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL060CC-Mt 5MP 2/3″ 6mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL080CC-Mt 5MP 2/3″ 8mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL120CC-Mt 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL160CC-Mt 5MP 2/3″ 16mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL250CC-Mt 5MP 2/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M #HF6XA-5MC-Mt 5MP 2/3″ 6mm f/1.9
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M #HF8XA-5MC-Mt 5MP 2/3″ 8mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M #HF12XA-5MC-Mt 5MP 2/3″ 12mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M #HF16XA-5MC-Mt 5MP 2/3″ 16mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M #HF25XA-5MC-Mt 5MP 2/3″ 25mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S#CF8ZA-1SC-Mt 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Vignette
Good
Fujinon CF-ZA-1S #CF12ZA-1SC-Mt 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF162ZA-1SC-Mt 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF252ZA-1SC-Mt 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF352ZA-1SC-Mt 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S #CF502ZA-1SC-Mt 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V0828-MPY2C-Mt 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V1228-MPY2C-Mt 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V1628-MPY2C-Mt 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V2528-MPYC-Mt 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY #V3528-MPYC-Mt 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F1228-MPTC-Mt 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT #F2524-MPTC-Mt 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics CA #11-320TFL-Mt APS-C 50mm f/1.8
Edmund Optics CA #11-321TFL-Mt APS-C 75mm f/2.8
Edmund Optics CA #11-322TFL-Mt APS-C 100mm f/2.8

Lens AdaptersManufacturer Part #SKUSubject to 25% US import tariff?
(US customers only)
C-mount to S-mount (M12) Lens AdapterLUCID ADA-C-SADA-C-SYes
IP67 Lens Tubes for Triton ModelsManufacturer Part #SKU
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 7.1mmLUCID IPTC-D270L71IPTC-D270L71No
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 18.1mmLUCID IPTC-D270L181IPTC-D270L181No
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 34.6mmLUCID IPTC-D270L346IPTC-D270L346No
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 29.9mmLUCID IPTC-D355L299IPTC-D355L299No
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 38.5mmLUCID IPTC-D440L385IPTC-D440L385No
IP67 C-Mount Lens Tube Inner ⌀: 35.5mm, Inner Length: 39.9mmLUCID IPTC-D355L399IPTC-D355L399No
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 59.9mmLUCID IPTC-D355L599IPTC-D355L599No
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 68.5mmLUCID IPTC-D440L685IPTC-D440L685No
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 7.5mmLUCID IPTC-D590L75IPTC-D590L75No
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 31.5mmLUCID IPTC-D590L315IPTC-D590L315No
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mmLUCID IPTC-D590L555IPTC-D590L555No
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 71.5mmLUCID IPTC-D590L715IPTC-D590L715No
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 81.5mmLUCID IPTC-D590L815IPTC-D590L815No
Cables for Triton Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m LUCID CAB-MR-2M-ACAB-MR-2M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m LUCID CAB-MR-5M-ACAB-MR-5M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0mLUCID CAB-MR-15M-ACAB-MR-15M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m LUCID CAB-MR-5M-RA1-ACAB-MR-5M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m LUCID CAB-MR-15M-RA1-ACAB-MR-15M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m LUCID CAB-MR-5M-RA2-ACAB-MR-5M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m LUCID CAB-MR-15M-RA2-ACAB-MR-15M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Triton Side] – 5mLUCID CAB-MR-5M-RA4-ACAB-MR-5M-RA4-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Triton Side] – 15m LUCID CAB-MR-15M-RA4-ACAB-MR-15M-RA4-ANo
M8 GPIO 8-pin (Amphenol) 1.0m CableLUCID GPIO-M8-1M-AGPIO-M8-1M-ANo
M8 GPIO 8-pin (Amphenol) 5.0m CableLUCID GPIO-M8-5M-AGPIO-M8-5M-ANo
M8 GPIO 8-pin (Amphenol) 15.0m CableLUCID GPIO-M8-15M-AGPIO-M8-15M-ANo
M8 GPIO 8-pin Cable [Right Angle, Down] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA1-AGPIO-M8-5M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Down] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA1-AGPIO-M8-15M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Up] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA2-AGPIO-M8-5M-RA2-ANo
M8 GPIO 8-pin Cable [Right Angle, Up] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA2-AGPIO-M8-15M-RA2-ANo
Tripod Mount Adapter & Misc
Tripod AdapterPHX-TRPHX-TRNo
M8 GPIO IP67 Cap *(1 cap included with each Triton unit)CAP-M8CAP-M8No
M8 GPIO IP67 Low Profile CapCAP-M8-ACAP-M8-ANo
Interface Cards, PoE Injectors, Power Supply
LR-LINK PCIe GigE Vision PoE+ CardLR-LINK LRES2001PT-POEPCIE-POE1-LRYes
6-CH PCIe GigE Vision Card (Non-PoE)LR-LINK LRES2006PTPCIE-ETH6-LRYes
2-CH PCIe GigE Vision PoE+ CardLR-LINK LRES2002PTPCIE-POE2-LRYes
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Cardioi GE2PX4-PCIE4XE301PCIE-POE4-2GNo
TP-Link PoE InjectorTP-Link TL-POE150SPOEPYes
Procet PoE Injector (EU/UK Versions)Procet PT-PSE104GB-60-10POEP-PT / POEP-PTEUYes
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1Yes
