Atlas10 24.5 MP Model

Sensor
Sony IMX530 CMOS
Resolution
24.5 MP 5320 x 4600 px
Frame Rate
45.4 FPS
Model SKUsChromaLens Mount10GBASE-T GigE Vision Connector
ATX245S-CCColorC-mountM12
ATX245S-MCMonoC-mountM12
ATX245S-CTColorTFL-mountM12
ATX245S-MTMonoTFL-mountM12

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor ModelSony IMX530 CMOS (Pregius-S, BSI)
Shutter TypeGlobal
Sensor Size19.3mm (Type 1.2″)
Resolution5320 x 4600 px, 24.5 MP
Pixel Size2.74 µm (H) x 2.74 µm (V)
Framerate*45.4 FPS (49.6 FPS) @ 24.5 MP (8 Bit ADC mode)
45.4 FPS (49.7 FPS) @ 24.5 MP (10 Bit ADC mode)
45.4 FPS (46.4 FPS) @ 24.5 MP (12 Bit ADC mode)
Physical Properties
Dimensions55 x 55 x 95.5 mm

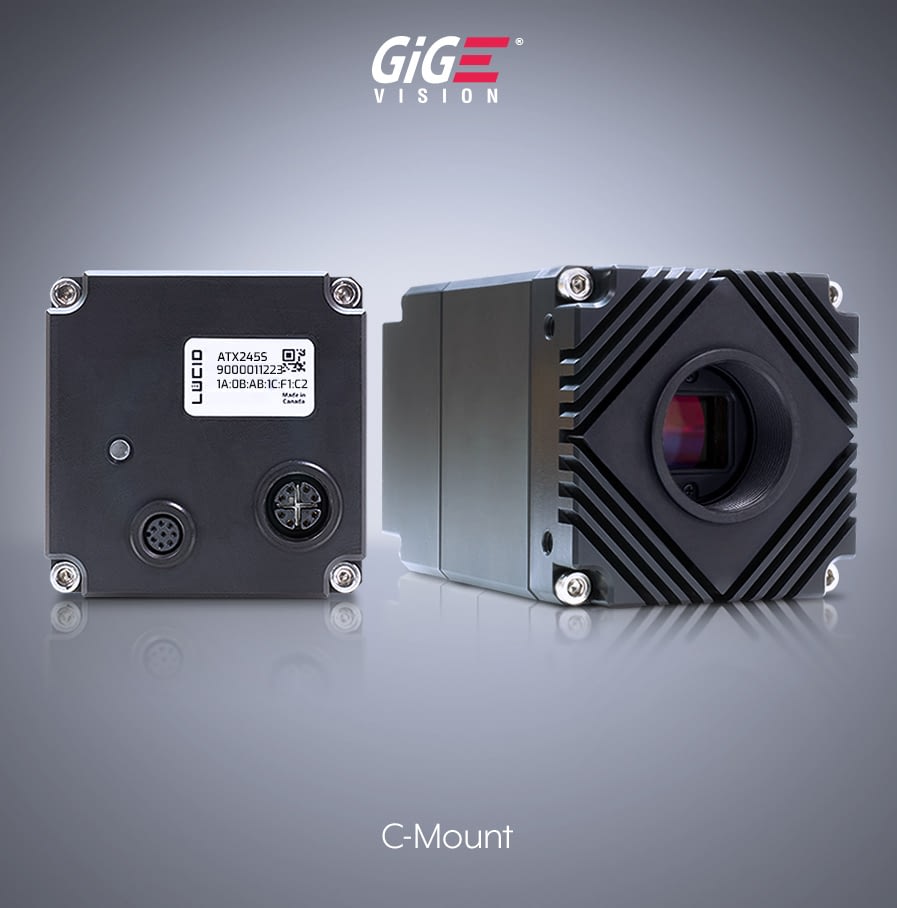

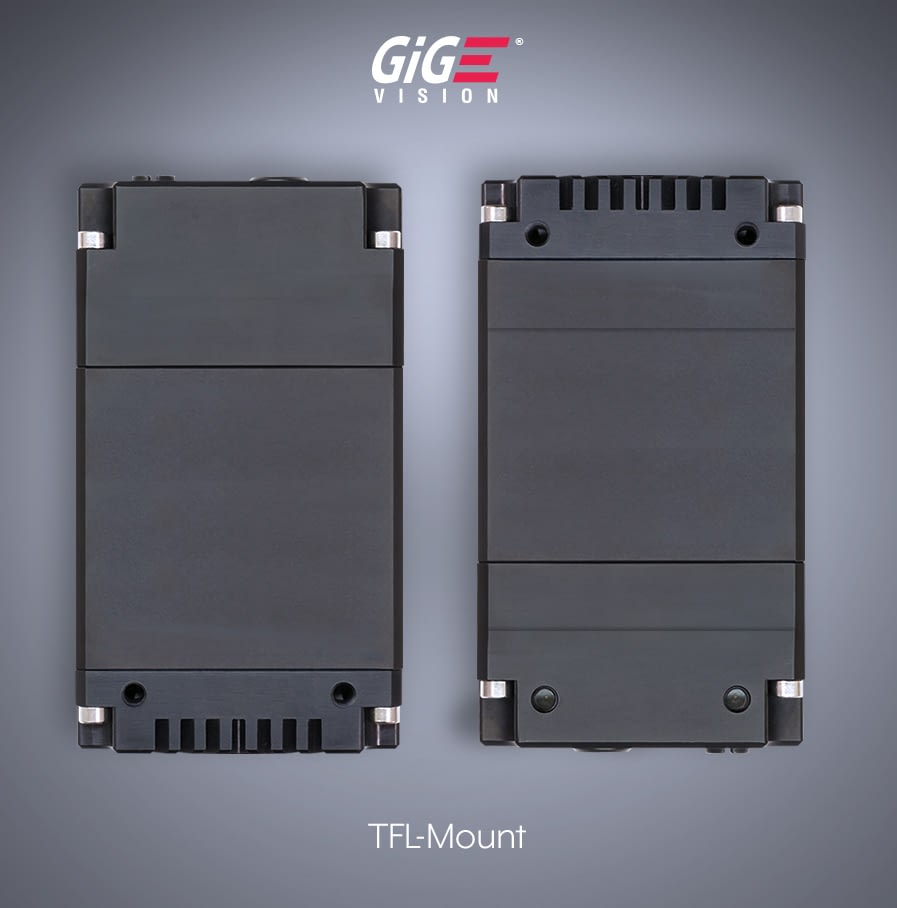

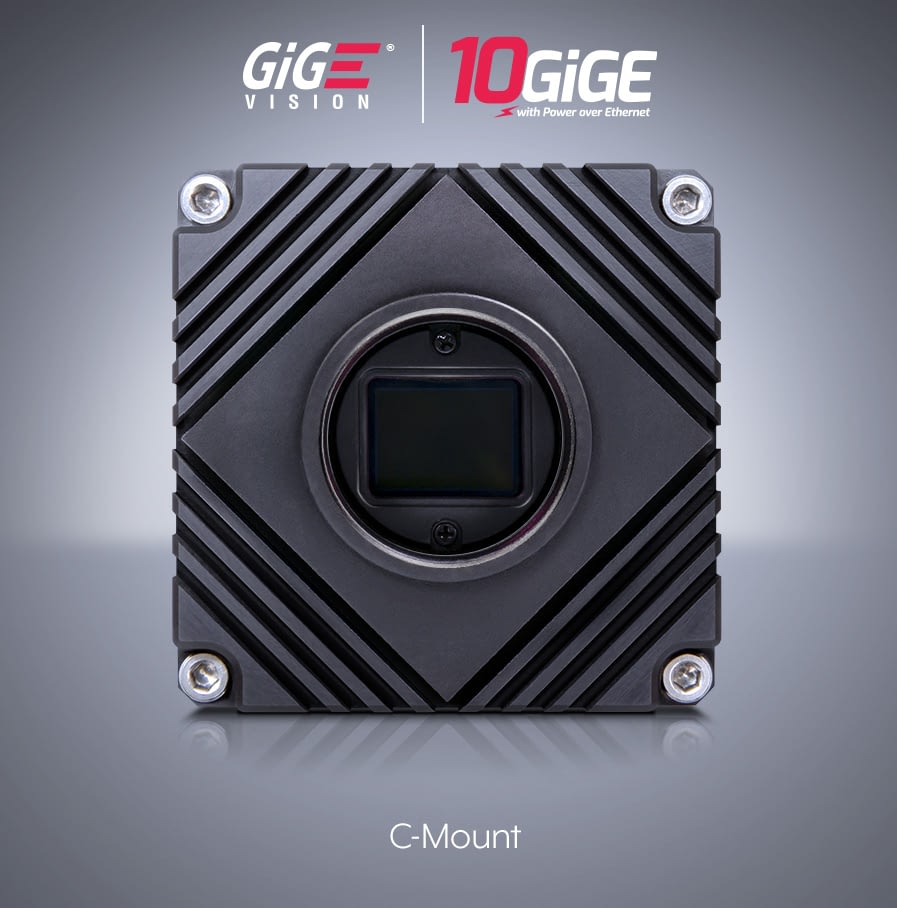

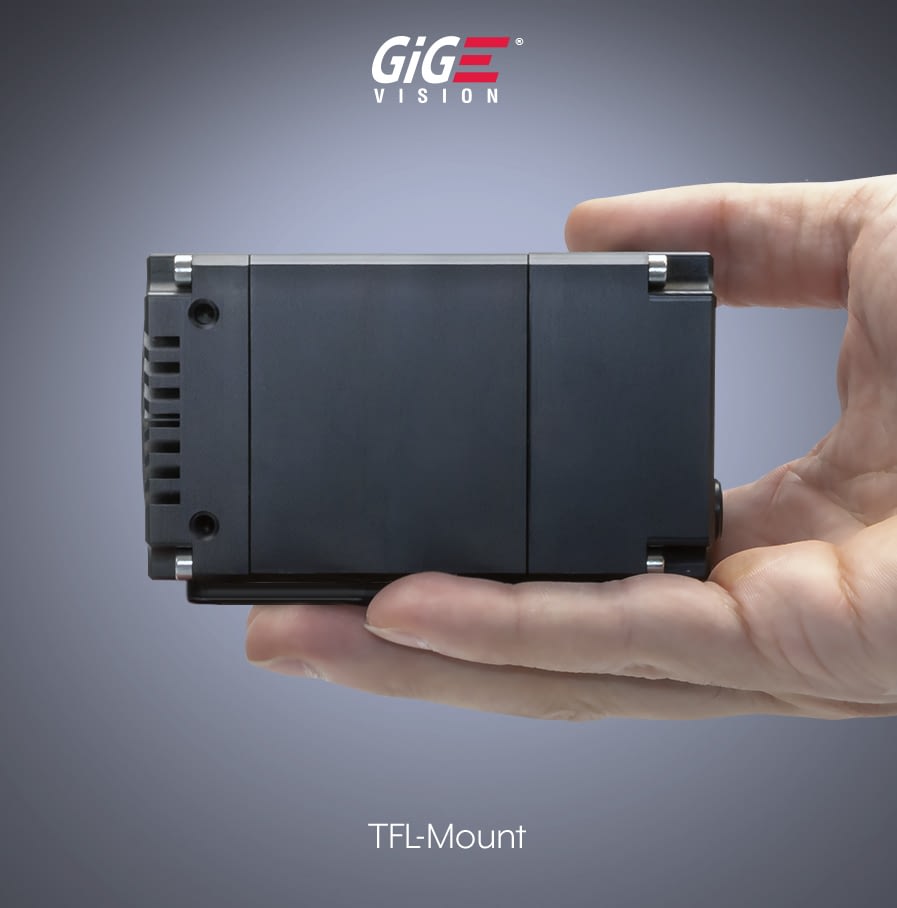

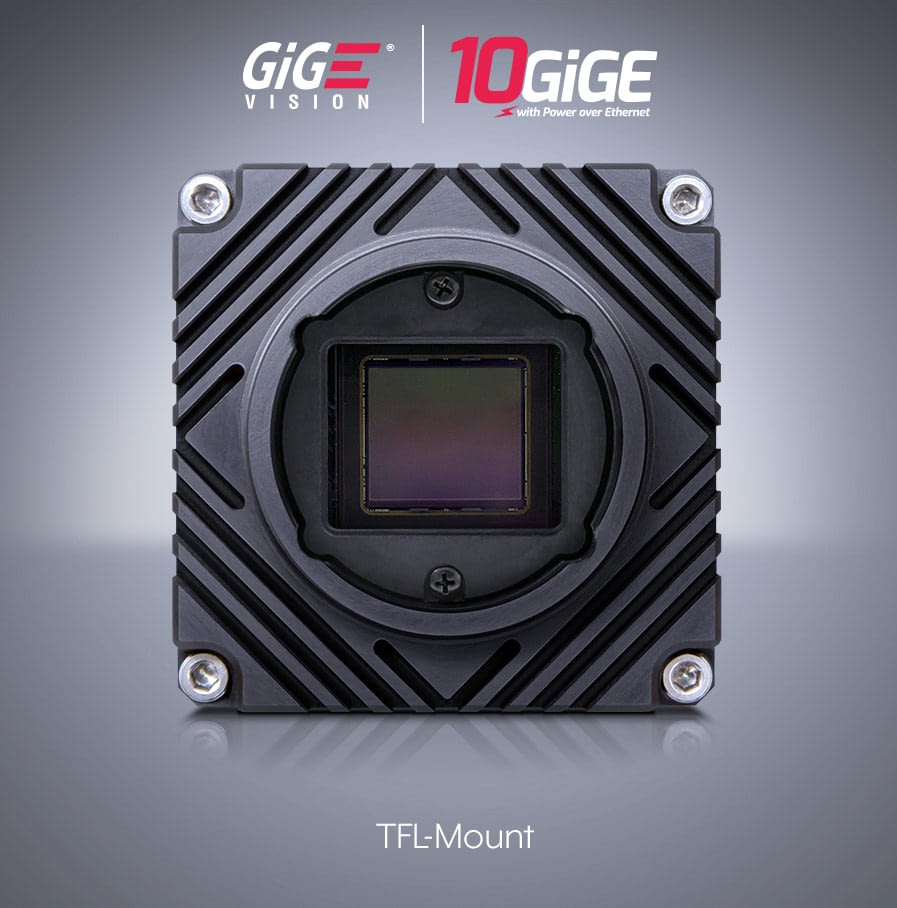

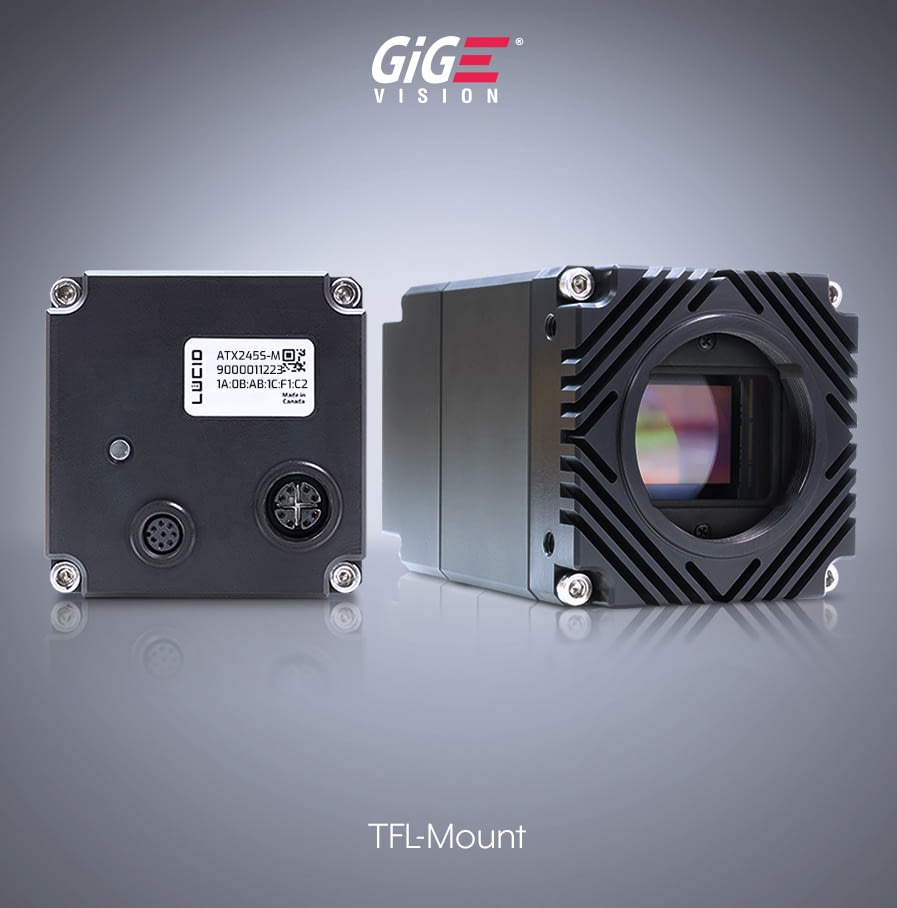

Lens MountTFL-Mount or C-Mount
Weight325 g
Interface and Power Information
Digital Interface10GBASE-T*, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE (*10GBASE-T runs in Short Reach Mode, 25m cable length max)
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE+ (IEEE 802.3at) or 12-24 V through GPIO
Power Consumption<12W via PoE+, 11.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer380 MB
Image ProcessingGain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel FormatsMono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC8, 10, 12 bit
Gain Range0 dB to 48 dB analog and digital
Dual ADC Mode (low-gain, high-gain)
Exposure Time6.97 μs to 10 s (Normal) / 2.296 μs to 2.464 μs (Short Mode)
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataFrame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataExposure start/end
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 50°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64*
Warranty3 year
*Listed specification testing in progress and is subject to change

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

ATX245S-M (Mono, Sony IMX530 CMOS)
Mono EMVA 1288 Results
Dynamic Range70.57 dB
SNR (Max)39.66 dB
Saturation Capacity9253 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)3.73 γ
Temporal Dark Noise2.13 e-
Gain0.42 DN / e-
Dark Current0.85 e- / s
Dark Signal Non-Uniformity0.37 e-
Photo Response Non-Uniformity0.61 %
Linearity Error Max/Min0.16/-0.31 %
ATX245S-C (Color, Sony IMX530 CMOS)
Color EMVA 1288 Results
Dynamic Range70.63 dB
SNR (Max)39.73 dB
Saturation Capacity9406 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)4.79 γ
Temporal Dark Noise2.16 e-
Gain0.417 DN / e-
Dark Current0.98 e- / s
Dark Signal Non-Uniformity0.40 e-
Photo Response Non-Uniformity0.77 %
Linearity Error Max/Min0.13/-0.22 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Atlas10 TFL-Mount / C-Mount Drawings
Atlas10 Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation
