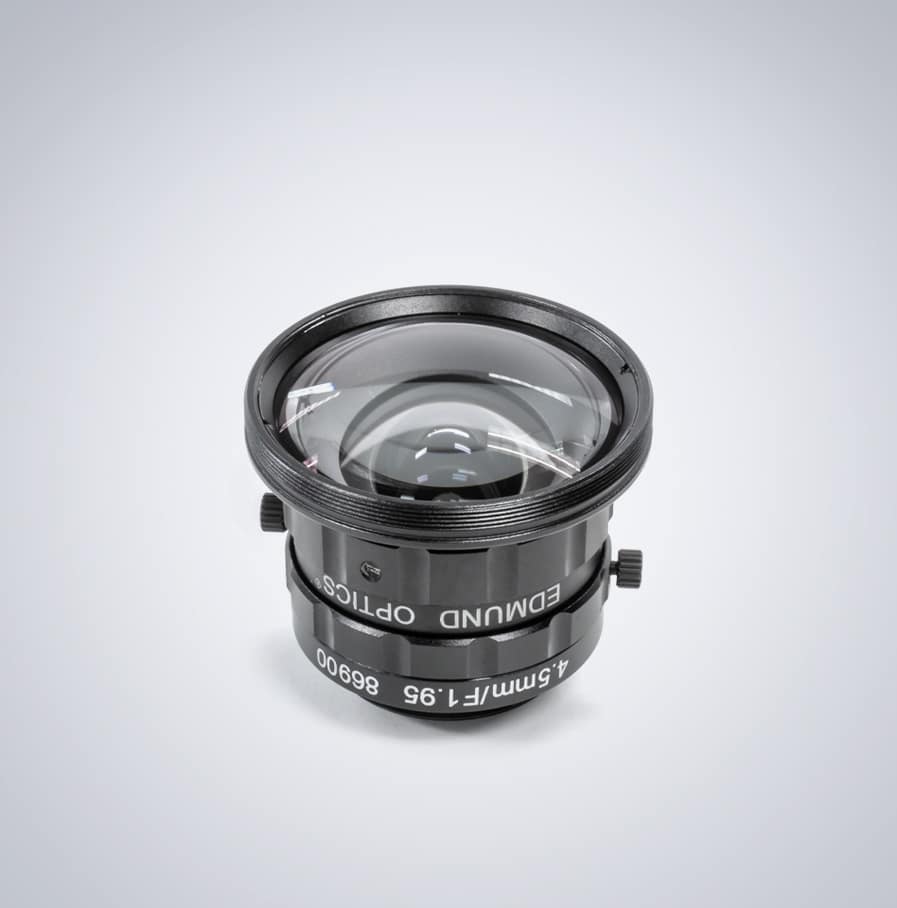

Edmund Optics C-Mount 1/1.8″ 4.5mm f/2 (C Series)
Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.
*Note for US customers*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.
Specifications
| Edmund Optics Model # | 86-900 |
|---|---|
| LUCID SKU: | EOC0045 |
| Focal Length | 4.5 mm |
| Field of View @ Max Sensor Format | 84.7° |
| Distortion(%) | -15.8 |
| Working Distance | 25mm – ∞ |
| Field of View, 1/2″ Sensor: | 76.7° |
| Field of View, 1/1.8″ Sensor | 84.7° |
| Field of View, 1/2.5″ Sensor | 69.4° |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Sensor Format | 1/1.8″ |
|---|---|
| Filter Thread: | M58 x 0.75 with required adapter #87-425 |
| Coating | 425 – 675nm BBAR |
| Aperture (f/#) | f/2 – f/11 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.0285 |
| Outer Diameter | 40.00 mm |
| Weight | 69 g |
| Length (mm) | 37.50 |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
USD $540.00
