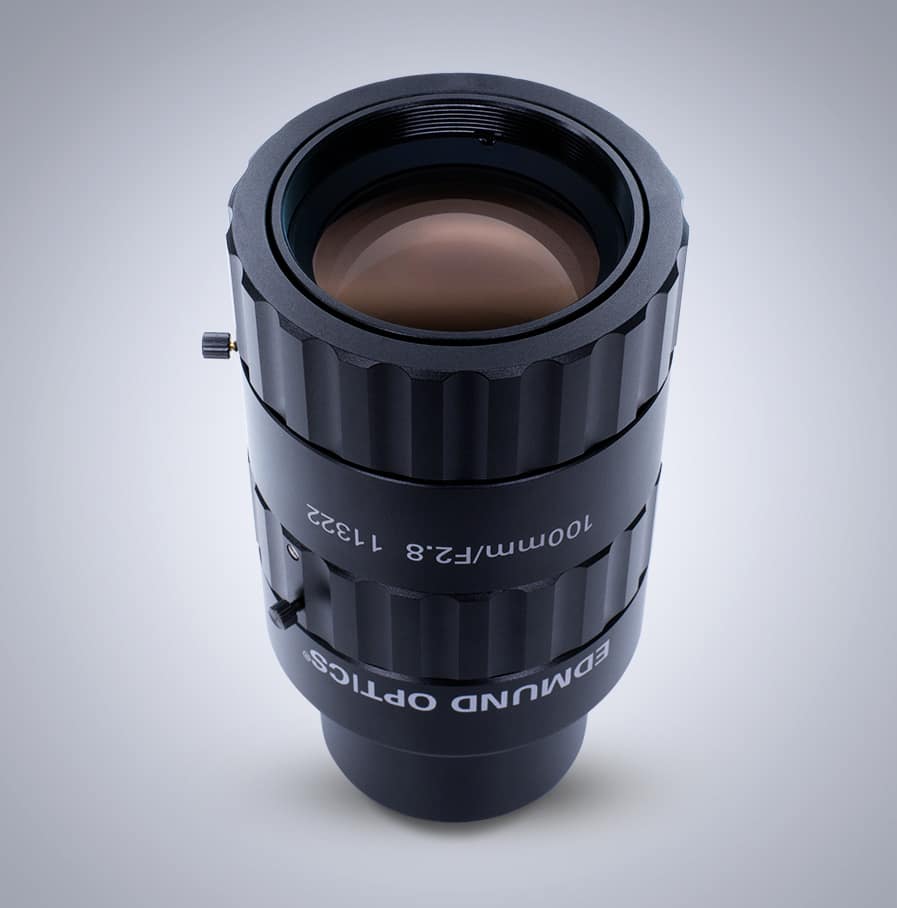

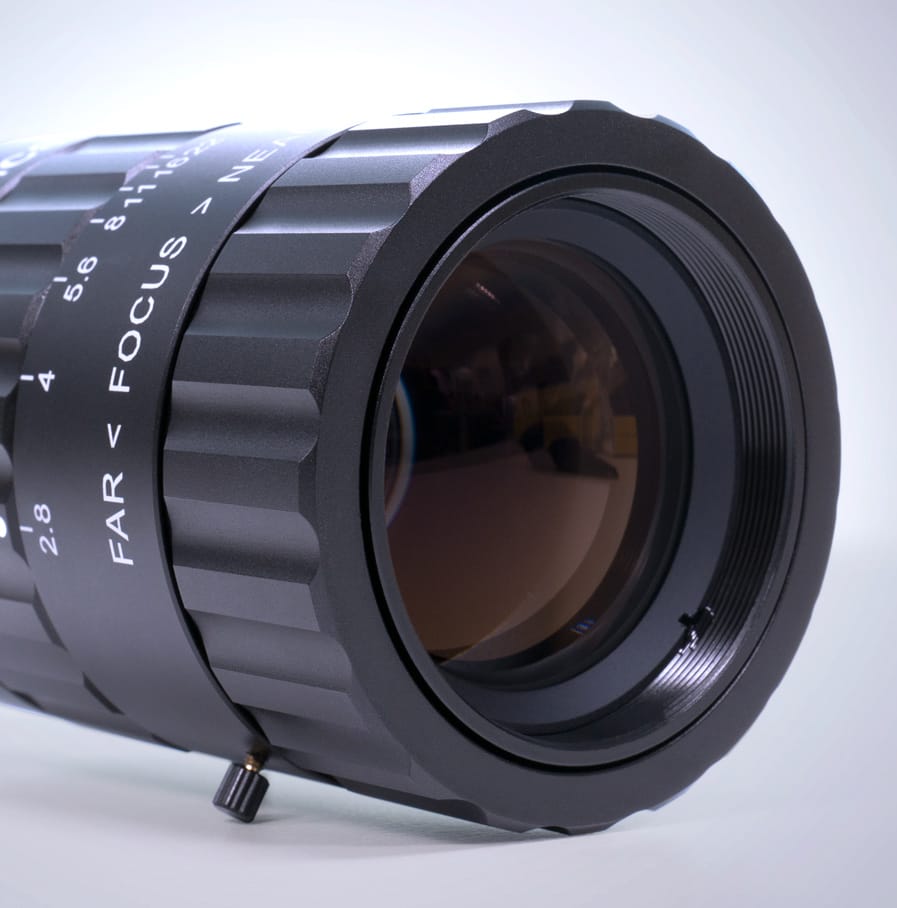

Edmund Optics TFL-Mount APS-C 100mm f/2.8



TECHSPEC® CA (Compact APS) Series Fixed Focal Length Lenses are designed for high resolution large format sensors. Covering the APS-C format sensors with a 28mm image circle, these lenses feature a TFL Mount. TFL Mounts feature a M35 x 0.75 thread with a 17.5mm flange distance, and offers the same flange distance, robustness, and ease of use as a C-Mount. TECHSPEC® CA Series Fixed Focal Length Lenses offer a compact size while accommodating large format sensors, making them ideal for machine vision and factory automation applications. Compatible with Atlas TLF-mount models.

*For US customers only*: This item is subject to a 25% US import tariff duty. To ensure seamless delivery and reduce delays with U.S. Customs and Border Protection, LUCID collects this duty at online checkout. For more details click here.

Specifications

Edmund Optics Model #11-322
LUCID SKU:EOCA1000
Focal Length100mm
Aperturef/2.88 – f/22
Field of View APS-C Sensor102.1mm – 12.7°
Working Distance500mm – ∞
Max Distortion(%)0.05
TypeFixed Focal Length Lens
Length132.97mm
Number of Elements8(5)
Outer Diameter61mm
Weight597g
CoatingMgF2 400-700nm
Maximum Sensor FormatAPS-C
MountTFL Mount
Numerical Aperture0.0321
Filter ThreadM46 x 0.75
Field of View, 1/1.8″ Sensor32.8 – 4.1°
Field of View, 1/2.5″ Sensor26.4mm – 3.3°
Field of View, 1/4″ Sensor16.4mm – 2.1°
Field of View, 4/3″ Sensor78.8mm – 9.8°
Field of View, 1″ Sensor57.6mm – 7.3°
Field of View, 1.1″ Sensor64.7mm – 8.1°
Field of View, 1/2″ Sensor28.8mm – 3.7°
Field of View, 1/3″ Sensor21.9mm – 2.7°
Field of View, 2/3″ Sensor40.1mm – 5.0°

USD $960.00

Register or login for pricing
SKU: EOCA1000 Category:

Technical Drawings

Edmund Optics 100mm TLF Lens
