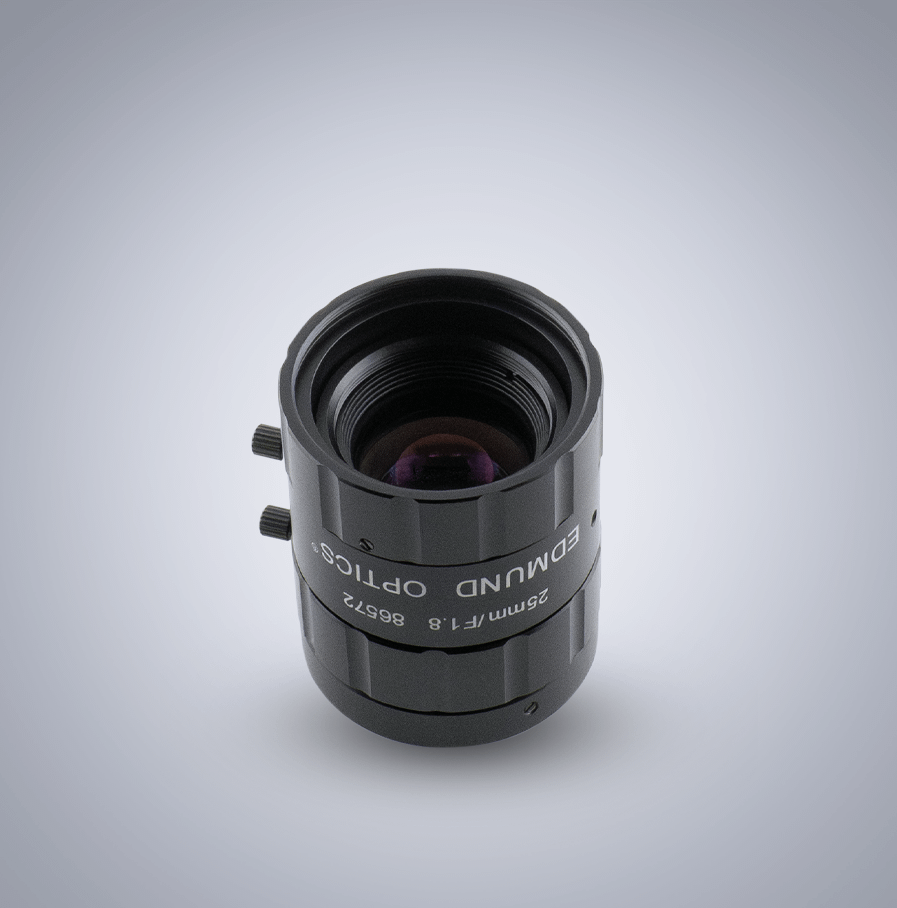

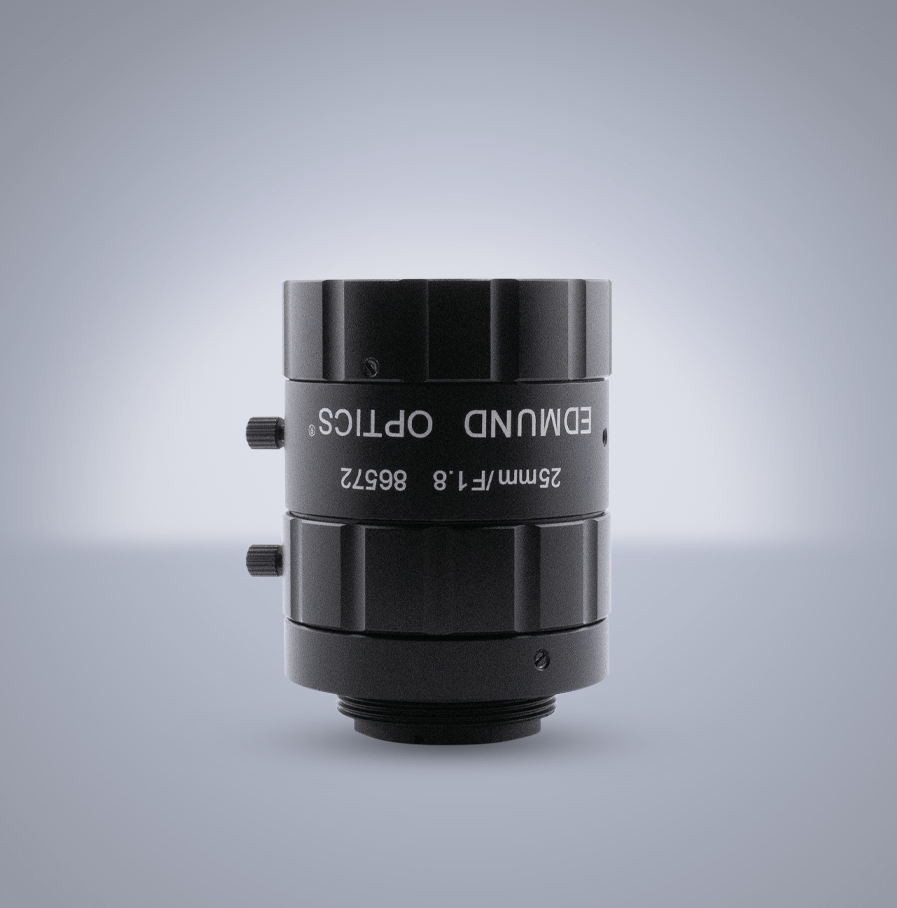

Edmund Optics C-Mount 1.1″ 25mm f/1.8 (HP Series)
TECHSPEC® HP Series Fixed Focal Length Lenses are designed for the harsh demands of factory automation (FA) and machine vision (MV) applications. The 6.5mm, 8mm, 12mm, 16mm, 25mm, and 35mm lenses are compatible with 1” and 1.1” sensor formats, while the 50mm lens is compatible with up to 4/3” sensor formats. The f/1.8 and f/2.8 apertures provide increased light throughput and high resolution performance. TECHSPEC® HP Series Fixed Focal Length Lenses are C-Mount and feature a locking focus and iris rings to prevent unwanted adjustments, as well as a front filter thread for integrating standard optical filters.
Specifications
| Edmund Optics Model # | 86-572 |
|---|---|
| LUCID SKU: | EOHP250 |
| Focal Length | 25 mm |
| Field of View @ Max Sensor Format | 93.6mm – 31.1° |
| Distortion(%) | 0.0022 |
| Working Distance | 150mm – ∞ |
| Number of Elements (Groups) | 7 (6) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 45.27 mm |
|---|---|
| Maximum Sensor Format | 1.1″ |
| Coating | λ/4 MgF2 |
| Aperture (f/#) | f/1.8 – f/22 |
| Mount | C-Mount |
| Outer Diameter | 37.5 mm |
| Weight | 103 g |
| Fixing Knobs Bundled | 2 total |
USD $660.00
Register or login for pricing
