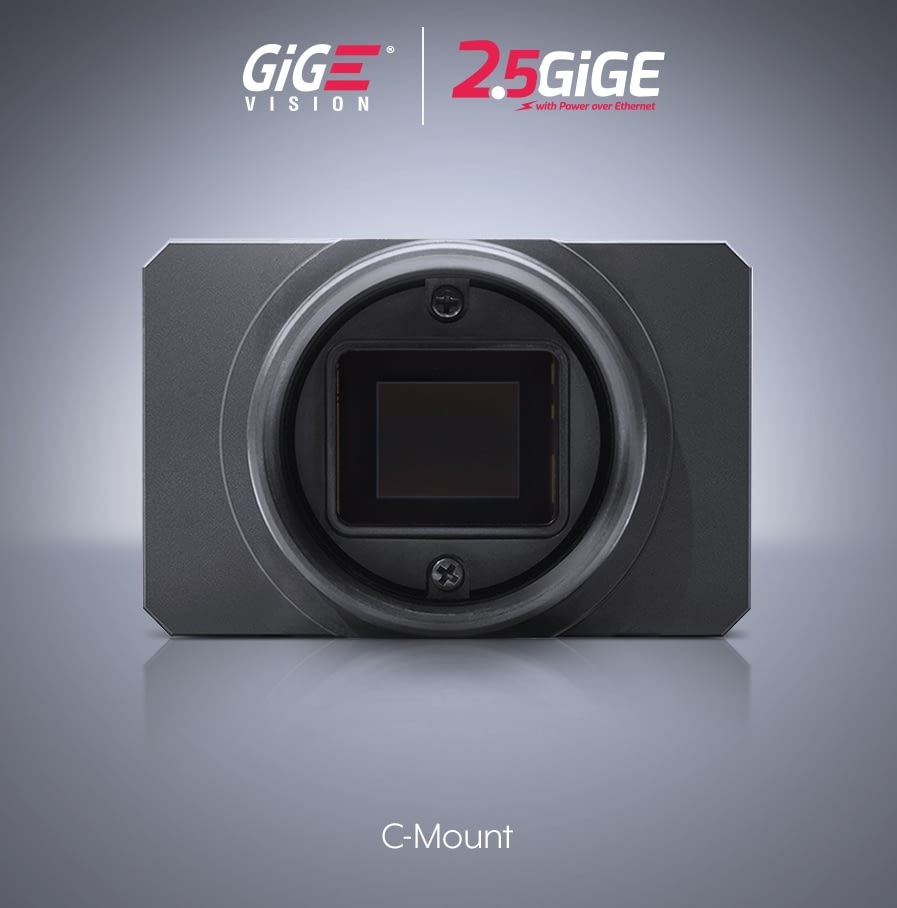

Triton2 2.8 MP Model (IMX429)

Sensor
Sony IMX429 CMOS
Resolution
2.8 MP, 1936 x 1464 px
Frame Rate
64.9 FPS
Model SKUs Chroma Lens Mount 2.5GBASE-T GigE Vision Connector Included Accessory
TRT028S-CC Color C-mount M12 M8 GPIO IP67 Cap
TRT028S-MC Mono C-mount M12 M8 GPIO IP67 Cap

Please select your camera configuration:

SKU: N/A Category:

Specifications

Sensor Properties
Sensor Model Sony IMX429 CMOS
Shutter Type Global
Sensor Size 11.0 mm (Type 2/3″)
Resolution 1936 x 1464 px, 2.8 MP
Pixel Size 4.5 µm (H) x 4.5 µm (V)
Framerate* 64.9 FPS (64.9 FPS) @ 2.8 MP
Physical Properties
Dimensions 44 x 29 x 45.3 mm
Lens Mount C-Mount
Weight 90 g
Ingress Protection IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)
Interface and Power Information
Digital Interface 2.5GBASE-T / 1000BASE-T M12 (8 Pin X-Coded), PoE
GPIO Interface 8 pin M8 connector
Opto-Isolated I/O Ports 1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 5W via PoE, 4.5W when powered externally
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Conversion Gain Normal and High Mode (High: 2.3x in analog domain)
Exposure Time 15.22 μs to 10 s (Normal) / 0.984 μs to 5.0 μs (Short Mode)
Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, KC, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -20 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity DIN EN 61000-6-2
Warranty 3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %

TRT028S-M (Mono, Sony IMX429 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.83 dB
SNR (Max) 43.9 dB
Saturation Capacity 24530 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 8.28 γ
Temporal Dark Noise 5.49 e-
Gain 0.16 DN / e-
Dark Current 1.81 e- / s
Dark Signal Non-Uniformity 0.64 e-
Photo Response Non-Uniformity 0.45 %
Linearity Error Max/Min 0.05/-0.12 %
TRT028S-C (Color, Sony IMX429 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.8 dB
SNR (Max) 43.89 dB
Saturation Capacity 24464 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 9.06 γ
Temporal Dark Noise 5.5 e-
Gain 0.16 DN / e-
Dark Current 2.22 e- / s
Dark Signal Non-Uniformity 0.59 e-
Photo Response Non-Uniformity 0.47 %
Linearity Error Max/Min 0.14/-0.26 %

emva-1288-logo
