IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mm



The LUCID IPTC series of IP67 lens tubes are compatible with all Triton and Atlas IP67 camera models. By connecting this IP67 lens tube and IP67 cables to the Triton or Atlas IP67 camera, users can operate the camera in environments where dust, dirt, and water are present up to IP67 thresholds. The IPTC-D59 offers a very large diameter to support large diameter lenses.



Specifications

Model # IPTC-D590L555
Length 66mm
Flange to Glass Length 55.5mm, (54.3mm for Line Scan TRI02KA)
Outer Diameter Ø 68.0mm
Inner Diameter Ø 59mm

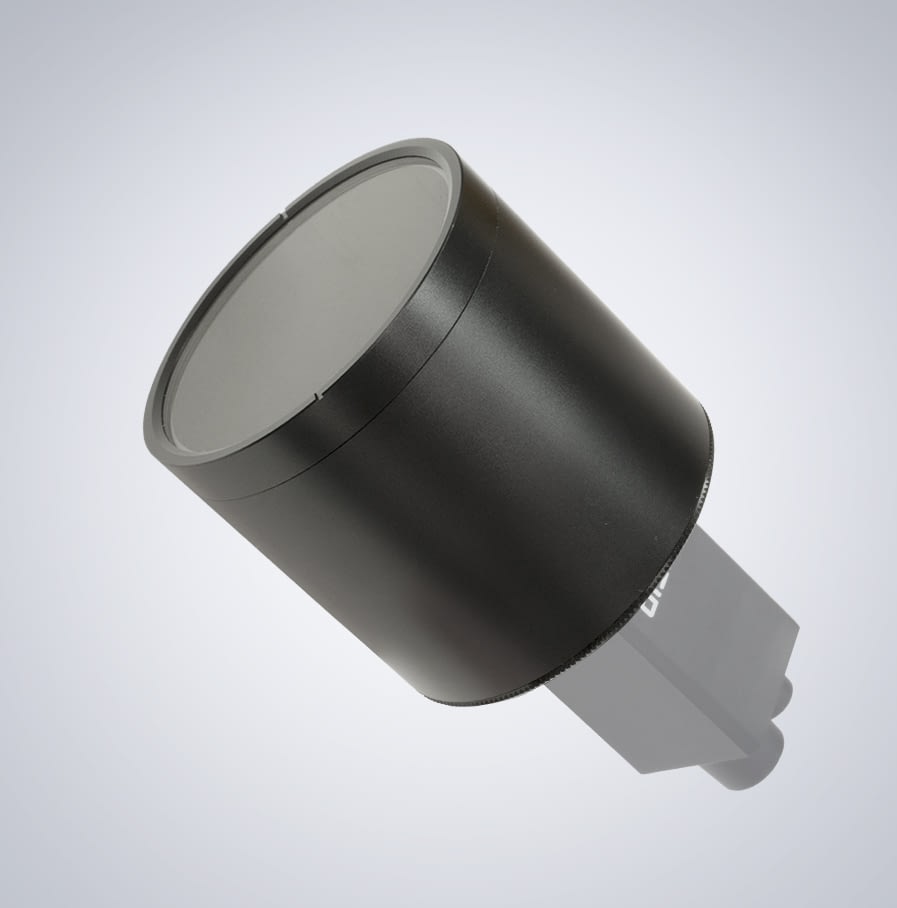

Compatible with: Triton, Atlas IP67

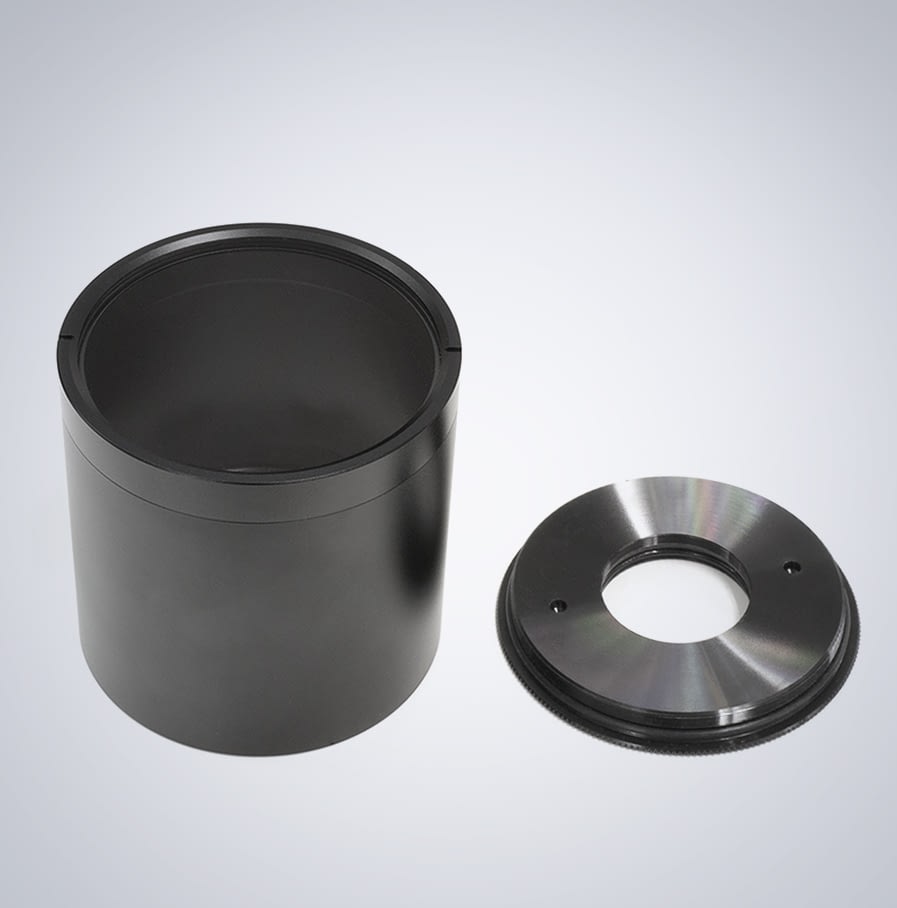

Package includes: 1 x Lens tube
1 x Attachment ring

USD $110.00

Register or login for pricing
SKU: IPTC-D590L555 Category:

Technical Drawings

lens-tube-drawing-IPTC-D590
