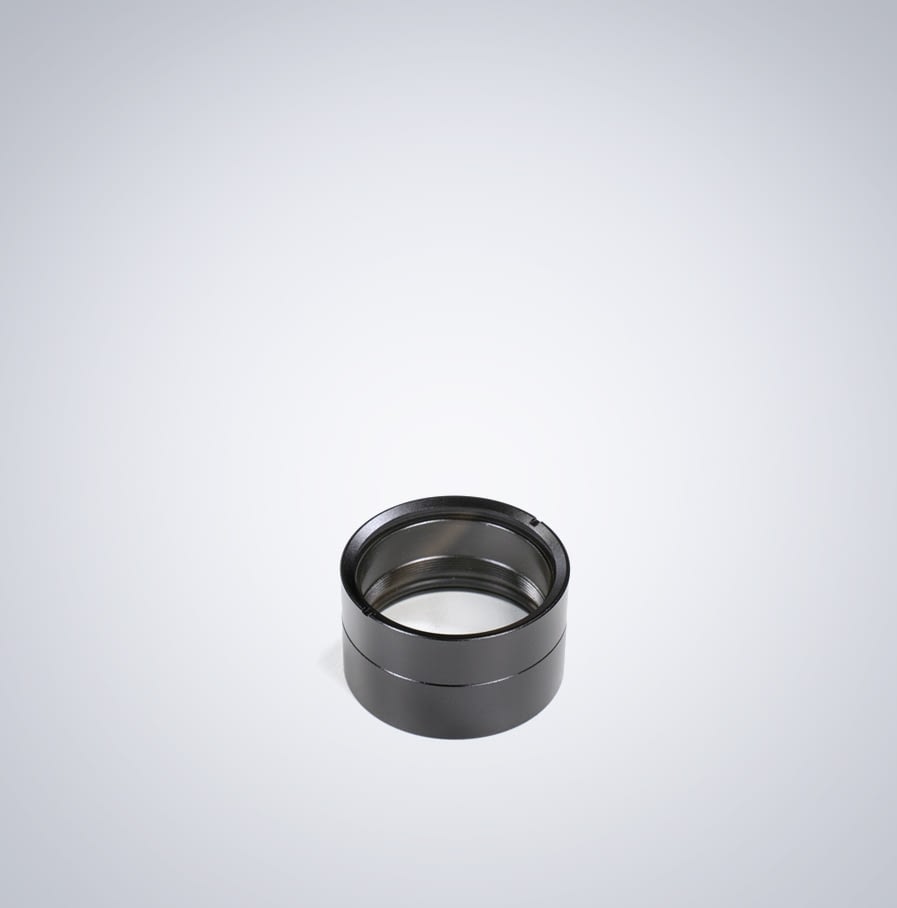

IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 7.1mm



The LUCID Compact 33mm IP67 lens tubes are compatible with all Triton and Atlas IP67 camera models. By connecting this IP67 lens tube and IP67 cables to the Triton or Atlas IP67 camera, users can operate the camera in environments where dust, dirt, and water are present up to IP67 thresholds. The IPTC-D270L71 was specifically designed for M12 (S-mount) lenses. However, LUCID does not resell M12 lenses. For detailed specifications and compatibility inquiries, consult with your preferred optical lens manufacturer.

Specifications

Model # IPTC-D270L71
Length 19mm
Flange to Glass Length 7.1mm, (5.9mm for Line Scan TRI02KA)
Outer Diameter Ø 33.0mm
Inner Diameter Ø 27.0mm
Glass Material B270, 3mm thick, single AR coating on both sides
Compatible with: Triton, Atlas IP67
Package includes: 1 x Lens tube

USD $45.00

Register or login for pricing
SKU: IPTC-D270L71 Category:

Technical Drawings

IPTC-D270L dimensional drawings
