Triton 5.0 MP Polarization Model

Sensor
Sony IMX250MZR
Sony IMX250MYR
Resolution
5.0 MP, 2448 x 2048 px
Frame Rate
24 FPS
Model SKUsChromaLens MountGigE Vision ConnectorIncluded Accessory
TRI050S-QCColorC-mountM12M8 GPIO IP67 Cap
TRI050S-PCMonoC-mountM12M8 GPIO IP67 Cap

Please select your camera configuration:

Clear
SKU: N/A Category:

Specifications

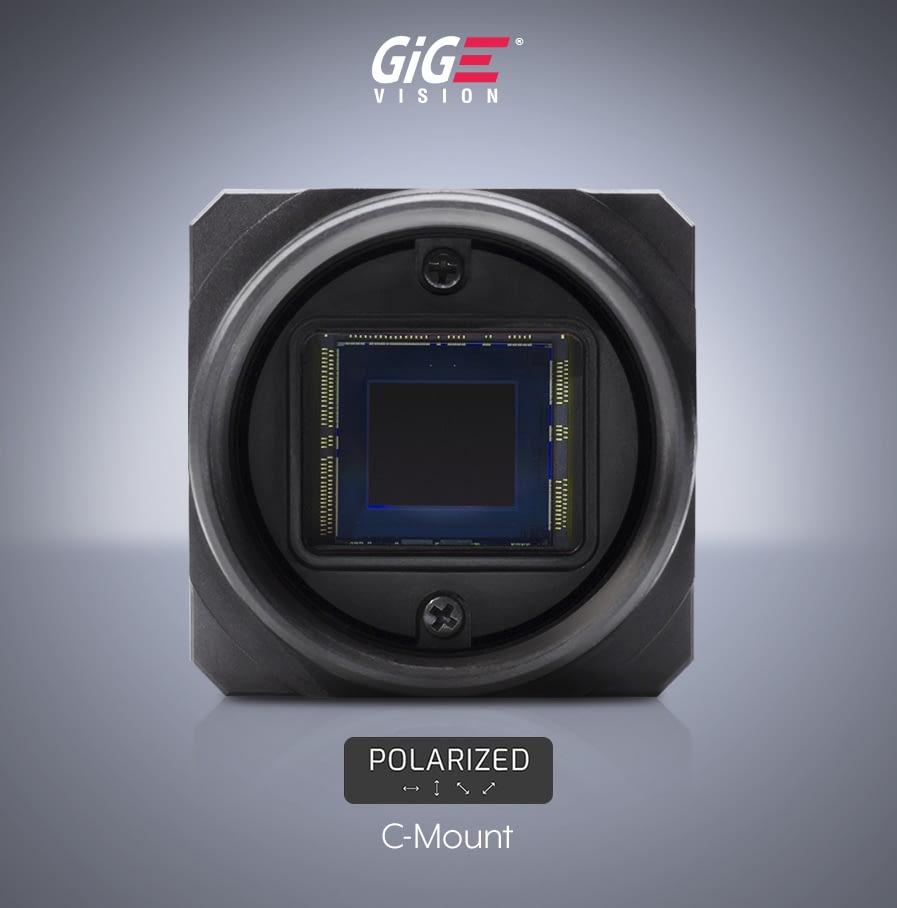

The Triton polarization camera features Sony’s IMX250MZR/MYR CMOS polarized sensors. The sensors use Sony’s Polarsens technology with on-chip four different directional polarizing filters (0°, 90°, 45°, and 135°) on every four pixels. To learn more read our Tech Brief – “Beyond Conventional Imaging: Sony’s Polarized Sensor” or download our “White Paper: Going Polarized

Sensor Properties
Sensor ModelSony IMX250MZR CMOS (mono)
Sony IMX250MYR CMOS (color)
Polarized – four different directional polarizing filters (0°, 90°, 45°, and 135°)
Shutter TypeGlobal
Sensor Size11.1 mm (Type 2/3″)
Resolution2448 x 2048 px, 5.0 MP
Pixel Size3.45 µm (H) x 3.45 µm (V)
Framerate24 FPS @ 5.0 MP
Physical Properties
Dimensions29 x 29 x 45 mm
Lens MountC-Mount
Weight67 g
Interface and Power Information
Digital Interface1000BASE-T GigE M12, PoE
GPIO Interface8 pin M8 connector
Opto-Isolated I/O Ports1 input, 1 output
Non-Isolated I/O Ports2 bi-directional
Power RequirementPoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption3.1W via PoE, 2.5W when powered externally
Imaging Properties
Image Buffer128 MB
Image ProcessingGain
Pixel FormatsMono8/12/16, PolarizeMono8/12/16 (Mono)
BayerRG8/12/16, PolarizeMono8/12/16 (Color)
Image ModesHorizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC12 bit
Gain Range0 dB to 48 dB analog and digital
Exposure Time30 μs to 10 s
Camera Features
User Sets1 default and 2 custom user set
File System Size16 MB
Chunk DataTimestamp, frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event DataAcquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer2 counters and 2 timers
SequencerExposure time, gain
SynchronizationSoftware trigger, hardware trigger, PTP (IEEE 1588)
Standards and Certifications
StandardGigE Vision v2.0
ComplianceCE, FCC, RoHS, REACH, WEEE
Storage Temperature-30 to 60°C
Operating Temperature-20 to 55°C ambient
HumidityOperating: 20% ~ 80%, relative, non-condensing
Shock and VibrationDIN EN 60068-2-27, DIN EN 60068-2-64
Warranty3 year

EMVA 1288 Data / Extinction Ratio

Interactive graphs – click the legend to toggle lines on or off, hover over data points for detailed information.

Mono, Sony IMX250MZR CMOS
Quantum efficiency of each polarized pixel angle.

Colored lines represent measurements with matching polarized light angle to the angle of the pixel.
Mono, Sony IMX250MZR CMOS
Relative quantum efficiency.

Ratio of QE to average of 4 angles.
Click the legend to toggle lines on or off, hover over data points for detailed information
EVMA 1288 Results
Dynamic Range71.34 dB
SNR (Max)40.14 dB
Saturation Capacity10318 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)5.28 γ
Temporal Dark Noise2.16 e-
Gain0.369 DN / e-
Mono, Sony IMX250MZR CMOS
Extinction Ratio.

Minimum among 4 angles at each wavelength.

Extinction Ratio Explanation: Extinction Ratio (ER) is the ratio between the maximum and minimum signal detected by a particular polarization pixel channel for a linearly polarized input. The ratio is computed by taking the maximum response divided by the minimum response for a particular polarization channel (ie. 0° polarization pixels). For example, the 0° polarization pixels have maximum response when the polarization angle of the input light is 0° and minimum response when the polarization angle is 90°. Extinction Ratio for the 0° pixels is computed by taking the ratio of the two values. The extinction ratio can be interpreted as how many folds the maximum transmittance is when compared with the minimum transmittance. For example, at 430nm, the ER of 425.83 means the maximum signal is 425.83 times greater than the minimum signal at 430nm.
Color, Sony IMX250MYR CMOS
Quantum efficiency of each polarized pixel angle.


Click the legend to toggle lines on or off, hover over data points for detailed information
Colored lines represent measurements with matching polarized light angle to the angle of the pixel.
Color, Sony IMX250MYR CMOS
Relative quantum efficiency.

Ratio of QE to average of 4 angles.
Click the legend to toggle lines on or off, hover over data points for detailed information
EVMA 1288 Results
Dynamic Range71.67 dB
SNR (Max)40.23 dB
Saturation Capacity10538 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)6.116 γ
Temporal Dark Noise2.11 e-
Gain0.371 DN / e-
Color, Sony IMX250MYR CMOS
Extinction Ratio.

Click the legend to toggle lines on or off, hover over data points for detailed information
Minimum among 4 angles at each wavelength.

Extinction Ratio Explanation: Extinction Ratio (ER) is the ratio between the maximum and minimum signal detected by a particular polarization pixel channel for a linearly polarized input. The ratio is computed by taking the maximum response divided by the minimum response for a particular polarization channel (ie. 0° polarization pixels). For example, the 0° polarization pixels have maximum response when the polarization angle of the input light is 0° and minimum response when the polarization angle is 90°. Extinction Ratio for the 0° pixels is computed by taking the ratio of the two values. The extinction ratio can be interpreted as how many folds the maximum transmittance is when compared with the minimum transmittance. For example, at Blue 430nm, the ER of 589.6 means the maximum signal is 589.6 times greater than the minimum signal at 430nm.

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Triton C-Mount Drawings

Getting Started / Downloads

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
IP67 Lens Tubes for Triton ModelsManufacturer Part #SKU
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 34.6mmLUCID IPTC-D270L346IPTC-D270L346
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 29.9mmLUCID IPTC-D355L299IPTC-D355L299
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 38.5mmLUCID IPTC-D440L385IPTC-D440L385
IP67 C-Mount Lens Tube Inner ⌀: 35.5mm, Inner Length: 39.9mmLUCID IPTC-D355L399IPTC-D355L399
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 59.9mmLUCID IPTC-D355L599IPTC-D355L599
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 68.5mmLUCID IPTC-D440L685IPTC-D440L685
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mmLUCID IPTC-D590L555IPTC-D590L555
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 71.5mmLUCID IPTC-D590L715IPTC-D590L715
Lenses for Triton ModelsManufacturer Part #SKU
Lucid C-Mount 5MP 2/3″ 12mm f/2.0LUCID NF120-5M-CNF120-5M-C
Fujinon C-Mount 5MP 2/3″ 6mm f/1.9Fujinon HF6XA-5MFC60-5M
Fujinon C-Mount 5MP 2/3″ 8mm f/1.6Fujinon HF8XA-5MFC80-5M
Fujinon C-Mount 5MP 2/3″ 12mm f/1.6Fujinon HF12XA-5MFC120-5M
Fujinon C-Mount 5MP 2/3″ 16mm f/1.6Fujinon HF16XA-5MFC160-5M
Fujinon C-Mount 5MP 2/3″ 25mm f/1.6Fujinon HF25XA-5MFC250-5M
Computar C-Mount 12MP 1.1″ 8mm f/2.8Computar V0828-MPYCC080-12M
Computar C-Mount 12MP 1.1″ 12mm f/2.8Computar V1228-MPYCC120-12M
Computar C-Mount 12MP 1.1″ 16mm f/2.8Computar V1628-MPYCC160-12M
Computar C-Mount 12MP 1.1″ 25mm f/2.8Computar V2528-MPYCC250-12M
Computar C-Mount 12MP 1.1″ 35mm f/2.8Computar V3528-MPYCC350-12M
Cables for Triton Models
M12 to RJ45 IP67 Cat6a Cable – 2.0m, Dark Green LUCID CAB-MR-2MCAB-MR-2M
M12 to RJ45 IP67 Cat6a Cable – 5.0m, Dark GreenLUCID CAB-MR-5MCAB-MR-5M
M12 to RJ45 IP67 Cat6a Cable – 15.0m, Dark GreenLUCID CAB-MR-15MCAB-MR-15M
M8 GPIO 8-pin 1.0m CableGPIO-M8GPIO-M8
M8 GPIO 8-pin 5.0m CableGPIO-M8-5MGPIO-M8-5M
Tripod Mount Adapter & Misc
Tripod AdapterPHX-TRPHX-TR
M8 GPIO IP67 Cap *(1 cap included with each Triton unit)CAP-M8CAP-M8
Interface Cards, PoE Injectors, Power Supply
2-CH PCIe GigE Vision PoE+ CardADLINK PCIe-GIE72PCIE-POE2
4-CH PCIe GigE Vision PoE+ CardADLINK PCIe-GIE74PCIE-POE4
Intel Gigabit CT Desktop AdapterIntel EXPI9301CTBLKPCIE-ETH1
TP-Link PoE InjectorTP-Link TL-POE150SPOEP
Phihong PoE Injector (EU/UK Versions)Phihong POE21U-1AFPOEP-PHEU or POEP-PHUK
M8 GPIO AC Adapter Power Supply (NA/EU Versions)CUI INC SDI65-18-UM8P-US1 or M8P-EU1
