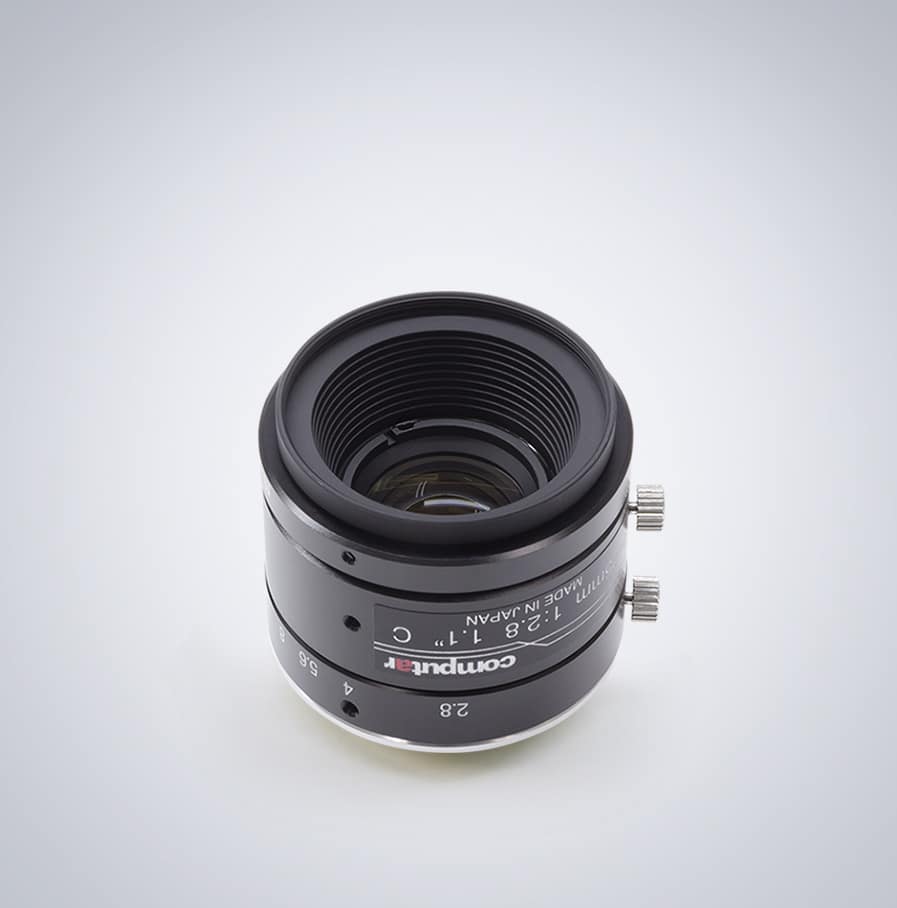

Computar C-Mount 12MP 1.1″ 25mm f/2.8
The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility.
Specifications
| Manufacturer Model # | Computar V2528-MPY |
|---|---|
| LUCID SKU | CC250-12M |
| Focal Length | 25mm |
| Iris Range (f no.) | f2.8 – f16 |
| Angle of View (H x V) * *Mounted to 1.1” sensor cameras |
31.7° x 23.5° |
| Focus Range (from front of the lens) | ∞-300mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M34 x 0.5mm |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 1.1” |
| TV Distortion | -0.1% (2/3″), -0.2% (1″), -0.3% (1.1″) |
| Diameter | φ39.5 x 34mm |
| Weight | 78.6g |
| Locking Screws Bundled | 4 total: 2x normal, 2x low profile provided by LUCID for lens tube fit |
USD $575.00
Register or login for pricingRecommended IP67 Lens Tube
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
