M8 GPIO 8-pin (Amphenol) 15.0m Cable

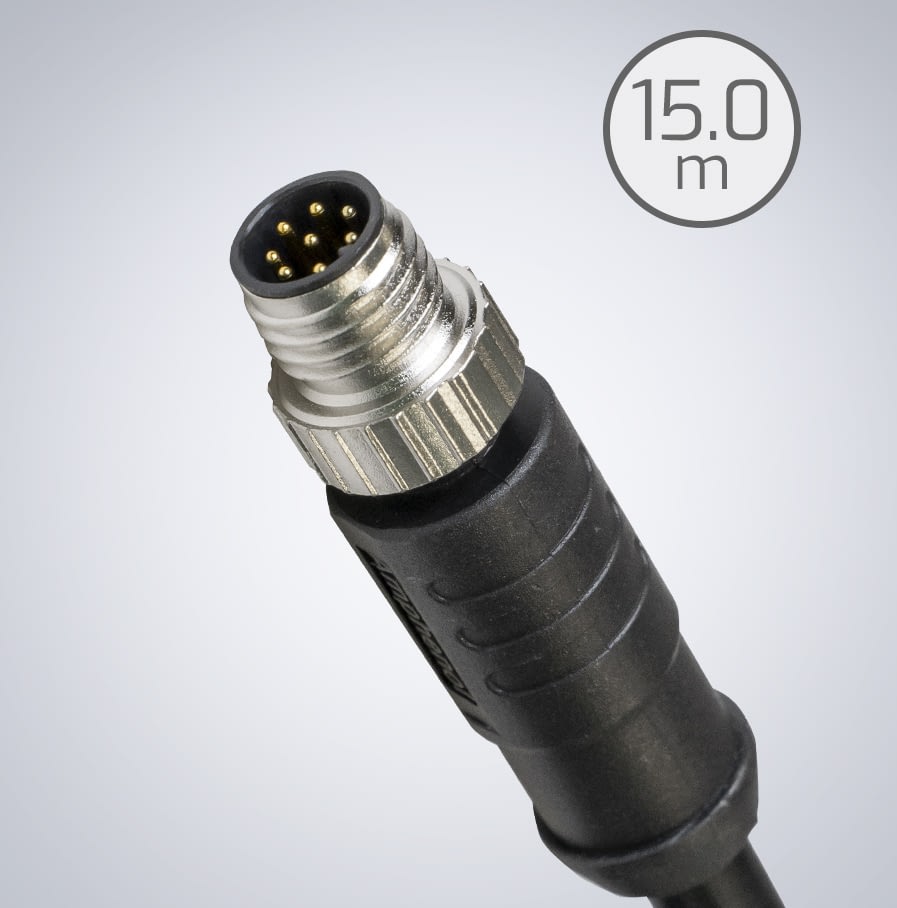

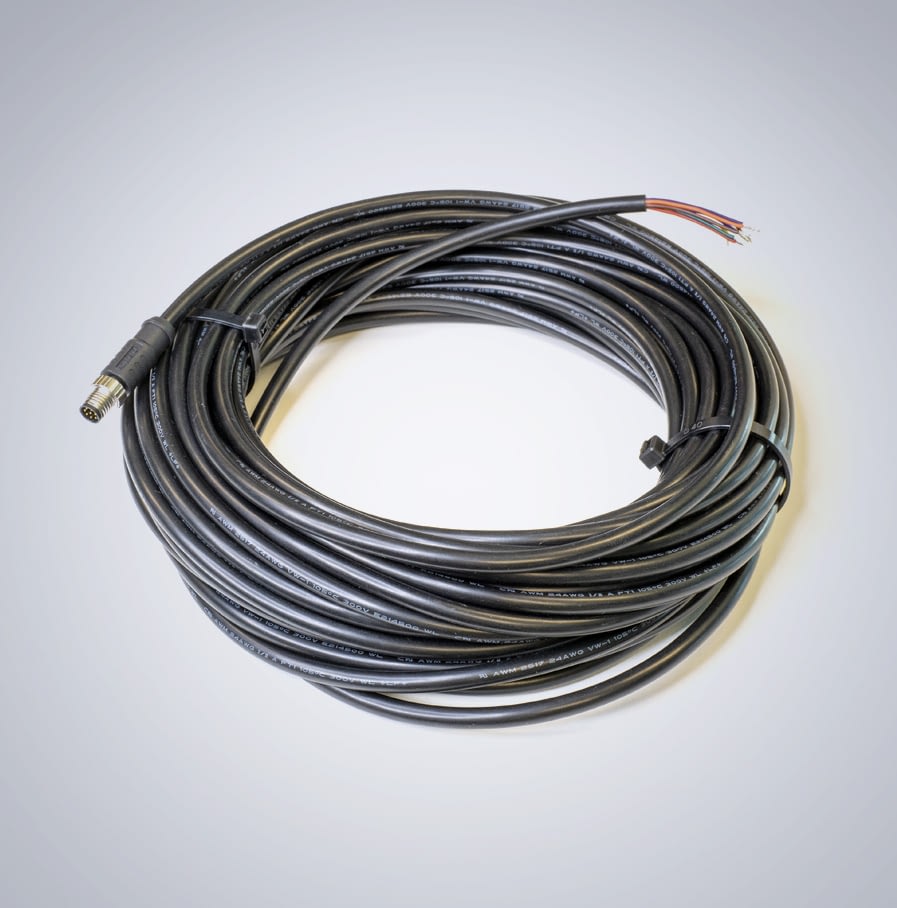

The 8-pin GPIO cable (P/N:GPIO-M8-15M-A) is 15 m long and is terminated with a 8-pin M8 connector plug on one end. The other end is pre-stripped to 5 mm for soldering or direct connection to a terminal block. App Note: Using GPIO On LUCID Cameras (GPIO Pin Mapping, Function, and Trigger Control)

Specifications

Connector Type M8 A-Coded 8pin Male Connector (IEC 61076-2-104)
IP Rating M8 connector is IP67
Length 15.0m (49.2 ft)
Wire Layout 8 Stranded wires:
Red 1
Brown 2
Orange 3
Purple 4
Black 5
Blue 6
Yellow 7
Green 8
AWG Rating 24AWG
Operating Temperature  -5°C to 105°C

USD $80.00

Register or login for pricing
SKU: GPIO-M8-15M-A Category:

Drawing

GPIO-M8-15M-A-Drawing
