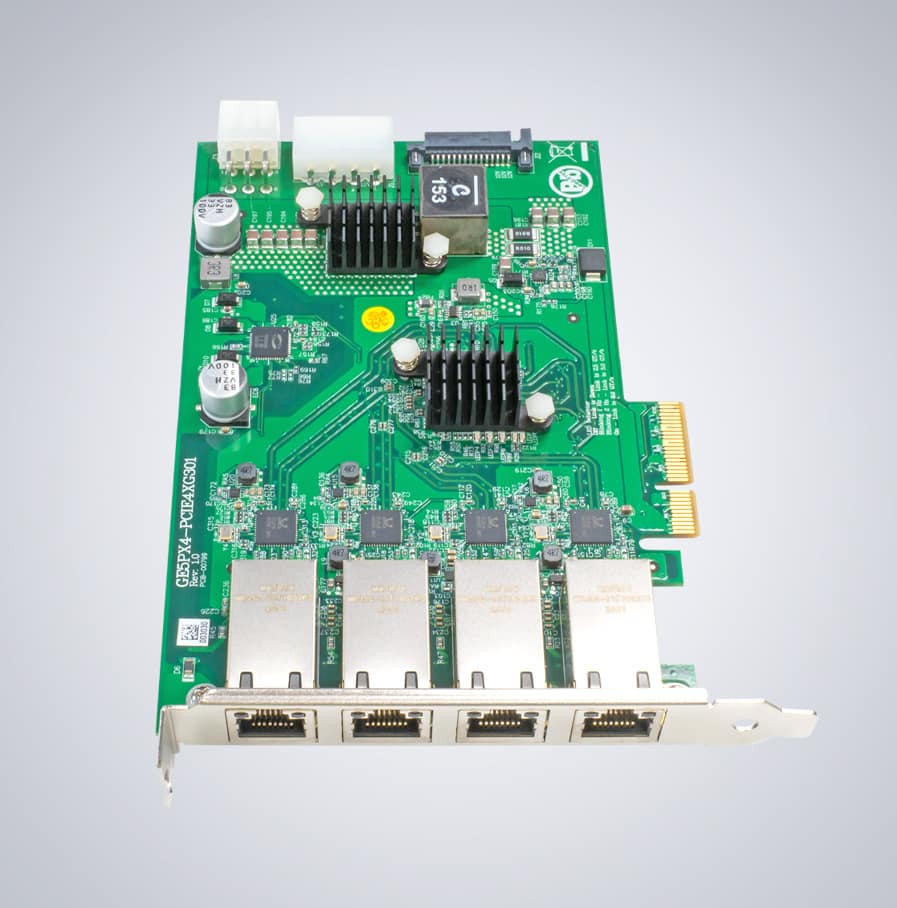

ioi 4-CH 5G/2.5G/1G PoE+ Ethernet Card

ioi GE5PX4-PCIE4XG301 (P/N: PCIE-POE4-5G) provides the most efficient non-fan solution for integrating four 5.0GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX/ 10BASE-Te Ethernet to PCI Express Single Chip Host controllers into a small board design. Each Ethernet port to PCI Express Single Chip Host controller takes advantages of 4-lane PCI Express bus in both directions. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

Specifications

Manufacturer #
  • ioi GE5PX4-PCIE4XG301
Chipset
  • Realtek RTL8126
PCI Express
  • 4-lanes, Gen3 PCI Express interface, compliant with PCI Express Base Specification Revision 3.0
POE + Feature
  • 100 meters over Cat 5e and Cat 6a at 5Gbps / 2.5Gbps/ 1Gbps/ 100Mbps
  • In compliance with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power.
  • IEEE 802.1q, VLAN support.
  • 16 kB jumbo frame support.
  • PCIe Slot: 25W Slot (Max 25W), 75W slot (Max 30W).
    IDE Power (Max. 60W), SATA Power (Max. 48 W)
Operating Temperature
  • 0°C ~ 55°C
Number of Port

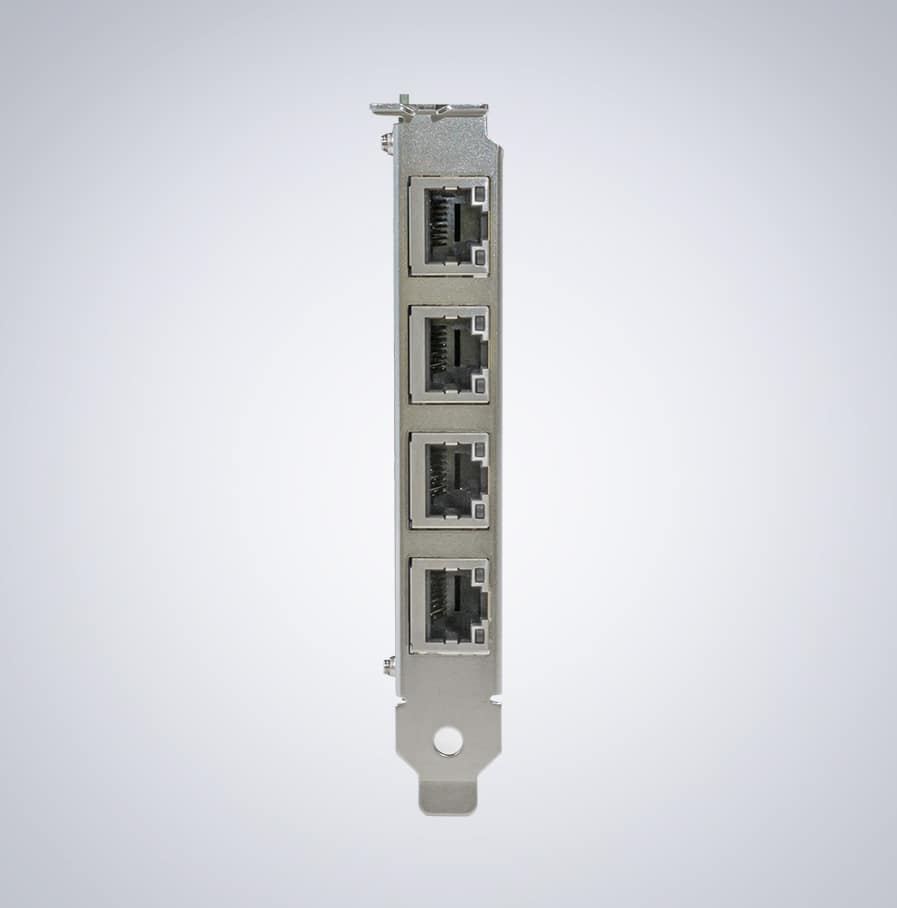

  • Four (4) 5/2.5/1GBASE-T RJ45 Ethernet ports with PoE+

USD $380.00

Register or login for pricing
SKU: PCIE-POE4-5G-IOI Category:
