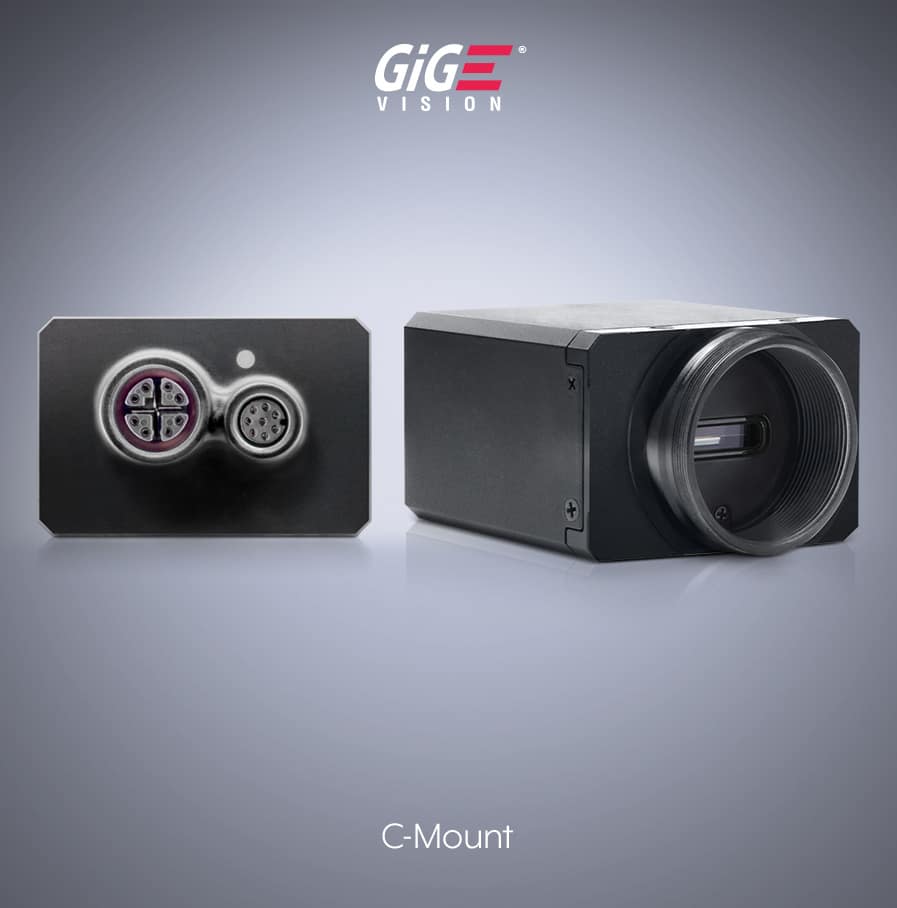

Name: Triton2 Line Scan 4k 65kHz / 2k 135kHz Model
SKU: TRT04KG-MC
Price: 875.00 USD
Availability: InStock

Triton2 Line Scan 4k 65kHz / 2k 135kHz Model

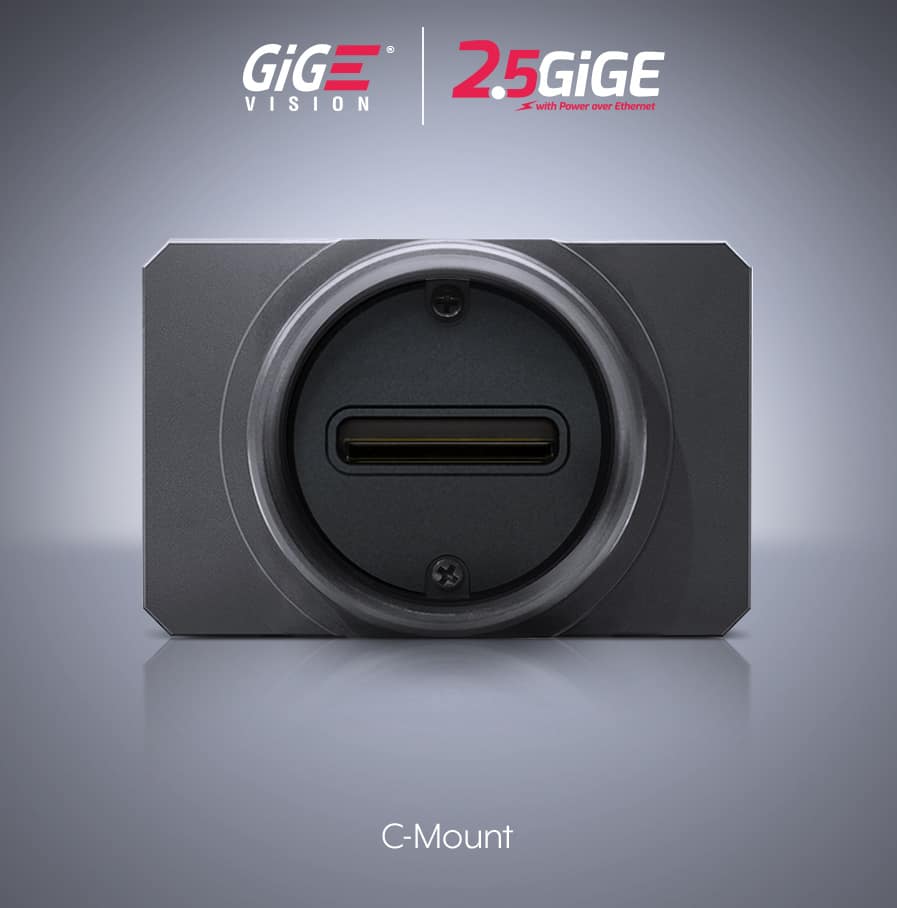

The Triton2 4K line scan camera is perfect for a wide range of high-speed applications, including continuous inspection of paper, plastic, and metal manufacturing, as well as object motion inspection for train or road traffic. Equipped with the GL3504 sensor, it offers the flexibility to operate at either 4K or 2K resolution, allowing users to adjust both resolution and line rate to meet their specific needs. This camera excels in OCR recognition tasks such as postal and barcode scanning, and is also ideal for food sorting, PCB inspection, pharmaceutical inspection, and other conveyor belt applications where objects are in constant motion.

Sensor
Gpixel GL3504 CMOS

Resolution
4096 x 2 px (4K) 2048 x 4 px (2K)

Line Rate
65 kHz (4K)* 135 kHz (2K)* (*for single-line readout)

Model SKUs	Chroma	Lens Mount	GigE Vision Connector	Included Accessory
TRT04KG-MC	Mono	C-mount	M12	M8 GPIO IP67 Cap

USD $875.00

Specifications

Sensor Properties
Sensor Model	Gpixel GL3504 CMOS
Shutter Type	Global
Sensor Size	14.3 mm
Resolution	4096 x 2 px (4K) 2048 x 4 px (2K)
Pixel Size	3.5 µm (H) x 3.5 µm (V) (4K) 7.0 µm (H) x 7.0 µm (V) (2K)
Line Rate	65 kHz (4K)* 135 kHz (2K)* *for single-line readout

Physical Properties
Dimensions	44 x 29 x 45.3 mm
Lens Mount	C-Mount
Weight	90 g
Ingress Protection	IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables)

Interface and Power Information
Digital Interface	2.5GBASE-T / 1000BASE-T GigE M12 (8-Pin X-Coded), PoE
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption	5W via PoE, 4.5W when powered externally

Imaging Properties
Image Buffer	380 MB
Image Processing	Gain, gamma, black level, LUT
Pixel Formats	Mono8/16, Mono12p, Mono12Packed
Image Modes	Horizontal binning, ROI
ADC	8 / 12 bit
Gain Range	0 dB to 24dB digital
Exposure Time	2 μs to 4.2 ms

Camera Features
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Image, CRC, trigger Line, timestamp, line status, pixel format, width/height, offset X, pixel dynamic range min/max, gain, black level, exposure time
Counter & Timer	2 counters and 2 timers
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard	GigE Vision v2.0
Compliance	CE, FCC, RoHS, REACH, WEEE
Storage Temperature	-30 to 60°C
Operating Temperature	-20 to 55°C ambient
Humidity	Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
Industrial EMC Immunity	DIN EN 61000-6-2
Warranty	3 year

EMVA 1288 Data

Interactive graphs – please hover over the points in the graph to reveal QE %
Coming soon

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

Drawings

Triton2 Line Scan C-Mount Drawings

Getting Started / Downloads

Getting Started / Datasheet

For camera setup visit our Getting Started Guide. It covers connecting your camera, installing Arena SDK or third-party software, enabling Jumbo Frames, assigning camera IP address, and updating firmware.

Triton2 Datasheet (PDF)

Sign up for Triton2 download updates

Title	Filename	File Type	Version	Date	File Size	Link
TRT04KG Technical Reference Manual	TRT04KG_1.41.0.0_Documentation_English.zip	zip	1.41.0.0	2025-03-28	2.4 MB
TRT04KG Firmware	TRT04KG_1.41.0.0_Firmware.zip	zip	1.41.0.0	2025-03-28	4.9 MB

ArenaSDK_v1.0.49.3.exe

1.3 GB

Arena SDK – Windows 11/10

v1.0.49.3 (Release Date: 2025-03-13). For Windows 11 (64-bit) / Windows 10 (32/64-bit).

Compatible with all standard camera models except Triton Smart.

Changelog

ArenaSDK_v0.1.95_Linux_x64.tar.gz

232.9 MB

Arena SDK – x64 Ubuntu 22.04/24.04

v0.1.95 API Only, (Release Date: 2025-02-27).
Ubuntu 22.04/24.04 (64-bit).

Compatible with all standard camera models except Triton2 EVS and Triton Smart.

Changelog

ArenaSDK_v0.1.78_Linux_ARM64.tar.gz

143.4 MB

Arena SDK – ARM64 Ubuntu 22.04/24.04

v0.1.78 (Release Date: 2025-02-27)
SDK API Only
Ubuntu 22.04/24.04 (64-bit). Tested on NVIDIA AGX Xavier / TX2 Development Kit.

Compatible with all standard camera models except Triton2 EVS and Triton Smart.

Changelog

arena_api-2.7.1-py3-none-any.zip

205.7 MB

Arena Python Package

v2.7.1 (Release date: 2025-02-27)
Includes: wheel, examples, documentation.

Requirements: Python 3.6.8 or above
Minimum Compatible Arena Versions
Arenac_Win_Version_Min = V1.0.42.0
Arenac_Lin_Version_Min = V0.1.85
Arenac_Arm_Version_Min = V0.1.61

Changelog

Compatible with all standard camera models except Triton2 EVS and Triton Smart.

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.

Lens Manufacturer Part #	Lens Description	0.3MP TRT003S-E	0.9MP TRT009S-E	1.6MP TRT016S	2.3MP TRT023S	2.4MP TRT024G	2.8MP TRT028S	5.0MP TRT050S	5.0MP TRT051S	6.3MP TRT064S	7.1MP TRT071S	8.1MP TRT081S	12.3MP TRT120S	12.3MP TRT124S	16.2MP TRT162S	20.0MP TRT200S	20.4MP TRT204S	24.5MP TRT245S	4K TRT04KG
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8	Good	Good	Good	Good
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85	Good	Good	Good	Good
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8	Good	Good	Good	Good
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good	Good				Vignette	Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good	Good				Vignette	Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Good	Good	Good	Good				Vignette	Vignette
Edmund Optics C #67-709	C-Mt 1/1.8" 6mm, f1.4	Good	Good	Good	Good				Vignette	Vignette
Edmund Optics C #58-000	C-Mt 2/3" 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C #58-001	C-Mt 2/3" 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C #59-870	C-Mt 2/3" 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C #59-871	C-Mt 2/3" 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C #59-872	C-Mt 2/3" 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Edmund Optics C #59-873	C-Mt 2/3" 50mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Vignette	Good
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Edmund Optics CA #11-320	TFL-Mt APS-C 50mm f/1.8
Edmund Optics CA #11-321	TFL-Mt APS-C 75mm f/2.8
Edmund Optics CA #11-322	TFL-Mt APS-C 100mm f/2.8

Lens Adapters	Manufacturer Part #	SKU
C-mount to S-mount (M12) Lens Adapter	LUCID ADA-C-S	ADA-C-S

IP67 Lens Tubes for Triton2 Models	Manufacturer Part #	SKU
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 7.1mm	LUCID IPTC-D270L71	IPTC-D270L71
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 18.1mm	LUCID IPTC-D270L181	IPTC-D270L181
IP67 C-Mount Lens Tube, Inner ⌀: 27mm, Inner Length: 34.6mm	LUCID IPTC-D270L346	IPTC-D270L346
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 29.9mm	LUCID IPTC-D355L299	IPTC-D355L299
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 38.5mm	LUCID IPTC-D440L385	IPTC-D440L385
IP67 C-Mount Lens Tube Inner ⌀: 35.5mm, Inner Length: 39.9mm	LUCID IPTC-D355L399	IPTC-D355L399
IP67 C-Mount Lens Tube, Inner ⌀: 35.5mm, Inner Length: 59.9mm	LUCID IPTC-D355L599	IPTC-D355L599
IP67 C-Mount Lens Tube, Inner ⌀: 44mm, Inner Length: 68.5mm	LUCID IPTC-D440L685	IPTC-D440L685
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 7.5mm	LUCID IPTC-D590L75	IPTC-D590L75
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 31.5mm	LUCID IPTC-D590L315	IPTC-D590L315
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 55.5mm	LUCID IPTC-D590L555	IPTC-D590L555
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 71.5mm	LUCID IPTC-D590L715	IPTC-D590L715
IP67 C-Mount Lens Tube, Inner ⌀: 59mm, Inner Length: 81.5mm	LUCID IPTC-D590L815	IPTC-D590L815

Cables for Triton2 Models
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m	LUCID CAB-MR-2M-A	CAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m	LUCID CAB-MR-5M-A	CAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m	LUCID CAB-MR-15M-A	CAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m	LUCID CAB-MR-5M-RA1-A	CAB-MR-5M-RA1-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m	LUCID CAB-MR-15M-RA1-A	CAB-MR-15M-RA1-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m	LUCID CAB-MR-5M-RA2-A	CAB-MR-5M-RA2-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m	LUCID CAB-MR-15M-RA2-A	CAB-MR-15M-RA2-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Triton Side] – 5m	LUCID CAB-MR-5M-RA4-A	CAB-MR-5M-RA4-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Triton Side] – 15m	LUCID CAB-MR-15M-RA4-A	CAB-MR-15M-RA4-A
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A
M8 GPIO 8-pin (Amphenol) 15.0m Cable	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A
M8 GPIO 8-pin Cable [Right Angle, Down] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA1-A	GPIO-M8-5M-RA1-A
M8 GPIO 8-pin Cable [Right Angle, Down] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA1-A	GPIO-M8-15M-RA1-A
M8 GPIO 8-pin Cable [Right Angle, Up] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA2-A	GPIO-M8-5M-RA2-A
M8 GPIO 8-pin Cable [Right Angle, Up] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA2-A	GPIO-M8-15M-RA2-A

Tripod Mount Adapter & Misc
Tripod Adapter	TRT-TR	TRT-TR
M8 GPIO IP67 Cap *(1 cap included with each Triton2 unit)	CAP-M8	CAP-M8
M8 GPIO IP67 Low Profile Cap	CAP-M8-A	CAP-M8-A

Breakout Boards
M8 GPIO Breakout Board + M8-M8 IP67 Cable 1M Kit	GPIO-M8-BRK-KIT001	GPIO-M8-BRK-KIT001

Interface Cards, PoE Injectors, Power Supply
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
Procet 2.5G/5.0GbE 30W PoE+ Injector	Procet PT-PSE104G-30-5	POEP-PT-5G or POEP-PTEU-5G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1
