Specifications
| Sensor Properties | |
|---|---|
| Sensor Model | Sony IMX501 CMOS |
| Shutter Type | Rolling Shutter |
| Sensor Size | 7.857mm (Type 1/2.3″) |
| Resolution | 4056 x 3040, 12.3 MP |
| Pixel Size | 1.55 µm (H) x 1.55 µm (V) |
| Framerate* | 7.9 FPS @ 12.3 MP (Full image with Object Detection) 29 FPS (4×4 image with Object Detection) 8.0 FPS @ 12.3 MP (Full image with Classification/Anomaly) 30 FPS (4×4 image with Classification/Anomaly) |
| Physical Properties | |
|---|---|
| Dimensions | 29 x 29 x 45 mm |

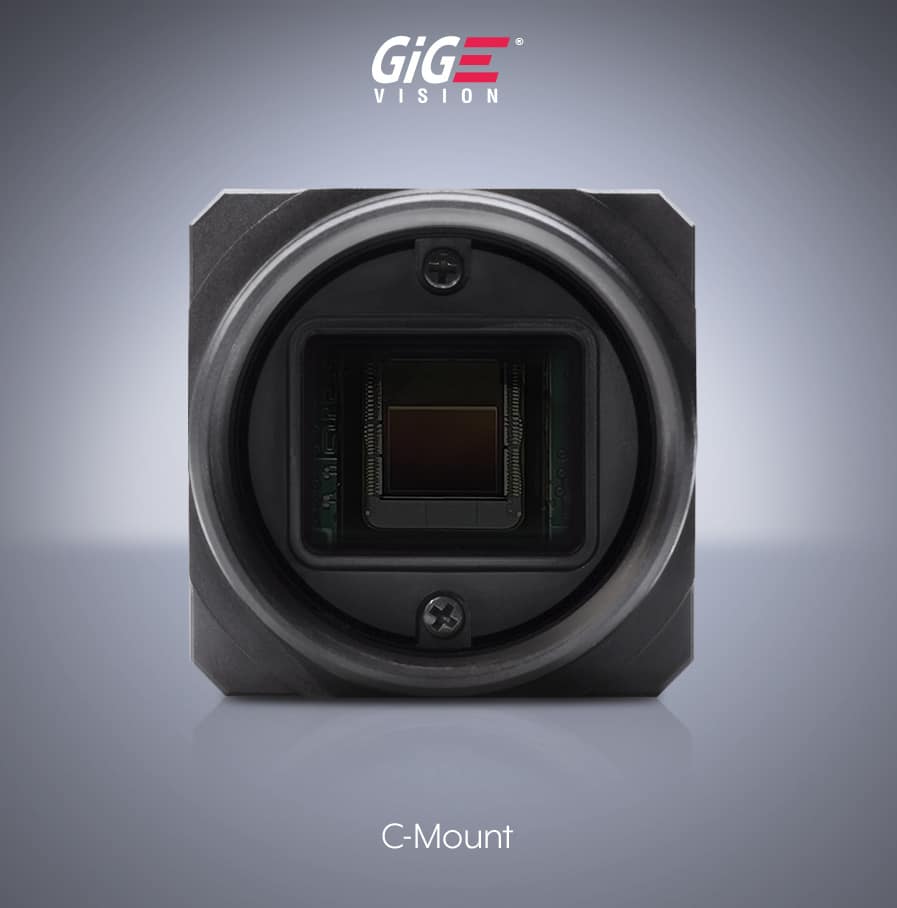

| Lens Mount | C-Mount |
| Weight | 67 g |
| Ingress Protection | IP67 (For IP67 protection Triton must be used with IP67 lens tube and cables) |
| Interface and Power Information | |
|---|---|

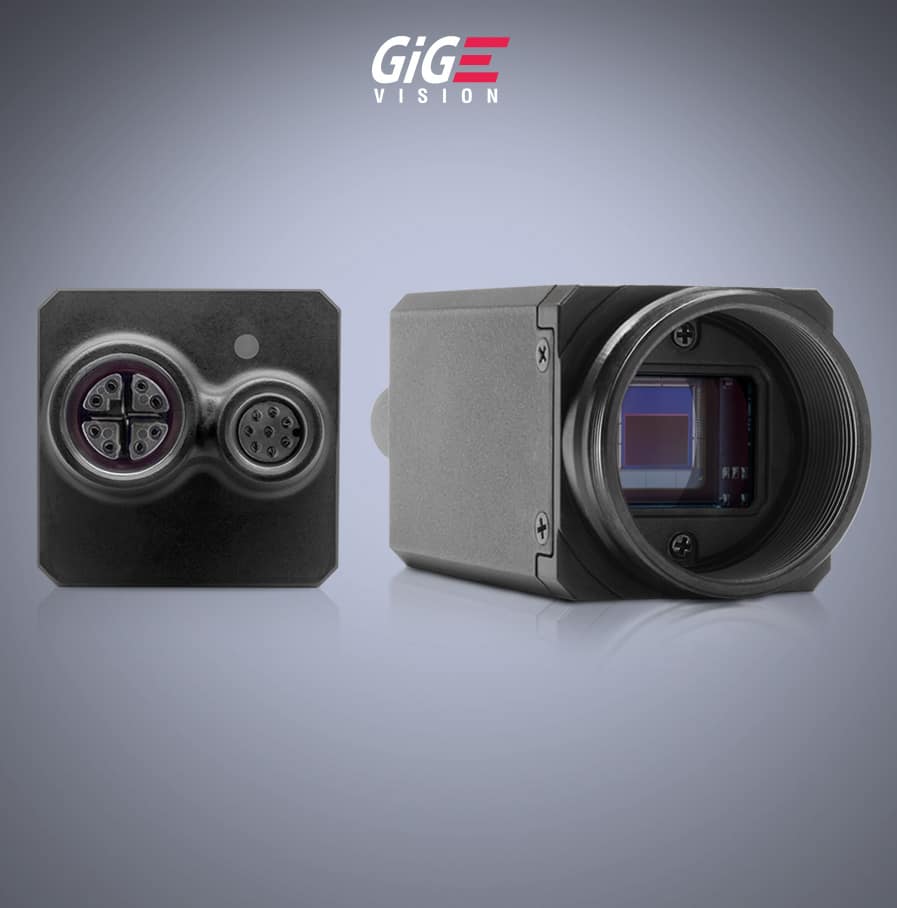

| Digital Interface | 1000BASE-T GigE M12 (8-Pin X-Coded), PoE |
| GPIO Interface | 8 pin M8 connector |
| Opto-Isolated I/O Ports | 1 input (2.5V-24V and 10.5V-24V), 1 output |
| Non-Isolated I/O Ports | 2 bi-directional |
| Power Requirement | PoE (IEEE 802.3af), or 12-24 VDC external |
| Power Consumption | 3.1W via PoE, 2.5W when powered externally |
| AI CNN Interface Engine | |
|---|---|
| Inference Engine | 2304MACs with 8bit integer operation and Max. 262 MHz |
| On-Sensor Memory | 8 MB SRAM |
| ISP | ISP for inference engine |
| Supported Models | Classification, object detection, anomaly detection (Compatible with models created by Brain Builder only) |
| Input Tensor | Classification – 256 x 256 px Object Detection – 320 x 320 px Anomaly Detection – 512 x 512 px |
| Input/Output Tensors | Included in Chunk Data |
| Available Outputs | 1) Regular image 2) Input tensor (image processed by AI engine) 3) Output tensor (inference results) By default, all three outputs are available; (2) and (3) can be turned off. (1) can be reduced to a very small size (4x4px). |
*Max FPS is dependent on the AI model running on the sensor and image resolution output.
| Imaging Properties | |
|---|---|
| Image Buffer | 128 MB |
| Image Processing | Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion |
| Pixel Formats | Mono12/12p/12Packed, Mono16, BayerRG12/RG12p, and BayerRG12Packed, and BayerRG16 |
| Image Modes | ROI |
| ADC | 10 bit |
| Gain Range | 0 dB to 27 dB analog |
| Exposure Time | 32.0 μs to 0.11 s |
| Camera Features | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Frame counter, offset X/Y, width/height, Deep Neural Network |
| Event Data | Acquisition start/end, exposure start/end, line rise/fall, error |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Not supported |
| Synchronization | Not supported |
| Standards and Certifications | |
|---|---|
| Standard | GigE Vision v2.0 |
| Compliance | CE, FCC, RoHS, REACH, WEEE |
| Storage Temperature | -30 to 60°C |
| Operating Temperature | -20 to 55°C ambient |
| Humidity | Operating: 20% ~ 80%, relative, non-condensing |
| Shock and Vibration | DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6 |
| Industrial EMC Immunity | DIN EN 61000-6-2 |
| Warranty | 3 year |
| Software Compatibility | |
|---|---|
| AI Model Creation | Brain Builder |
| AI Model Loading & Viewing | AreanView MP |
