180° & 90° Transform Kits for Phoenix



LUCID’s Phoenix GigE Vision camera has a unique transformable design that can be easily configured to meet a wide range of OEM applications. The default shape of the Phoenix resembles a traditional camera shape. However, individual board stacks can be unfolded to various degrees to best fit your application. This kit includes all the necessary tools and parts that are needed to transform a Phoenix camera into its 180° and 90° orientation. The 180° and 90° orientation of the Phoenix can be useful for depth constrained applications and in devices where the Ethernet connector needs to be accessible from the front. Phoenix’s transformation possibilities allow for more design freedom while adhering to the space and design constraints without the need for additional bulky accessories.



The 180° & 90° Transform Kit Includes:

  • 1 x 180° Mounting Bracket Plate
  • 1 x 90° Mounting Bracket Plate
  • 1 x Spacer #3
  • 4 x M1.7 x L10 Screws
  • 4 x M1.7 x L8 Screws
  • 2 x M1.7 x L4 Screws
  • 1 x Tripod Adapter with screws
  • 1 x Philips #0 screwdriver
Clear
SKU: N/A Category:

Instructions

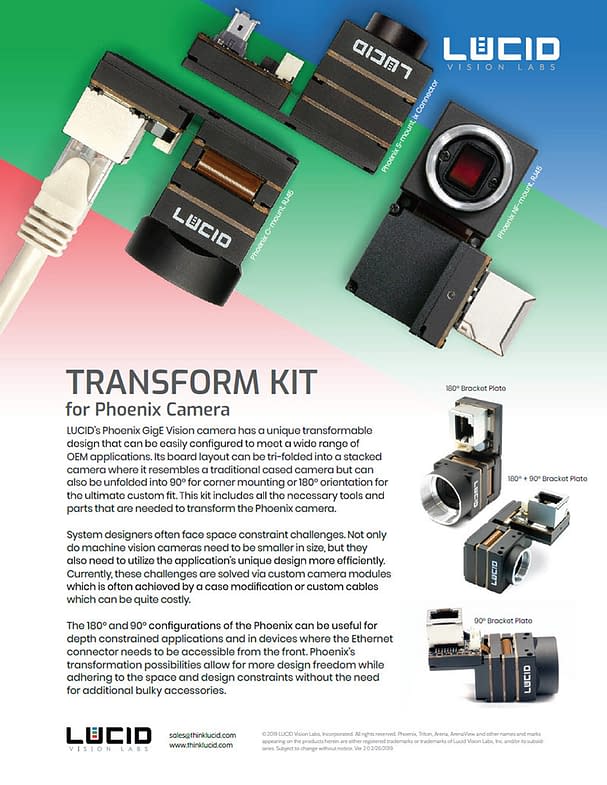

Transform-Kit-PDF
180° and 90° Transform Kit Instructions PDF

This PDF includes full step-by-step instructions on how to transform your Phoenix camera to a 180° and 90° form factor using the Transform Kit components.

File Type: PDF PDF, File Size: 3 MB Download File



Drawings

Phoenix transform kit dimensional drawings
