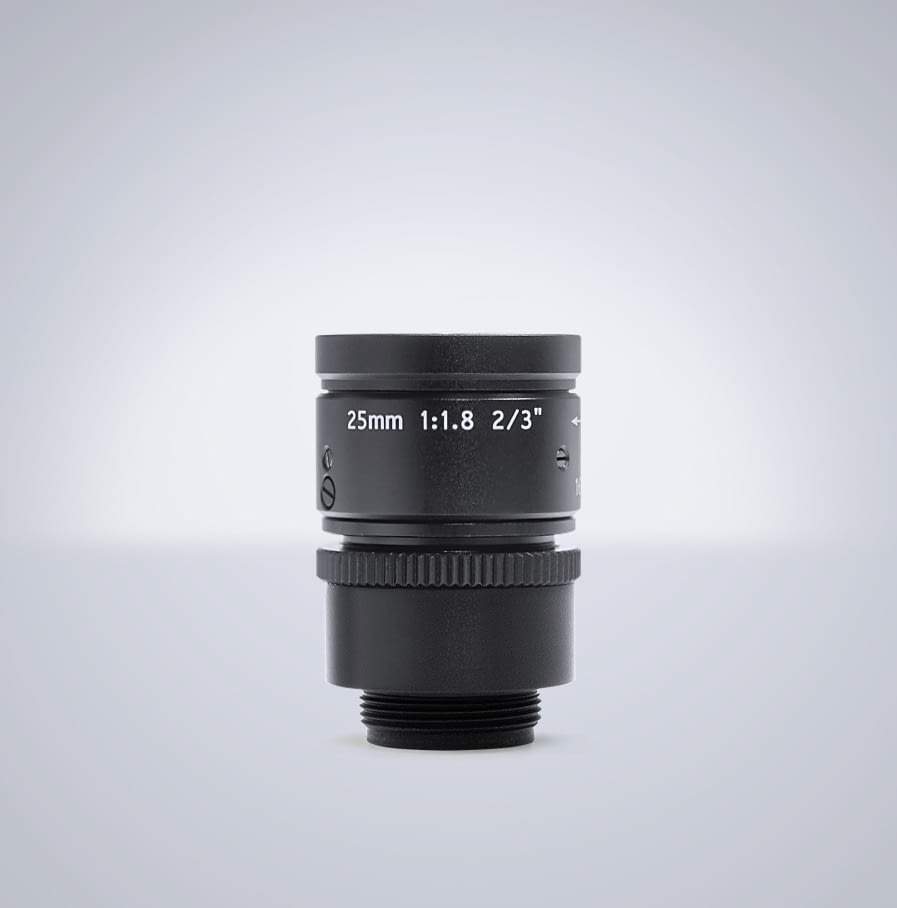

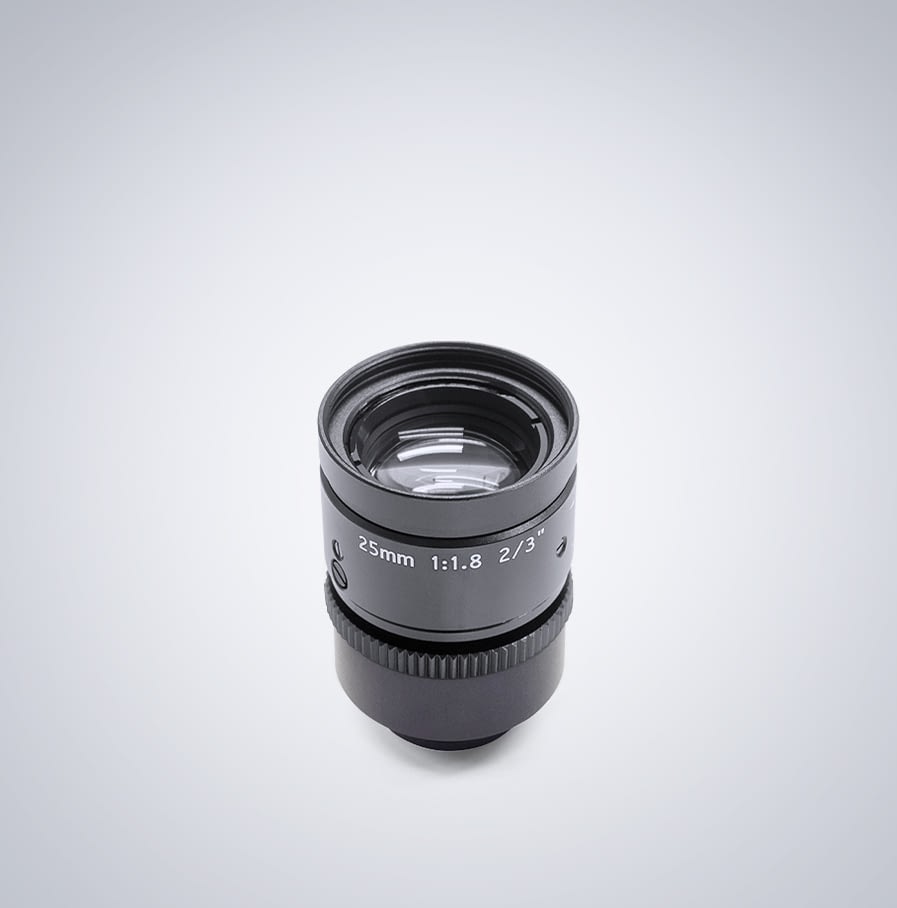

Universe Compact NF-Mount 5MP 2/3″ 25mm f/1.8
The Universe compact NF-mount lens series features micro compact sizes with precise focal adjustments. Apply accurate imaging with reduced weight and sizing. Pair with the Phoenix NF-mount models for an ultra-compact, lightweight camera package perfect for space constrained industrial applications.
Specifications
| Manufacturer Model # | Universe BL250 |
|---|---|
| LUCID SKU | UNF250-5M |
| Focal Length | 25mm |
| Iris Range (f no.) | f1.8 – f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras |
20° x 15.1° |
| Focus Range (from front of the lens) | ∞ – 400mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Mount | NF-Mount (NF-J) |
|---|---|
| Filter Thread | M22.5 x 0.5mm |
| Sensor Size (max.) | 2/3” |
| TV Distortion | – |
| Diameter x Length | φ24 x 37.84mm |
| Weight | – |
| Locking Mechanism | Lock ring |
USD $350.00
Register or login for pricing
