Phoenix 6.3 MP Model

센서
Sony IMX178 CMOS
해상도
6.3 MP, 3072 x 2048 px
프레임 레이트
17.7 FPS
모델 크로마 렌즈 마운트 이더넷 인터페이스

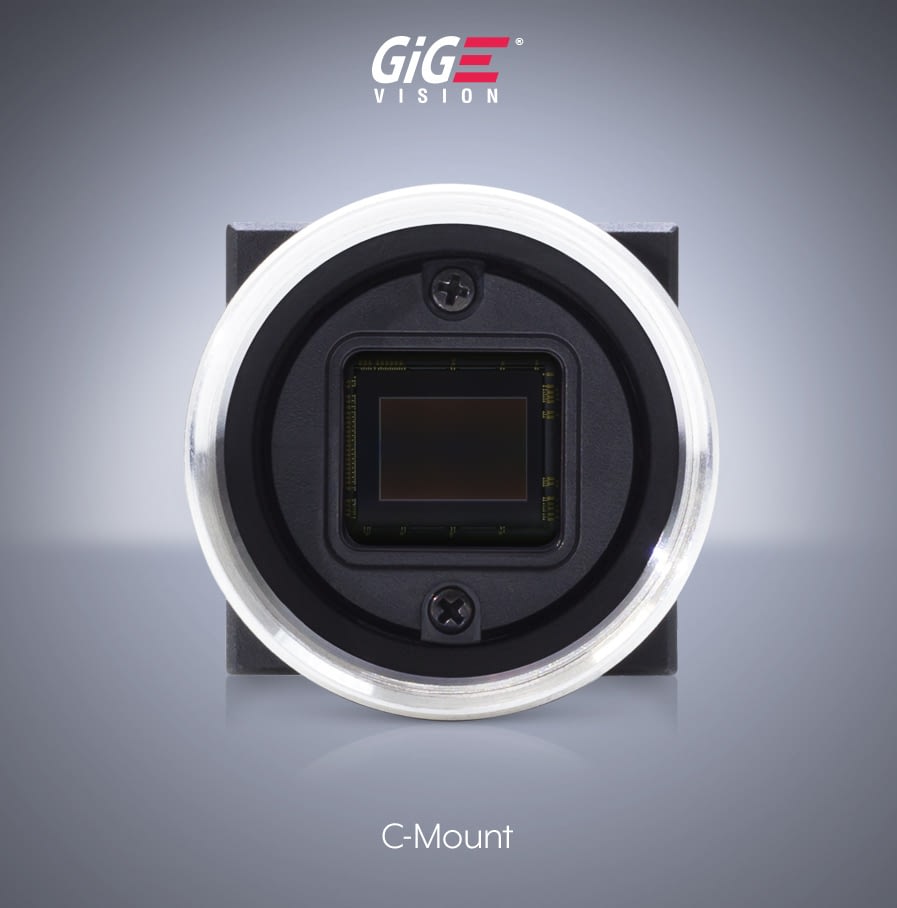

PHX064S-CC Color C-mount RJ45
PHX064S-MC Mono C-mount RJ45
PHXET064S-CC Color C-mount Extended Head RJ45
PHXET064S-MC Mono C-mount Extended Head RJ45

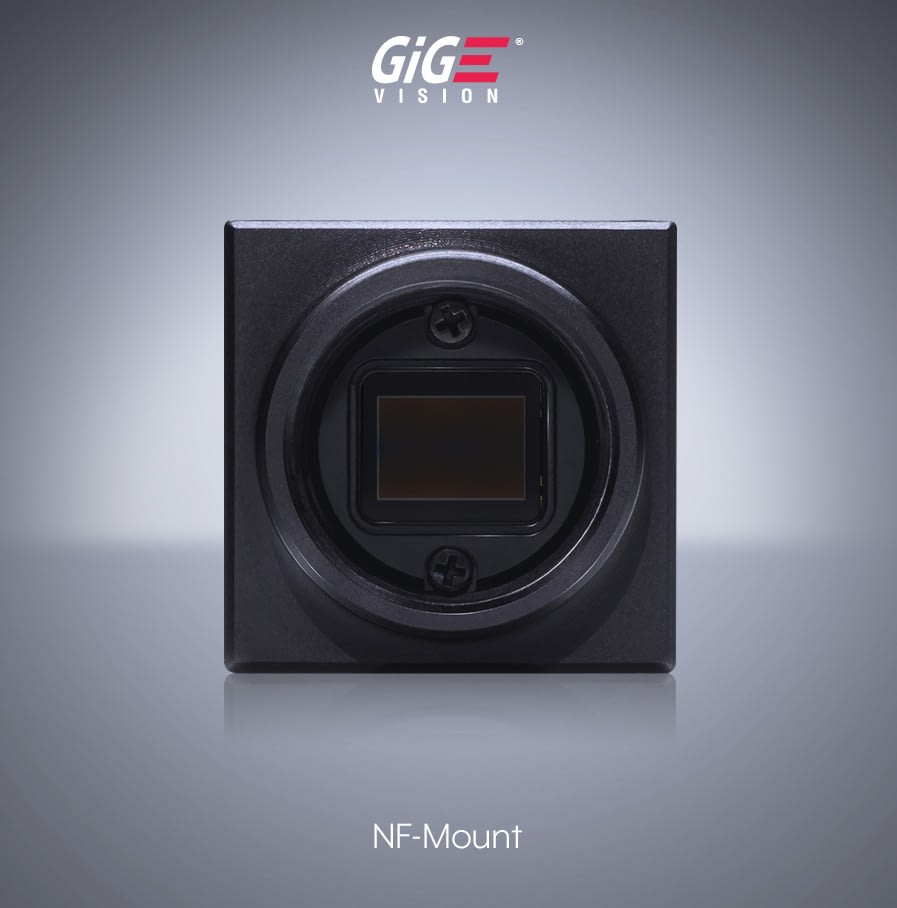

PHX064S-CNF Color NF-mount RJ45
PHX064S-MNF Mono NF-mount RJ45

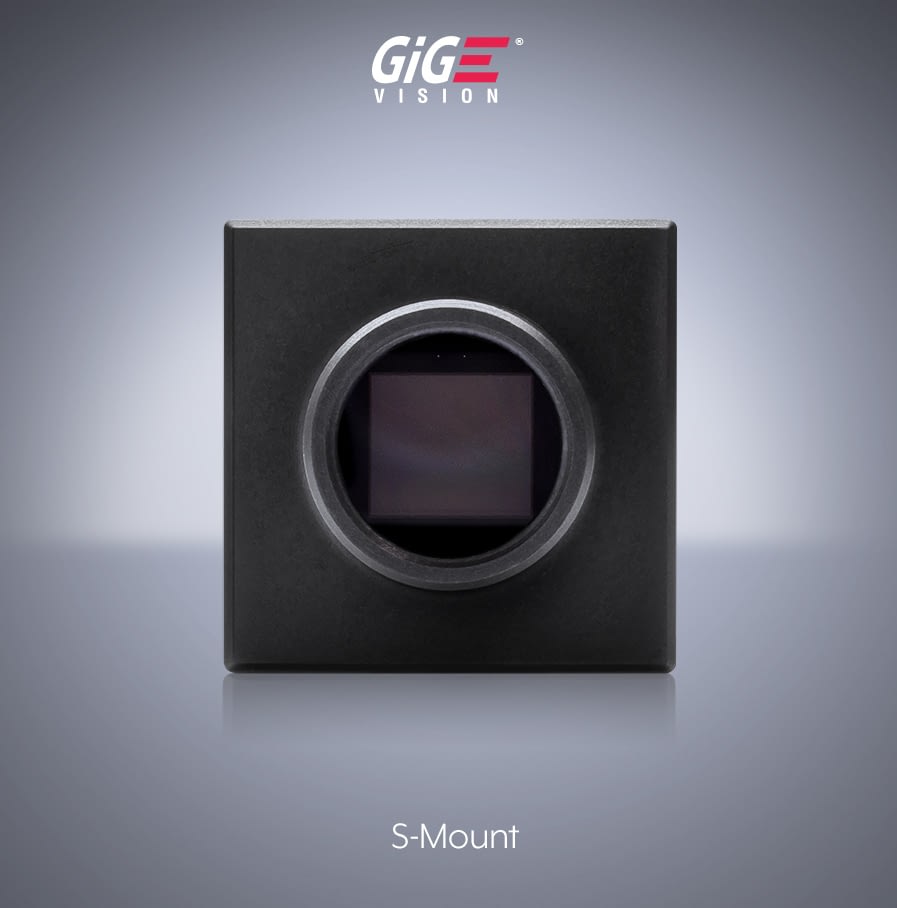

PHX064S-CS Color S-mount RJ45
PHX064S-MS Mono S-mount RJ45
PHX064S-CNL Color No Lens Mount RJ45
PHX064S-MNL Mono No Lens Mount RJ45
PHX064S-CC-IX Color C-mount ix Industrial
PHX064S-MC-IX Mono C-mount ix Industrial
PHX064S-CNF-IX Color NF-mount ix Industrial
PHX064S-MNF-IX Mono NF-mount ix Industrial
모델 크로마 렌즈 마운트 이더넷 인터페이스
PHX064S-CS-IX Color S-mount ix Industrial
PHX064S-MS-IX Mono S-mount ix Industrial
PHX064S-CNL-IX Color No Lens Mount ix Industrial
PHX064S-MNL-IX Mono No Lens Mount ix Industrial
PHX064S-CC-FFC Color C-mount FFC (ZIF)
PHX064S-MC-FFC Mono C-mount FFC (ZIF)
PHX064S-CNF-FFC Color NF-mount FFC (ZIF)
PHX064S-MNF-FFC Mono NF-mount FFC (ZIF)
PHX064S-CS-FFC Color S-mount FFC (ZIF)
PHX064S-MS-FFC Mono S-mount FFC (ZIF)
PHX064S-CNL-FFC Color No Lens Mount FFC (ZIF)
PHX064S-MNL-FFC Mono No Lens Mount FFC (ZIF)

카메라 구성을 선택하십시오:

SKU: N/A 카테고리:

사양서

센서특성
센서 Sony IMX178 CMOS (BSI Starvis)
셔터 Rolling with global reset
센서 크기 8.92 mm (Type 1/1.8″)
해상도 3072 x 2048 px, 6.3 MP
픽셀 크기 2.40 µm (H) x 2.40 µm (V)
프레임 레이트* 17.7 FPS (19.6 FPS) @ 6.3 MP
외관
제품 사이즈 24x24x27.35 mm, (No lens mount 24x24x18.7 mm)
렌즈 마운트 C, C-Mount Extended Head, NF-Mount, No Lens Mount
무게 30 g, (No lens mount 20 g)
인터페이스 및 전원 정보
디지털 인터페이스 1000BASE-T RJ45, PoE
ix Industrial, PoE
FFC, PoE
GPIO인터페이스 8 핀 JST 커넥터
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
전원 요구사항 PoE (IEEE 802.3af), or 12-24 VDC external
소비 전력 PoE를 통한 3.1W, 외부 전원 공급시 2.5W
*패킷 재전송을위한 10 % 장치 링크 처리량 예약을 기준으로 한 최대 FPS입니다. 0 % 장치 링크 처리량 예약을 기준으로 괄호 () 안에 표시된 FPS입니다. LUCID는 스트림 안정성을 위해 10 % 예약을 권장합니다.
이미징 속성
메모리 128 MB
이미지 처리 Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
픽셀 형식 Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
이미지 모드 수평 및 수직 비닝, 서브 샘플링, ROI, 수평 및 수직 뒤집기
ADC 12 bit
Gain범위 0 dB ~ 48 dB 아날로그 및 디지털
노출 시간 27.216 μs ~ 2 s
카메라 기능
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Frame counter, offset X/Y, width/height, 노출 시간, gain, black level, line status, sequencer set
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer 노출 시간, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
표준 및 인증
표준 GigE Vision v2.0
응낙 CE, FCC, RoHS, REACH, WEEE
보관 온도 -30 to 60°C
동작 온도 -10 to 55°C 주변
습도 동작: 20% ~ 80%, relative, 비 응축
충격 및 진동 DIN EN 60068-2-27, DIN EN 60068-2-64,
보증 3 year

EMVA 1288 데이터

Interactive graphs – please hover over the points in the graph to reveal QE %

PHX064S-M (Mono, Sony IMX178 CMOS)
Mono EMVA 1288 Results
Dynamic Range 72.1 dB
SNR (Max) 41.69 dB
Saturation Capacity 14763 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.71 γ
Temporal Dark Noise 2.99 e-
Gain 0.267 DN / e-
Dark Current 1.17 e- / s
Dark Signal Non-Uniformity 0.21 e-
Photo Response Non-Uniformity 0.8 %
Linearity Error Max/Min 0.19/-0.23 %
PHX064S-C (Color, Sony IMX178 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.89 dB
SNR (Max) 41.61 dB
Saturation Capacity 14505 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 5.28 γ
Temporal Dark Noise 3.00 e-
Gain 0.269 DN / e-
Dark Current 1.71 e- / s
Dark Signal Non-Uniformity 0.18 e-
Photo Response Non-Uniformity 0.63 %
Linearity Error Max/Min 0.24/-0.34 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

도면

Phoenix-24x24-drawings-all

시작하기 / 다운로드

시작하기 가이드

카메라 설정은 LUCID 카메라에 대한 시작하기 가이드 를 참조하세요. 이 페이지에서는 방법을 설명합니다:
  • 카메라를 처음 연결하기
  • Arena SDK 또는 타사 소프트웨어 다운로드 및 설치하기
  • 호스트 PC 및 카메라에서 점보 프레임 활성화하기
  • 카메라 IP 주소 할당하기
  • 카메라 펌웨어 업데이트하기

소프트웨어


다른 모든 파일은 소프트웨어 웹사이트를 방문하여 액세스하세요:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD 도면 (.step files)
  • 카메라 펌웨어 파일
  • 기술 문서

부속품

삼각대 어댑터, 렌즈, 케이블 및 PoE(Power Over Ethernet) 이더넷 인젝터/인터페이스 카드는 별도로 판매됩니다. 대부분의 소비자 마더보드 및 노트북의 이더넷 포트는 PoE를 지원하지 않습니다. 모든 액세서리에 대한 자세한 내용은 액세서리 페이지를 방문하십시오.
렌즈 제조업체 부품 번호렌즈 설명0.4MP
PHX004S
1.6MP
PHX016S
2.3MP
PHX023S
3.2MP
PHX032S
5.0MP
PHX050S
5.0MP
PHX050S-P/Q
6.3MP
PHX064S
8.9MP
PHX089S
12.2MP
PHX122S
12.3MP
PHX120S
20.0MP
PHX200S
Edmund Optics UC Series #33-300C-Mount 1/2″ 4mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-301C-Mount 1/2″ 6mm f/1.85
Good
Good
Good
Edmund Optics UC Series #33-307C-Mount 1/2″ 8mm f/1.8
Good
Good
Good
Edmund Optics UC Series #33-303C-Mount 1/1.8″ 12mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-304C-Mount 1/1.8″ 16mm f/1.8
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics UC Series #33-305C-Mount 1/1.8″ 25mm f/1.85
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #67-709C-Mount 1/1.8" 6mm, f1.4
Good
Good
Good
Slight vignette
Slight vignette
Slight vignette
Edmund Optics C Series #58-000C-Mount 2/3" 8.5mm, f/1.3
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #58-001C-Mount 2/3" 12mm, f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-870C-Mount 2/3" 16mm, f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-871C-Mount 2/3" 25mm, f/1.4
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-872C-Mount 2/3" 35mm, f/1.65
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics C Series #59-873C-Mount 2/3" 50mm, f/2
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL060CC-Mount 5MP 2/3″ 6mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL080CC-Mount 5MP 2/3″ 8mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL160CC-Mount 5MP 2/3″ 16mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact C #BL250CC-Mount 5MP 2/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Universe Compact NF #BL060*NF-Mount 5MP 2/3″ 6mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL080*NF-Mount 5MP 2/3″ 8mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL120*NF-Mount 5MP 2/3″ 12mm f/2.0
Good*
Good*
Good*
Good*
Good*
Good*
Good*
Universe Compact NF #BL160*NF-Mount 5MP 2/3″ 16mm f/2.0
Good*
Good*
Good*
Good*
Good<*/div>
Good*
Good*
Universe Compact NF #BL250*NF-Mount 5MP 2/3″ 25mm f/1.8
Good*
Good*
Good*
Good*
Good*
Good*
Good*
LUCID #NF120-5M-CC-Mount 5MP 2/3″ 12mm f/2.0
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF6XA-5MC-Mount 5MP 2/3″ 6mm f/1.9
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF8XA-5MC-Mount 5MP 2/3″ 8mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF12XA-5MC-Mount 5MP 2/3″ 12mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF16XA-5MC-Mount 5MP 2/3″ 16mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon HF-XA-5M series #HF25XA-5MC-Mount 5MP 2/3″ 25mm f/1.6
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF8ZA-1SC-Mount 23MP 1.2″ 8mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF12ZA-1SC-Mount 23MP 1.2″ 12mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF16ZA-1SC-Mount 23MP 1.2″ 16mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF25ZA-1SC-Mount 23MP 4/3″ 25mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF35ZA-1SC-Mount 23MP 4/3″ 35mm f/1.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Fujinon CF-ZA-1S series #CF50ZA-1SC-Mount 23MP 4/3″ 50mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V0828-MPYC-Mount 12MP 1.1″ 8mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1228-MPYC-Mount 12MP 1.1″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V1628-MPYC-Mount 12MP 1.1″ 16mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V2528-MPYC-Mount 12MP 1.1″ 25mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPY Series #V3528-MPYC-Mount 12MP 1.1″ 35mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT Series #F1228-MPTC-Mount 45MP 4/3″ 12mm f/2.8
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Computar MPT Series #F2524-MPTC-Mount 45MP 4/3″ 25mm f/2.4
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Edmund Optics CA Series #11-320TFL-Mount APS-C 50mm f/1.8
Edmund Optics CA Series #11-321TFL-Mount APS-C 75mm f/2.8
Edmund Optics CA Series #11-322TFL-Mount APS-C 100mm f/2.8
*NF-마운트 Phoenix 모델에만 사용해야 합니다.

렌즈 어댑터Manufacturer Part #SKU
C-마운트-S-마운트(M12) 어댑터LUCID ADA-S-CADA-S-C
Phoenix용 변환 키트Manufacturer Part #SKU
180° & 90° Phoenix용 변환 키트LUCID PHX24-TKPHX24-TK
FFC – M12/JST 확장 보드 및 FFC 케이블 (Phoenix 카메라용)LUCID FFC-15-JST-M12FFC-15-JST-M12
FFC – RJ45/JST 확장 보드 및 FFC 케이블 (Phoenix 카메라용)LUCID FFC-15-JST-RJ45FFC-15-JST-RJ45
케이블
Ethernet Cat6a STP 패치 케이블 – 2.0m, 블랙 StarTech C6ASPAT7BKCAB-RR-2M
Ethernet Cat6a STP 패치 케이블 – 4.5m, 블랙StarTech C6ASPAT15BKCAB-RR-5M
ix Industrial Ethernet Cat6a 케이블 – 2.0m, 검정LUCID CAB-IR-2MCAB-IR-2M
ix Industrial Ethernet Cat6a 케이블 – 5.0m, 검정LUCID CAB-IR-5MCAB-IR-5M
GPIO 8핀 20cm JST 케이블GPIO-8P20GPIO-8P20
삼각대 어댑터
삼각대 어댑터(Phoenix & Triton)PHX-TRPHX-TR
인터페이스 카드 / PoE 인젝터 / 전원 공급 장치
LR-LINK PCIe GigE Vision PoE+ 이더넷 네트워크 어댑터LR-LINK LRES2001PT-POEPCIE-POE1-LR
2-CH LR-LINK PCIe GigE Vision PoE+ 이더넷 네트워크 어댑터LR-LINK LRES2002PTPCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ 이더넷 네트워크 어댑터ioi GE2PX4-PCIE4XE301PCIE-POE4-2G
TP-Link 1GbE 15.4W PoE 인젝터TP-Link TL-POE150SPOEP
Procet 2.5/5.0GbE 30W PoE+ 인젝터 (802.3af/at, NA/EU)Procet PT-PSE104G-30-5POEP-PT-5G / POEP-PTEU-5G
