Specifications
| Sensor Properties | |
|---|---|
| Sensor Model | Sony IMX530 CMOS (Pregius-S, BSI) |
| Shutter Type | Global |
| Sensor Size | 19.3mm (Type 1.2″) |
| Resolution | 5320 x 4600 px, 24.5 MP |
| Pixel Size | 2.74 µm (H) x 2.74 µm (V) |
| Framerate* | 90.0 FPS (90.0 FPS) @ 24.5 MP (8 Bit ADC mode)1 90.0 FPS (90.0 FPS) @ 24.5 MP (10 Bit ADC mode) 74.3 FPS (74.3 FPS) @ 24.5 MP (12 Bit ADC mode) |
| Physical Properties | |
|---|---|
| Dimensions | 55 x 55 x 95.5 mm |

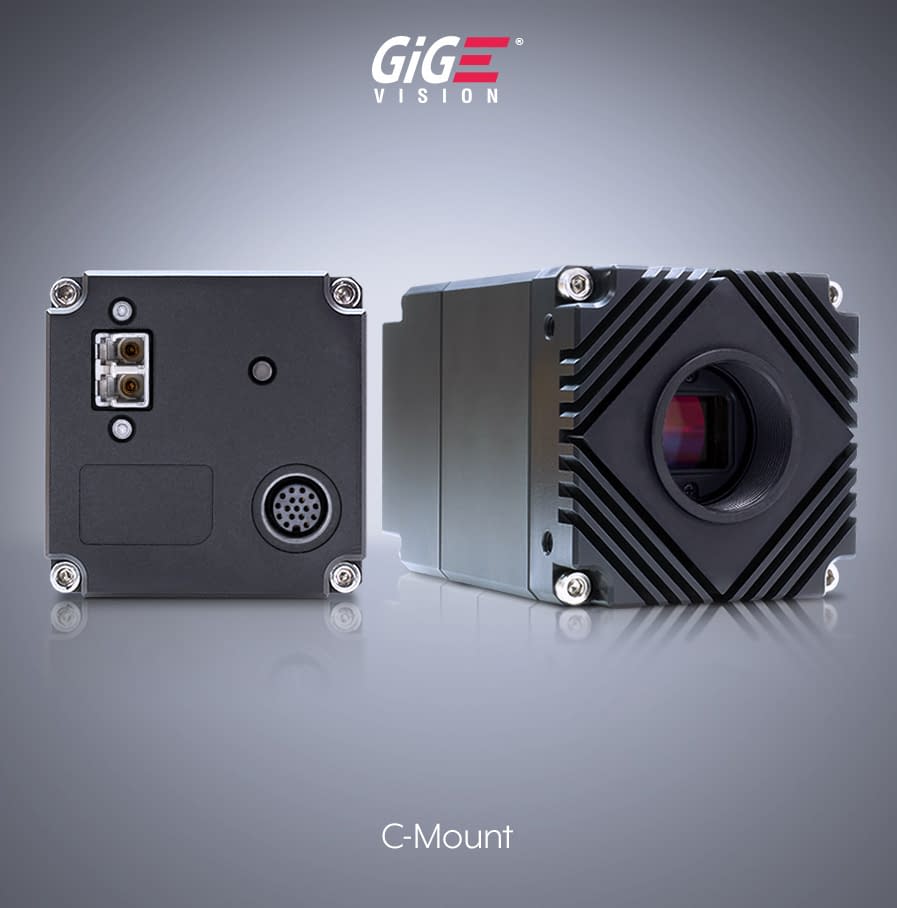

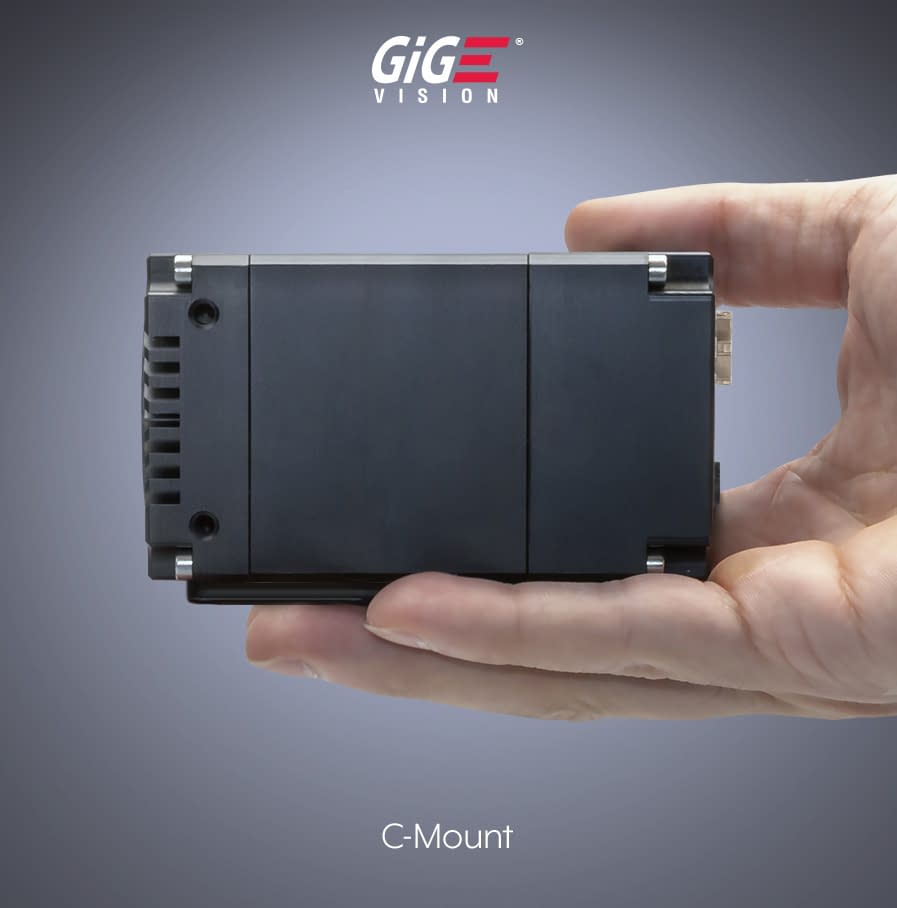

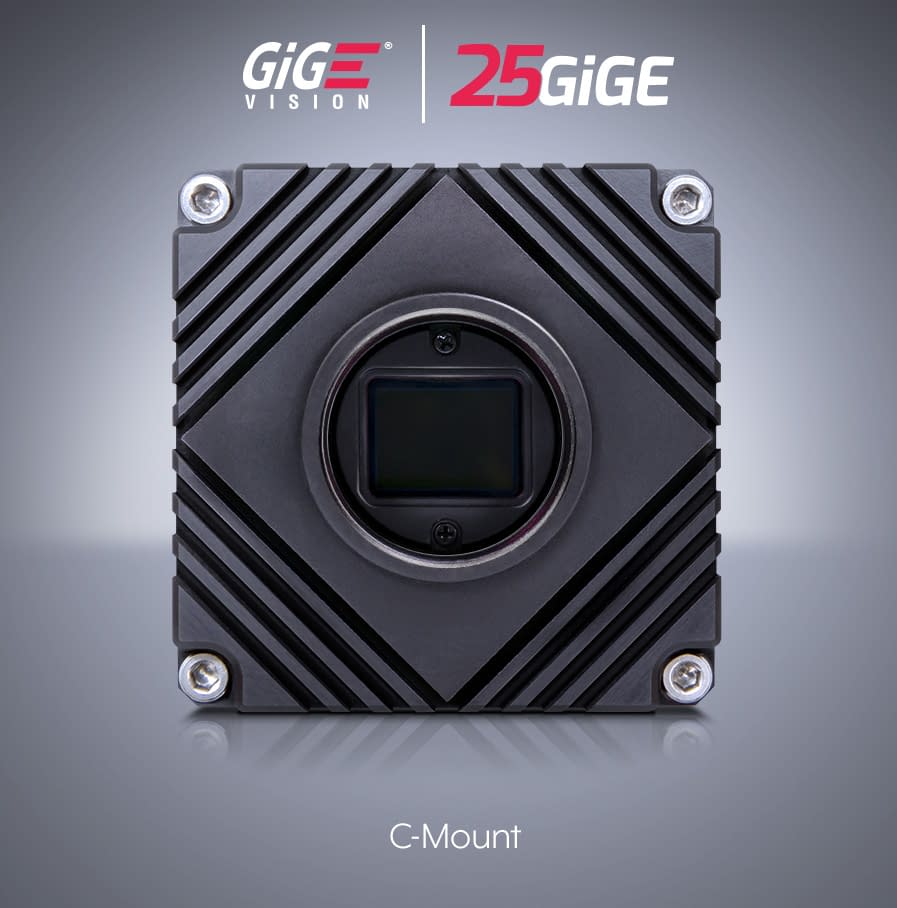

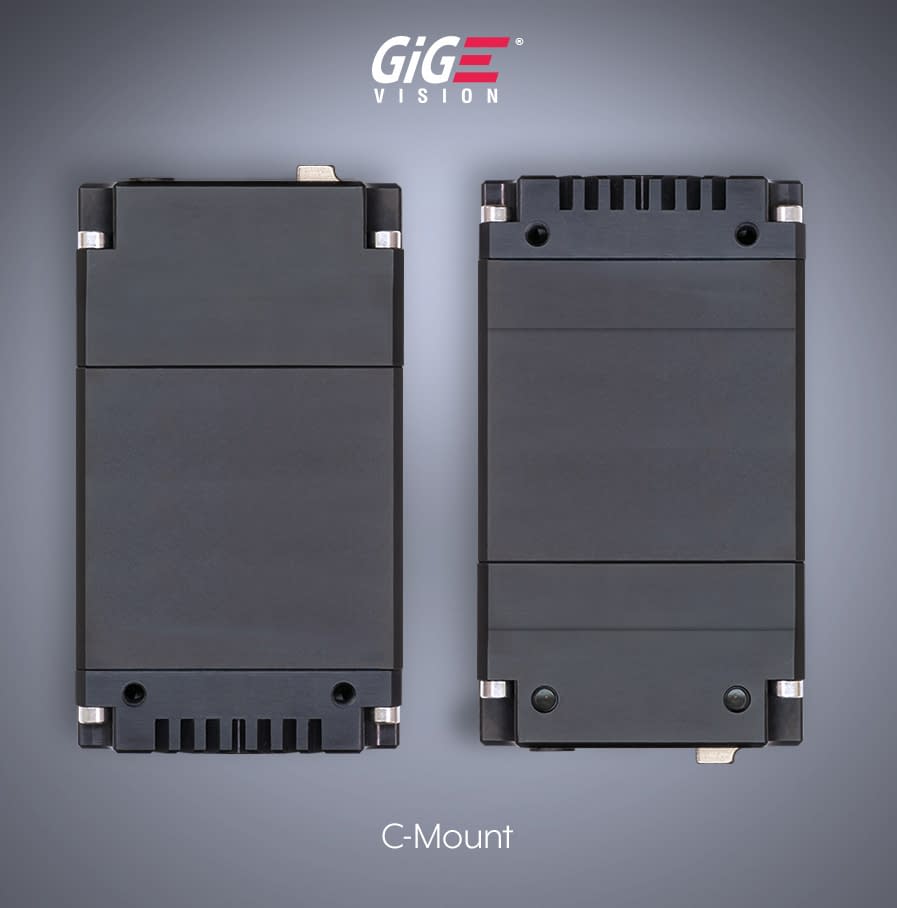

| Lens Mount | C-Mount |
| Weight | 325 g |
| Interface and Power Information | |
|---|---|
| Digital Interface | 25GBASE-SR LC Duplex MM Fiber Connector (OM4, 850nm) |
| Transport Layer Protocol | UDP (GigE Vision), RDMA (GigE Vision 3.0, RoCE v2) |
| GPIO Interface | 17 pin M12 connector |
| Opto-Isolated I/O Ports | 1 input, 3 output |
| Non-Isolated I/O Ports | 2 bi-directional |
| Differential I/O ports | RS-422: 3 positive, 3 negative |
| Power Requirement | 12-24 VDC GPIO |
| Power Consumption | 15 W Typical |
*For UDP data transmission: Max FPS is based on a 10% Device Link Throughput Reserve for packet resend. FPS shown in brackets () reflects 0% reserve. RDMA does not require reserve, as packet resend is handled within the RDMA protocol. 1Running the sensor in 8-bit ADC mode results in a 4x noise penalty.
| Imaging Properties | |
|---|---|
| Image Buffer | 880 MB |
| Image Processing | Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion |
| Pixel Formats | Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411 |
| Image Modes | Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip |
| ADC | 8, 10, 12 bit |
| Gain Range | 0 dB to 48 dB analog and digital Dual ADC Mode (low-gain, high-gain) |
| Exposure Time | 6.97 μs to 10 s (Normal) / 2.296 μs to 2.464 μs (Short Mode) |
| Camera Features | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time |
| Event Data | Exposure start/end |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| Standards and Certifications | |
|---|---|
| Standard | GigE Vision 3.0 |
| Compliance | CE, FCC, RoHS, REACH, WEEE |
| Storage Temperature | -30 to 60°C |
| Operating Temperature | -20 to 50°C ambient |
| Humidity | Operating: 20% ~ 80%, relative, non-condensing |
| Shock and Vibration | DIN EN 60068-2-27, DIN EN 60068-2-64 |
| Industrial EMC Immunity | EN IEC 61000-6-2 ESD 8kV |
| Warranty | 3 year |
