This camera model qualifies for a free 10GigE RDMA network card! Specifications
| Sensor Properties | |
|---|---|
| Sensor Model | Sony IMX992 InGaAs CMOS |
| Shutter Type | Global |
| Sensor Size | 11.4 mm (Type 1/1.4″) |
| Resolution | 2560 x 2048 px, 5.2 MP |
| Pixel Size | 3.45 µm (H) x 3.45 µm (V) |
| Framerate* | 119.6 FPS (119.6 FPS) @ 5.2 MP (10 Bit ADC mode) 70.48 FPS (70.48 FPS) @ 5.2 MP (12 Bit ADC mode) |
| Sensitivity Range | 400 nm to 1700 nm (See EMVA 1288 Tab) |
| Physical Properties | |
|---|---|
| Dimensions | 60 x 60 x 90.5 mm |

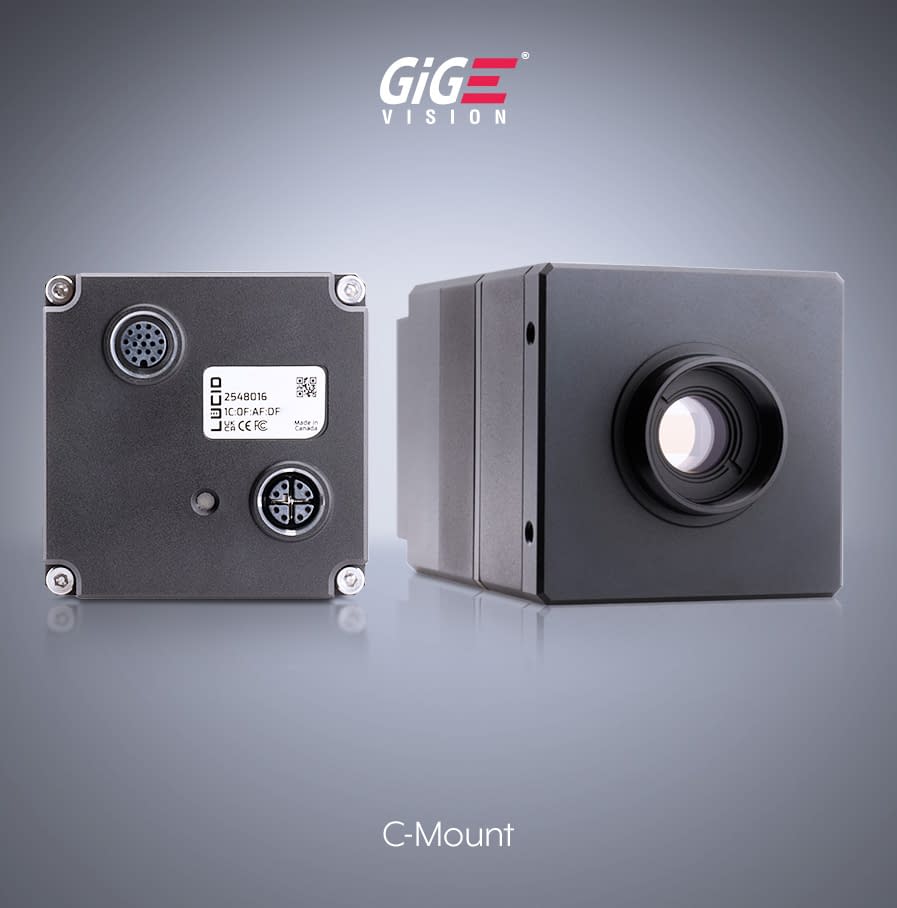

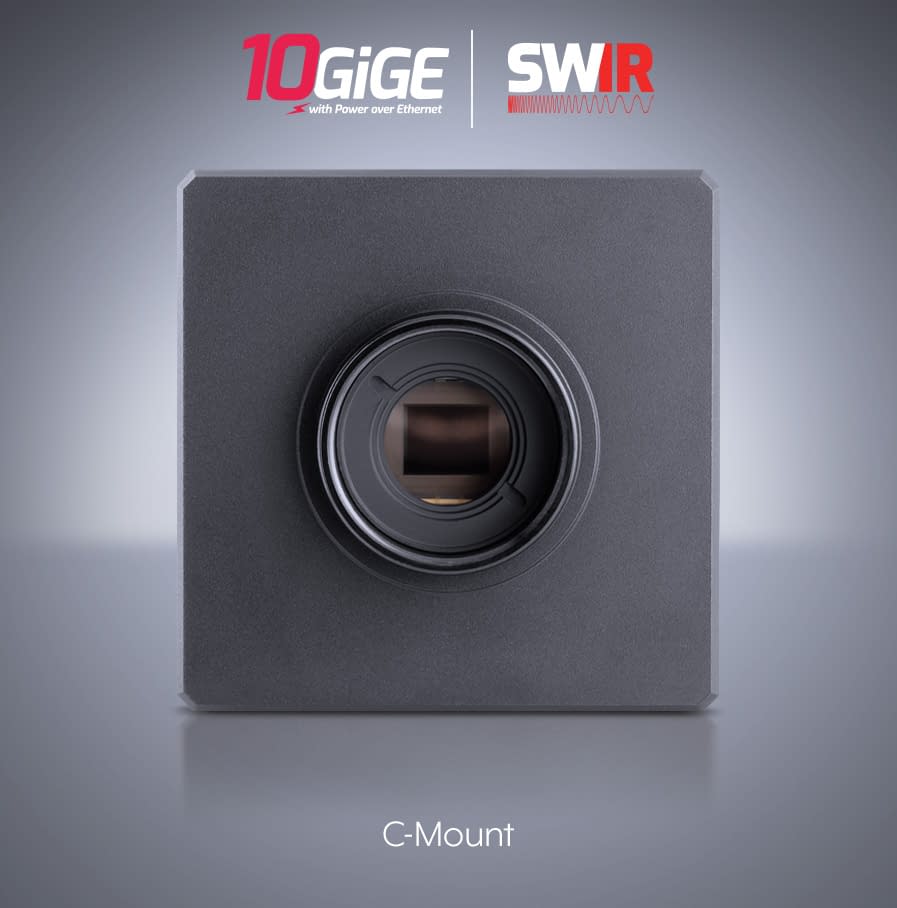

| Lens Mount | C-Mount |
| Weight | 531 g |
| Ingress Protection | IP67 (For IP67 protection Atlas must be used with IP67 lens tube and cables) |
| Interface and Power Information | |
|---|---|
| Digital Interface | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12, PoE+ |
| Transport Layer Protocol | UDP (GigE Vision), RDMA (RoCE v2) |
| GPIO Interface | 17 pin M12 connector |
| Opto-Isolated I/O Ports | 1 input, 3 output |
| Non-Isolated I/O Ports | 2 bi-directional or 2 TTL/DI |
| Differential / Single-input Ports | 3 RS-422/HTL/TTL (1 selectable as DI) |
| Power Requirement | PoE+ (IEEE 802.3at) or 12-24 V through GPIO |
| Power Consumption | 11.5W via PoE, 9.8W when powered externally |
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
| Heatsink Specifications | |
|---|---|
| Heatsink included free of charge with Atlas10 SWIR units. Heatsink use is optional and enables customers to set a lower TEC set point (see documentation). | |
| Dimensions | 90 x 50 x 30 mm |
| Weight | 89 g |
| Included parts | 4x mounting screws, thermal pad (non-removable, non-stick) |
| Imaging Properties | |
|---|---|
| Image Buffer | 880 MB |
| Image Processing | Gain, gamma, black level, LUT, pixel correction |
| Pixel Formats | Mono8/10/12/16 |
| Image Modes | Decimation, Binning, ROI, horizontal and vertical flip |
| ADC | 10, 12 bit |
| Gain Range | 0 dB to 42 dB analog and digital |
| Exposure Time | 20.632 μs to 10 s |
| Camera Features | |
|---|---|
| Cooling Capability | Thermoelectric cooling (TEC) for maintaining sensor temperature |
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set |
| Event Data | Acquisition start/end, exposure start/end, line rise/fall, error |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| Standards and Certifications | |
|---|---|
| Standard | GigE Vision v2.0, GigE Vision v3.0 Ready |
| Compliance | CE, KC, FCC, RoHS, REACH, WEEE |
| Storage Temperature | -30 to 60°C |
| Operating Temperature | -20 to 55°C Case Temperature |
| Humidity | Operating: 20% ~ 80%, relative, non-condensing |
| Shock and Vibration | EN 60068-2-27, EN 60068-2-64, EN 60068-2-6 |
| Industrial EMC Immunity | EN IEC 61000-6-2 ESD 8kV |
| Warranty | 3 year |
