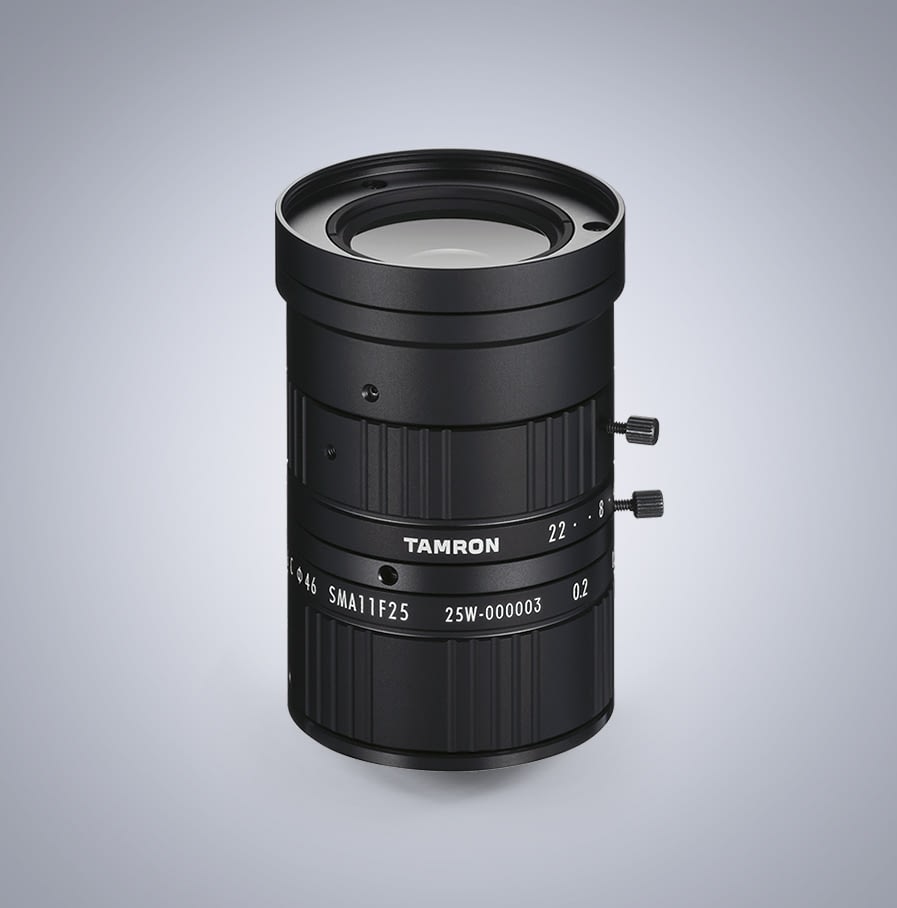

Tamron C-Mount 1” 25mm f/1.6 SWIR (SMA11F Series)
Tamron’s SWIR SMA11F25 lens has a sensor size of 1”, a 25mm focal length and a 5µm pixel pitch, targeting machine vision cameras with Sony’s SWIR IMX990 and IMX991 sensor. With a very low TV distortion of only -1.0% and a F# of only 1.6, this fixed-focal lenses cover the whole spectrum from visible light to SWIR band (400-1700nm). The SMA11F series avoids defocused objects and provides consistent high-resolution quality images thanks to high spectral transmittance across the entire spectrum from visible light to SWIR band.
Specifications
| Manufacturer Model # | Tamron SMA11F25 |
|---|---|
| LUCID SKU | TSMA250 |
| Focal Length | 25mm |
| Iris Range (f no.) | f1.6 – f22 |
| Spectral Range | 400-1700nm (SWIR) |
| Angle of View (H x V) * *Mounted to 1/2 sensor cameras |
20.1° x 15.1° |
| Focus Range (from front of the lens) | ∞-200mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M46 x 0.75mm* ＊Filters sold separately |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 1/2″ (1”) |
| TV Distortion | -1% |
| Diameter | φ48 x 75.6mm |
| Weight | 260g |
| Operating Temperature | -20°C – +60°C |
| Fixing Knobs Bundled | 2 total |
USD $2,995.00
Register or login for pricing
