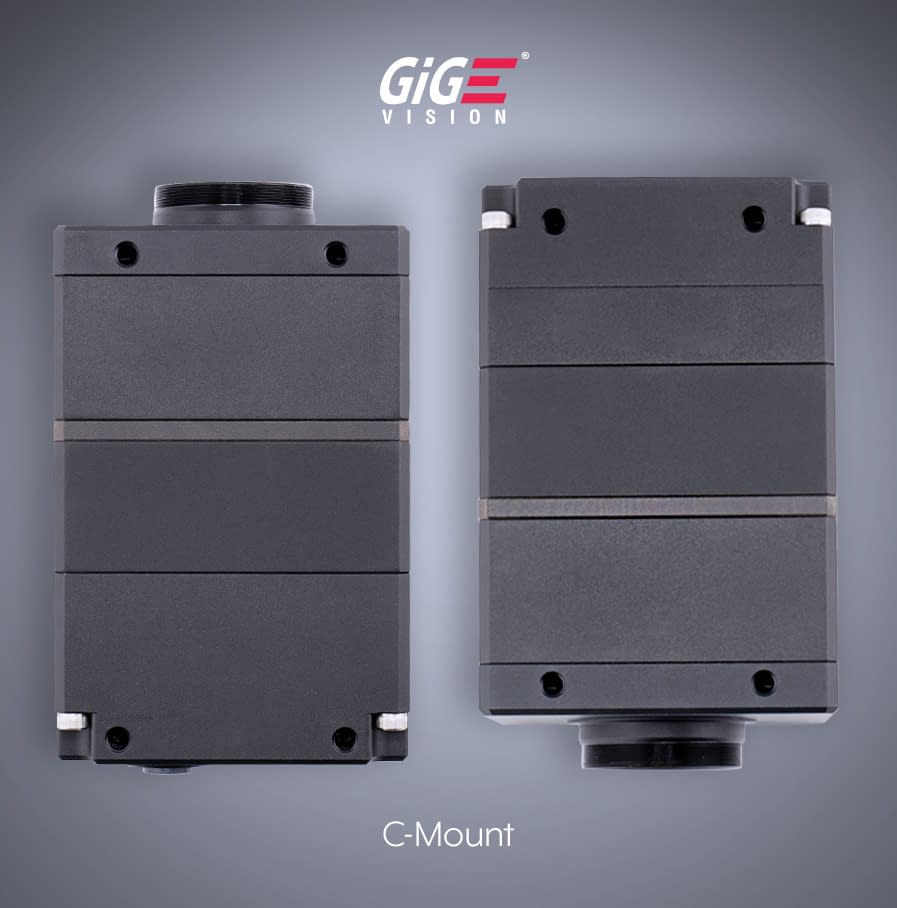

The Atlas10 SWIR camera features Sony® SenSWIR™ 3.2 MP IMX993 InGaAs sensor, delivering wide-band, high-sensitivity imaging across both visible and invisible light spectrums from 400 to 1700 nm. Built on LUCID’s Factory Tough™ platform, the camera offers a rugged IP67-rated enclosure, Power over Ethernet (PoE+), and integrated single-stage sensor cooling (TEC1) to ensure superior image quality and reliable operation across an extended temperature range. High-speed 10GigE connectivity with RDMA (RoCE v2) enables efficient, low-latency image streaming for data-intensive applications.
By capturing short-wavelength infrared (SWIR) information beyond the visible spectrum, the Atlas10 SWIR unlocks advanced industrial imaging capabilities, including food inspection and sorting, IR microscopy, semiconductor inspection, material identification, and other applications where SWIR contrast reveals critical details not visible with standard imaging technologies.
*Max FPS based on 10% Device Link Throughput Reserve for packet resend. FPS stated in brackets () based on 0% Device Link Throughput Reserve. LUCID recommends 10% reserve for stream reliability.
Imaging Properties
Image Buffer
880 MB
Image Processing
Gain, gamma, black level, LUT, pixel correction
Pixel Formats
Mono8/10/12/16
Image Modes
Decimation, Binning, ROI, horizontal and vertical flip
ADC
10, 12 bit
Gain Range
0 dB to 42 dB analog and digital
Exposure Time
20.632 μs to 10 s
Camera Features
Cooling Capability
Thermoelectric cooling (TEC) for maintaining sensor temperature
User Sets
1 default and 2 custom user set
File System Size
16 MB
Chunk Data
Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data
Acquisition start/end, exposure start/end, line rise/fall, error
Interactive graphs – please hover over the points in the graph to reveal QE %
ASX053S-WC / ASX033S-WC (Mono Visible+SWIR, Sony IMX992/993 CMOS)
Mono EMVA 1288 Results
Gain 0dB, TEC @ 20°C
Dynamic Range
50.4 dB
SNR (Max)
47.7 dB
Saturation Capacity
51125 e-
Temporal Dark Noise
155 e-
Photo Response Non-Uniformity
0.82 %
Linearity Error Max/Min
0.38/-0.49 %
Dark Current
11,780 e-/s
EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/
Drawings
Atlas10 10GigE SWIR IP67 C-Mount Drawings
Getting Started / Downloads
Getting Started / Datasheet
For camera setup visit our Getting Started Guide. It covers connecting your camera, installing Arena SDK or third-party software, enabling Jumbo Frames, assigning camera IP address, and updating firmware. SWIR Cameras Datasheet (PDF)
Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
