The Triton10, Triton2, Triton, Atlas IP67 machine vision camera and Helios2 IP67 3D Time-of-Flight camera allows users to take advantage of dust and waterproof protection at a similar cost and size of a regular camera. Get everything you need for a complete IP67 camera - lens tubes, M12 Ethernet cables, and M8 GPIO cables - all IP67 and ready for 24/7 industrial operation. Triton, Atlas IP67, and Helios2 IP67 Cameras and Accessories Explore Triton IP67 Camera ip67 logo

What is an IP67 Industrial Camera?

The Ingress Protection (IP) rating system is an internationally recognized standard that defines levels of protection against solid particles and liquids. An IP67 industrial camera is fully protected against dust and can withstand temporary immersion in water up to 1 meter for 30 minutes.

When equipped with IP67-rated lens tubes and IP67 Ethernet and GPIO cables, LUCID Triton machine vision cameras provide complete dustproof and waterproof protection. They prevent the ingress of dirt, sand, debris, and moisture, enabling reliable, high-quality imaging in harsh industrial environments without the need for bulky external enclosures.

IP67 machine vision cameras are ideal for factory automation, food processing, packaging, robotics, logistics, and outdoor inspection systems where durability, uptime, and long-term reliability are critical.


Why Choose an IP67 Machine Vision Camera?

Standard machine vision cameras are not always designed to withstand exposure to water, dust, vibration, shock, and wide operating temperature ranges. A common workaround is placing the camera inside a separate IP-rated enclosure. However, additional housings increase total system cost, weight, footprint, and installation complexity.

Choosing an IP67 industrial camera with a sealed housing eliminates the need for external protective enclosures. The camera optics and electronics are fully sealed against environmental exposure, simplifying system integration while improving long-term reliability and reducing total cost of ownership (TCO).

For demanding factory automation and machine vision systems, an IP67 GigE Vision camera provides rugged performance, reduced maintenance, and faster deployment.



By adding LUCID's IP67 sealed lens tube
and attachment ring, the camera lens can be
protected from both water and dust particles. IP67 lens tube IP67 M12 & M8 cables IP67 cables seal the back ports from
dust and water while guaranteeing
secure and reliable cable connection. What do I need? ip67 camera logo Triton Machine Vision Camera ip67 m12 and m8 cables ip67 lens tube ring ip67 Lens tube

Why Choose an IP67 Machine Vision Camera?

Machine vision cameras are not always built to endure water, dust, vibration, shock, and extreme temperature conditions. Adding a secondary IP-rated enclosure can provide protection, but it increases cost, weight, space requirements, and installation time.

An integrated IP67 industrial camera ensures that both optics and electronics are sealed and protected, allowing direct deployment into harsh environments while reducing system complexity and lowering overall costs.

IP67 Triton2, Triton, Atlas, and Helios2 Cameras and Accessories

Triton10

The Triton10 IP67 industrial camera is built on LUCID’s Factory Tough™ platform and delivers high-speed 10GigE connectivity with RDMA support for low-latency, high-throughput streaming. It also supports 5GigE, 2.5GigE, and 1GigE using the standard GigE Vision UDP protocol, enabling seamless scalability for multi-camera machine vision systems.
Visit the Triton10 product page to learn more.

Triton2

The Triton2 IP67 machine vision camera provides 2.5GigE bandwidth, delivering up to 2.5x higher frame rates compared to traditional 1GigE cameras. Designed for rugged industrial environments, it is ideal for high-speed inspection, robotics, and automation systems.
Visit the Triton2 product page to learn more.

Triton

The original cost-effective Factory Toughâ„¢ Triton IP67 camera delivers reliable GigE Vision performance with sealed industrial protection. It is well suited for dust-heavy, washdown, and vibration-intensive environments.
Visit the Triton product page to learn more.

Atlas

The Atlas IP67 industrial camera offers 5GigE bandwidth (600 Mb/s) over standard Cat5e cabling, enabling stable, high-resolution imaging over long Ethernet distances. Built for demanding factory automation environments, Atlas combines performance and environmental protection.
Visit the Atlas product page to learn more.

Helios2

The Helios2 IP67 3D Time-of-Flight (ToF) camera delivers sub-millimeter depth precision with working distances up to 8.3 meters. Featuring sealed housing, M12 Gigabit Ethernet, and PoE+ support, it is optimized for robotics, palletizing, depalletizing, and warehouse automation applications.
Visit the Helios2 product page to learn more. Helios2 models are self-contained with integrated lenses and do not require lens tubes.

IP67 Lens Tubes for Triton2 (2.5GigE), Triton (1GigE), and Atlas IP67 (5GigE) Cameras

The LUCID IPTC series of IP67 lens tubes are compatible with all Triton2, Triton, and Atlas IP67 camera models. When paired with IP67-rated cables, they create a fully sealed machine vision system capable of operating in dust-heavy, washdown, and moisture-prone environments.

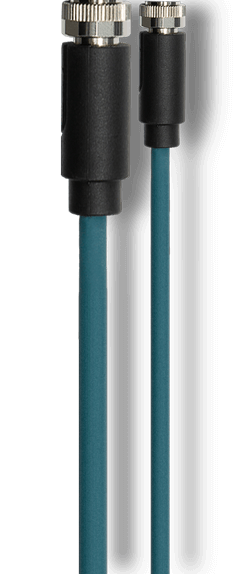

IP67 M12 Ethernet and M8 GPIO Cables

Our IP67-rated M12 data cables and M8 GPIO cables are engineered for rugged industrial operation in environments exposed to dust, dirt, vibration, and water. When used with Triton IP67 cameras, they provide complete end-to-end environmental protection.

IP67 Products
