Helios2 Narrow IP67 Time-of-Flight (ToF) 3D Camera

Name: Helios2 Narrow IP67 Time-of-Flight (ToF) 3D Camera
SKU: 175909
Availability: InStock

The Helios2 Narrow is an IP67-rated PoE 3D Time-of-Flight camera. It uses a narrower illumination to generate real-time 3D point cloud data with outstanding accuracy and precision. This results in tighter point clouds with reduced multipath errors, providing exceptional performance for targets within a narrow field-of-view (31° x 24° FoV)*. All Helios2 models provide IP67 protection and come factory calibrated and ready to use.

*The Helios2 Narrow 100 (HTN003S-100) is optimized for maximum precision and accuracy with the target placed at 75cm to 150cm distance from the front of the camera.

*The Helios2 Narrow 300 (HTN003S-300) is optimized for maximum precision and accuracy with the target placed at 150cm to infinity distance from the front of the camera.

Sensor
Sony DepthSense IMX556 CMOS

Resolution
0.3 MP 640 x 480 px

Frame Rate
30 FPS

Model SKUs	Chroma	Focus Distance	Working Distance	IP Rating	GigE Vision Connector	Included Accessory
HTN003S-100	Mono	75 cm – 150 cm	0.3 m – 8.3 m	IP67	M12	M8 GPIO IP67 Cap
HTN003S-300	Mono	150cm to infinity	0.3 m to 8.3 m	IP67	M12	M8 GPIO IP67 Cap

Please select your Helios2 Narrow model:

SKU: N/A Category: Helios Time of Flight Camera

Interactive Sample Files from Helios2 Narrow Time-of-Flight 3D Camera

The Helios2 Narrow is engineered for precision applications such as bin picking and patient monitoring. Its narrow field-of-view minimizes multipath errors and generates tighter point clouds.

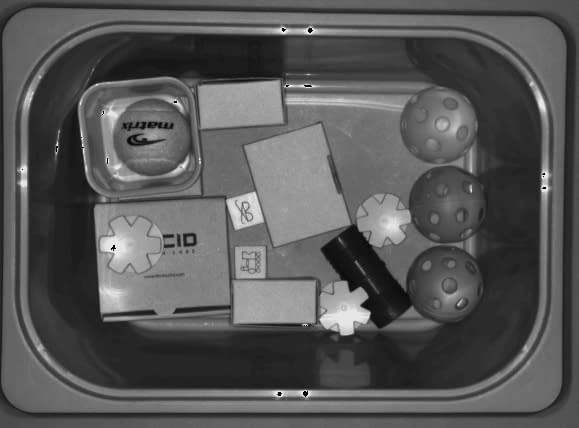

Helios2 Narrow HTN003S-100 3D Camera Point Cloud

PN: HTN003S-100
Bin targets (Indoors)
Distance from Bin: 1000 mm
Using “5m” Mode, Exposure: 1000μs
Download PLY file (PLY, 4.2 MB)

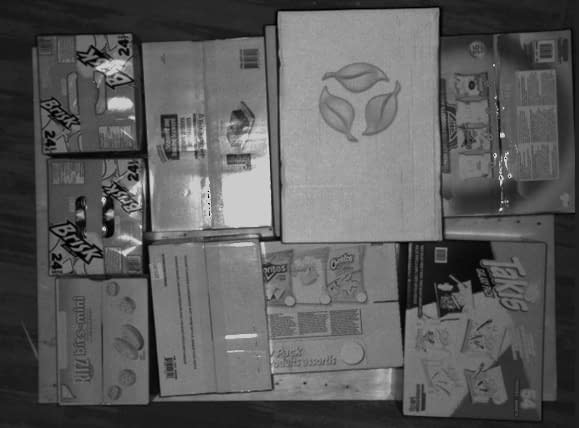

Helios2 Narrow HTN003S-300 3D Camera Point Cloud

PN: HTN003S-300
Boxes on Pallet (Indoors)
Distance from Bin: 3000 mm
Using “5m” Mode, Exposure: 1000μs
Download PLY file (PLY, 4.2 MB)

Specifications

Interface and Power Information
Digital Interface	1000BASE-T GigE, M12 X-coded
GPIO Interface	8 pin M8 connector
Opto-Isolated I/O Ports	1 input (2.5V-24V and 10.5V-24V), 1 output
Non-Isolated I/O Ports	2 bi-directional
Power Requirement	PoE+ (IEEE 802.3at) or 18-24 V ±5% through GPIO
Power Consumption	P_avg <12W, <30W peak power

Sensor Properties
Sensor Model	Sony DepthSense IMX556PLR CMOS
Shutter Type	Global
Sensor Size	8 mm (Type 1/2″)
Resolution	640 x 480 px, 0.3 MP
Pixel Size	10.0 µm (H) x 10.0 µm (V)
Framerate	30 FPS @ 0.3 MP (for all operating modes)

Physical Properties
Dimensions	60 x 60 x 77.5 mm
Weight	390 g
Ingress Protection	IP67 (For IP67 protection Helios2 must be used with IP67 cables)
Ambient Light Filter	Yes, integrated on-camera
Lens Field of View	31° x 24° (nominal)
Illumination	4 x VCSEL laser diodes, Class 1, @ 850nm

Standard and Certifications
Standard	GigE Vision v2.0, GenICam 3D
Compliance	CE, KC, FCC, RoHS, REACH, WEEE, Eye Safety Class 1 IEC/EN 60825-1:2014
Operating Temperature	-20° to 50°C (Case Temperature)
Shock and Vibration	DIN EN 60068-2-27, DIN EN 60068-2-64*
Industrial EMC Immunity	DIN EN 61000-6-2 ESD 4kV
OS Support	Windows and Linux
Software Support	Arena SDK, C++, C, C#, Python
Warranty	3 year

*Listed specification testing in progress and is subject to change

Pixel Formats
Range Data
Coord3D_ABCY16	4-ch point cloud XYZ + Intensity, 16 bits per channel, unsigned
Coord3D_ABC16	3-ch point cloud XYZ, 16 bits per channel, unsigned
Coord3D_C16	Depth map Z plane, 16 bits, unsigned
Intensity Image
Mono8	8 bit per pixel monochrome raw image
Mono12Packed	12 bit per pixel monochrome raw image
Mono12p	12 bit per pixel in bit stream, monochrome raw image
Mono16	16 bit per pixel monochrome raw image
Confidence Data
Confidence16	Confidence map, 16 bits

Imaging Properties
Exposure Control	Manual, 3 settings: 62.5 μs, 250 μs or 1000 μs
Gain Control	Manual, 2 settings: High or Low
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)
Output Format	Binary .PLY file (via Arena SDK)

Camera Features
User Sets	1 default and 2 custom user set
Chunk Data	Image, CRC, timestamp, line status, pixel format, width/height, offset X/Y, pixel dynamic range min/max
Working Distance	0.3 m to 8.33 m
Operating Distance Modes	6 Modes: (1) 1250 mm, (2) 3000 mm, (3) 4000 mm, (4) 5000 mm, (5) 6000 mm, (6) 8333 mm
Accuracy	See Performance Tab
Precision (Depth Noise)	See Performance Tab
Communication Channels	5 Channels. Allows users to operate up to 5 Helios2 cameras without interference between cameras. (Cross compatible with HTN003W-100, HTW003S-001, HTP003S-001, HLT003S-001)
Flying Pixel Filter	Yes
Intrinsic parameters available

Performance

Helios2 Narrow Performance Results
Interactive graphs

Helios2 Narrow Accuracy

Distance (m)	Accuracy
1250mm Mode (up to 1.25m)	± 4 mm
3000mm Mode (up to 3.0m)	± 10 mm
4000mm Mode (up to 4.0m)	± 10 mm + 0.25% of depth
5000mm Mode (up to 5.0m)	± 4 mm + 0.1% of depth
6000mm Mode (up to 6.0m)	± 10 mm + 0.5% of depth
8300mm Mode (up to 8.3m)	± 4 mm +0.2% of depth

Helios2 Narrow Precision

Distance (m)	1250mm Mode	3000mm Mode	4000mm Mode	5000mm Mode	6000mm Mode	8300mm Mode
0.5*	0.77 mm	1.43 mm	2.31 mm	0.60 mm	3.25 mm	0.77 mm
1	0.84 mm	1.60 mm	1.89 mm	0.64 mm	3.35 mm	0.79 mm
1.5	1.23 mm	2.58 mm	3.58 mm	0.98 mm	4.11 mm	1.24 mm
2	1.74 mm	3.01 mm	4.14 mm	1.29 mm	6.68 mm	1.62 mm
3		6.19 mm	6.95 mm	2.22 mm	9.64 mm	2.78 mm
4			10.8 mm	3.70 mm	20.3 mm	4.58 mm
5				5.34 mm	26.2 mm	6.15 mm
6					31.5 mm	7.89 mm
7						10.5 mm
8						14.1 mm

*0.5 m distance precision measured with 250 µs exposure time, all other distances using 1000 µs exposure time measured with white paper target.

Test Conditions:

Target: White paper mounted on bar attached to motion stage
Helios2 positioning: mounted on tripod, laser distance meter used to measure distance from case front to stage zero position
Camera setting: Coord3D_C16 Pixel Format, bilateral filtering OFF, camera warmed up for 20 minutes.
Imaging environment: Room light on during testing, black material used to minimize reflections off floor
Motion stage moved in 50mm steps, for each step measure depth over 10×10 pixel ROI at image center, repeat 32 times at each position
Accuracy measured as difference between camera’s average measured depth across the ROI and 32 images and the ground truth depth (stage zero distance + stage position)
Accuracy limits represent the maximum error over the depth range of a typical unit under the specified test conditions.

Drawings

Helios2 Narrow Camera Drawings

Getting Started / Downloads

Getting Started / Datasheet

For camera setup visit our Getting Started Guide. It covers connecting your camera, installing Arena SDK or third-party software, enabling Jumbo Frames, assigning camera IP address, and updating firmware.

Helios2 Datasheet (PDF)

Sign up for Helios2 download updates

Title	Filename	File Type	Version	Date	File Size
Helios2 Narrow CAD Drawings (STEP & PDFs)	HTN_Drawings_282-423-A.zip	zip	A	2024-12-18	790.6 KB
HTN003S Firmware	HTN003S_1.5.0.0_Firmware.zip	zip	1.5.0.0	2026-01-13	9.6 MB
HTN003S Technical Reference Manual	HTN003S_1.5.0.0_Documentation_English.zip	zip	1.5.0.0	2026-01-13	2.4 MB

Reset

ArenaSDK_v1.0.65.17.exe

1.5 GB

Arena SDK – Windows 11/10

Includes: ArenaView GUI, APIs, Examples, Documentation
v1.0.65.17 (Release Date: 2025-12-12). For Windows 11 (64-bit) / Windows 10 (64-bit).

Compatible with all standard camera models except Triton Smart.

Changelog

ArenaSDK_v0.1.105_Linux_ARM64.tar.gz

352.3 MB

Arena SDK – ARM64 Ubuntu 22.04/24.04

Includes: APIs, Examples, Documentation
v0.1.105 (Release Date: 2025-12-11)
Ubuntu 22.04/24.04 (64-bit). Tested on NVIDIA AGX Xavier / TX2 Development Kit.

Compatible with all standard camera models except Triton Smart, Triton2 EVS, and Helios2 Wide Chroma.

Changelog

arena_api-2.8.4-py3-none-any.zip

205.7 MB

Arena Python Package

Includes: Wheel, Examples, Documentation.
v2.8.4 (Release date: 2025-12-12)

Requirements: Python 3.6.8 or above
Minimum Compatible Arena Versions
ARENAC_WIN_VERSION_MIN = v1.0.65.0
ARENAC_LIN_VERSION_MIN = v1.0.0
ARENAC_ARM_VERSION_MIN = v0.1.99

Changelog

Compatible with all standard camera models except Triton Smart. Triton2 EVS support available only for Windows and Linux.

ArenaViewMP_v_1.0.0.10_Linux_x64.tar.gz

1.7 GB

Arena SDK with ArenaView MP (x64 Ubuntu 22.04/24.04)

Includes: ArenaView MP GUI (Beta), APIs, Examples, Documentation. v1.0.0.10 (Release Date: 2025-12-11). Ubuntu 22.04/24.04 (64-bit).

Compatible with all standard camera models.

Changelog

ArenaSDK_AVMP_v1.0.65.17.exe

1.3 GB

Arena SDK with ArenaView MP (Windows 11/10)

Includes: ArenaView MP GUI (Beta), APIs, Examples, Documentation. v1.0.65.17 (Release Date: 2025-12-11). For Windows 11 (64-bit) / Windows 10 (64-bit).

Compatible with all standard camera models.

Changelog

ArenaSDK_AVMP_Lite_v1.0.65.17.exe

506.3 MB

ArenaView MP (GUI viewer only, installer for Windows 11/10)

Includes: ArenaView MP GUI (Beta) only
v1.0.65.17 (Release Date: 2025-12-11). For Windows 11 (64-bit) / Windows 10 (64-bit).

Requires Arena SDK to be pre-installed. Compatible with all standard camera models.

Accessories

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.

Cables for Helios Models	Manufacturer Part #	LUCID Part #
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green	LUCID CAB-MR-2M-A	CAB-MR-2M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green	LUCID CAB-MR-5M-A	CAB-MR-5M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark Green	LUCID CAB-MR-15M-A	CAB-MR-15M-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m	LUCID CAB-MR-5M-RA1-A	CAB-MR-5M-RA1-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m	LUCID CAB-MR-15M-RA1-A	CAB-MR-15M-RA1-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m	LUCID CAB-MR-5M-RA2-A	CAB-MR-5M-RA2-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m	LUCID CAB-MR-15M-RA2-A	CAB-MR-15M-RA2-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas/Helios Side] – 5m	LUCID CAB-MR-5M-RA3-A	CAB-MR-5M-RA3-A
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas/Helios Side] – 15m	LUCID CAB-MR-15M-RA3-A	CAB-MR-15M-RA3-A
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA1-A	GPIO-M8-5M-RA1-A
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA2-A	GPIO-M8-5M-RA2-A

Tripod Mount Adapter & Misc
Helios2 Tripod Adapter	ATL-TR	ATL-TR
M8 GPIO IP67 Low Profile Cap	CAP-M8-A	CAP-M8-A

Breakout Boards
M8 GPIO Breakout Board + M8-M8 IP67 Cable 1M Kit	GPIO-M8-BRK-KIT001	GPIO-M8-BRK-KIT001

PoE+ Interface Cards, Power Supply
NOTE: The Helios2 / 2+/ Narrow requires a IEEE 802.3at (PoE+) compliant interface card or injector for proper operation. The Helios2 Ray / Wide are NOT PoE and requires GPIO power supply.
LR-LINK PCIe GigE Vision PoE+ Card	LR-LINK LRES2001PT-POE	PCIE-POE1-LR
2-CH PCIe GigE Vision PoE+ Card	LR-LINK LRES2002PT	PCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1
Procet 1/2.5/5.0GbE 30W PoE+ Injector (802.3af/at, NA/EU)	Procet PT-PSE104G-30-5	POEP-PT-5G, POEP-PTEU-5G
